SainSmart Leonardo R3+12864 LCD+Sensor Shield V5 Kit For Arduino AVR ATmega8U2

brand: SainSmart SKU: 20-011-D13
$39.99
Oops, 0 In Stock

SainSmart Leonardo R3 Improved Version Board

The SainSmart Leonardo is a microcontroller board based on the ATmega32u4 . It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Microcontroller

ATmega32u4

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

20

PWM Channels

7

Analog Input Channels

12

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega32u4) of which 4 KB used by bootloader

SRAM

2.5 KB (ATmega32u4)

EEPROM

1 KB (ATmega32u4)

Clock Speed

16 MHz

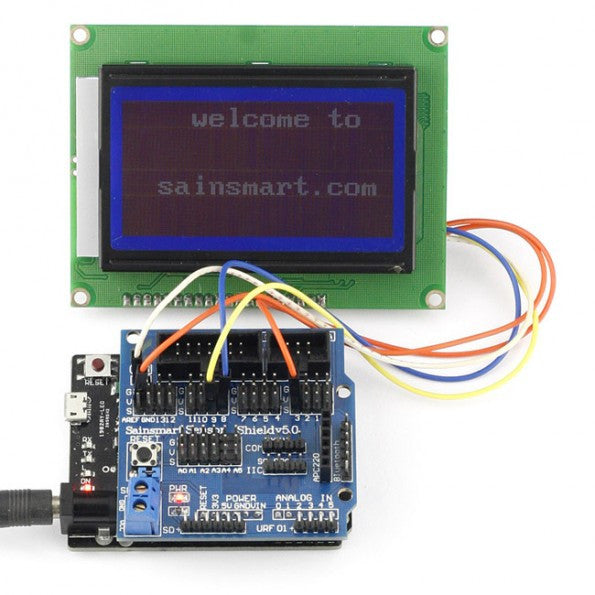

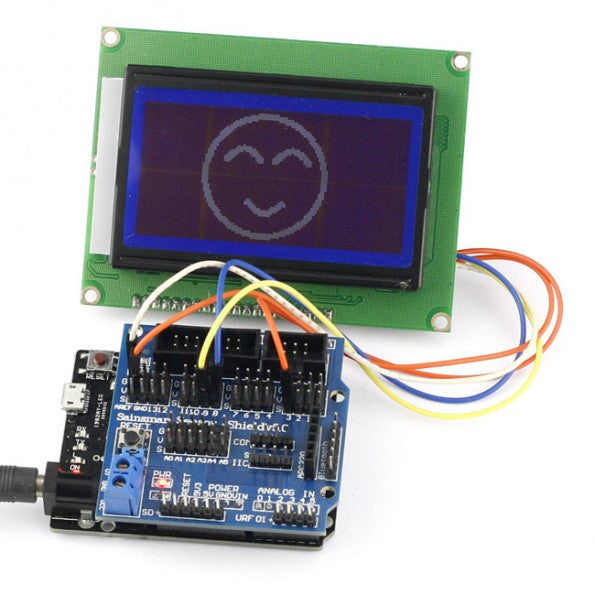

SainSmart 12864 LCD:
This is a 128x64 liquid crystal display that support Chinese character , English characters and even graphics, very suitable for interactive work with Arduino.
Voltage: 5V
With Chinese font
Blue backlit
Controller: ST7920
Size: 93x70mm

SainSmart Sensor Shield V5:
Ready to  plug & play.
It can connect to various modules like sensors, servos, relays, buttons, potentiometers
Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

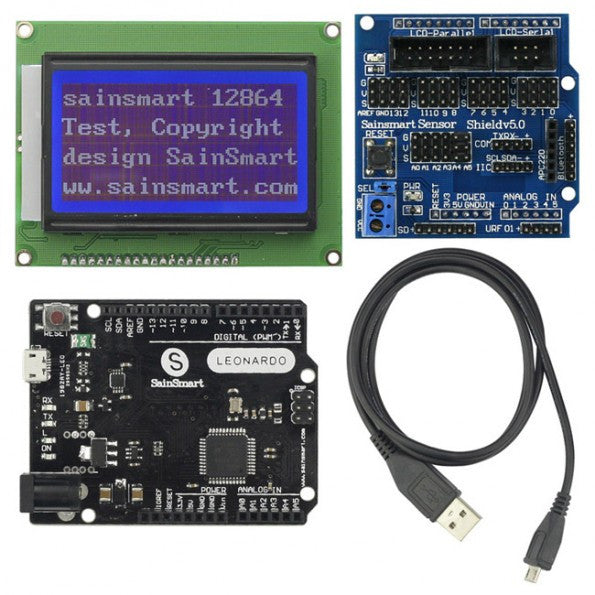

Package List:
1x SainSmart 12864 LCD Shield
1x SainSmart Sensor Shield V5
1x SainSmart Leonardo R3
1x USB Cable
