SainSmart MDP-P905 Mini Digital Programmable DC Power Supply

brand: SainSmart SKU: 101-92-MDPP905 Variants ID: 31659517739087

Mini Digital Power System

MDP is a system of programmable linear DC power supply based on a modular design, capable of connecting different modules for use as needed. MDP-P905 provides a programmable output, timing output, sequential control, automatic compensation, which can meet diversiform testing needs.

Space-saving Design

Best of all it comes in a lightweight (1.1 pounds) and easy to carry design. If you own it you never have to worry about taking up much room while using, it will fit on your workbench very nice. When in comparison with most other large-size power supplies on the market, this one is definitely the most space-saving to choose.

Wide Input Voltage Range

In some applications, the input voltage is not well regulated and can fluctuate significantly. But this digital power module can accept a DC input between 4.2V and 30V, which is reduced up to 2.7V after startup. A wide input range allows a system to continue operating even when the supply voltage is not stable.

Simple to Use

Operation is simple and easy, using taps and swipes much like any smartphone.

Safety Protection

Input over-voltage protection, under-voltage protection, anti-reverse connection protection and output anti-backflow protection, over-temperature protection, over-current protection.

$169.99 FREE SHIPPING
OVERVIEW

Think about the traditional DC power supply on your workbench: could there be a smaller model that could take up less room on your workspace? The new SainSmart MDP-XP linear DC power supply is just the thing you have been looking for!

SPECIFICATIONS
  • Model: MDP-P905
  • Input: DC4.2V-30V(After startup 2.7V), 100mA-6A, Support QC3.0
  • Output: 30V/5A,90W
  • Adjustment Rate: Load adjustment rate < ±0.01%; Power adjustment rate < ±0.01%;
  • Ripple and Noise: 250uVrms/3mVpp
  • Transient Response Time: ≤4uS
  • Line Loss Compensation: 5mR-100mR
  • Protection: Input over-voltage, under-voltage, anti-reverse, output anti-backflow, over temperature;
  • Data Recording: Max storage: 7MB; Max recording time: 24 hours;

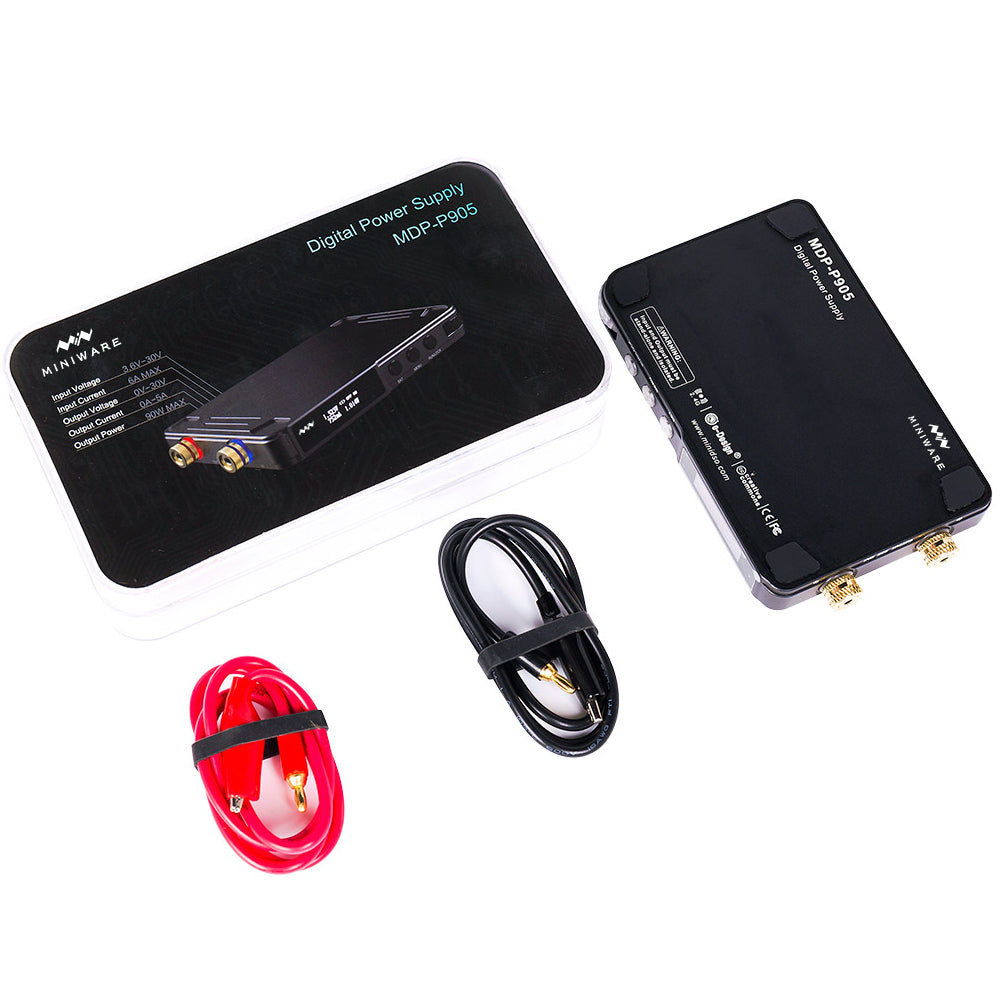

WHAT'S IN THE PACKAGE
  • 1 x MDP-P905 Digital Power Supply

  • 1 x Power Cable Set

  • 1 x Manual
