Mega2560+LCD Keypad+Prototype Shield V3 Kit

brand: SainSmart SKU: 20-011-C26
$16.99 $32.99 Save $16.00
Ship to
Only 3 in stock. Order now!

NEW SainSmart Mega2560+LCD Keypad+Prototype Shield V3 Kit 4 Arduino ATMEL ATMEGA

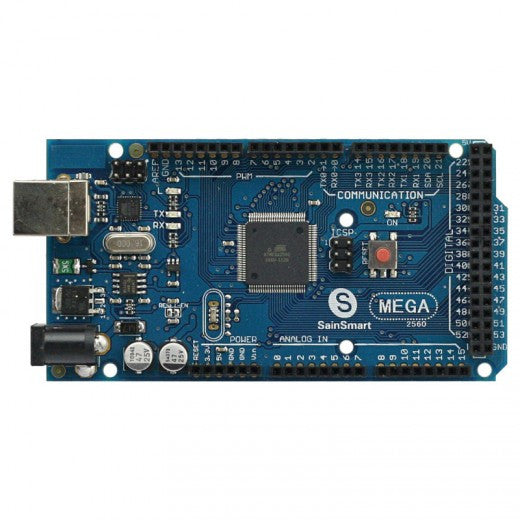

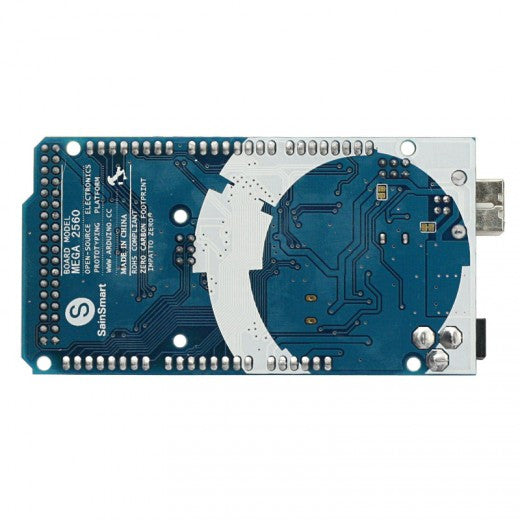

SainSmart Mega2560:

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 14 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz

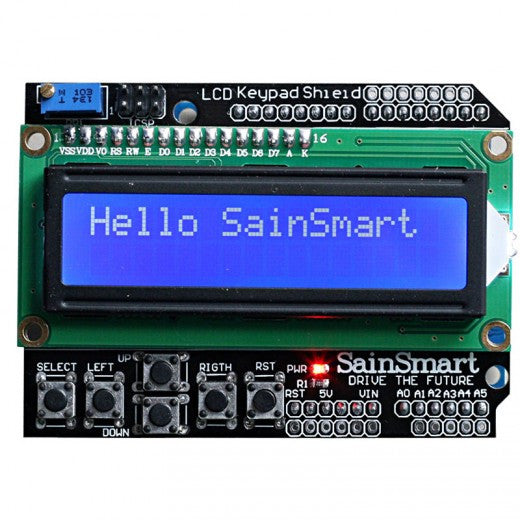

SainSmart 1602 LCD Keypad Shield:

  •     This is a 16x2 LCD Keypad module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
  •     Blue Backlight with white words, adjustable backlighting.
  •     4 Bit Arduino LCD Library
  •     100% brand new and high quality

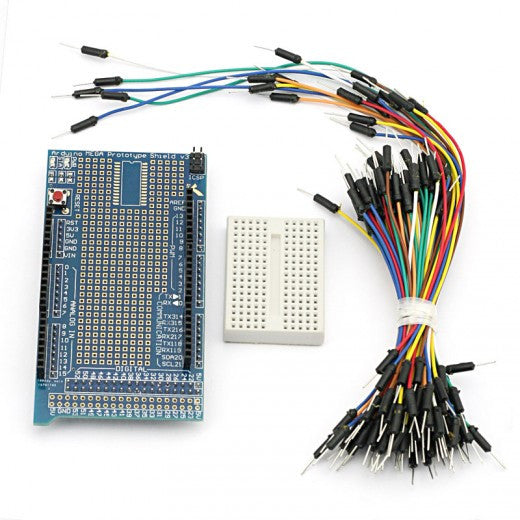

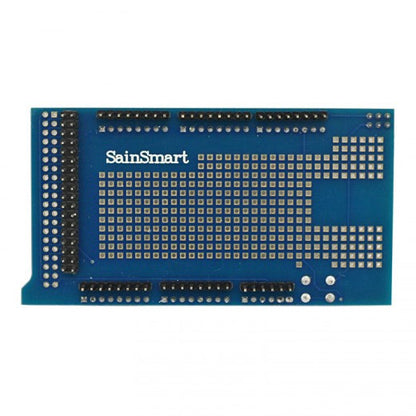

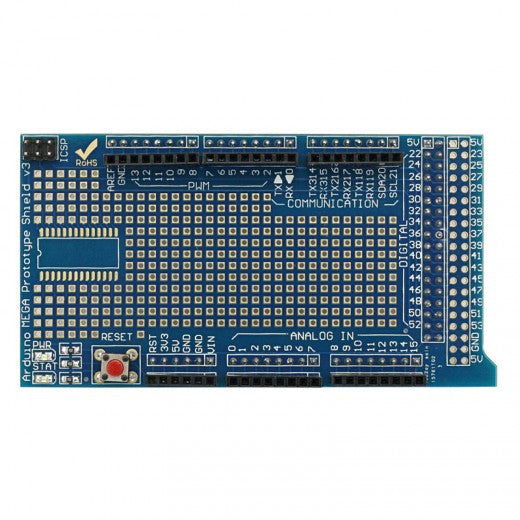

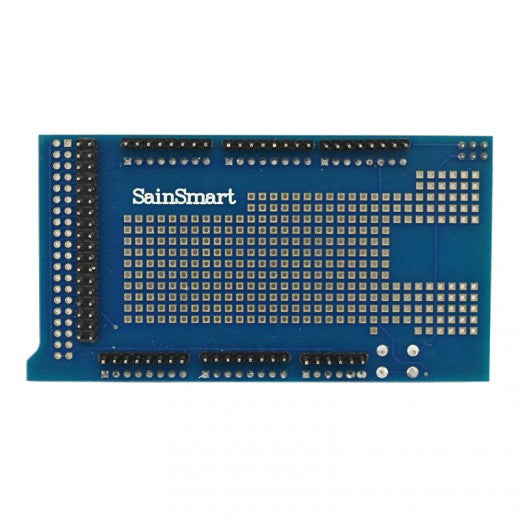

SainSmart Prototype Shield V3:
Features :

  • MEGA ProtoShield V3 Prototype Shield Gold PCB processing technology, motherboards, small gold square pad spacing, welding components easier.

SOP28 SMD component package to be more handy electronics enthusiasts will not be directly insert bound components.

  • The board can not only receive MEGA seamless plug controller, directly soldered to the above components to complete a variety of prototype circuit, you can paste Mini bread board, through the 7-color jumper to complete a variety of circuit experiment , board integrated power indicator and status lights, and reset buttons, easy to learn MEGA preferred prototype controller expansion board.
  • Fully Compatible with Mega ATmega1280
  • Size:20cm x 15cm

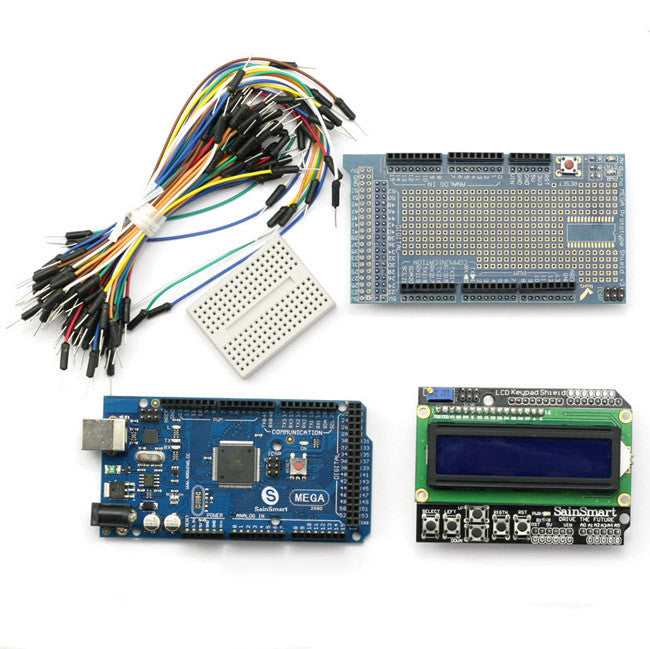

Package List:
1x SainSmart Mega2560
1x SainSmart 1602 LCD Keypad Shield
1x SainSmart Prototype Shield V3
1x Mini Breadboard
65x Jumper Cable
1x USB Cable
