Brand: SainSmart SKU: 20-011-C91

[Discontinued] Sainsmart Mega2560 R3+1.8''LCD Display +Sensor Shield V5 Module For Arduino Robot

SKU: 20-011-C91 Variants ID: 45100399124
$42.99


SainSmart Mega2560 R3:

*1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
*Stronger RESET circuit.
*Atmega 16U2 replace the 8U2

SainSmart SensorShield Module V5:

  • Ready to  plug & play.
  • It can connect to various modules like sensors, servos, relays, buttons,potentiometers
  •  Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.


SainSmart 1.8" Serial TFT LCD Display:

  • Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
  •  Display Color: 262K colors;
  •  Backlight Type: LED
  •  Resolution: 128W * 160H Dots
  •  Board Size: 5.00 x 3.4cm
  •  View Area: 28.03W * 35.04H mm
  •  Dot Size: 0.06W * 3 * 0.18H mm
  •  Dot Pitch: 0.18W * 0.18H mm
  •  Viewing Angle: 6 o'clock
  •  SPI Bus interface
  •  IC Driver: ST7735R
  •  5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly

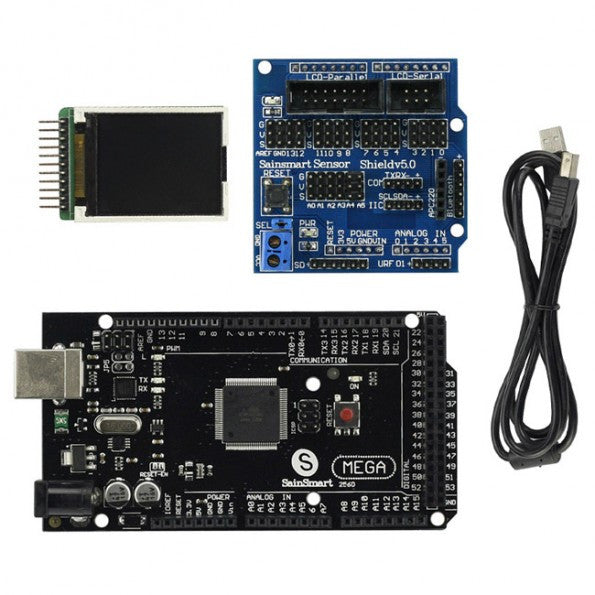

Package List:
1x SainSmart Mega2560 R3
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable
