Brand: SainSmart SKU: 20-011-C86

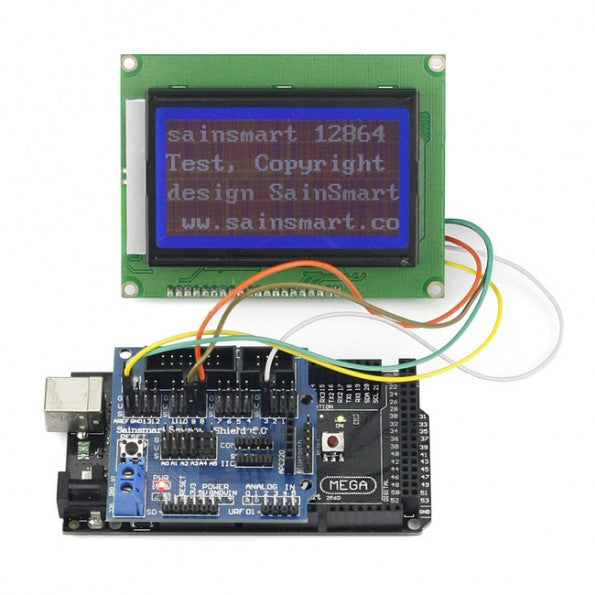

[Discontinued] SainSmart Mega2560 R3+12864 LCD+Sensor Shield V5 Kit For Arduino AVR ATmega8U2

SKU: 20-011-C86 Variants ID: 45100389780
$46.94


SainSmart Mega2560 R3:

*1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
*Stronger RESET circuit.
*Atmega 16U2 replace the 8U2



SainSmart 12864 LCD:
This is a 128x64 liquid crystal display that support Chinese character , English characters and even graphics, very suitable for interactive work with Arduino.
Voltage: 5V
With Chinese font
Blue backlit
Controller: ST7920
Size: 93x70mm

SainSmart Sensor Shield V5:
Ready to  plug & play.
It can connect to various modules like sensors, servos, relays, buttons, potentiometers
Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

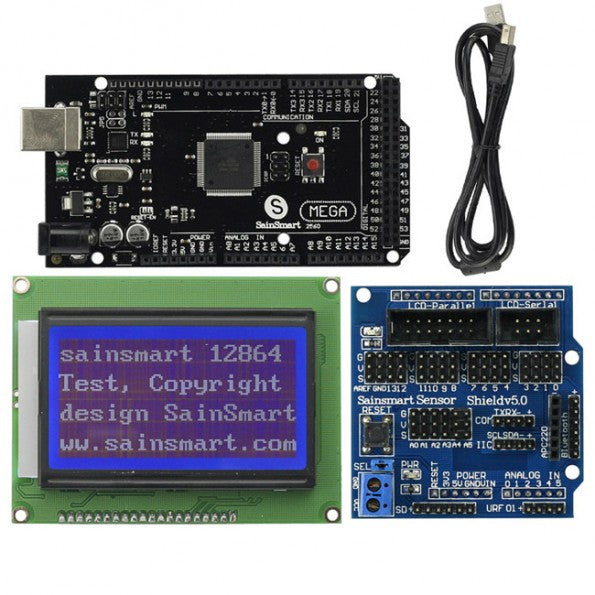

Package List:
1x SainSmart 12864 LCD Shield
1x SainSmart Sensor Shield V5
1x SainSmart Mega2560 R3
1x USB Cable
