[Discontinued] SainSmart Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN L/C/R

FUNCTION

• Add boot voltage detection function
• Automatic detection of NPN and PNP transistors, N -channel and P-channel MOSFET, diodes (including dual diode), thyristors, transistors, resistors and capacitors and other components
• Automatic test out the pin element and displayed on the LCD
• Can be detected to determine the transistor emitter forward bias voltage of the transistor, MOSFET protection diode and the amplification factor of the base
• Measure the gate threshold voltage and gate capacitance of the MOSFET
• 1602 lcd display uses LCD (12864 LCD with backlight )
• High test speed, valid component test: 2 seconds ( except in the larger capacitor of large capacitance measurement also takes a long time , the measured time of one minute is normal )
• One button operation , power-on test , get a key
• Power consumption off mode : less than 20 nA of
• Auto power off function to avoid unnecessary waste, saving battery power, improved battery life.

Notice: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter

WHAT'S IN THE PACKAGE

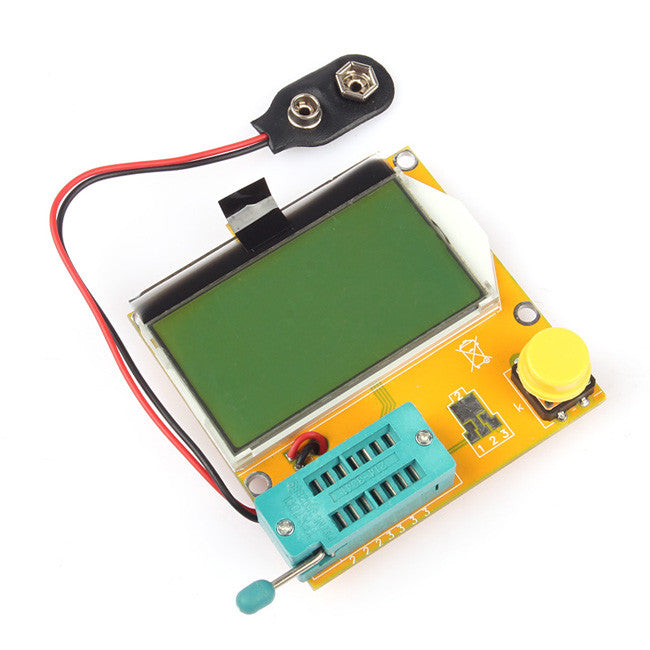

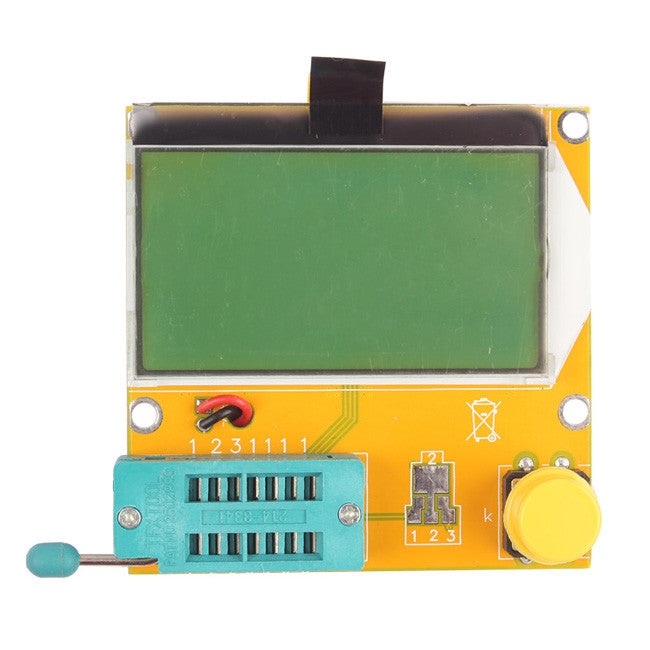

1x LCR-T3 Graphical Multi-function Tester
