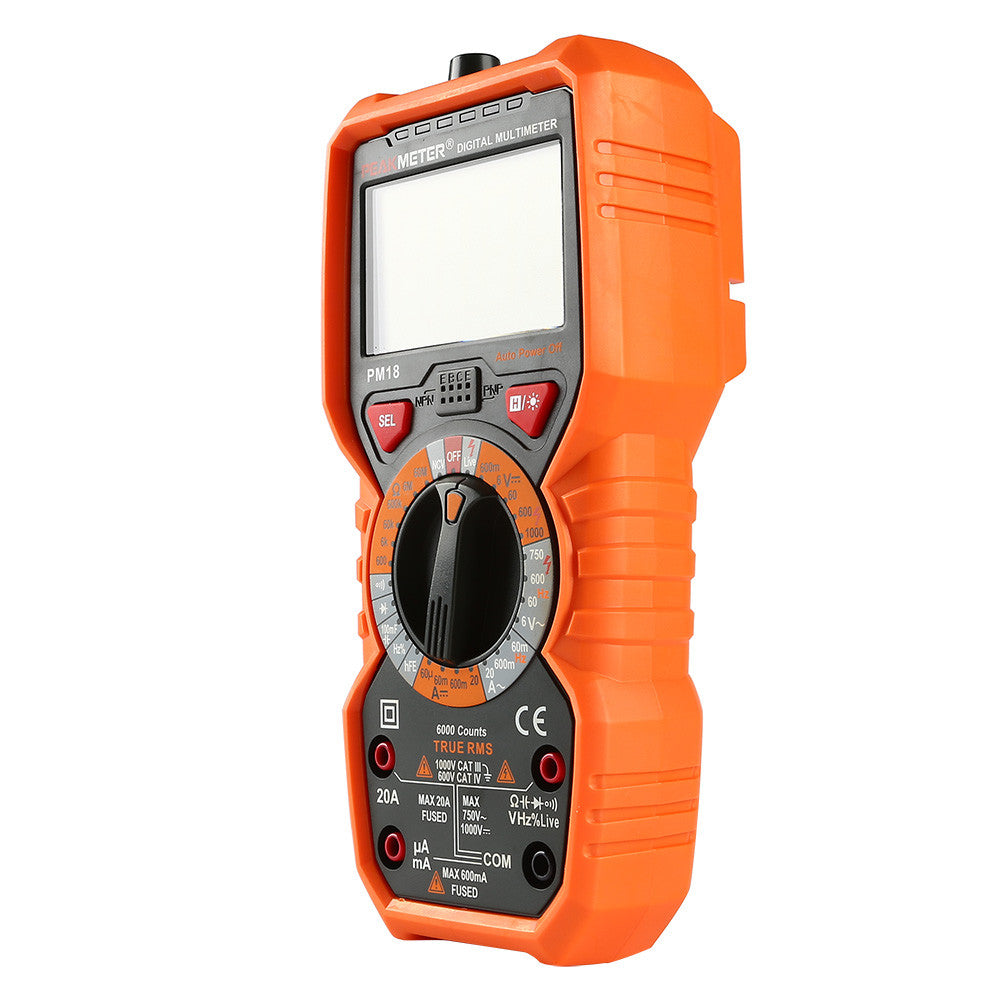

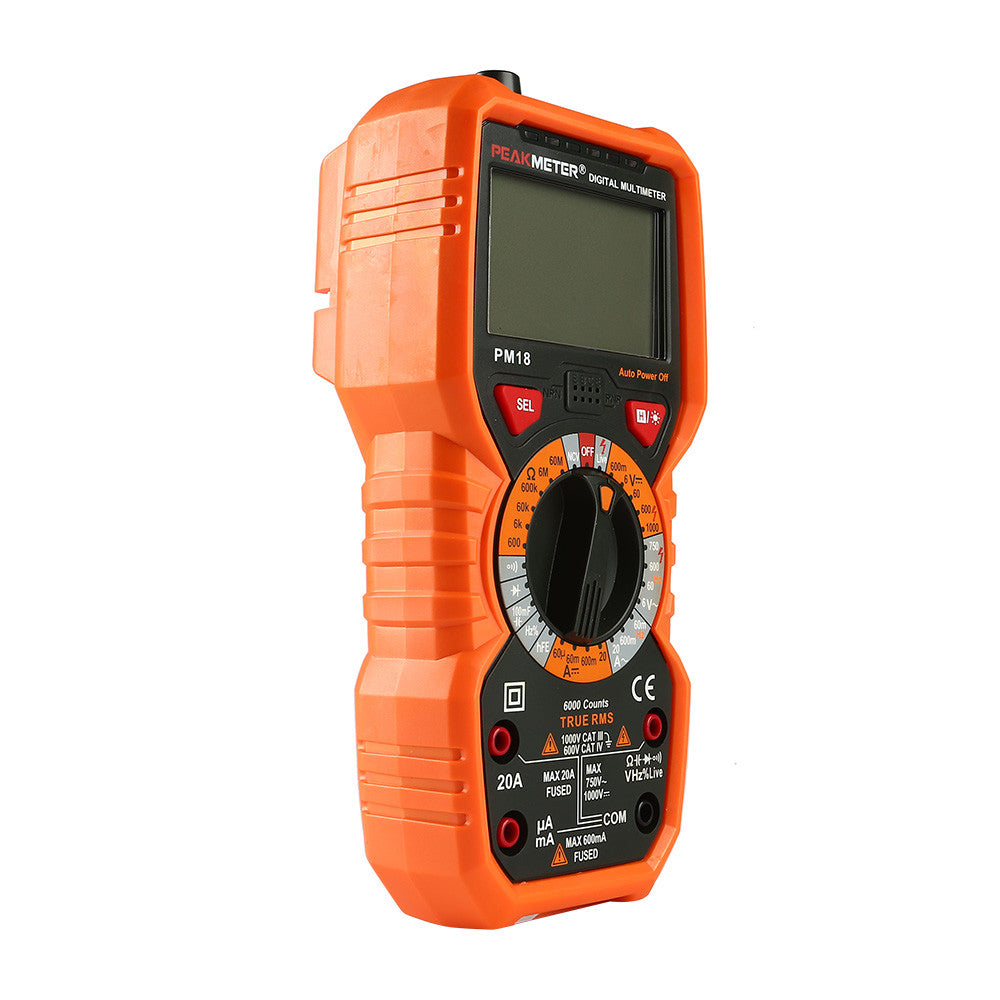

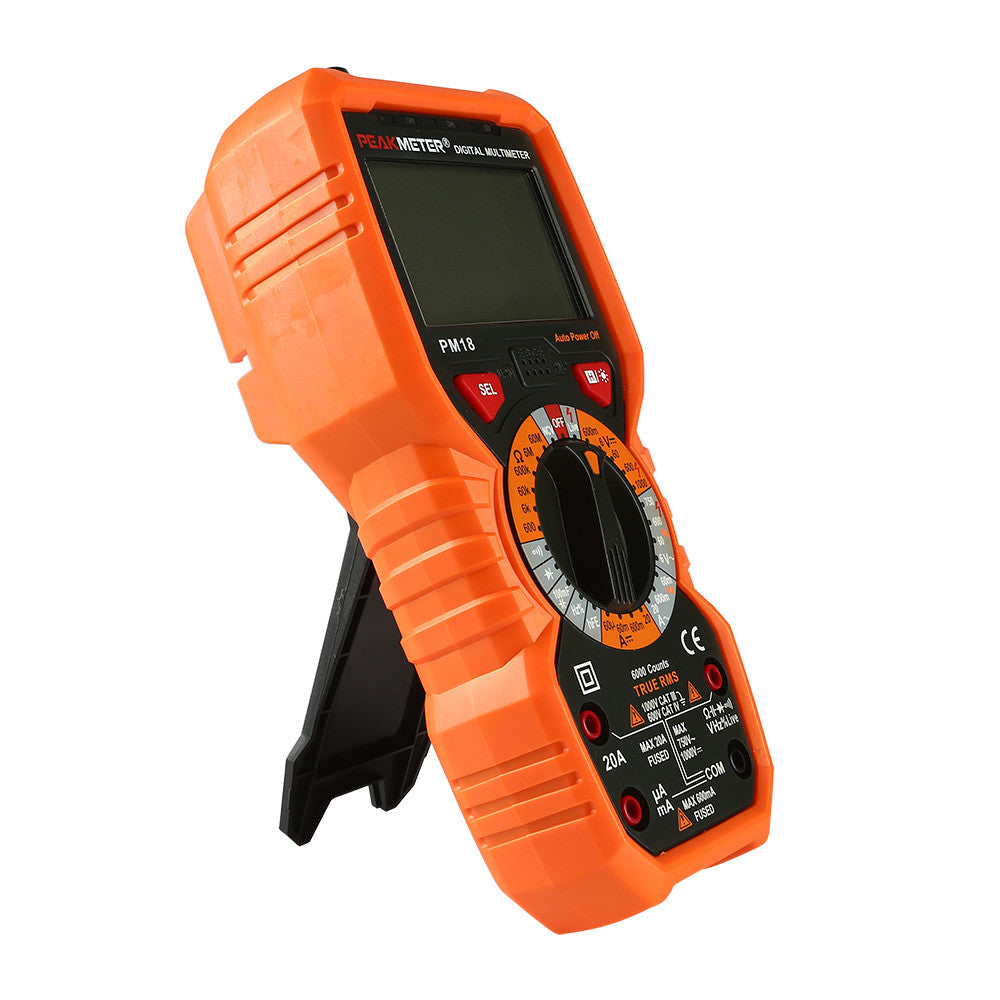

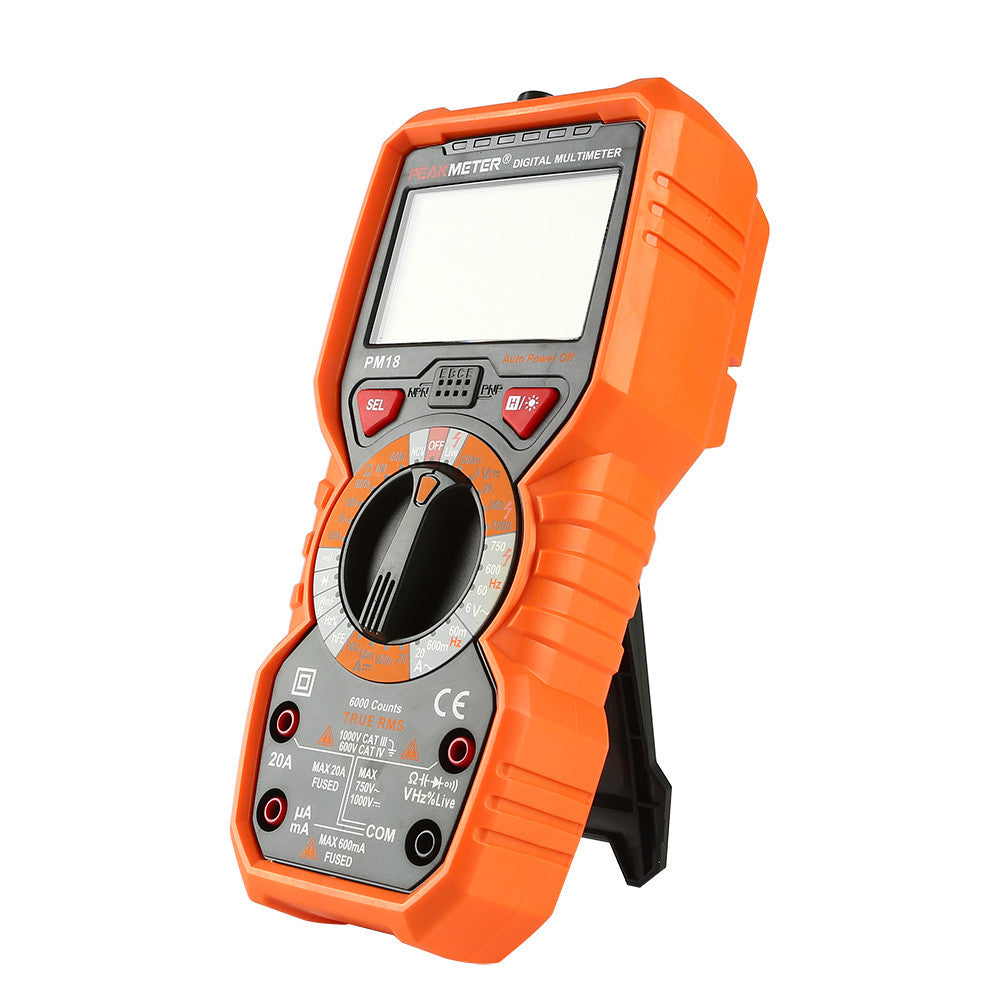

PM18 Digital Multimeter High Precision AC DC Current Voltage Digital Meter Tester

brand: SainSmart SKU: 101-92-312
$25.99
Oops, 0 In Stock

Features:

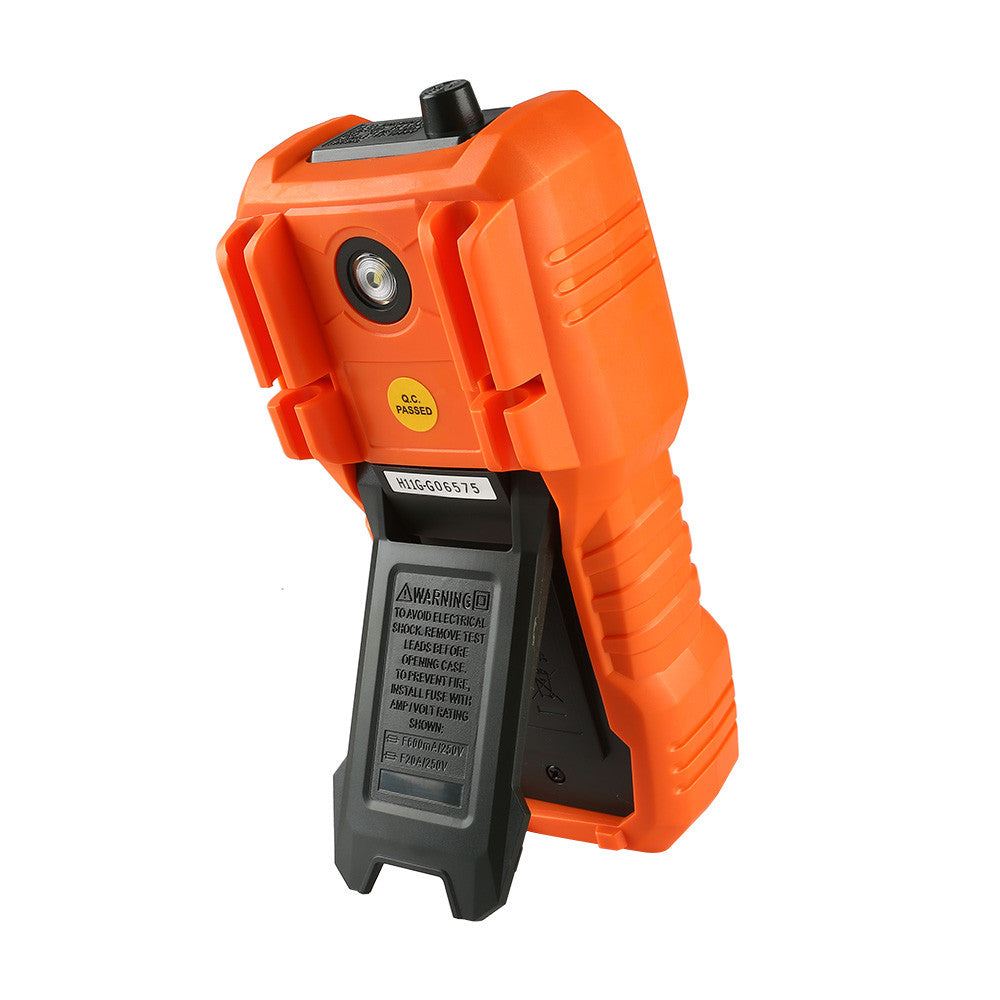

The design for the PM18 meter shows a great deal of originality Backlit LCD with large digits and the flashlight on the back for visibility in dimly lit areas The non_contact voltage indicator makes the dangerous visible Displays results quickly with 2-3 readings per second update speed Provide display up to 6000 counts

http://www.selloutsoon.com/albums/SKU/BBU/SainSmart/10/101-92-312/101-92-312/06.jpghttp://www.selloutsoon.com/albums/SKU/BBU/SainSmart/10/101-92-312/101-92-312/03.jpg


Specifications:

  • DC Voltage Range snd Accuracy: 600mV/6V/60V/600V ±(0.5%+3), 1000V ±(0.5%+3)AC
  • Voltage Range snd Accuracy: 6V/60V ±(0.8%+3), 600V/750V ±(1%+10)DC Current Range snd Accuracy: 60μA/60mA/600mA ±(0.8%+3), 20.00A ± (1.2%+3)
  • AC Current Range snd Accuracy:60mA/600mA ±(1%+3), 20A ±(1.5%+3)
  • Resistance Range snd Accuracy: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(0.8%+3), 60MΩ ±(1.2%+3)
  • Capacitance Range snd Accuracy: 6nf/60nf/600nf/6uf/60uf/600uf/6MF ±4.0%+3, 60MF ±5.0%+3
  • Frequency Range snd Accuracy: 0/600/6k/60k600k/6m/10Mhz ±1.0%+3
  • Display: 6000 counts
  • Data hold: √Â?/span>
  • Back light: √Â?/span>
  • Auto power off:√Â?/span>
  • Diode test: √Â?/span>
  • Triode test: √Â?/span>
  • Continuity: √Â?/span>
  • Transistor:âˆ?
  • Live Line testing:√Â?/span>
  • Over load protection:âˆ?/span>
  • Short-circuit protection:âˆ?
  • Power Supply: 4 x 1.5V AA (Not included)
  • Dimensions: 7.5 x 3.5 x 1.9 inch
  • Safety Rating: CE, EN61010-1-2-030 CAT III 1000V CAT IV 600V EN61010-2-033, ROHS

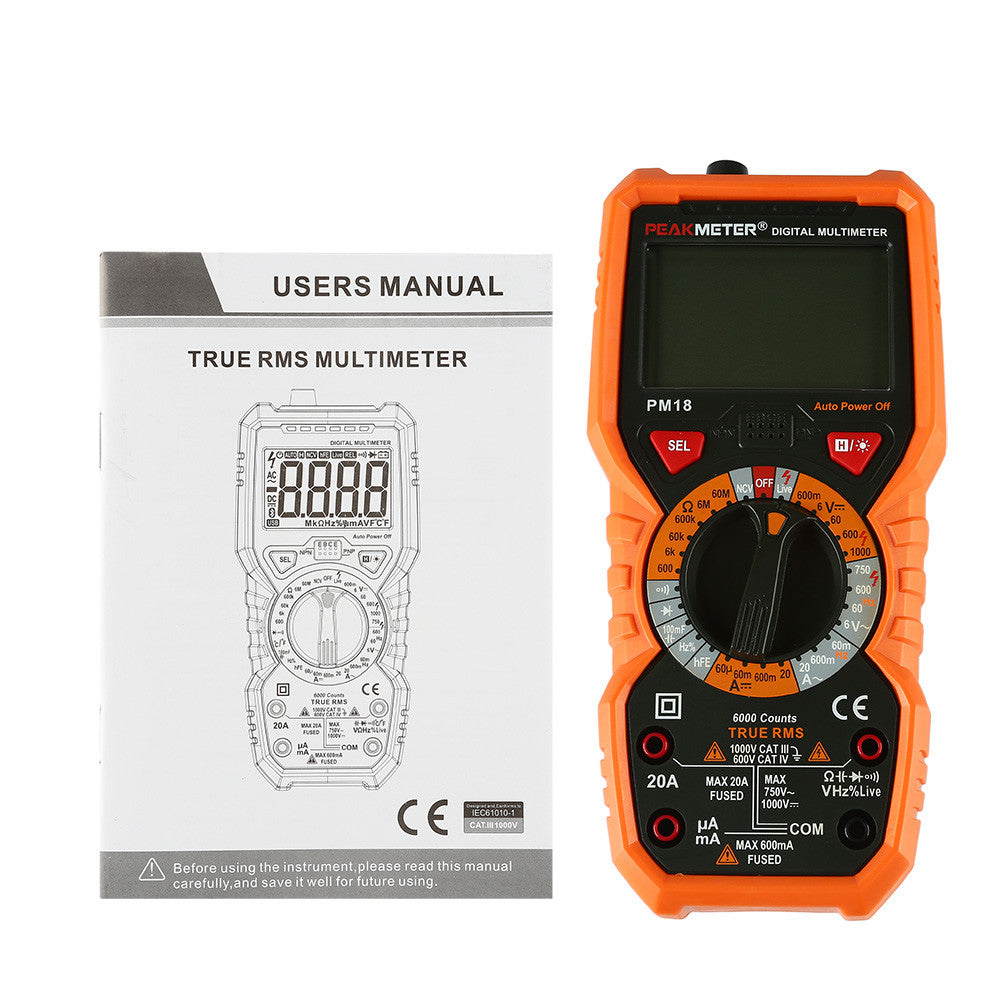

Package List:



  • 1 x PM18 Digital Multimeter

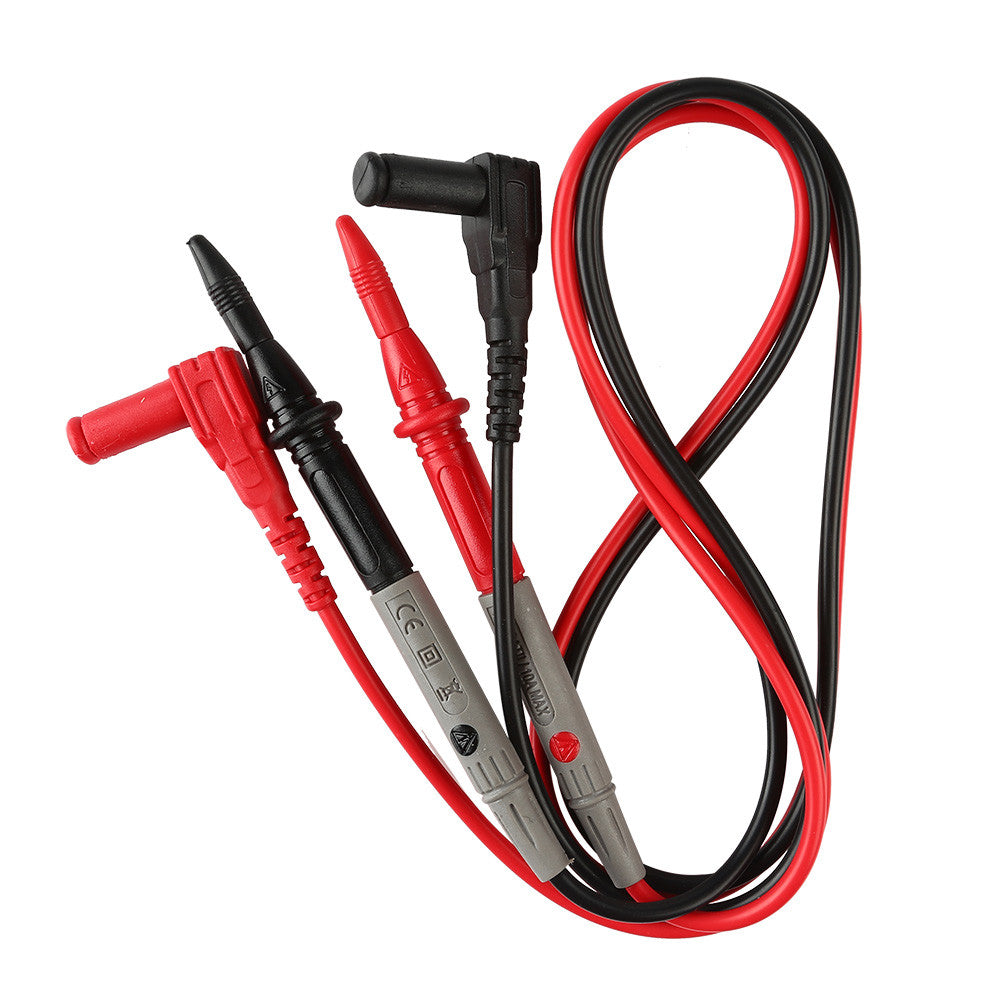

  • 1 x Test Leads (1 pair)
  • 1 x User's Manual



NOTE:Please read relevant informations carefully and observe all the warnings and notes strictly.
