SainSmart Raspberry Pi 3 Ultimate Kit : Case with Fan + 8GB SD + Breadboard + HDMI + 40 Pins GPIO +Aluminium Heatsinkbrand: SainSmart SKU: 20-011-E18
An exclusive Ultimate Kit from SainSmart that includes the latest edition of the Raspberry Pi family - The Raspberry Pi 3 Model B and everything you need to get up and running within minutes in the exciting world of Raspberry Pi!

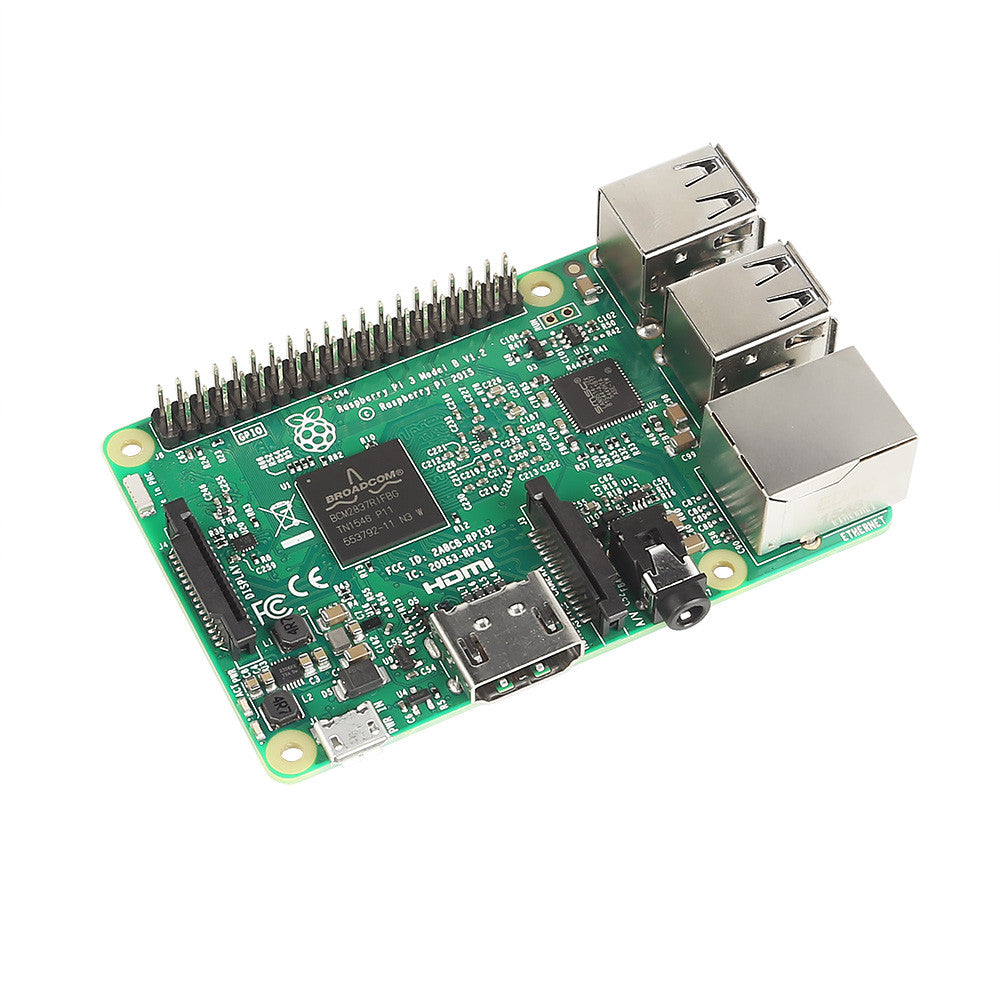

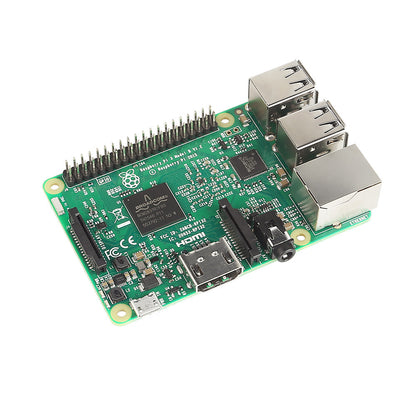

- Raspberry Pi 3 Model B 1GB RAM 1.2GHz Quad Core CPU *Latest Version 2016*
The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B.
Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processor, 10x faster than the first generation Raspberry Pi.
Additionally it adds wireless LAN & Bluetooth connectivity making it the ideal solution for powerful connected designs.
Raspberry Pi 3 - Model B Technical Specification:
- Broadcom BCM2387 chipset
- 1.2GHz Quad-Core ARM Cortex-A53
- 802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
- 1GB RAM
- 64 Bit CPU
- 4 x USB ports
- 4 pole Stereo output and Composite video port
- Full size HDMI
- 10/100 BaseT Ethernet socketbr
- CSI camera port for connecting the Raspberry Pi camera
- DSI display port for connecting the Raspberry Pi touch screen display
- Micro SD port for loading your operating system and storing data
- Micro USB power source
- High Quality Clear Case with Cooling Fan
This easy to assemble case,manufactured from high quality thick acrylic,will provide your Raspberry Pi 2 and Raspberry Pi B+ quite good cover.The Mini Fan features include high airflow,high static pressure,high temperature resistance and long service life. Good for your choice.
- Compatible with Latest Version Raspberry Pi 2 Model and Raspberry Pi B+
- Special design to install a cooling fan (size:3*3cm)
- The cooling fan is DC 5V 0.2A

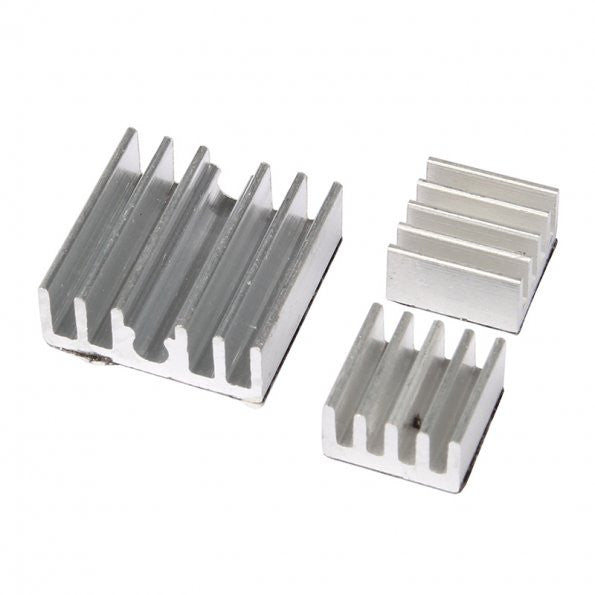

- Adhesive Aluminium Heatsink
The Heatsink have a layer of adhesive on the back of them. Simply peel the adhesive off and stick onto your board.
This heatsink set is specially designed for Raspberry Pi, it's function is to cool down the board and make your Raspberry operate safely.
Reduce the risk of hardware failure because of overheating.

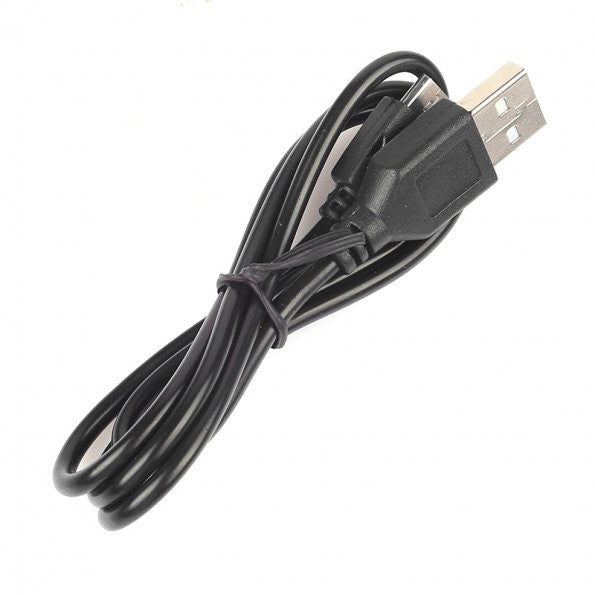

- 5V 2A USB Power Supply Charger for Raspberry Pi + USB Cable
5V 2A Universal Wall Charger adapter for Raspberry Pi.
INPUT: AC:100V-240V 50/60HZ
OUTPUT: DC:5V 2A
- SainSmart Black GPIO adapter board + Breadboard + Terminated ribbon cable
SainSmart Black GPIO expansion kits, contains three items: a 40-pin GPIO adapter board, a breadboard and a terminated ribbon cable.

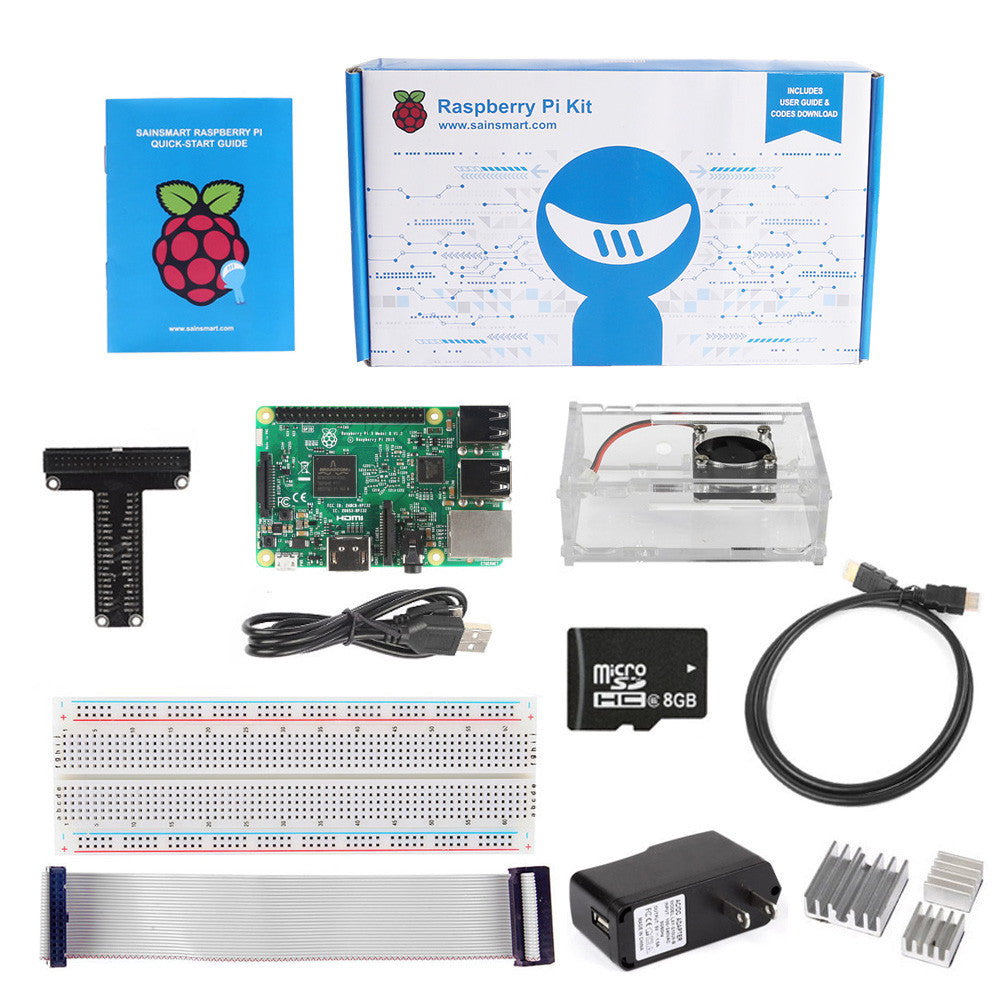

- 1x New Raspberry Pi 3 Model B
- 1x SainSmart Transparent Clear Case Enclosure Box + Cooling Fan
- 3x Aluminum Heatsink
- 1x Rainbow cable
- 1x Breadboard
- 1x Black 40-pins GPIO adapter board kits
- 1x HDMI Cable
- 1x 8GB MicroSD card
- 1x 5V Micro USB Charger
The Raspberry Pi 3 has an identical form factor to the previous Pi 2 (and Pi 1 Model B+) and has complete compatibility with Raspberry Pi 1 and 2.
Note: All the existing Raspberry Pi 2 accessories and kits are fully compatible with the Raspberry Pi 3.
