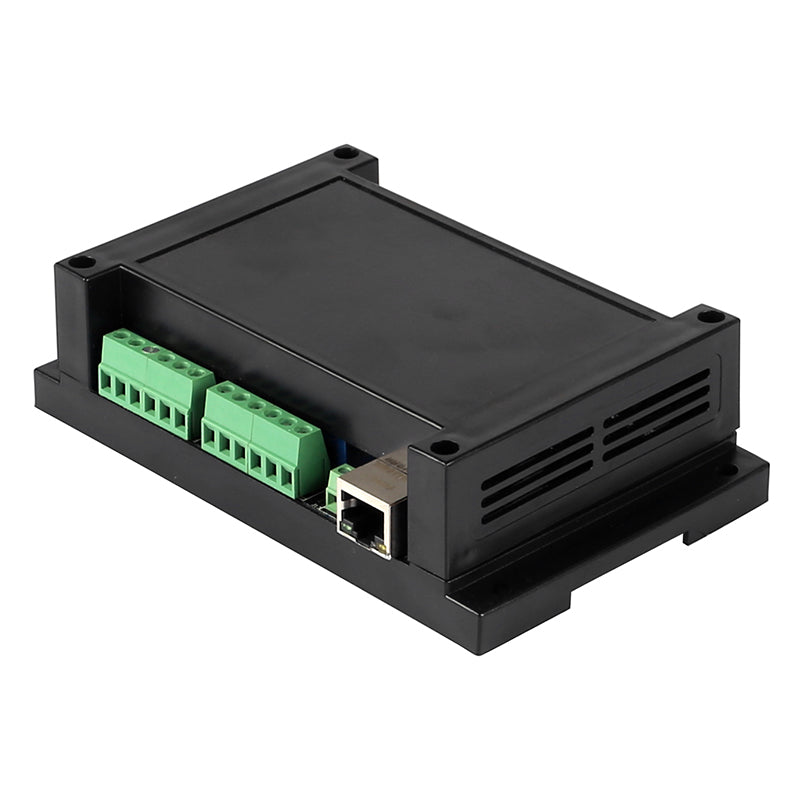

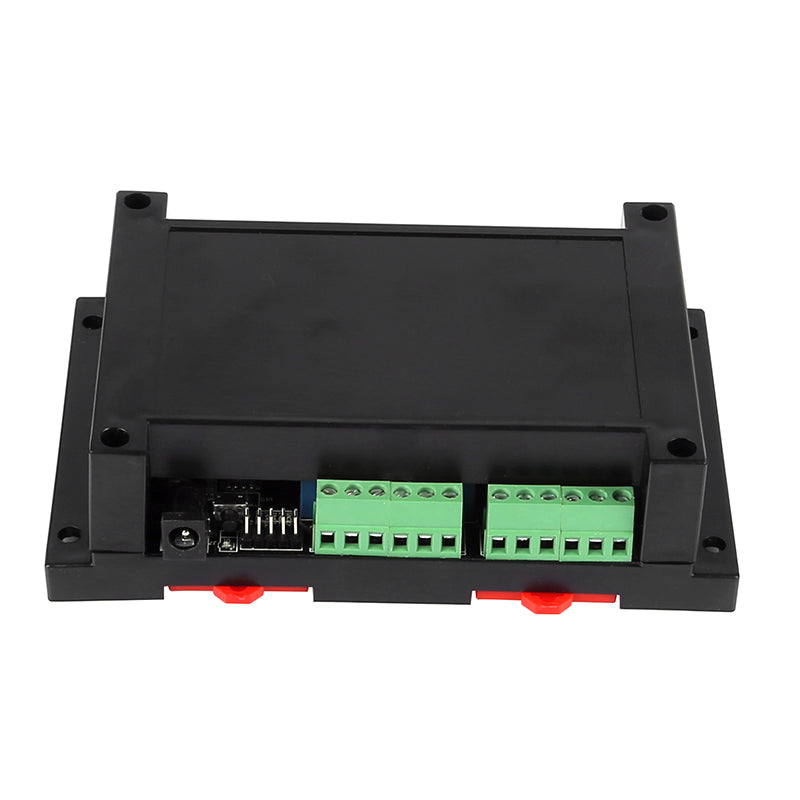

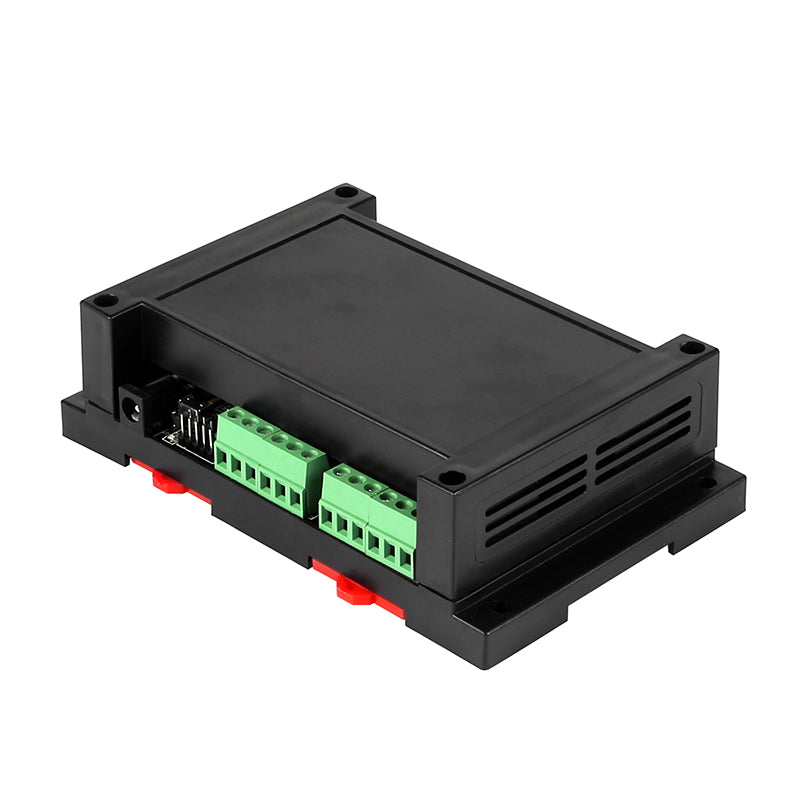

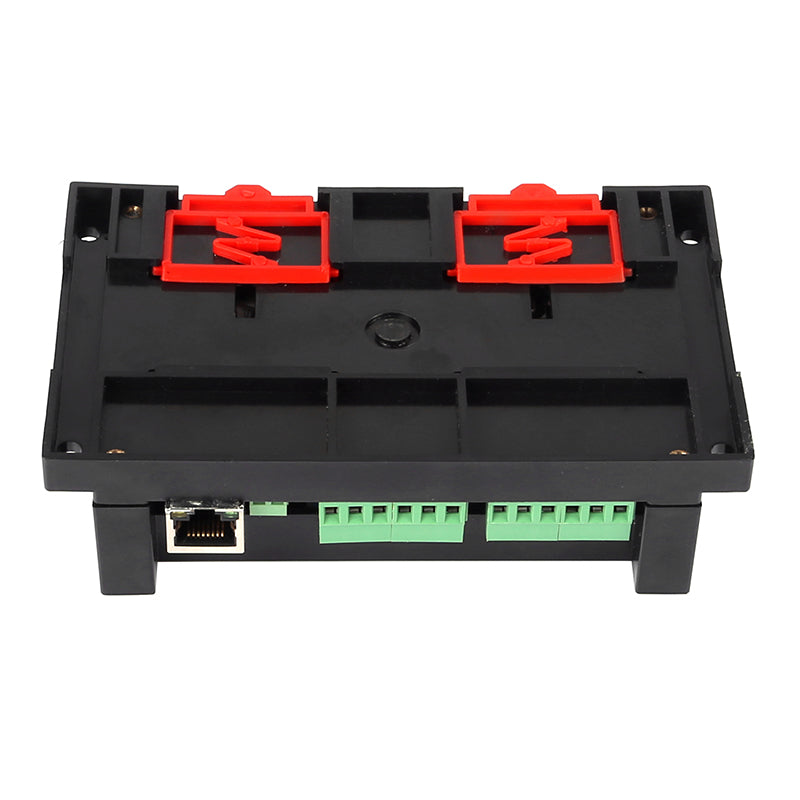

SainSmart RJ45 TCP/IP Remote Controller Board with 8 Channels Relay Integrated

brand: SainSmart SKU: 101-70-142 Variants ID: 31891099680847
  • Ethernet TCP/IP RJ45 Port
  • 8-Channel 250V/AC 10A Relay control individually
  • 8 external control outputs and active low level can control switch or sensor, etc
  • Internal circuit protection: with optocoupler to prevent from external voltage surge
  • Supports 485 networking.





$19.99 $53.99 Save $34.00
Overview

This is SainSmart iMatic V2 8 channels WiFi network IO controller model. It has integrated with the 8-channel relay to help you realize controlling your other devices remotely. This Model helps you to avoid complicated wiring processes and save you much time to accomplish your goal.
You can feel free to enjoy the remote controlling of your other devices with the sainsmart 8 channel relay by using the Web pages now and our APP(On processing) in the future. We will supply you all around technical support after your purchase.

Features
  • Ethernet TCP/IP RJ45 Port
  • Onbaord WEB server allows accessing and controlling the relay via WEB
  • 8-Channel 250V/AC 10A Relay control individually
  • Thicker tinning for relay’s wiring
  • 8 external control outputs and active low level can control switch or sensor, etc
  • Wide operating voltage range: 7-24V DC power supply
  • Provide protocol for reengineering:( When connected to router, it allows access control via Android, Mac, Tablet, Windows system from anywhere in the world with network)
  • Supports status return, can display current status of the relays
  • IP Port can be modified
  • With Reset function, short press to reset, long press to restore factory setting
  • Supports 485 networking
  • Internal circuit protection: with optocoupler to prevent from external voltage surge



Package List

1x Sainsmart remote Controller Board

1x a case for protection
