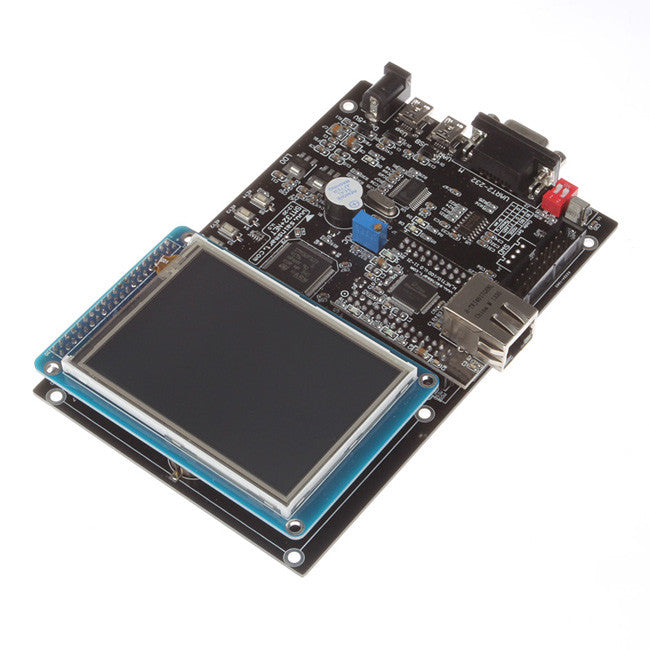

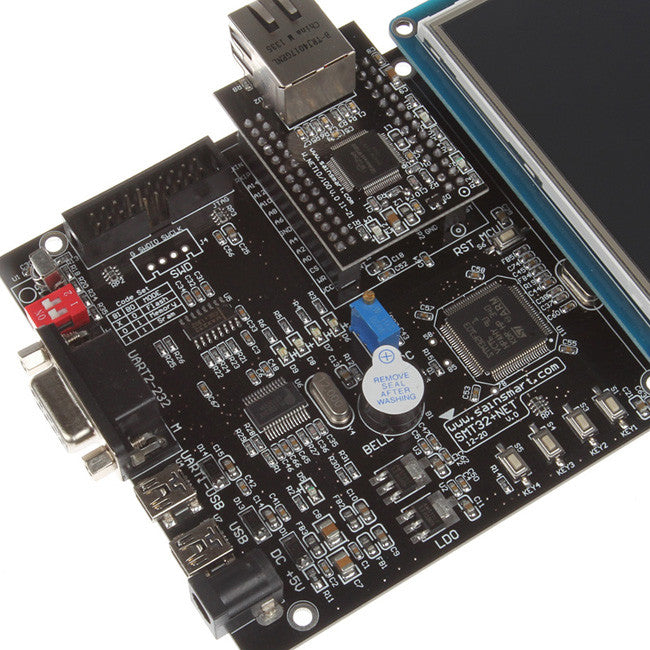

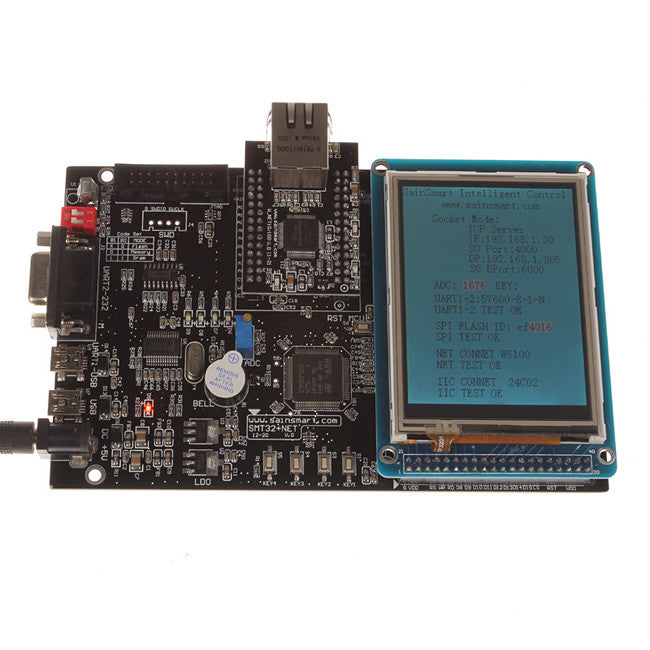

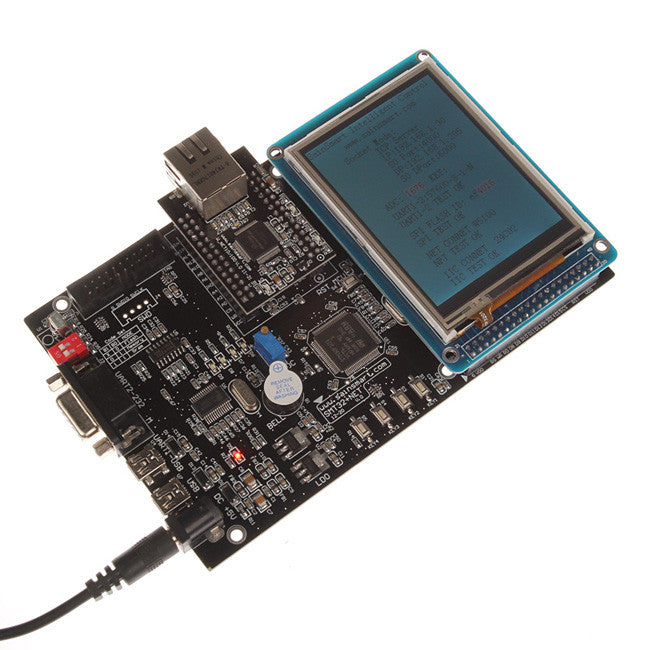

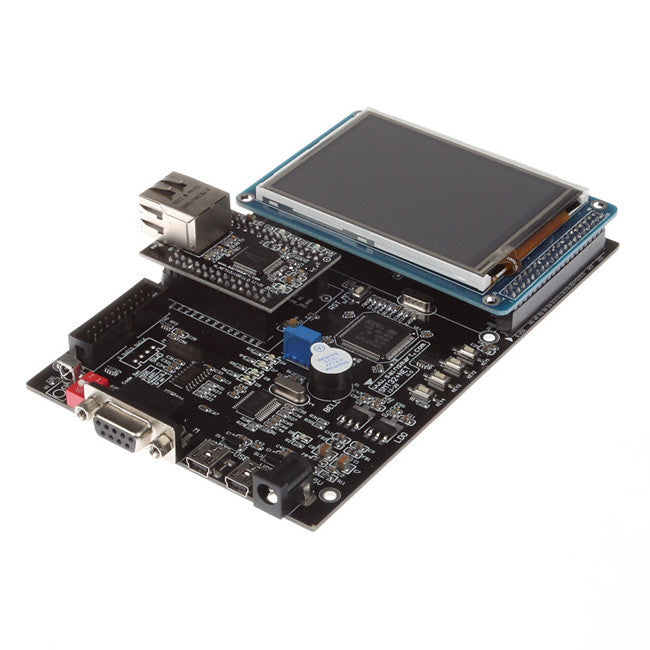

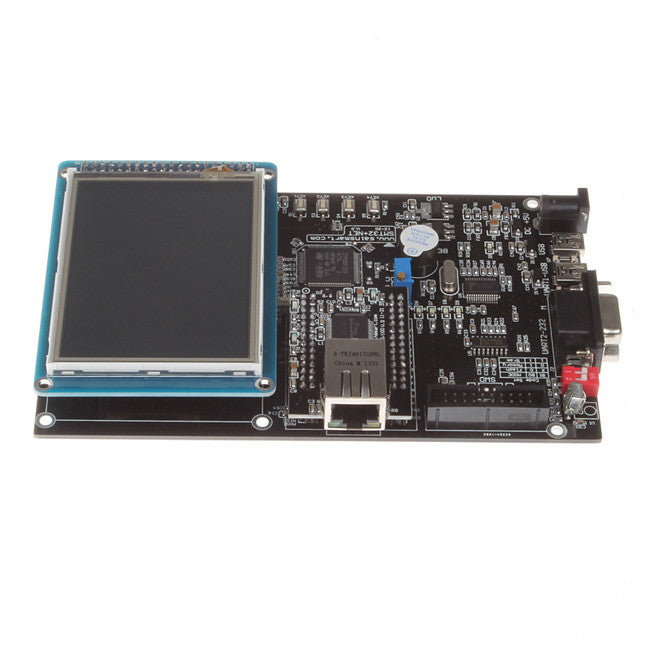

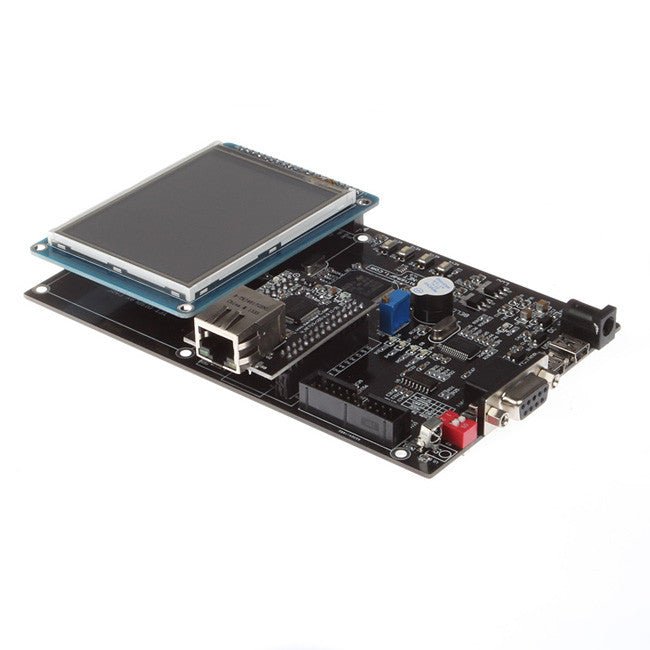

[Discontinued] SainSmart STM32 STM32F103VCT6 3.2" TFT LCD GPIO Serial JTAG SWD W5100 Network

SKU: 20-015-201 Variants ID: 45100910996
$35.00


Description:

The STM32F103xC, STM32F103xD and STM32F103xE performance line family incorporates the high-performance ARM® Cortexâ„?M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.The STM32F103xx high-density performance line family operates in the â€?0 to +105 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.These features make the STM32F103xx high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners,

Specification:

  • Manufacturer: STMicroelectronics

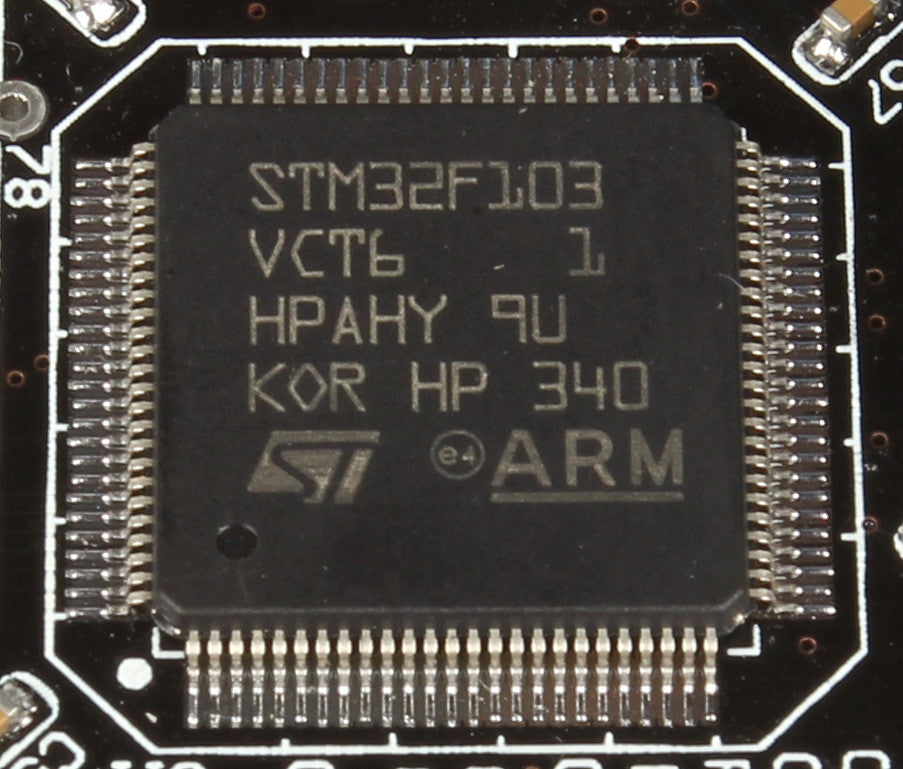

  • Product Category: ARM Microcontrollers - MCU
  • Core: ARM Cortex M3
  • Data Bus Width: 32 bit
  • Maximum Clock Frequency: 72 MHz
  • Program Memory Size: 256 KB
  • Data RAM Size: 48 KB
  • On-Chip ADC: Yes
  • Operating Supply Voltage: 2.5 V, 3.3 V
  • Maximum Operating Temperature: + 85 C
  • Package / Case: LQFP-100
  • Mounting Style: SMD/SMT
  • A/D Bit Size: 12 bit
  • A/D Channels Available: 16
  • Interface Type: CAN, I2C, SPI, USART, USB
  • Minimum Operating Temperature: 14 mm
  • Number of Programmable I/Os: 80
  • Number of Timers: 8
  • On-Chip DAC: Yes
  • Processor Series: STM32
  • Program Memory Type: Flash

Features:

  • 3.2" TFT LCD Module, 320 * 240 resolution, 26 million color
  • Resistive touch screen, with XPT2046 Controller
  • 4 LED light, 2 LED indicator
  • 4 GPIO buttons
  • A RESET Button
  • Serial communication interface
  • 2 mini-type USB socket,
  • USB to RS232 and USB DeviceUSB Device function
  • A JTAG / SWD debug interface (20pin)
  • RTC battery
  • USB Power Supply
  • 1 W5100 Ethernet model
  • 1 infrared sensor
  • Support USB/UART Download
  • All IO extend out for second time development

Package List:

  • 1x SainSmart STM32 STM32F103VCT6 Board
  • 1x SainSmart 3.2 inch TFT LCD for the ARM board
  • 1x W5100 Wiznet Network TCP / IP Ethernet Module
  • 1x USB cable
