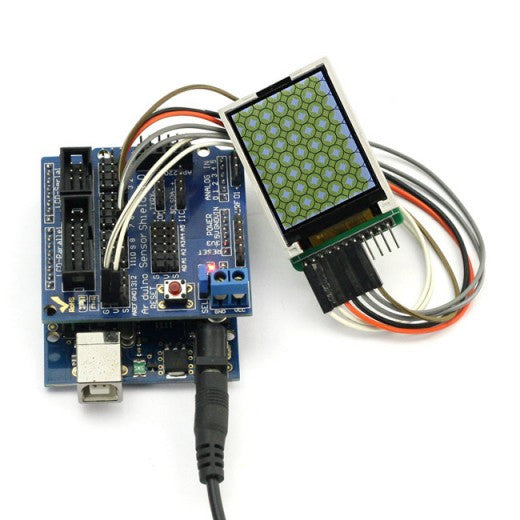

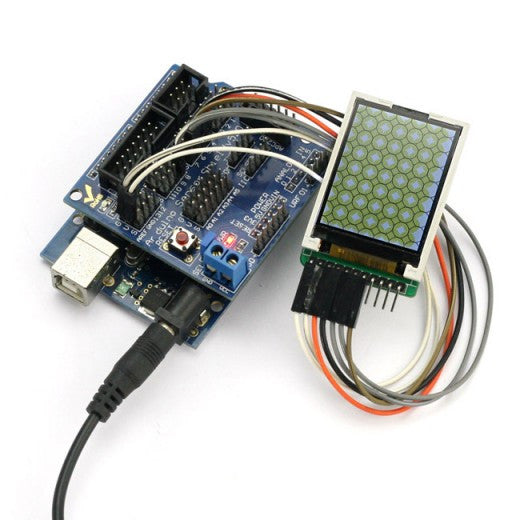

Sainsmart UNO +1.8''LCD Display +Sensor Shield V5 Module for Arduino Robot AVR

brand: SainSmart SKU: 20-011-C47
$26.45
Oops, 0 In Stock

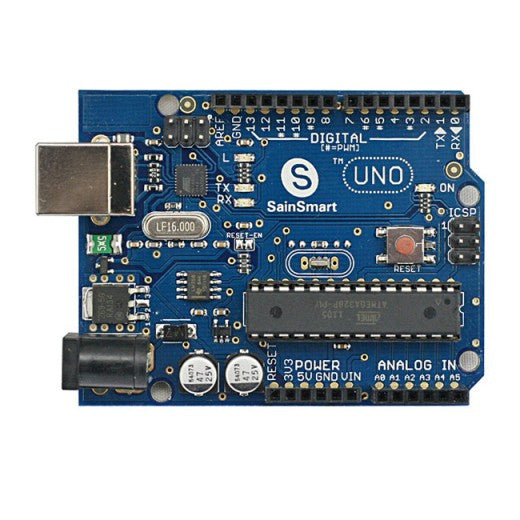

UNO ATMEGA328P-PU:

Microcontroller

ATmega328

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

14 (of which 6 provide PWM output)

Analog Input Pins

6

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega328) of which 0.5 KB used by bootloader

SRAM

2 KB (ATmega328)

EEPROM

1 KB (ATmega328)

Clock Speed

16 MHz

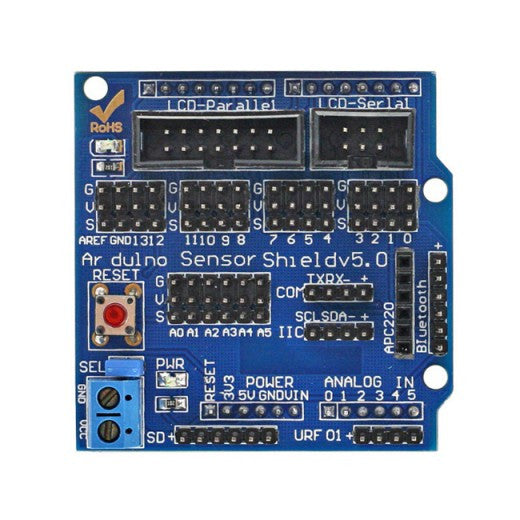

SainSmart SensorShield Module V5:
Features :

  • -Ready to  plug & play.
  •  It can connect to various modules like sensors, servos, relays, buttons,potentiometers
  •  Each functional module has buckled port with VCC,GND and Output, which has corresponding port on the Sensor Shield, connectedwith a plain 2.54mm dual-female cable you may start playing already. Buckledbrick cables are like cement for bricks, make the connections easier, secureand more professional looking.

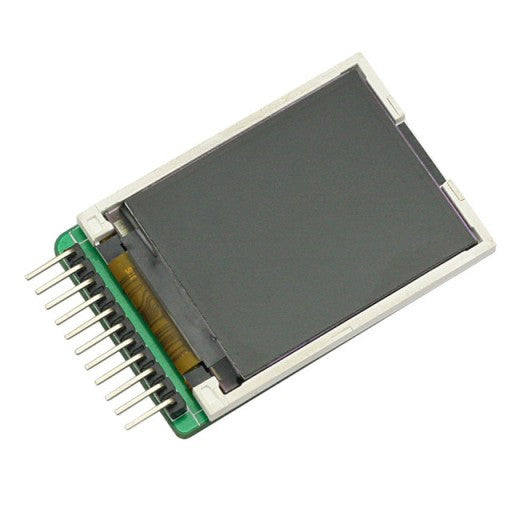

SainSmart 1.8" Serial TFT LCD Display:
Features:

  • Display Mode: 1.8" TFT SPI Interface, Transmissive, Normally white;
  •  Display Color: 262K colors;
  •  Backlight Type: LED
  •  Resolution: 128W * 160H Dots
  •  Board Size: 5.00 x 3.4cm
  •  View Area: 28.03W * 35.04H mm
  •  Dot Size: 0.06W * 3 * 0.18H mm
  •  Dot Pitch: 0.18W * 0.18H mm
  •  Viewing Angle: 6 o'clock
  •  SPI Bus interface
  •  IC Driver: ST7735R
  •  5V/3.3V TTL logic Compatible, can be used in 5V/3.3V IO Arduino systemdirectly


Package List:
1x SainSmart UNO ATMEGA328P-PU
1x SainSmart SensorShield Module V5
1x SainSmart1.8" Serial TFT LCD Display
1x USB Cable
