UNO + 1602 LCD Keypad Shield V3

brand: SainSmart SKU: 101-51-C09
$24.99
Oops, 0 In Stock

Specification:

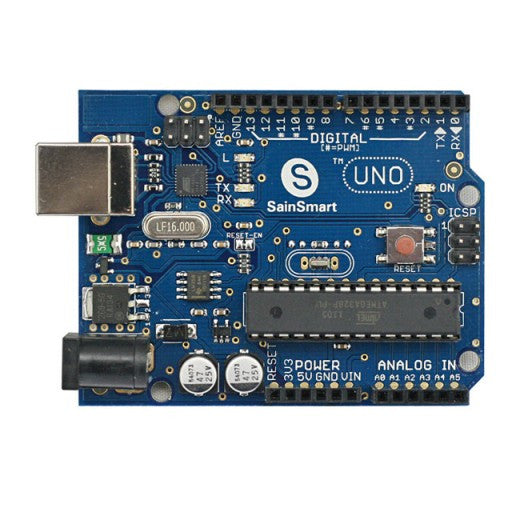

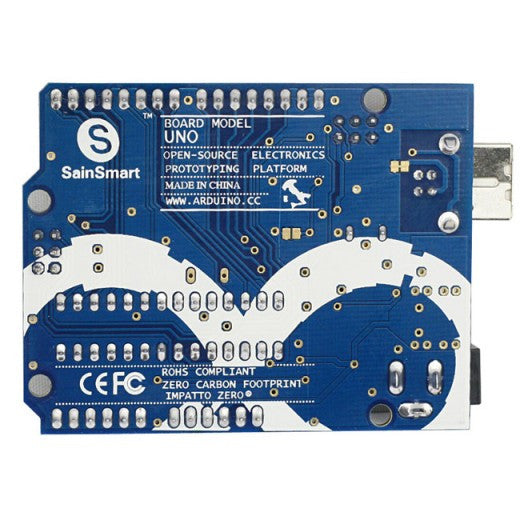

SainSmart UNO:

  •  Microcontroller: ATmega328
  •  Operating Voltage: 5V
  •  Input Voltage (recommended): 7-12V
  •  Input Voltage (limits): 6-20V
  •  Digital I/O Pins: 14 (of which 6 provide PWM output)
  •  Analog Input Pins: 6
  •  DC Current per I/O Pin: 40 mA
  •  DC Current for 3.3V Pin: 50 mA
  •  Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
  •  SRAM: 2 KB (ATmega328)
  •  EEPROM: 1 KB (ATmega328)
  •  Clock Speed: 16 MHz

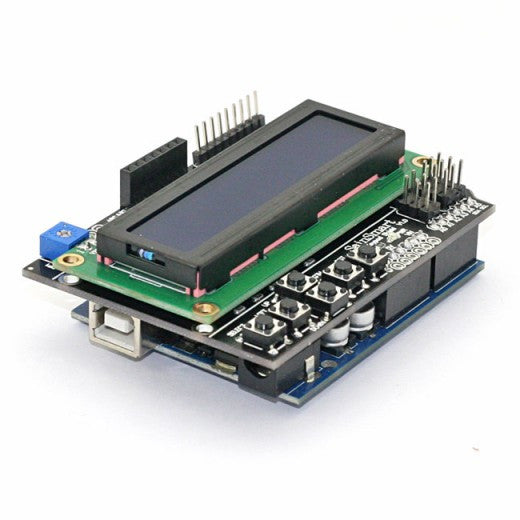

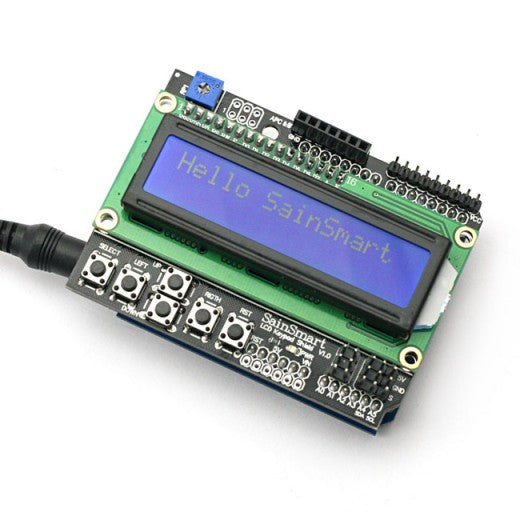

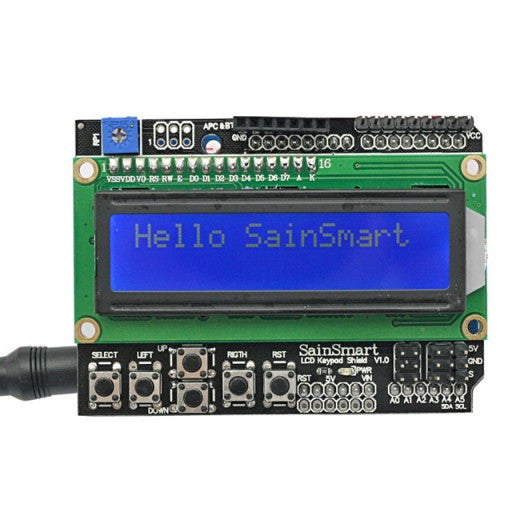

SainSmart 1602 LCD Keypad Shield V3:

  •  This is a 16x2 LCD Keypad module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560 board.
  •  Blue Backlight with white words, adjustable backlighting.
  •  4 Bit Arduino LCD Library
  •  100% brand new and high quality
  •  V3 design, pins out for easy connecting

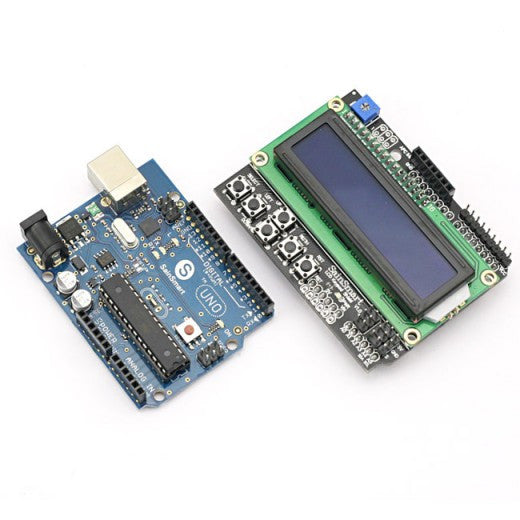

Package List:
1x SainSmart UNO
1x SainSmart 1602 LCD Keypad Shield V3
