[Discontinued] SainSmart UNO + 2-Channel Relay Module + IIC 1602 LCD Y + Prototype Shield For UNO Mega2560 1280 Duemilanove R3 AVR ATMEL Robot
Brand: SainSmart SKU: 20-011-C60

[Discontinued] SainSmart UNO + 2-Channel Relay Module + IIC 1602 LCD Y + Prototype Shield For UNO Mega2560 1280 Duemilanove R3 AVR ATMEL Robot

SKU: 20-011-C60 Variants ID: 45100123988
$34.95


SainSmart UNO:
SainSmart Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.


SainSmart Prototype Shield:
It is a great kit to new users and geeks who have sparkling ideas. You can choose to do soldering in the soldering area. You can also make good use of the mini breadboard which can save your time of soldering. Try any circuit you want to the Arduino. You also can choose to use your own breadboard.

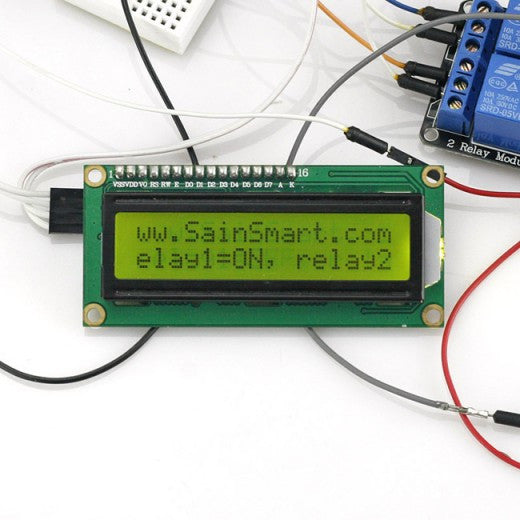

SainSmart IIC LCD1602 Module Display:
I2C Address: 0x3F
Backlight (Black character on Yellow-green background)
Supply voltage: 5V
Size: 82x35x18 mm
Come with IIC interface, which can be connected by DuPont Line

SainSmart 2-Channel 5V Relay Module:

  •  5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
  •  Equiped with high-current relay, AC250V 10A ; DC30V 10A
  •  Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  •  Indication LED's for Relay output status
