UNO R3+ L298N +HC-SR04 4WD Robot Car Kit

brand: SainSmart SKU: 20-011-D02 Variants ID: 45100550804
$85.86 FREE SHIPPING
Oops, 0 In Stock

Build Your Own Arduino-controlled Robot (Code Provided)

Robotics can be a difficult hobby to jump into, but the Arduino and the 4WD Robot Platform make it easy for you to build an awesome robot without a struggle! By utilizing some Arduino components, this combo makes it easy for you to learn the basics of robotics, applications of the Arduino, and the process of building something awesome to show your family and friends. This can also be a fun toy!

This combo encourages creative thinking, if you are good at programming,you can make it a remote-controlled car or an autonomous robot by adding some sensors or webcam at your favor!

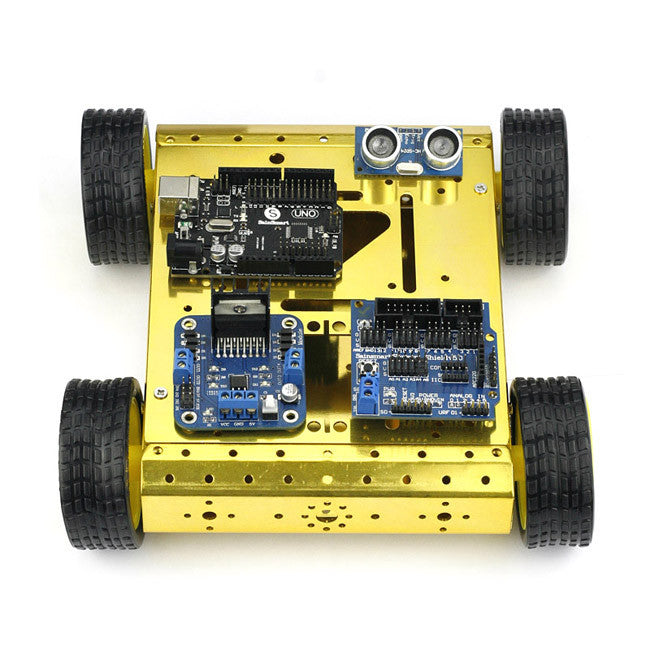

SainSmart 4WD Ultrasonic Obstacle Avoidance

Description:

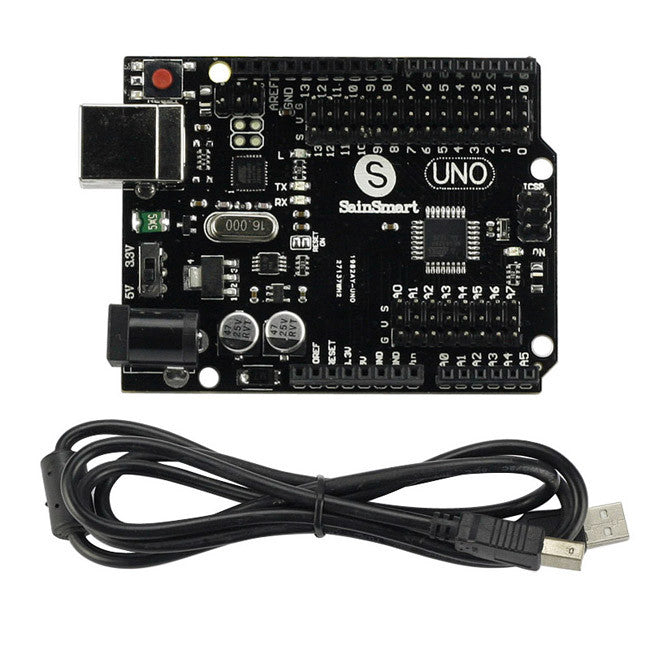

SainSmart UNO R3 ATMEGA328P-PU

SainSmart UNO

Microcontroller

ATmega328

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

14 (of which 6 provide PWM output)

Analog Input Pins

6

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega328) of which 0.5 KB used by bootloader

SRAM

2 KB (ATmega328)

EEPROM

1 KB (ATmega328)

Clock Speed

16 MHz

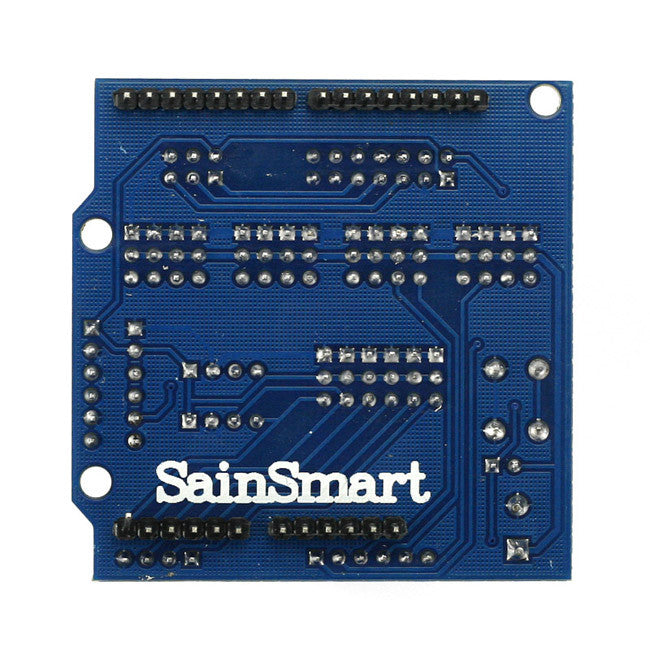

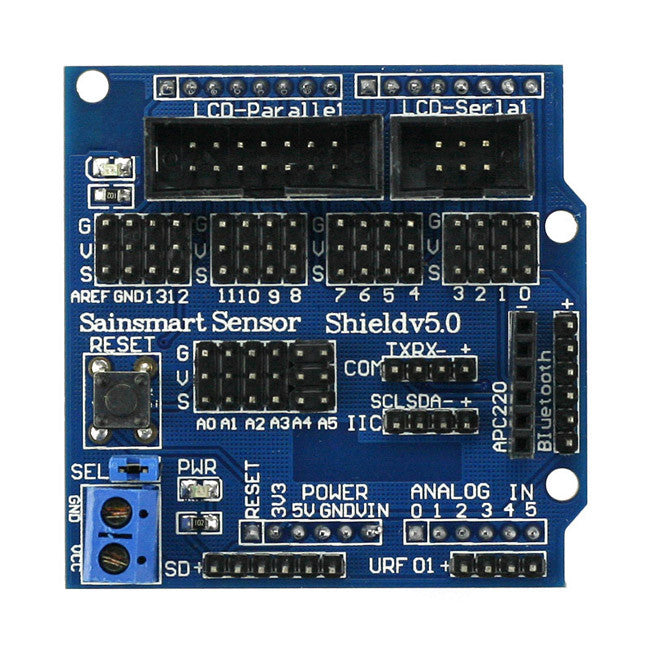

SainSmart Sensor Shield Module V5

SainSmart Sensor Shield V5



  • Ready to  plug & play.
  • It can connect to various modules like sensors, servos, relays, buttons, potentiometers
  • Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

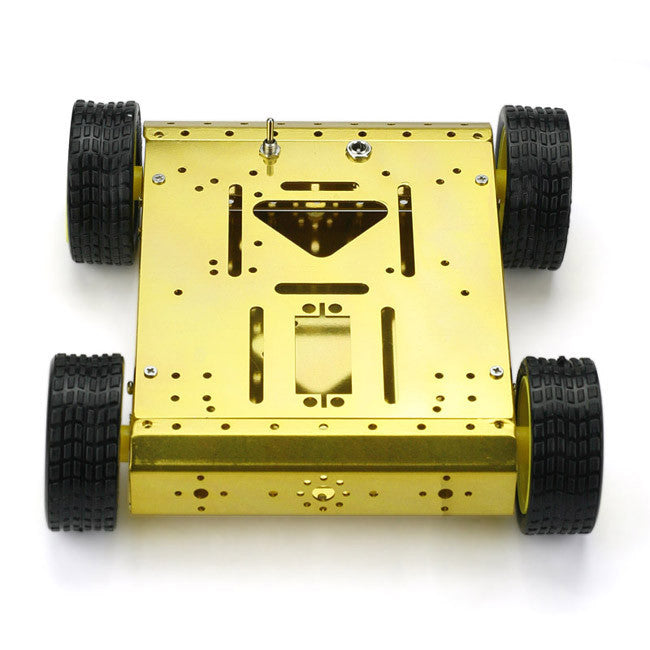

SainSmart 4WD Drive Aluminum Mobile Car Robot Platform

SainSmart 4WD Mobile Robot Platform


2013 latest 4WD aluminum mobile robot platform.
This SainSmart 4WD Drive Aluminum Mobile Robot Platform for Robot Arduino UNO MEGA2560 R3 Duemilanove

  •   Can hold many controllers, drivers, sensors and RF modules etc.
  •   Supports  plate with controller mounting holes, 2 dof pan.
  •   Tilt holds down groove, collision switch mounting hole, can be added with sensors.
  •   Elastic rubber tires. Damping, gripping, and wear-resisting.
  •   Light weight, high strength and no deformation characteristics.
  •  Unique design and color, cool feeling.

Reduction ratio

1:48

No-load speed

220rpm

Wheel diameter

65mm

Wheel width

26mm

Platform length

206mm

Platform width

200mm

Platform height

62mm

Platform weight

620g

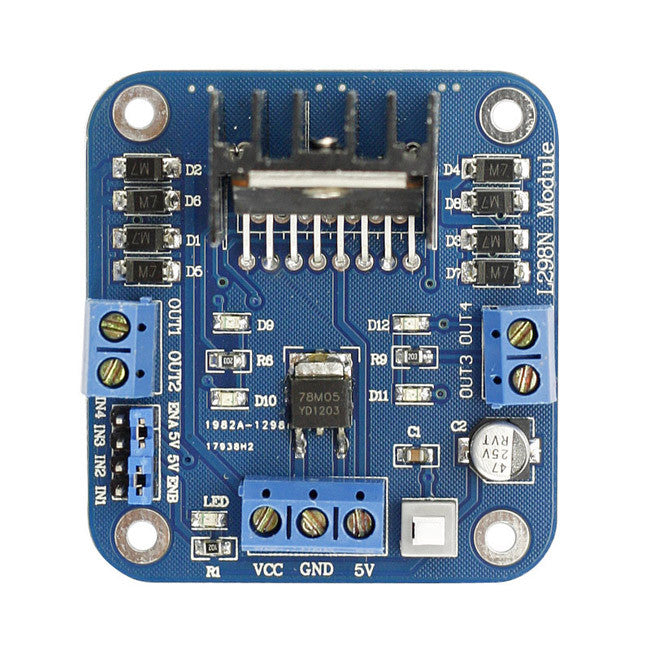

SainSmart L298N Dual H Bridge DC Motor Driver



SainSmart L298N Dual H Bridge DC Motor Driver

  • Driver: L298N Dual H Bridge DC Motor Driver IC
  • The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
  • The peak current of driven part Io: 2A
  • the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
  • the operating current range of the logical part : 0 ~ 36mA
  • control signal input voltage range:
  • Low:-0.3V â‰?Vin â‰?1.5V
  • High: 2.3V â‰?Vin â‰?Vss
  • enable signal input voltage range:
  • Low: -0.3 â‰?Vin â‰?1.5V (control signal is invalid)
  • High: 2.3V â‰?Vin â‰?Vss (control signal active)
  • Maximum power consumption: 20W (when the temperature T = 75 °C)
  • Storage temperature: -25 °C ~ +130 °C
  • Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
  • Driver Board Weight: 33g
  • Other Extensions: control of direction indicators, the logic part of the plate to take power interface.

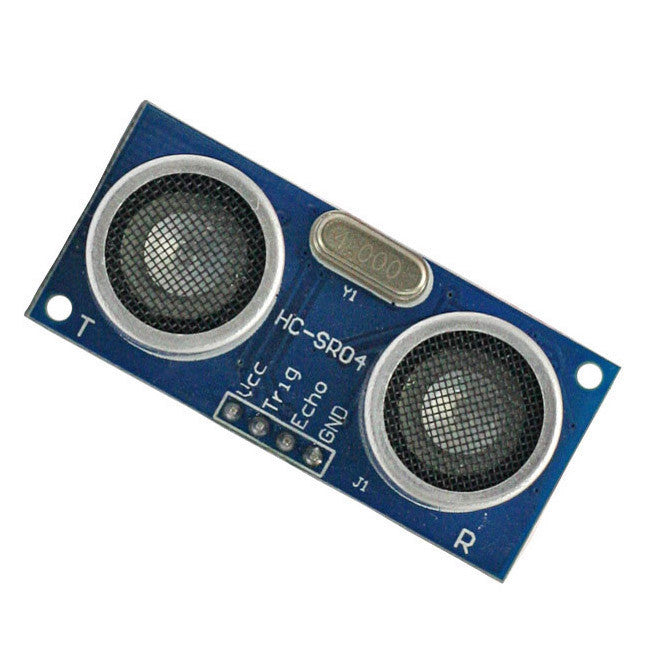

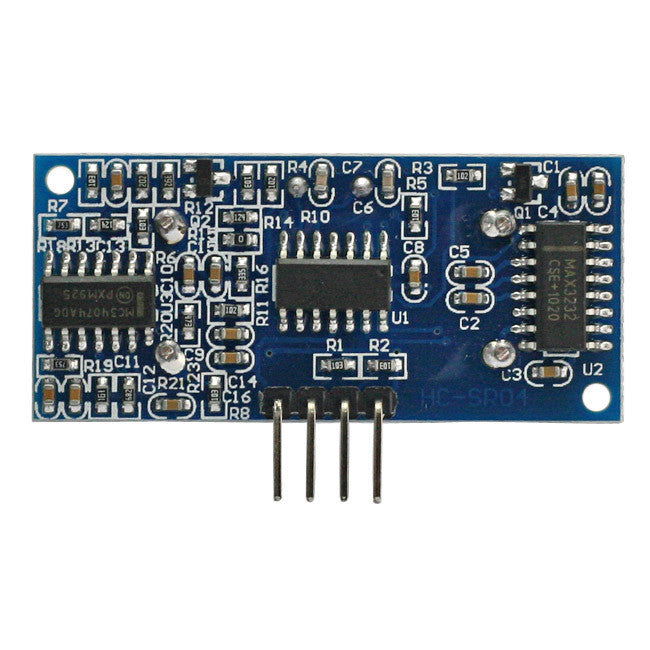

SainSmart  Ultrasonic Module HC-SR04 Distance Sensor

SainSmart  Ultrasonic Module HC-SR04 Distance Sensor

  • power supply :5V DC
  • quiescent current : <2mA
  • effectual angle: <15°
  • ranging distance : 2cm â€?500 cm
  • resolution : 0.3 cm



Package list:
1x SainSmart UNO ATMEGA328P-PU
1x SainSmart Sensor Shield Module V5
1x SainSmart 4WD Drive Aluminum Mobile Car (Black) Robot Platform
1x SainSmart L298N Dual H Bridge DC Motor Driver
1x SainSmart  Ultrasonic Module HC-SR04 Distance Sensor
