[Discontinued] SainSmart UV Curing Chamber for SLA/DLP Resin 3D Printer

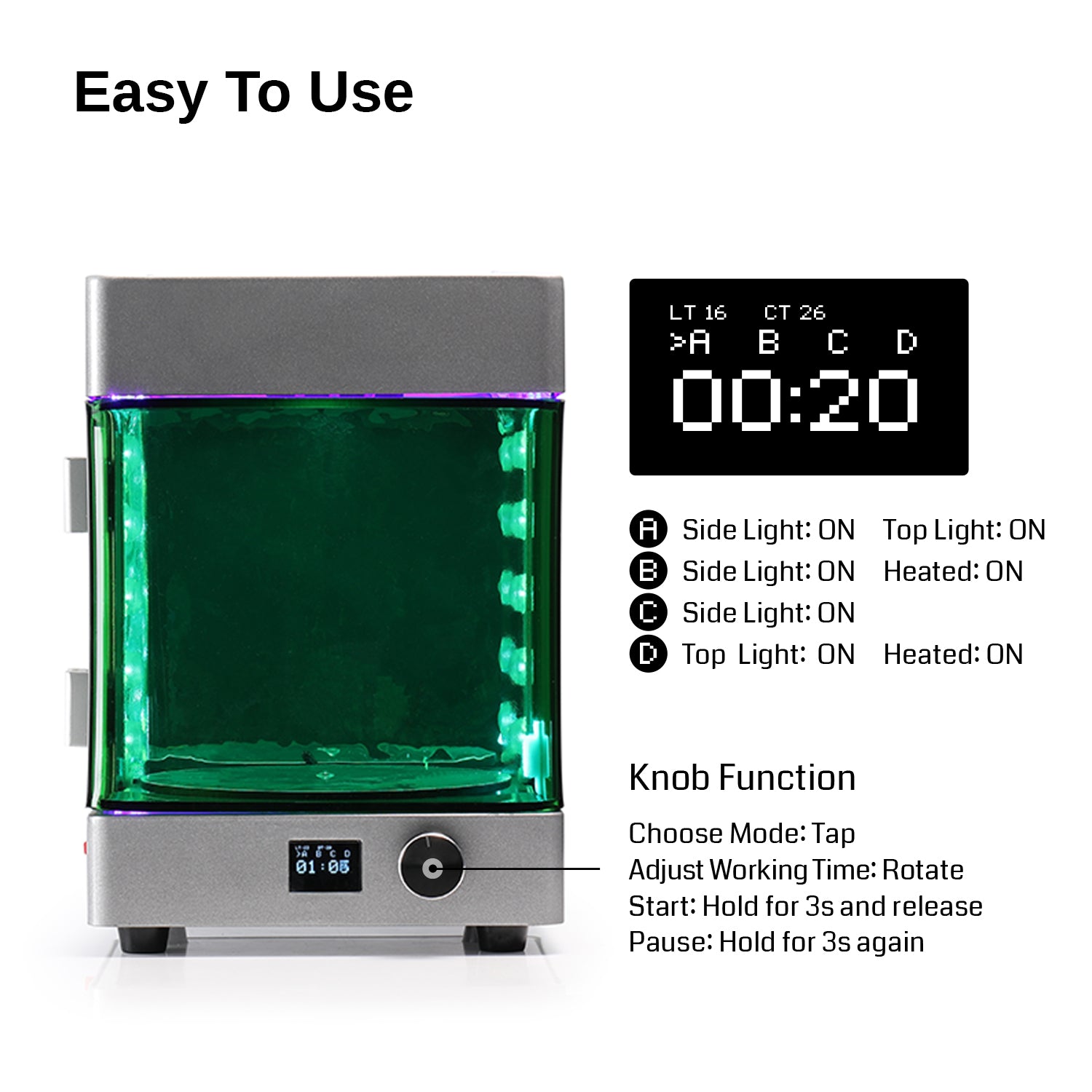

Easy To Use
The SainSmart UV curing chamber adopts a special control system, which makes the operating process easy and effective. The three-side light source and heating function can be turned on and off separately, realizing the combination of four modes to meet your different needs.
Automatic Temperature Control
Accurate temperature control is the key to successful post-curing. Both the chamber inner and the lamp beads can achieve smart temperature control, which ensures the stable performance of functional resin-printed models and extends the service life of the lamp beads.
The heating chamber can be heated to 60 °C, speeding up the curing process and to maximize some of the physical properties of the resin-printed models.

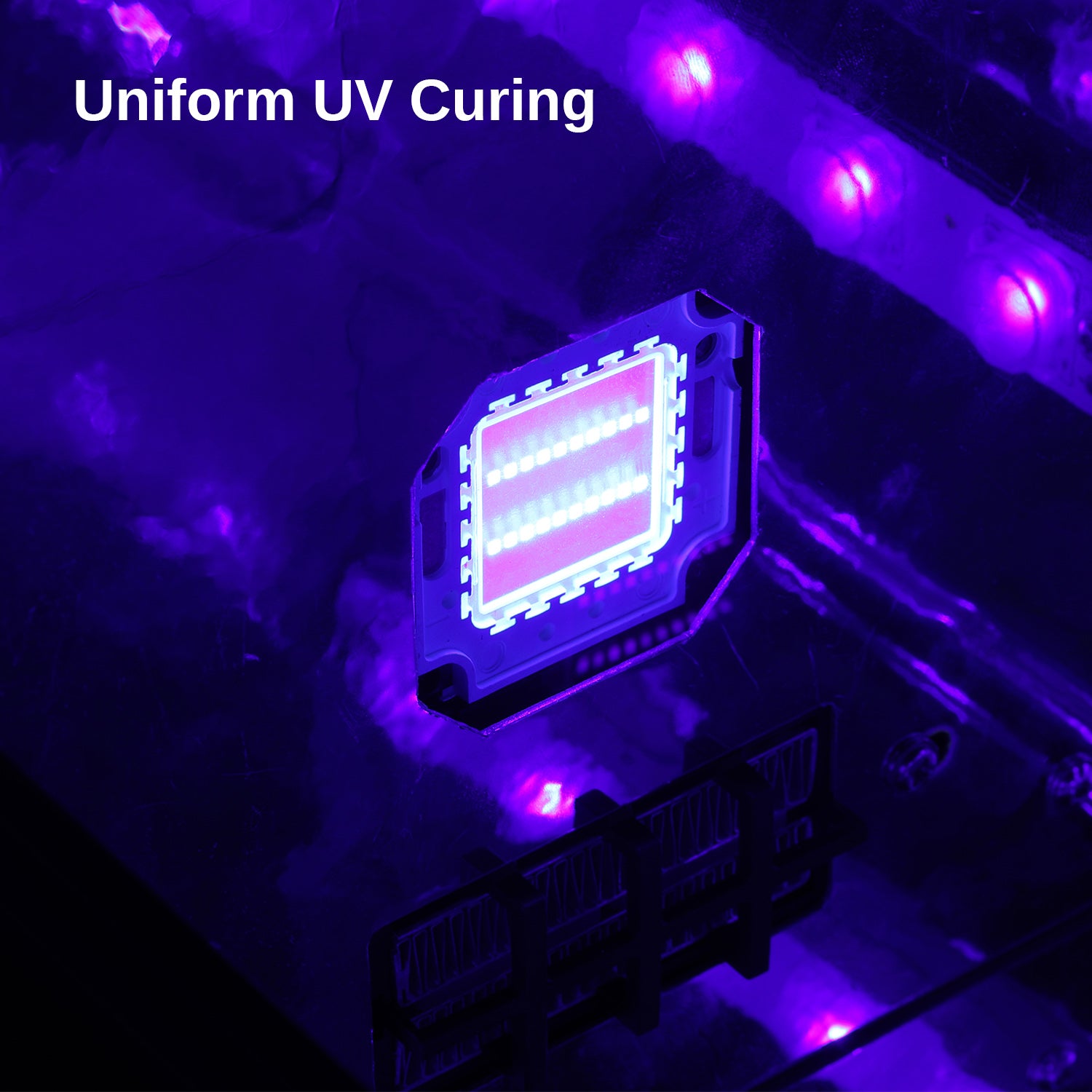

Uniform UV Curing
In order to produce the uniform light intensity of 405nm wavelength from the 40 LEDs light source, the UV-LED array stage has been kept rotating during exposure, which enables all angles of your print to be cured and exposed perfectly.

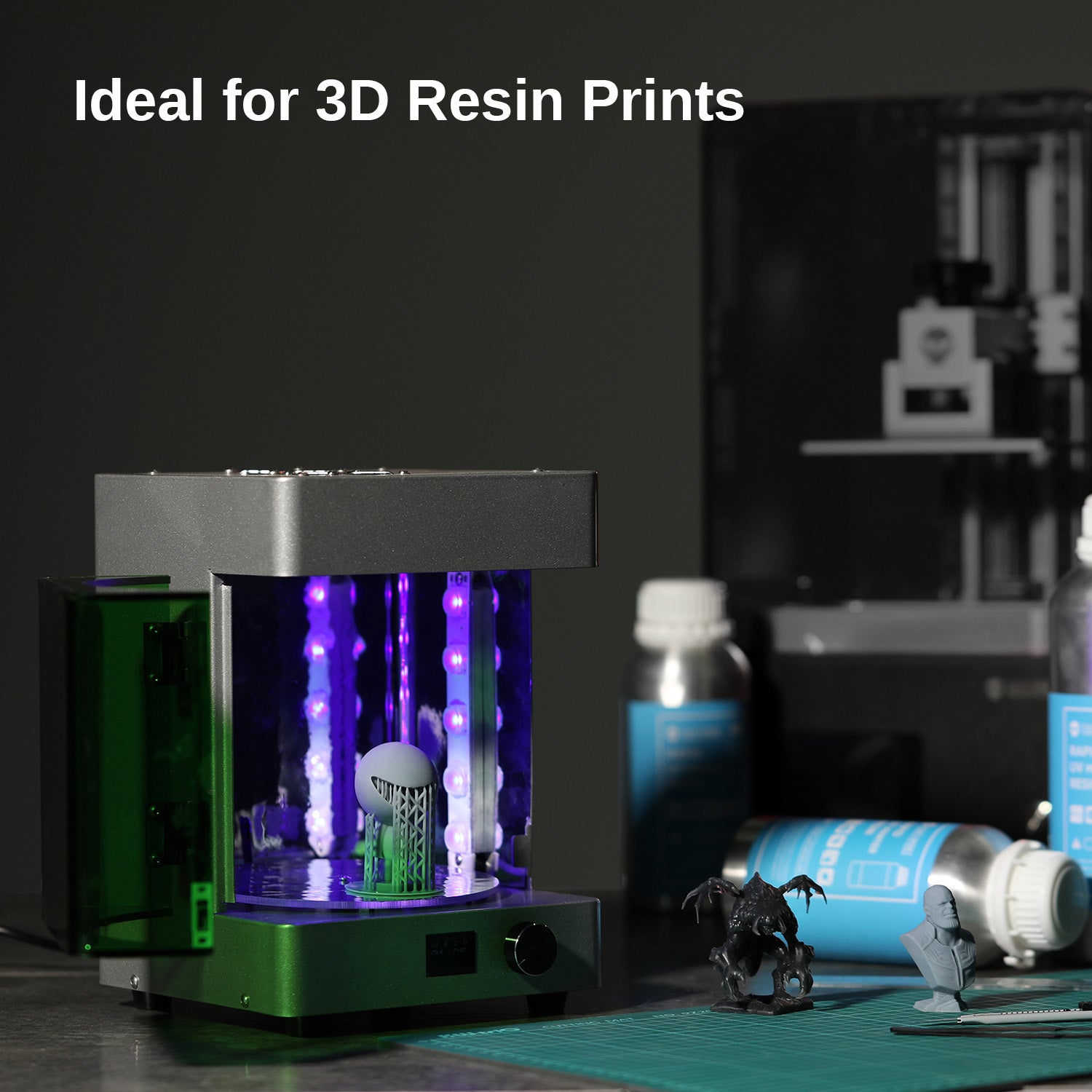

Ideal for 3D Resin Prints
By delivering high-quality results and compatible with most of the SLA and DLP printers on the market, SainSmart gives you an ideal choice for your 3D resin prints. Also, this UV curing chamber is a cost-effective option due to its compact design and excellent UV-LED 3D curing capability.
OVERVIEWSainSmart UV Curing Chamber is suited for resin-printed models curing, it is very simple to operate and allow you to monitor and document the UV curing process. With the help of UV Curing Chamber, giving you a model with extremely fine detail, far more than a standard filament printer can produce. This equipment dramatically reduces your manufacturing costs and improves your overall printing process, delivers you a finished product.
- Light Source: UV-LED
- Light Wavelength: 405nm
- Light Power: 40W
- Heating Power: 70W
- Input Voltage: 110-220V
- Method of Heat-Dissipating: Air Cooling

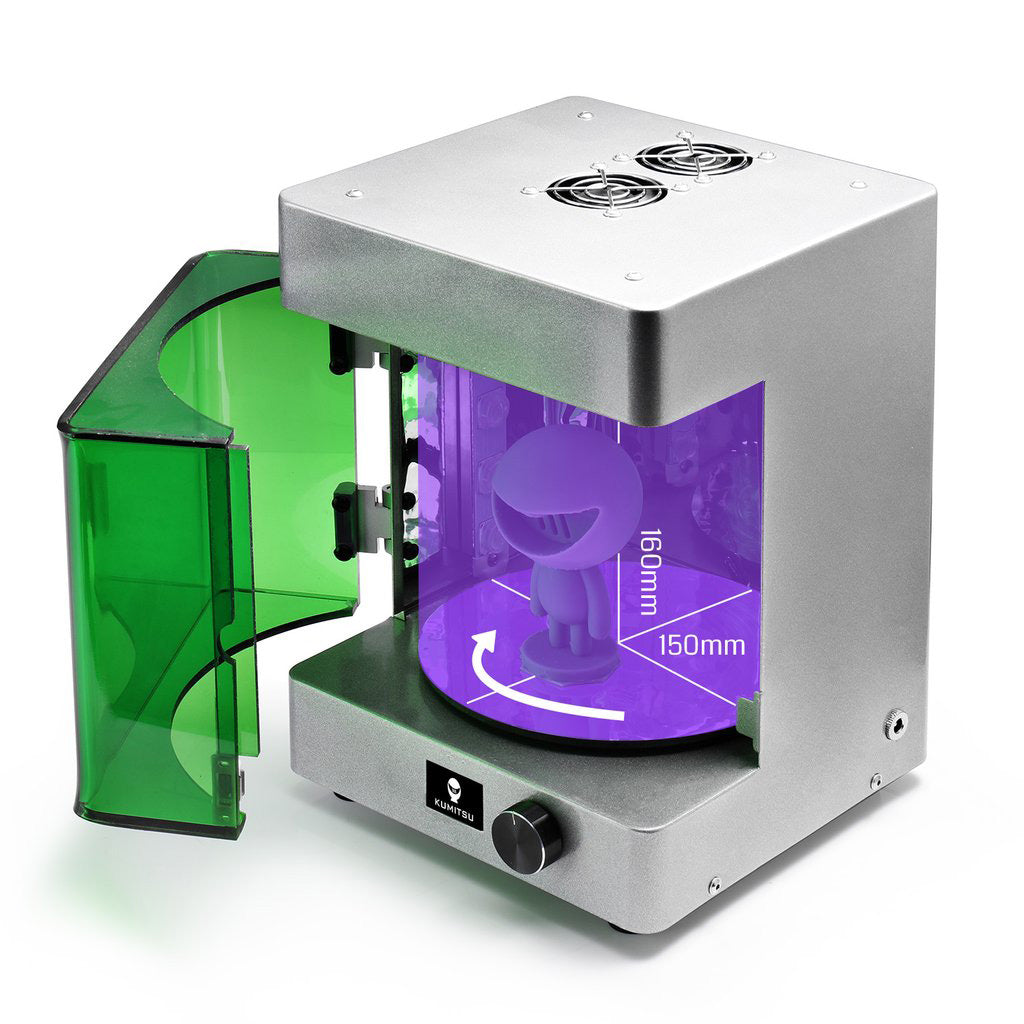

- Max Curing Size: 150 x 150 x 160 mm
- Overall Dimensions: 185 x 185 x 252mm
- Rotation Speed: 15/rpm
- Weight: 3kg
- Resin Type: Compatible with Photosensitive, Rigid, Ductile, Flexible & Cast resin
WHAT'S IN THE PACKAGE
- 1 x SainSmart UV Curing Chamber
