Brand: SainSmart SKU: 101-50-107

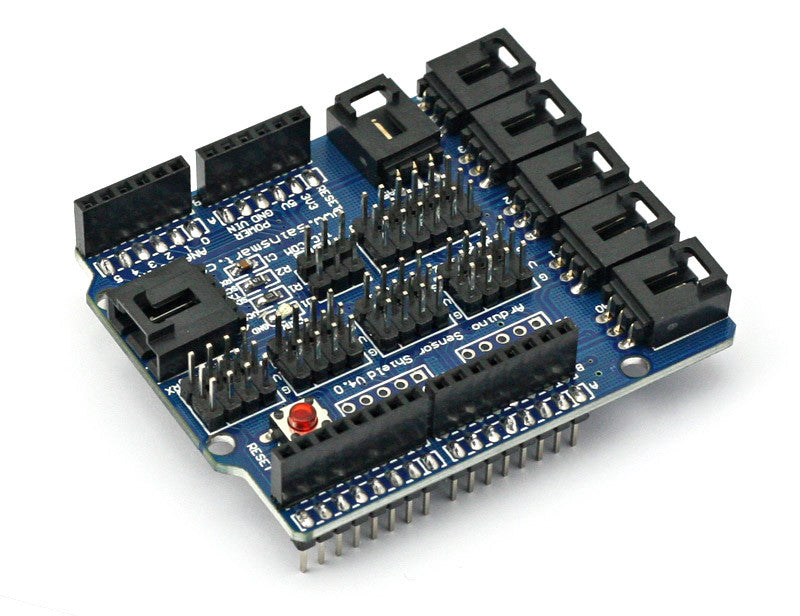

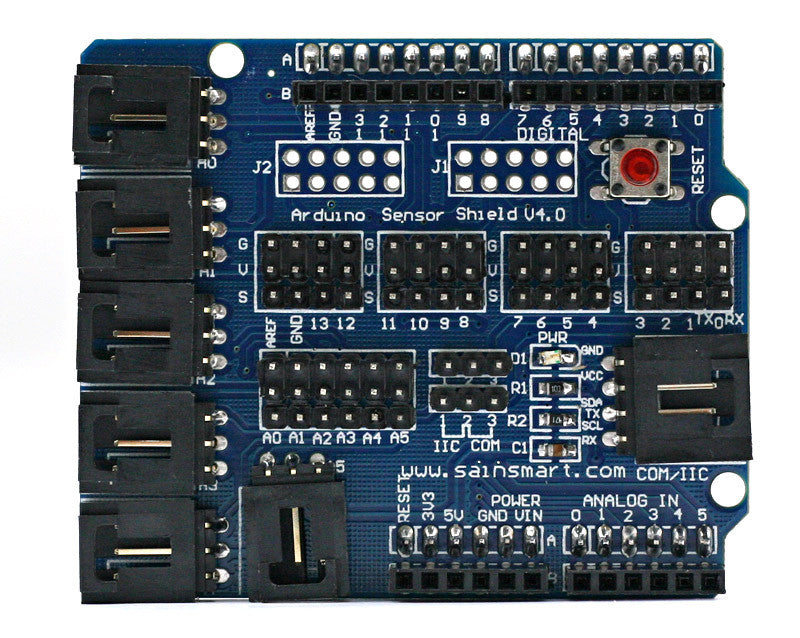

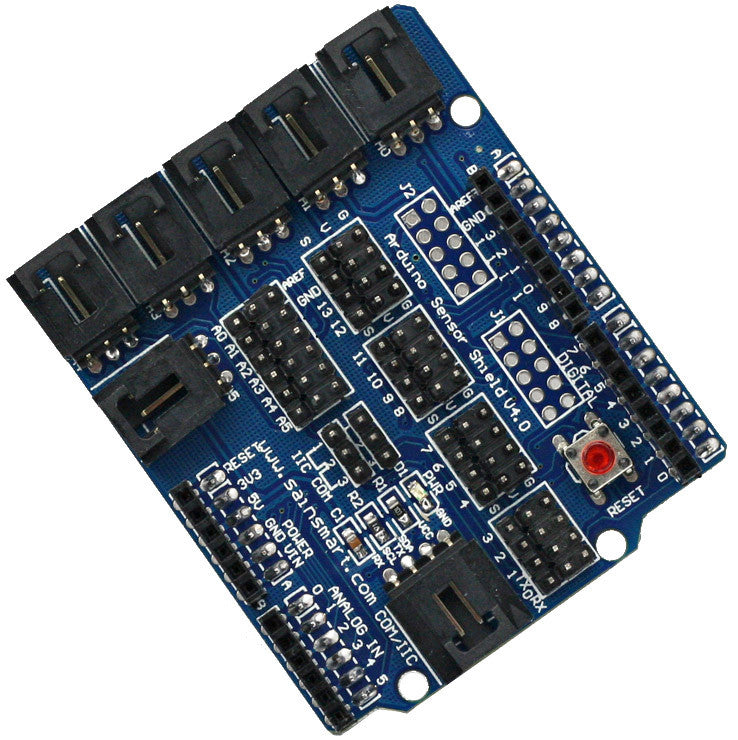

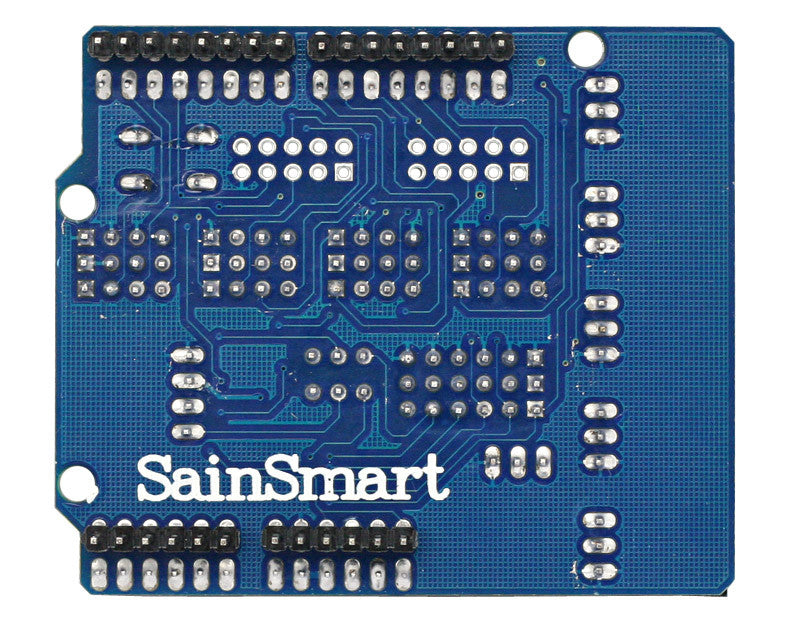

[Discontinued] Sensor Shield V4 Module

SKU: 101-50-107 2 reviews Variants ID: 45099727060
$9.99

Sensor Shield V4.0 for Arduino allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers

  • Buckled Analog Port:Handy, solid connection to 6 Analog inputs with VCC/GND
  • Digital IO port:13 ports prepared to digital modules or servos
  • Analog IO Port:2.54 grid male pin header connections
  • Buckled Communication Port:Selectable between I2C and UART
  • Compatible with: Arduino Duemilanove UNO Mega2560 ATMEL

Sensor Shield V4.0 for Arduino allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers

  • Buckled Analog Port:Handy, solid connection to 6 Analog inputs with VCC/GND
  • Digital IO port:13 ports prepared to digital modules or servos
  • Analog IO Port:2.54 grid male pin header connections
  • Buckled Communication Port:Selectable between I2C and UART
  • Compatible with: Arduino Duemilanove UNO Mega2560 ATMEL

DESCRIPTION
Sensor Shield V4.0 allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.just plug & play! Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
  • Operating Voltage: 5VDC
  • Input Voltage (recommended): 7-12VDC
  • Input Voltage (limits):  6-20VDC
  • Buckled Analog Port:Handy, solid connection to 6 Analog inputs with VCC/GND
  • Digital IO port:13 ports prepared to digital modules or servos
  • Analog IO Port:2.54 grid male pin header connections
  • Buckled Communication Port:Selectable between I2C and UART
  • Compatible with: Arduino Duemilanove UNO Mega2560 ATMEL




 WHAT'S IN THE PACKAGE
  • 1 x Sensor Shield V4 Module
