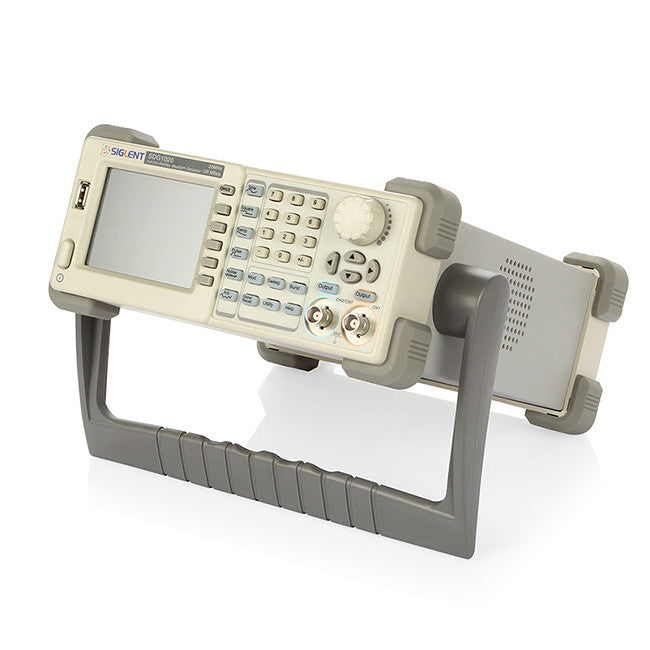

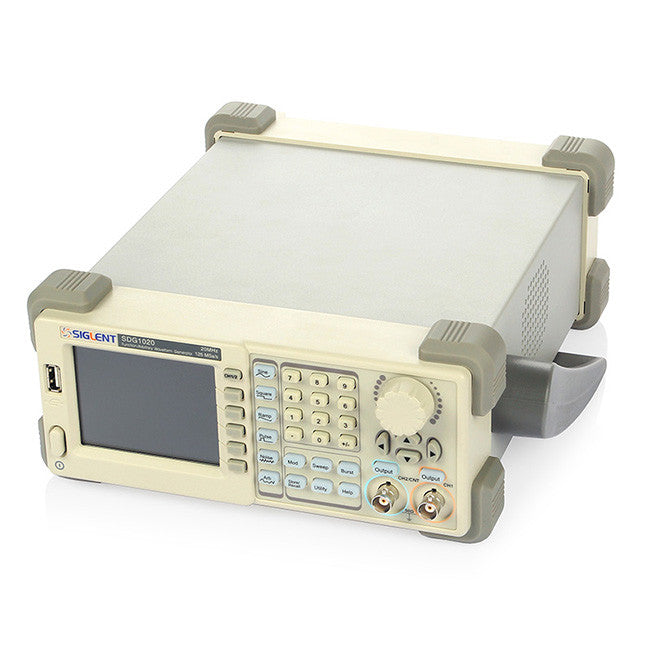

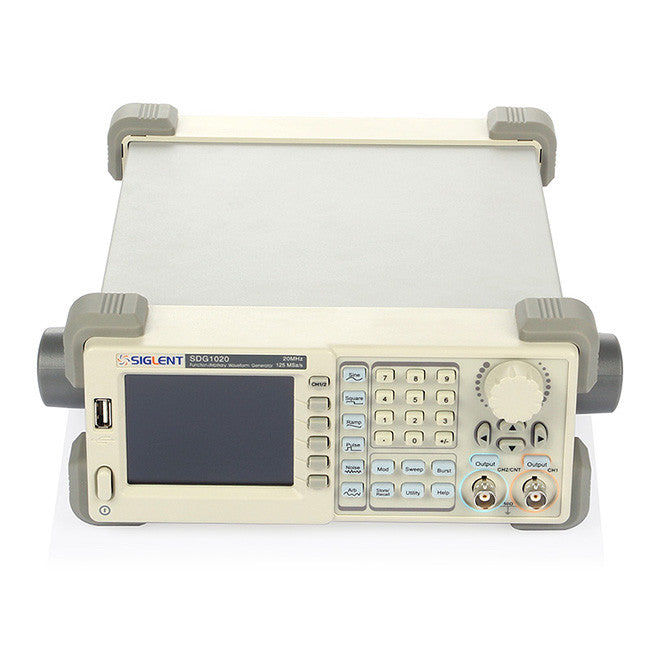

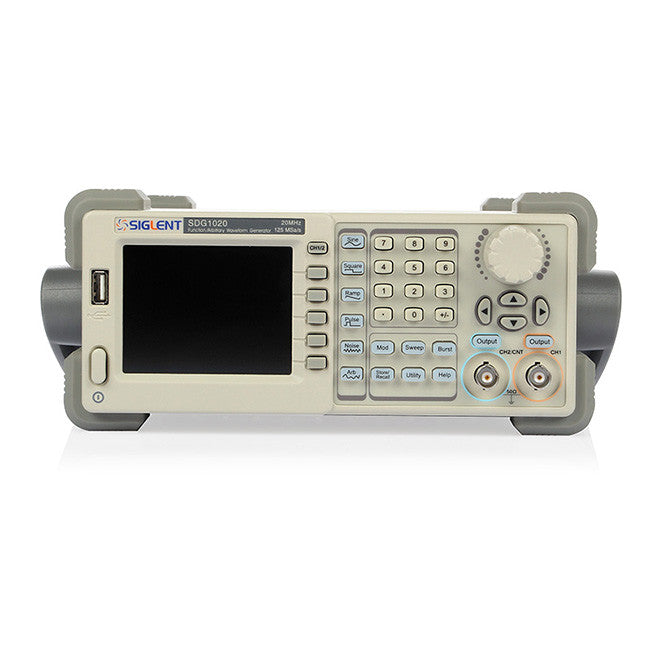

Siglent SDG1020 Function Arbitrary Waveform Generator 20MHz

brand: SainSmart SKU: 20-010-414
$340.34 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Features:

  • Apply DDS technology,provide 2 channels output,phase is adjustable,highest output frequency 20MHz
  • 125MSa/s sample rate,14bit vertical resolution,16Kpts wave length
  • Output 5 types of standard waveform,internally installed 48 types of waveform
  • Internally installed high precision,wide frequency is up to 200MHz
  • Abundant modulation connection:USB Device,USB Host,support U Disk storage and software upgrading



Details:

  • Product Dimensions: 9 x 11.1 x 4.1 inches ; 9.9 pounds
  • Shipping Weight: 7.8 pounds (View shipping rates and policies)
  • ASIN: B00DF3P6SU
  • Item model number: SDG1020


Specifications:

  • Highest frequency output:20MHz
  • Output channels: 2
  • Sample rate:125MSa/s
  • Wave length:16Kpts
  • Frequency resolution:1μHz
  • Vertical resolution:14bits
  • Waveform:Sine wave,square wave,triangular wave,pulse wave white noise,48 types of function waveform.
  • Sine wave:1μHz~20MHz
  • Square wave:1μHz~20MHz
  • Pulse:500μHz~5MHz
  • Ramp:1μHz~300KHz
  • Gaussian white noise:>20MHz bandwidth(-3dB)
  • Wave:1μHz~5MHz
  • Modulation function:AM,DSB-AM,FM,PM,ASK,FSK,PWM ,SWEEP,BURST
  • Other function:Frequency counter: 100mHz~200MHz
  • Standard configuration:USB Host & Device
  • Optional port:USB-GPIB(IEEE-488)
  • SIZE:WxHxD=229mmx105mmx281mm


Applications:

  1. IC test
  2. Analog sensor
  3. Simulated environment signals Electrical circuit function test Education and training

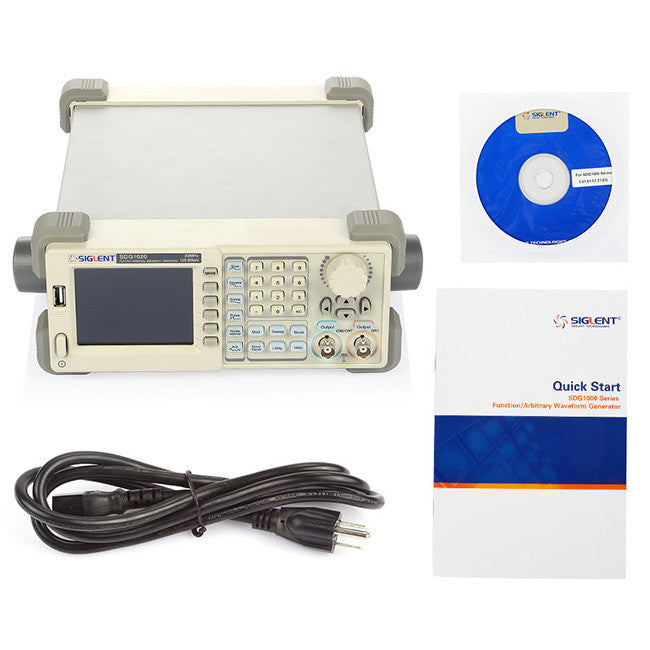

Standard Accessories:

  • 1x User Manual
  • 1x Certification
  • 1xGuaranty Card
  • 1x CD (including EasyWave 1.0 computer software system)
  • 1x Power Cord that fits the standard of destination country
  • 1x USB Cable
  • 1x Quick Start
