Description:

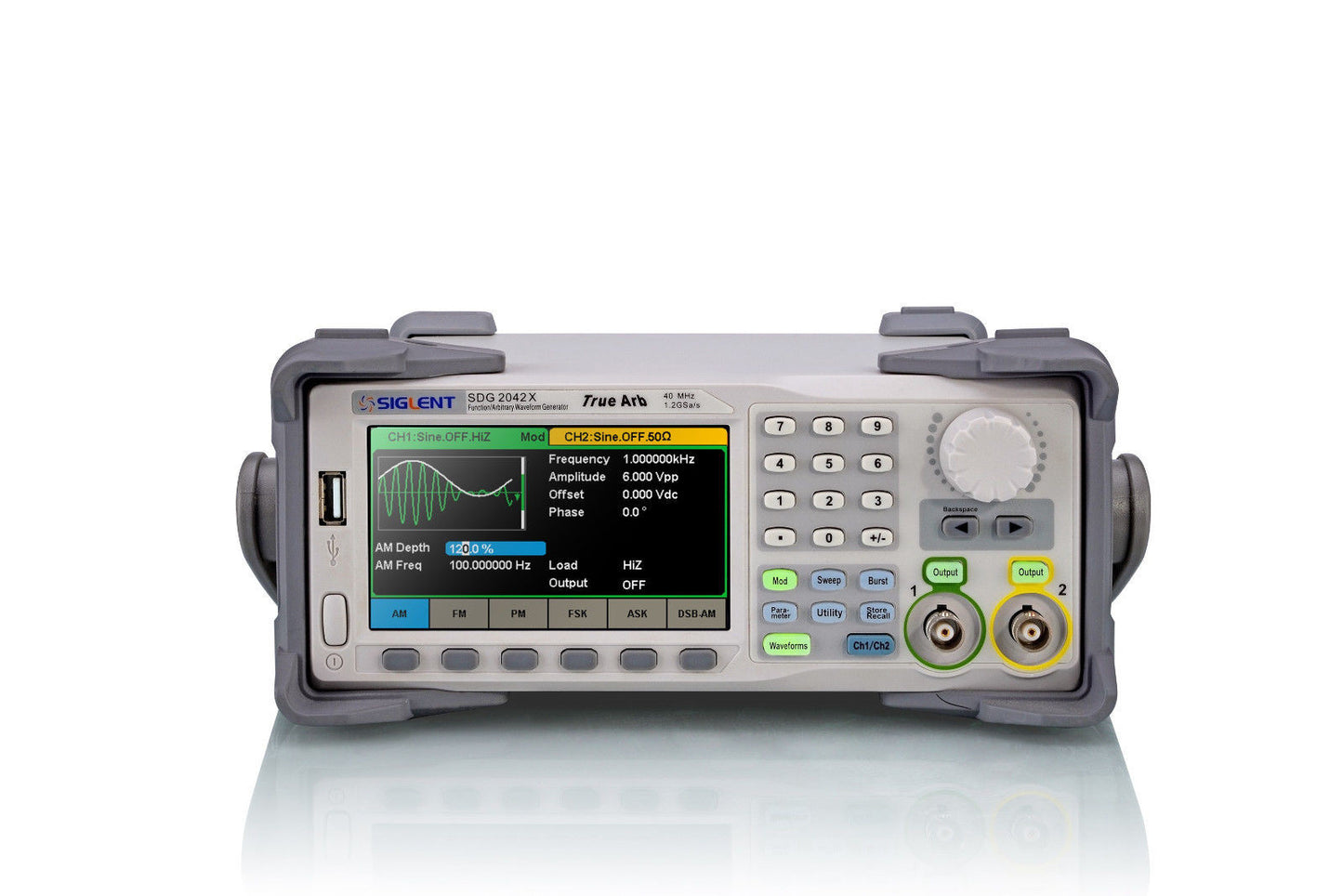

SIGLENT's SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Key Features:

• Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
• High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
• Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s
• Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Plenty of analog and digital modulation types: AM?DSB-AM? FM?PM?FSK?ASK and PWM
• Sweep and Burst function
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11)
• Optional interface: GPIB
• 4.3" touch screen display for easier operation
• Bandwidth 80MHz
• Sampling rate: 1.2 GSa/s (4X Interpolation)
• Vertical resolution: 16 bit
• Num. of channels: 2
• Max. amplitude: ±10V Display :4.3" touch screen display, 480 x 272 x RGB
• Interface Standard: USB Host, USB Device, LANOptional: GPIB (USB-GPIB adaptor)
