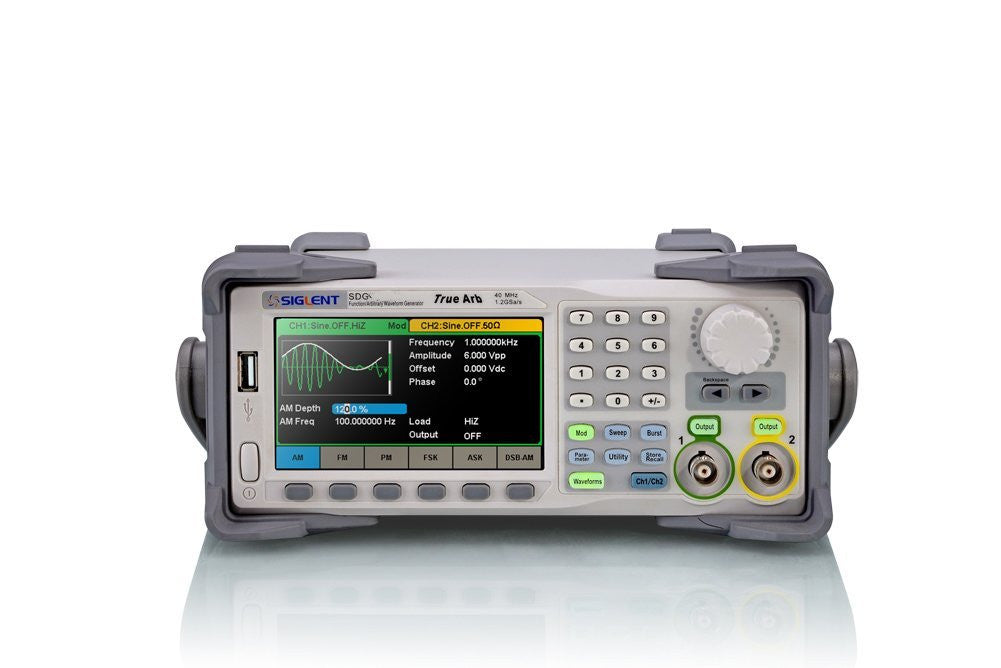

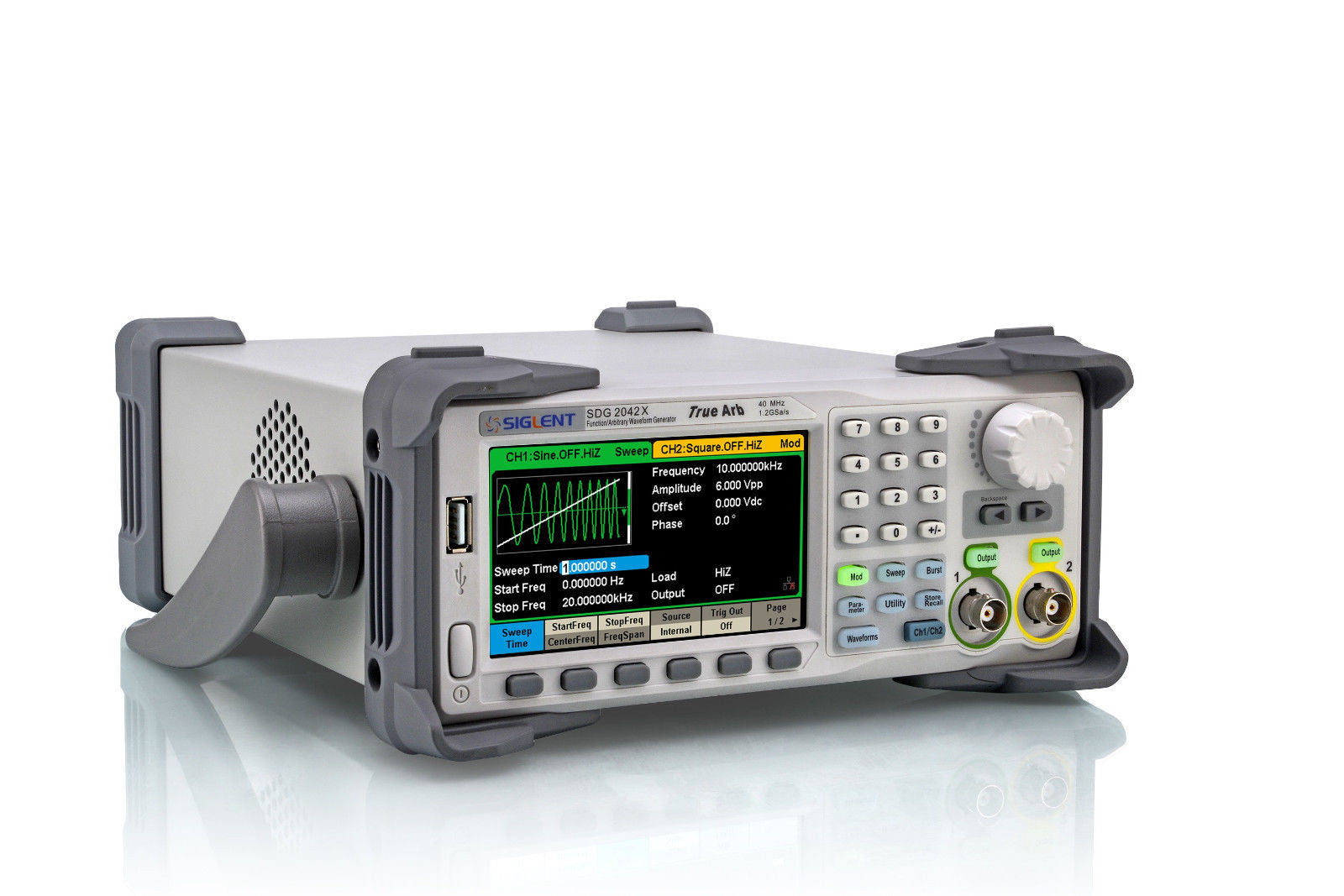

Siglent SDG2122X Function/Arbitrary Waveform Generator 120MHz 2 channels 1.2GSa/s

brand: SainSmart SKU: 20-010-440
Oops, 0 In Stock

SIGLENT's SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.


Key Features:

  • Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
  • High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
  • Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s
  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
  • Plenty of analog and digital modulation types: AM?DSB-AM? FM?PM?FSK?ASK and PWM
  • Sweep and Burst function
  • High precision Frequency Counter
  • Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11)
  • Optional interface: GPIB
  • 4.3" touch screen display for easier operation
  • Bandwidth :120MHz
  • Sampling rate: 1.2 GSa/s (4X Interpolation)
  • Vertical resolution: 16 bit
  • Num. of channels: 2
  • Max. amplitude: ±10V Display :4.3" touch screen display, 480 x 272 x RGB
  • Interface Standard: USB Host, USB Device, LANOptional: GPIB (USB-GPIB adaptor)
