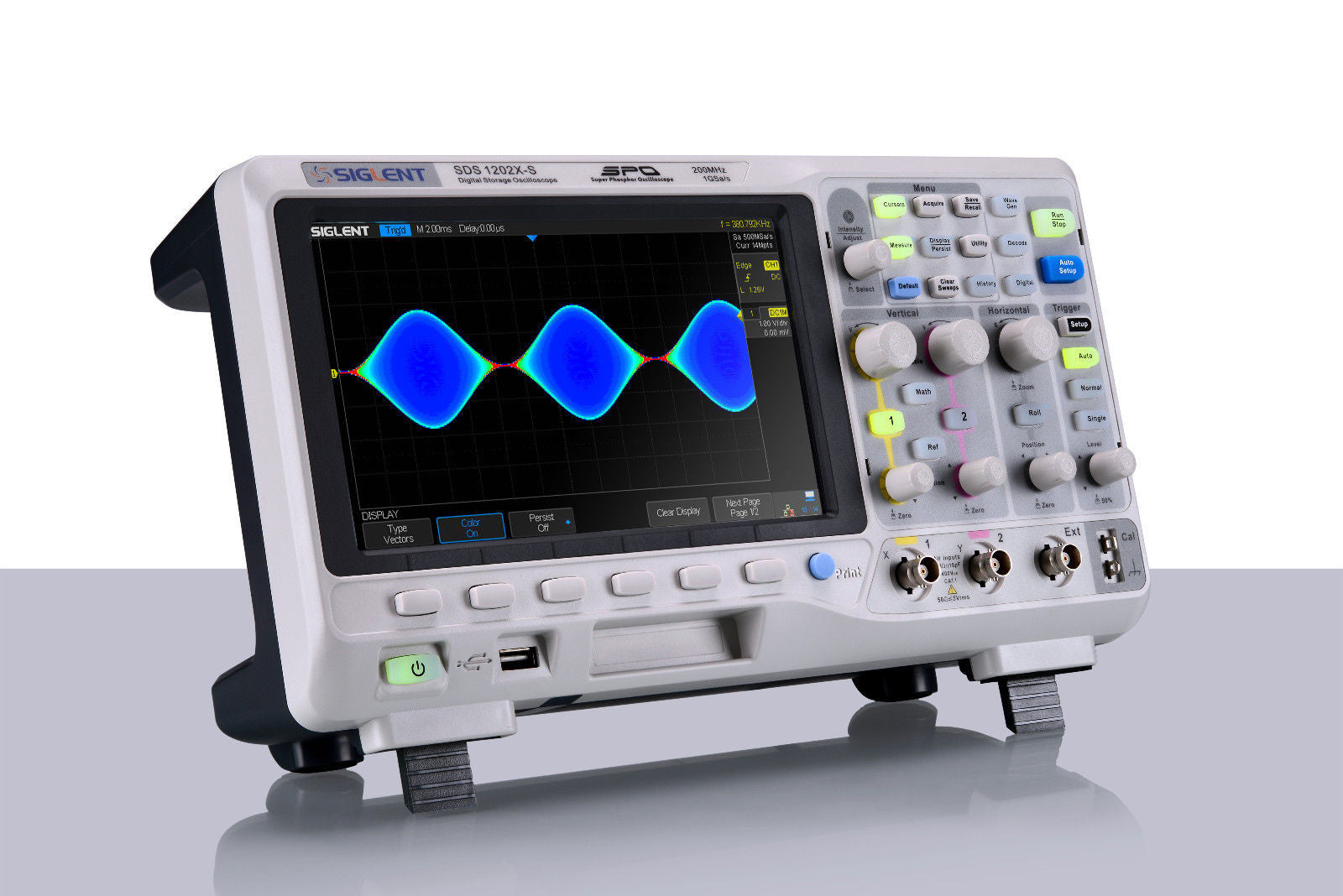

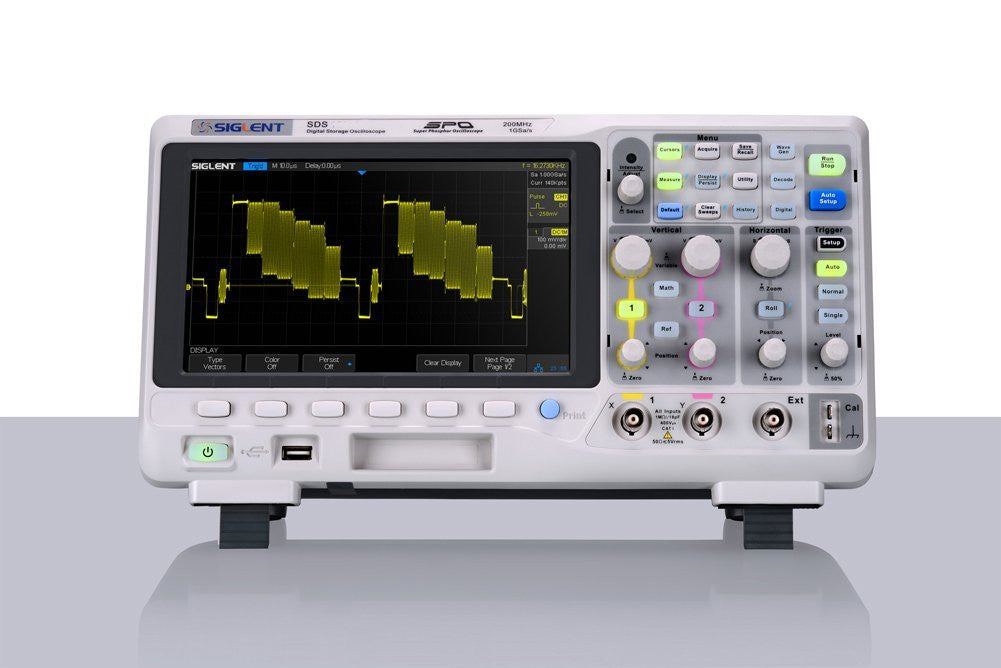

Siglent SDS1202X-S Super Phosphor Oscilloscope Bandwidth 200MHz 8 inch TFT LCD+AW

brand: SainSmart SKU: 20-010-437
$881.11 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Description:
SIGLENT's new SDS1000X Series Super Phosphor Oscilloscopes are available in four bandwidths, 100 MHz and 200 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.



  • 200MHz, 100MHz, bandwidth models
  • Real-time sampling rate up to 1GSa/s
  • Record length of 14Mpts
  • Waveform capture rate up to 60,000 wfs/s
  • New generation of SPO technology
  • Supports 256-level intensity grading and color temperaturedisplay
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval,
  • Time out (Dropout), Pattern
  • Serial bus triggering and decode, supports protocols I2C, SPI, UART/RS232, CAN, LIN
  • Video trigger, supports HDTV
  • Low background noise, supports 500μV / div to 10V / div voltage scales
  • 10 types of one-button shortcuts, supports Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persistence, Clear Sweep, Zoom and Print
  • Bandwidth :200MHz
  • Sample Rate(Max): 1GSa/s
  • Channels:2+EXT
  • Memory Depth(Max) 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
  • Waveform Capture Rate 60,000 wfms/s
  • Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
  • Serial Trigger (Optional) I2C, SPI, UART/RS232, CAN, LIN
  • Decode Type (Optional) I2C, SPI, UART/RS232, CAN, LIN
  • DDS Waveform Generator No Yes No Yes
  • Single Channel, Max Frequency up to 25MHz, 125 MS/s waveform generation Capabilities, wave length 16Kpts I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
  • Probe(Std) 2 pcs passive probe PP510 2 pcs passive probe PP215
  • Display 8 inch TFT LCD (800x480)
  • Weight Net weight 3.26 Kg, Gross weight 4.25Kg



Comparison:

Model

Siglent SDS1000X

Rigol DS1000Z

Bandwidth

100/200MHz

50/700/100MHz

Analog Channels

2CH

4CH

Digital Channels

N/A

16CH (only for MSO1000Z
and DS1000Z plus model)

Real Time Sampling Rate

1GSa/s

1GSa/s

Memory Depth

14Mpts

12Mpts(standard),24Mpts(option)

Waveform Capture Rate

60,000 wfm/s

30,000 wfm/s

Time Base Range

2ns/div--50s/div

5ns/div--50s/div

Time Base Accuracy

±25ppm

±25ppm

Vertical Sensitivity

500uv/div-10v/div

1mv/div-10v/div

Input Impedance

1MΩ/50Ω

1MΩ

Trigger Types

Edge,Slope,Pulse,Video,Interval,Dropout,Runt,Pattern
Window and Serial trigger

Edge,Slope,Pulse,Video,Interval,Dropout,Runt,Pattern
Setup/Hold and Serial trigger

Waveform Record

80,000 frame

60,000 frame(option)

Waveform Generator

25MHZ 1CH
(only for SDS1000X-S model)

25MHZ 2CH
(only for DS1000Z-S model)

Serial Decoding

RS232/UART,I2C,SPI(option)

RS232/UART,I2C,SPI(option)

256 intensity display

Support+ color temperature display

Support

Interface

USB Host, USB Device, LAN, Aux(Trigger out, Pass/Fail)
USB-GPIB(option)

USB Host, USB Device, LAN, Aux(Trigger out, Pass/Fail)
USB-GPIB(option)

Display

8"(800*480)

7"(800*480)
