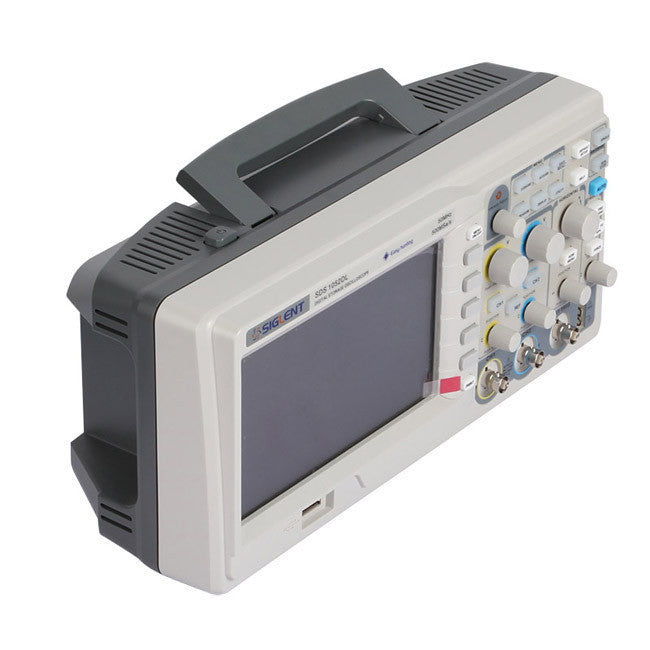

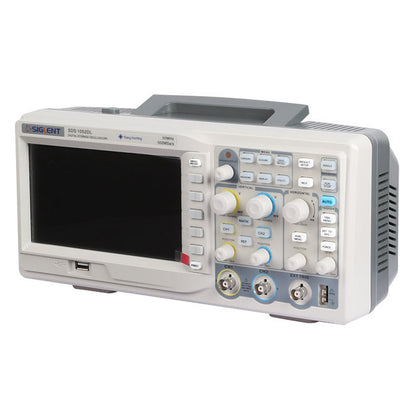

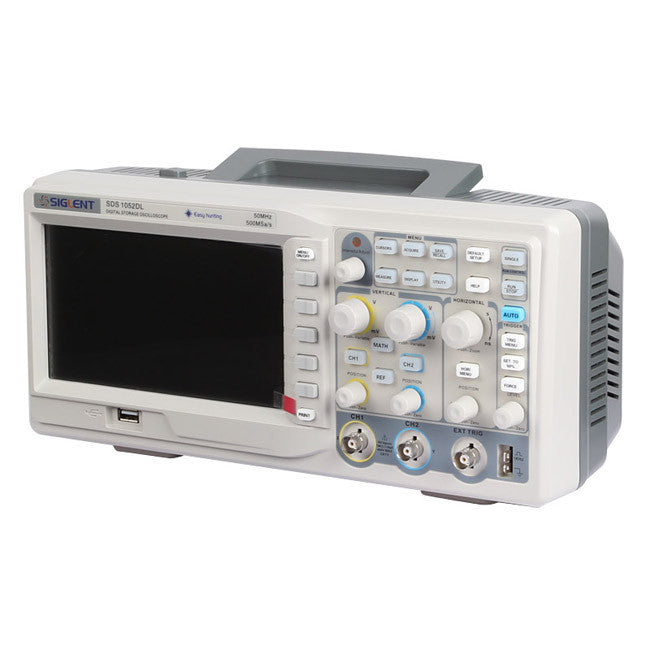

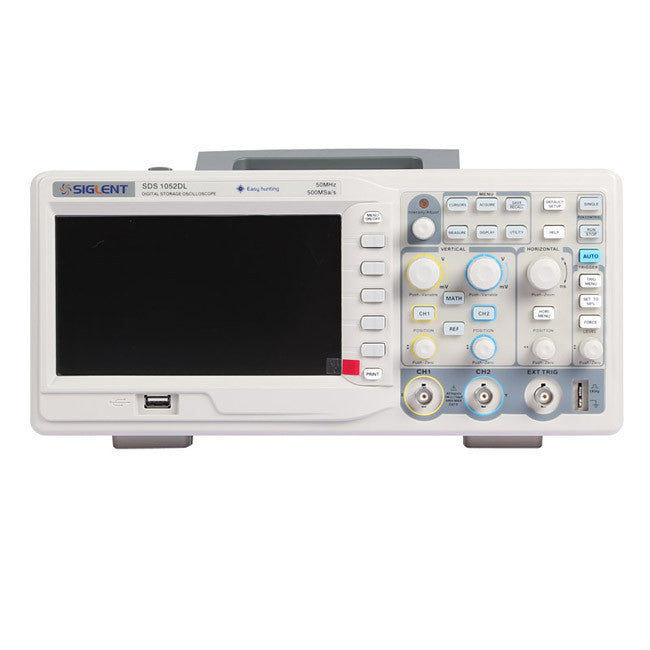

Siglent SDS1052DL 50MHz 2 Channels 100-240V 7" TFT LCD Digital Oscilloscope

brand: SainSmart SKU: 20-010-401 Variants ID: 45100496084
$285.99 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Description:

SDS1052DL digital oscilloscope uses ultra-thin design, small size and  make it more effective and efficient to work in different operating environments (such as in the laboratory or the field). Mainstream designs retains the ease of use and interoperability of the oscilloscope, rich trigger powerful measurement capabilities maximizes the efficiency of work, digital filtering function and math can meet your management needs of signal processing. The professional SDS1052DL digital storage oscilloscope not only meet customers' demanding requirements of the oscilloscope functions and performance but also budgetary savings significantly.

Features:

  • Up to 200MHz Bandwidth 500MSa/s sample rate
  • 7''TFT-LCD display, 8*18 grids
  • Channels: 2CH+1EXT
  • 500MSa/s samplinge rate, 32Kpts memory depth
  • 6 digits hardware frequency counter, real time counting display
  • Support SCPI programming command control
  • Interface: USB Device, USB Host, RS-232, Pass/Fail
  • Unique digital filter and data recorder function
  • Embedded 12 languages, online help, one key storing and one key printing
  • Weight:  2.5KG
  • Dimensions: 323mm×157mm×135mm (W×H×D)

Specifications:

Model SDS1022DL SDS1052DL SDS1102DL SDS1202DL
Bandwidth 25MHz 50MHz 100MHz 200MHz
Channels 2CH+1EXT
Real time sampling rate 500MSa/s
Equivalent sampling rate 10GSa/s 50GSa/s
Memory depth 32k
Rise time < 14ns < 7ns < 3.5ns < 1.8ns
Input impedance 1MΩII17pF
Time base range 25ns/div-50s/div 10ns/div-50s/div 5ns/div-50s/div 2.5ns/div-50s/div
Scan: 100ms-50s/div
Vertical sensitivity 2mV-10V/div
Vertical resolution 8bit
Trigger source CH1, CH2, Ext, Ext/5, AC Line
Trigger types Edge, Pulse, Video, Slope, Alternative
Math Operation +, -, ×, ÷, FFT
Digital filter High pass, Low pass, Band pass, Band Stop
Max input voltage ±400V (DC+AC Pk-Pk), CAT 1, CATII
Internal storage 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms
External storage Bitmap save, CSV save, Waveform save, Setting save
Language English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic

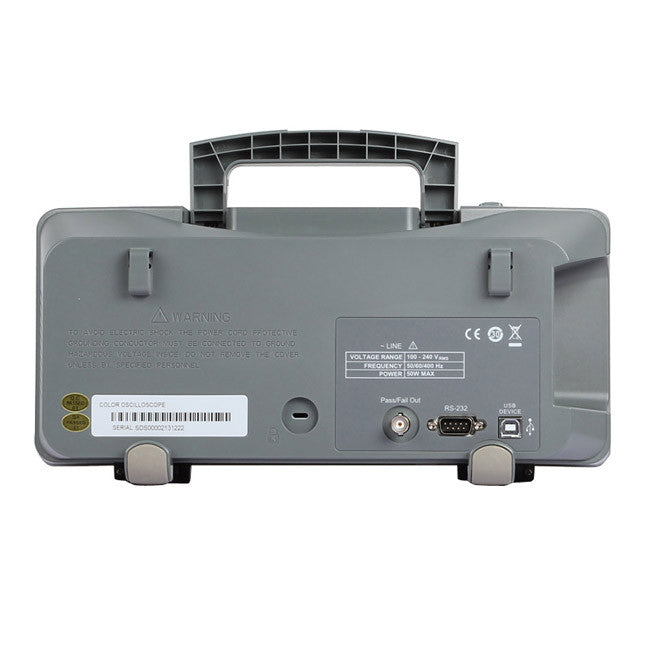

Interface USB Host, USB Device, RS-232, Pass/Fail out
Display 7 inches(178mm) color TFT(480*234) LCD
Power AC 100-240V, 45Hz-440Hz, 50VA Max
PC software Can through the computer remote control oscilloscope, extraction waveform analysis data
Remark With original source seamless connection, form signal collection, produce integration system
Detailed performance parameters and technical index please refer to SDS1000DLSeries Datasheet

Model & Contrast:

Series Bandwidth Real Time Sampling Rate Equivalent Sampling Rate Memory Depth Channels
SDS 1000CFL Series 70MHz,100MHz,200MHz,300MHz 2GSa/s 50GSa/s 24K 2/4
SDS 1000CNL Series 70MHz,100MHz,200MHz 1GSa/s 50GSa/s 40kpts 2
SDS 1000CML Series 70MHz,100MHz,150MHz 1GSa/s 50GSa/s 2Mpts 2
SDS 1000DL Series 25MHz,50MHz,100MHz,200MHz 500MSa/s 50GSa/s 32Kpts

2

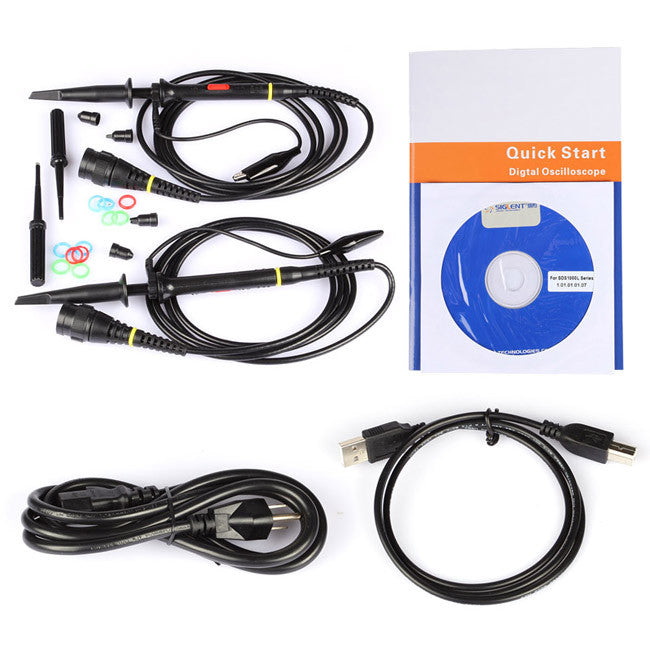

Package Includes:

  • 1x Digital Oscilloscope
  • 1x EasyScope3.0 Computer Software System
  • 1x Power Cord
  • 1x USB Cable

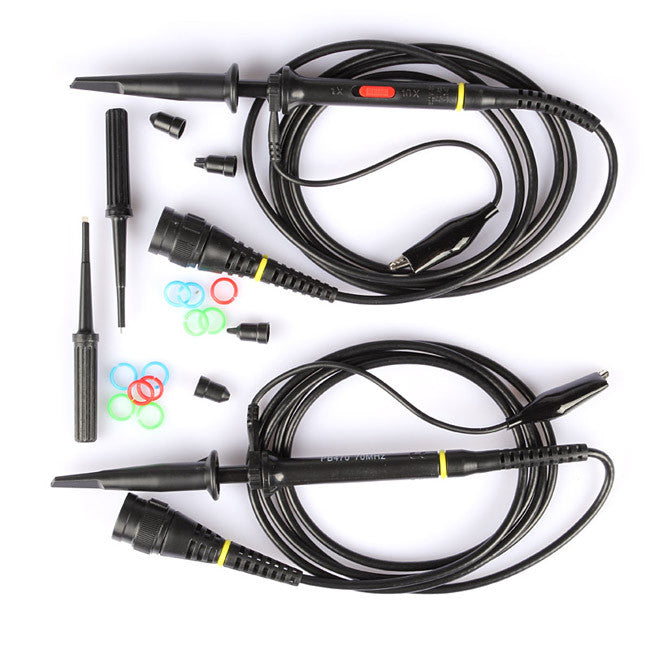

  • 2x Probe (1:1,10:1)
