Description:

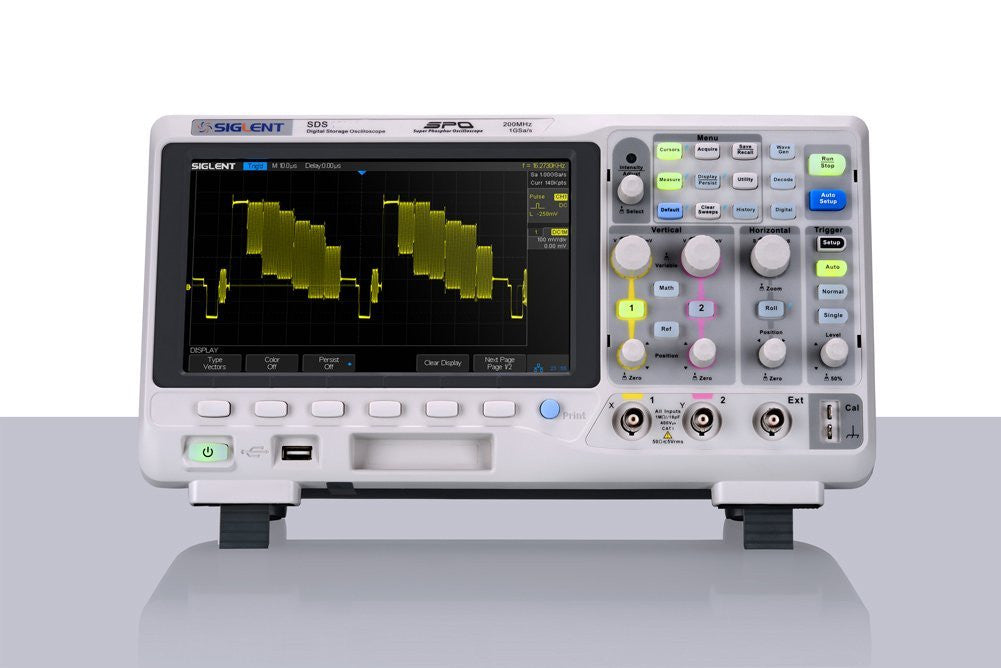

SIGLENT’s new SDS1000X Series Super Phosphor Oscilloscopes are available in four bandwidths, 100 MHz and 200 MHz,a sample rate of 1 GSa/s, and a standard record length of 14 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.
The SDS1000X series employs a new generation of SPO technology. With excellent signal fidelity, background noise is lower than similar products in the industry. The SDS1000X has a minimum vertical input range of 500uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 60,000 frames/sec. It also employs not only the common 256-level intensity grading display function but also a color temperature display mode not found in other models in this class. Siglent’s new oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Add an impressive array of measurement and math capabilities, options for an integrated 25 MHz arbitrary waveform generator, as well as serial decoding, and the features and high-performance of the SDS1000X oscilloscopes cannotbe matched at anywhere at this price.

• 200MHz, 100MHz, bandwidth models
• Real-time sampling rate up to 1GSa/s
• Record length of 14Mpts
• Waveform capture rate up to 60,000 wfs/s
• New generation of SPO technology
• Supports 256-level intensity grading and color temperaturedisplay
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval,
• Time out (Dropout), Pattern
• Serial bus triggering and decode, supports protocols I2C, SPI, UART/RS232, CAN, LIN
• Video trigger, supports HDTV
• Low background noise, supports 500μV / div to 10V / div voltage scales
• 10 types of one-button shortcuts, supports Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persistence, Clear Sweep, Zoom and Print
• Bandwidth :200MHz
• Sample Rate(Max): 1GSa/s
• Channels:2+EXT
• Memory Depth(Max) 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
• Waveform Capture Rate 60,000 wfms/s
• Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
• Serial Trigger (Optional) I2C, SPI, UART/RS232, CAN, LIN
• Decode Type (Optional) I2C, SPI, UART/RS232, CAN, LIN
• DDS Waveform Generator No Yes No Yes
• Single Channel, Max Frequency up to 25MHz, 125 MS/s waveform generation Capabilities, wave length 16Kpts I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
• Probe(Std) 2 pcs passive probe PP510 2 pcs passive probe PP215
• Display 8 inch TFT LCD (800x480)
• Weight Net weight 3.26 Kg, Gross weight 4.25Kg
