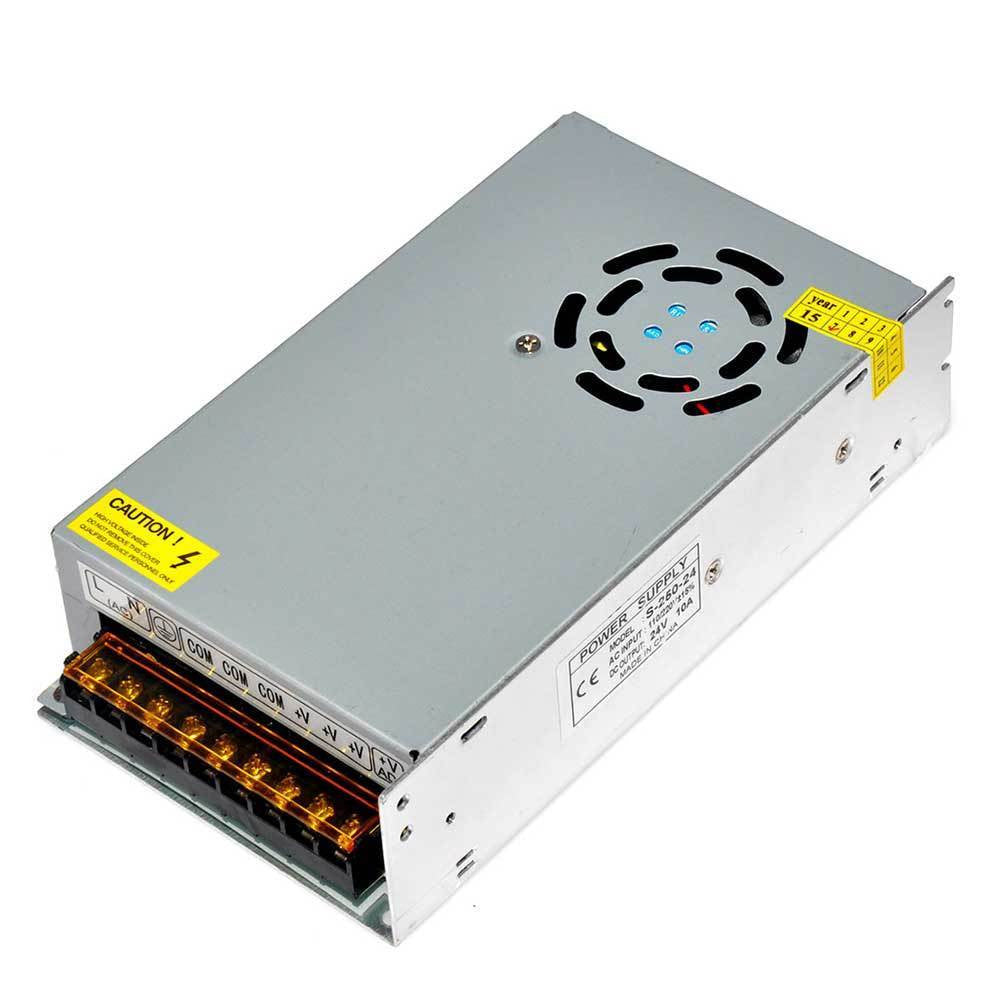

Switching Power Supply 250W 24V 10A for Arduino CNC SainSmart CNC Router Kits

brand: SainSmart SKU: 101-60-266
$43.99
Only 4 in stock. Order now!
DESCRIPTION

This professional 250W 24V 10A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the power supply. Low cost also makes it more acceptable for general usage.



FEATURE
  • Output: DC 24V 10A
  • Input: AC 100-250V
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • Please don't connect wires with Power-On.
  • Please make sure chosed correct Input Voltage 115V or 230V before Power-On.


SPECIFICATION
  • DC Output:24V 10A
  • Wave and Noise:150mVp-p
  • Inlet Stability:±0.1%
  • Load Stability:±0.3%
  • Efficiency:85%
  • Adjustable Range:20.8V~27.2V
  • AC Input Voltage:90~132V/180~264VAC Slected by Switch
  • AC Input Current:3.54A/115VAC 1.73A/230VAC
  • Working Temperature:-10~50°C
  • Safety Standards:GB4943, UL60950, EN60950
  • EMC Standards:GB9254, 55022, Class A
  • Weight:1.1kg



WHAT'S IN THE PACKAGE
  • 1x Switching CNC Power Supply
