Ultimaker 1.5.7 + A4988 + Mega2560 R3 + LCD2004 3D Printer Controller Kit For RepRap

brand: SainSmart SKU: 20-013-219
$199.78 FREE EXPRESS SHIPPING
Oops, 0 In Stock

Description:

This is the new SainSmart 3D Printer  Starter Kit, developed specially for those beginners who are interested in 3D printer.  You will have a complete set of Sainsmart's most common and useful electronic components. What's more. We will offer you a detailed tutorials including project introduction and their source codes.You may learn about Sainsmart through using these basic projects.



Overview:


http://www.selloutsoon.com/albums/SKU/20/20-013/20-013-219/20-013-219/01.JPG

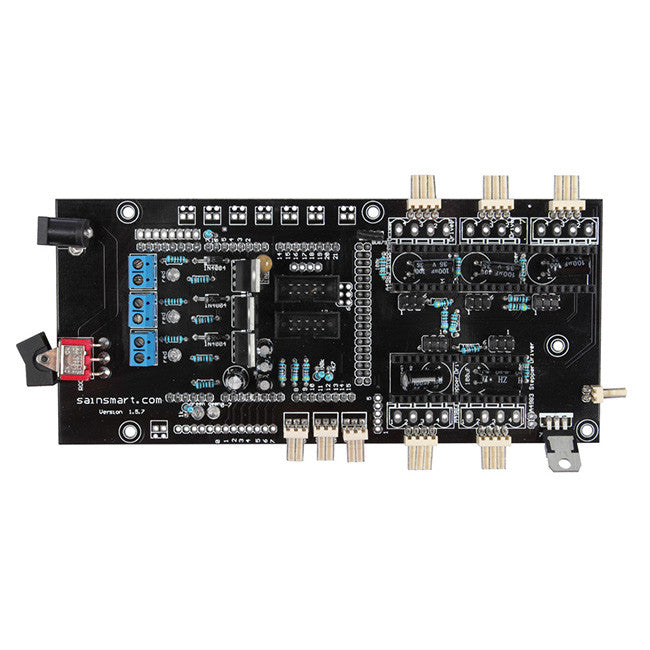

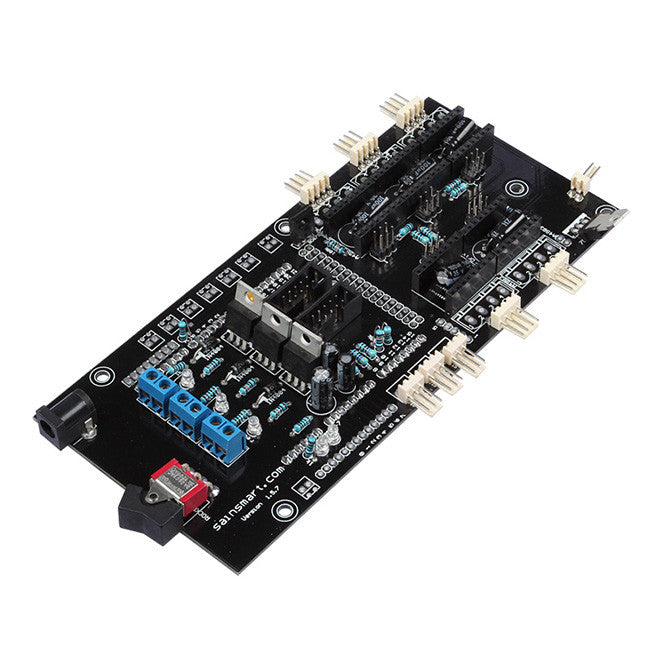

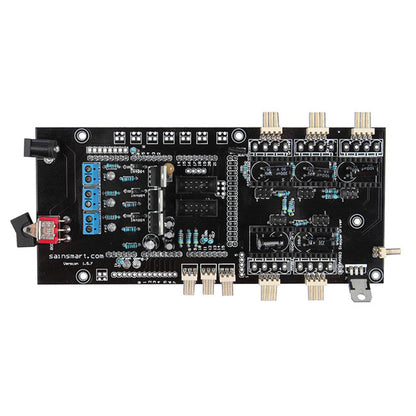

1.SainSmart Ultimaker 1.5.7 Controller
This is a board that's very similar to other Pololu-based electronics implementations, including RAMPS, but it can support up to 5 steppers (three for X, Y, Z, one for an extruder and one for any other function). You can add as many stepper driver carriers as youneed. It is designed to run at higher voltages than 12 Volts, This allows you to put 90 Watts out of one MOSFET and run your stepper motors with more torque and higher maximum speeds. This board is also used on the Mantis-30 milling machine from Protospace and on various Mendel's that people have built.

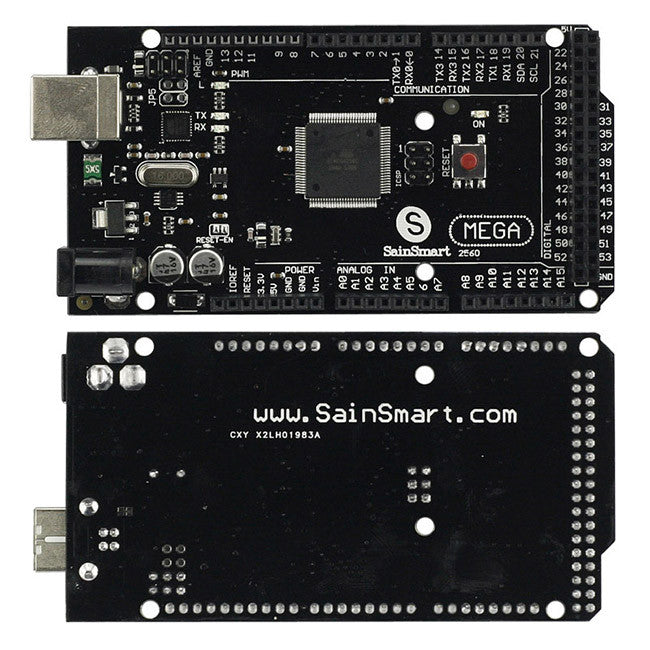

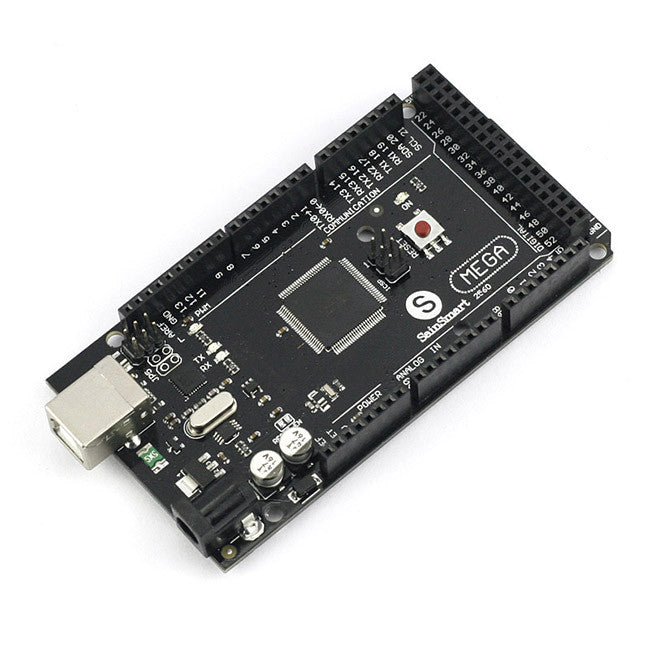

2. Sainsmart Mega 2560 R3
Sainsmart Mega2560 R3 is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the bootloader, download the program directly via USB without having to go through other external writer. Supply part of the optional USB power, or as an external power using the AC-to-DC adapter and battery. Arduino development IDE interface is based on open-source principles, allows you to free download for use in project work, school teaching, motor control, interactive works.

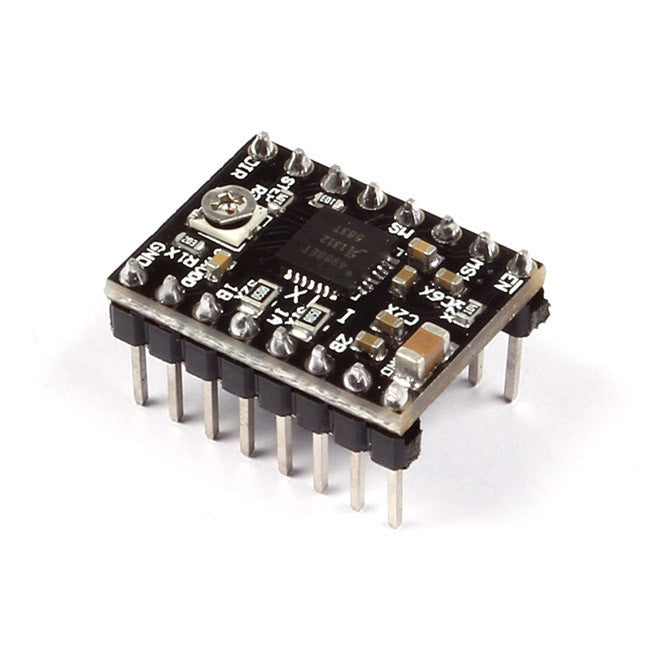

3. Sainsmart A4988 driver
This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.

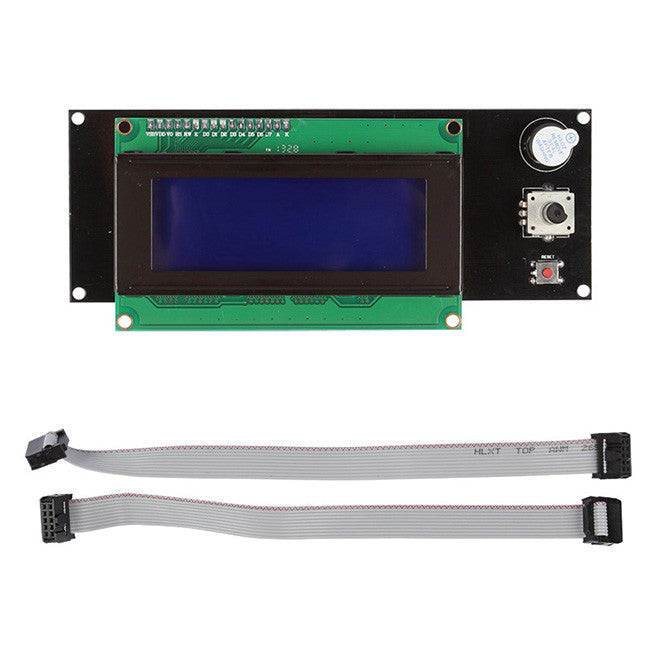

4.SainSmart 2004 Smart Yellow LCD Controller With Adapter

This Smart Controller contains a SD-Card reader, an rotary encoder and a 20 Character x 4 Line Yellow LCD display. You can easy connect it to your Ramps board using the "smart adapter" included.
After connecting this panel to your Ramps you don't need your pc any more, the Smart Controller supplies power for your SD card. Further more all actions like calibration, axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC, just with a g-code design stored on the SD card.

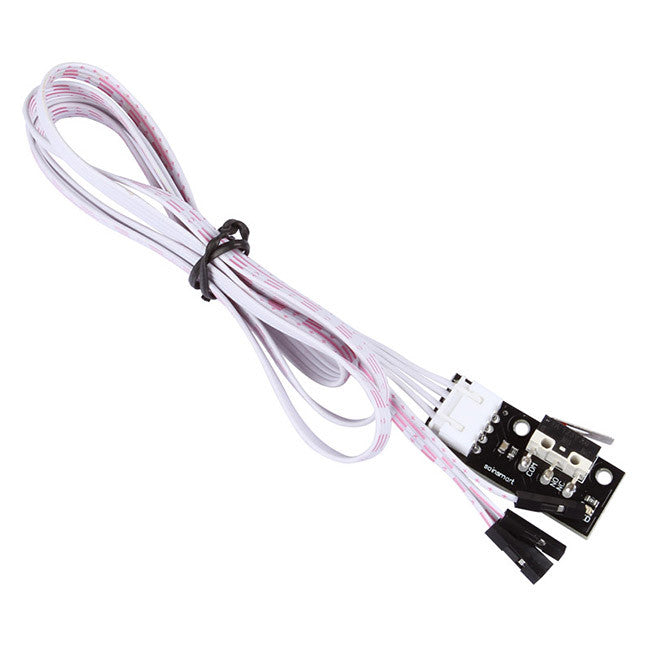

5. SainSmart Mechanical Endstop
SainSmart Mechanical Endstop perfect for any 3D printer (Including Prusa Mendel i2, Prusa i3, MendelMax, Rostock etc...) also for use on CNC machines and other electronic applications.



6. SainSmart SD Ramps
Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next 3D printer project! Board comes fully assembled and tested.The bare socket is available.

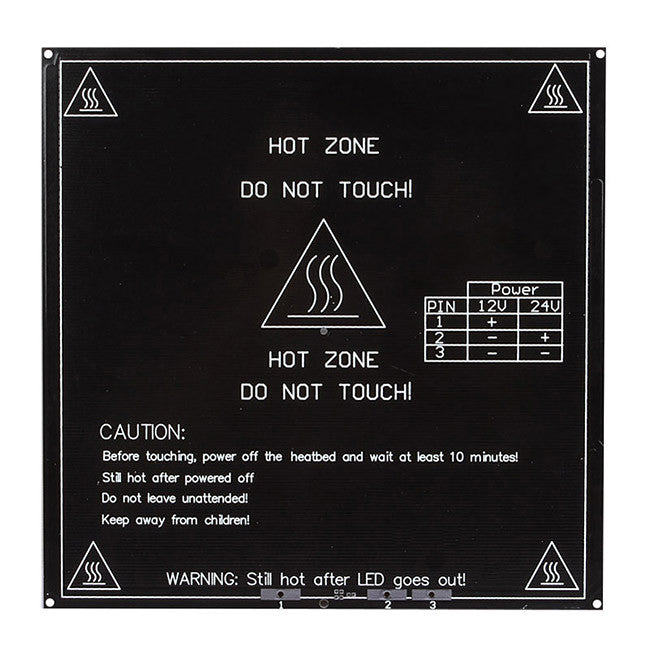

7. SainSmart Heatbed MK2a
MK2a is the latest and the best type of heatbed money can buy as of today. 100% compatible with all Prusa and Mendel 3d printer variants.

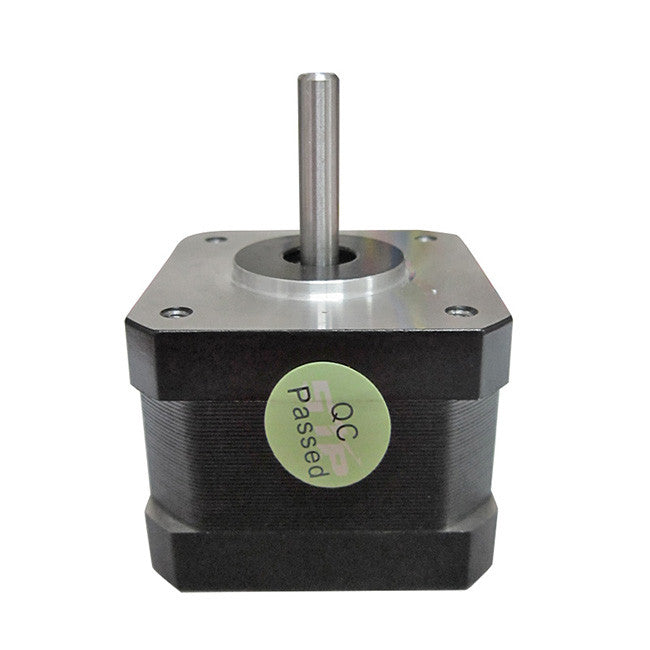

8.5 PCS NEMA 17 Stepper Motors Minebea Mill Robot RepRap Makerbot Prusa 3D Printer

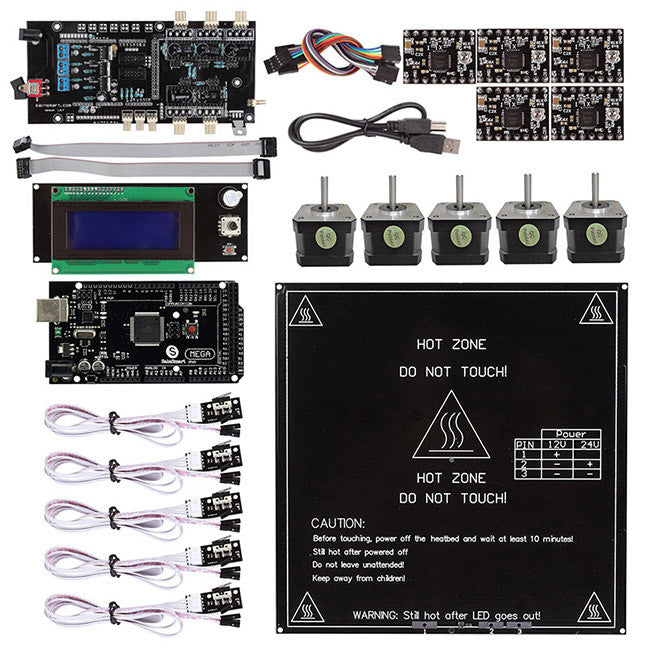

Package List:

1XSainSmart Ultimaker 1.5.7 Controller
1XSainsmart Mega 2560 R3
5XSainsmart A4988 driver
1XSainSmart 2004 Smart Yellow LCD Controller With Adapter
1XSainsmart SD card breakout For ramps
1XSainsmart Cooler Fan for 3D ramps
6XSainsmart Mechanical Endstop with cable
1XSainsmart RAMPS 1.4 wiring cable
1XSainSmart Heatbed MK2a
5XNEMA 17 Stepper Motors Minebea Mill Robot RepRap Makerbot Prusa 3D Printer
1XUSB Cable

?
