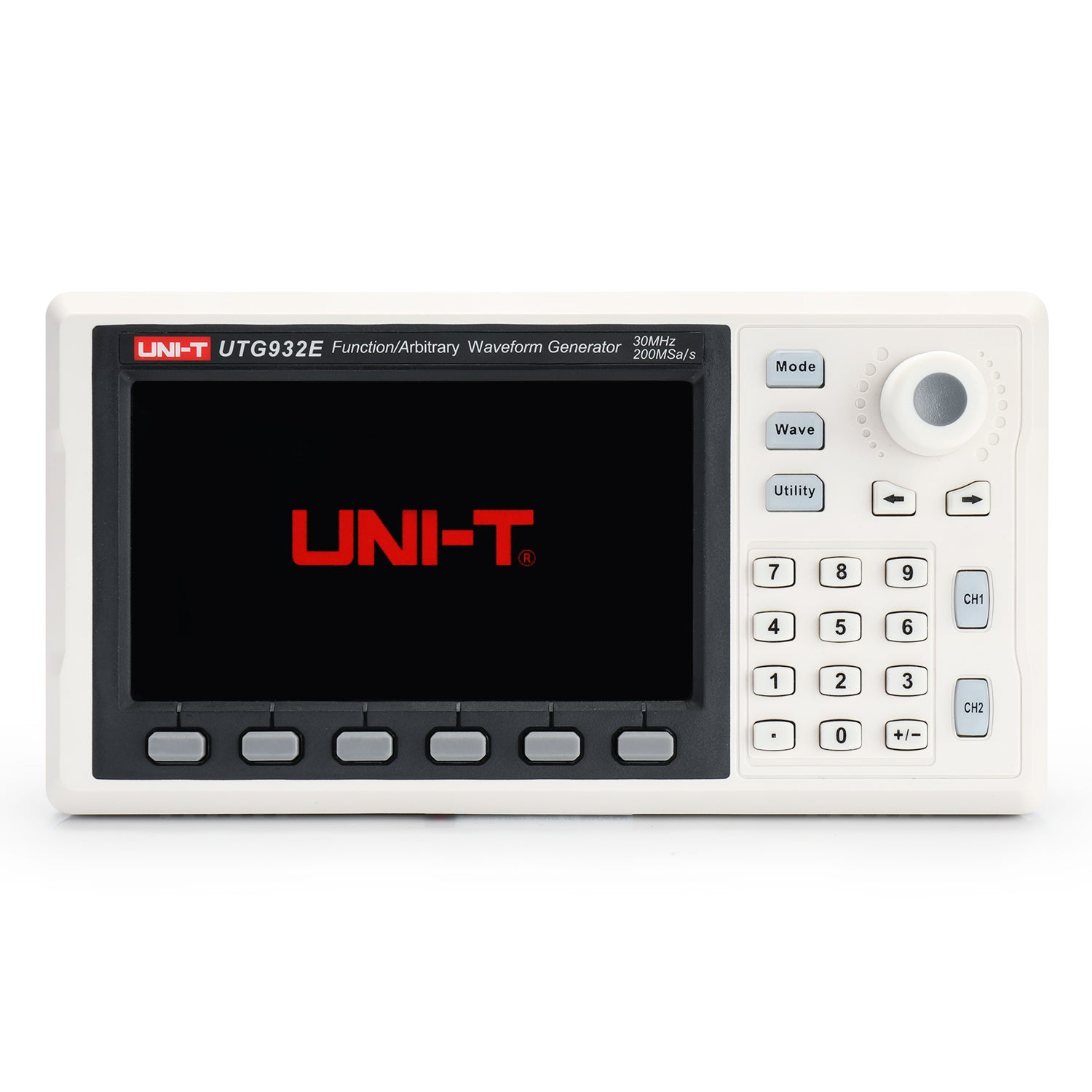

[Discontinued] UNI-T UTG932E Function/Arbitrary Waveform Generator

[Discontinued] UNI-T UTG932E Function/Arbitrary Waveform Generator

SKU:  UNT-FG-UTG932EA-01
$112.99
-13% $129.99 $112.99
Save $17.00
Shipping calculated at checkout.
Ship to
  • UNT-FG-UTG932EA-01

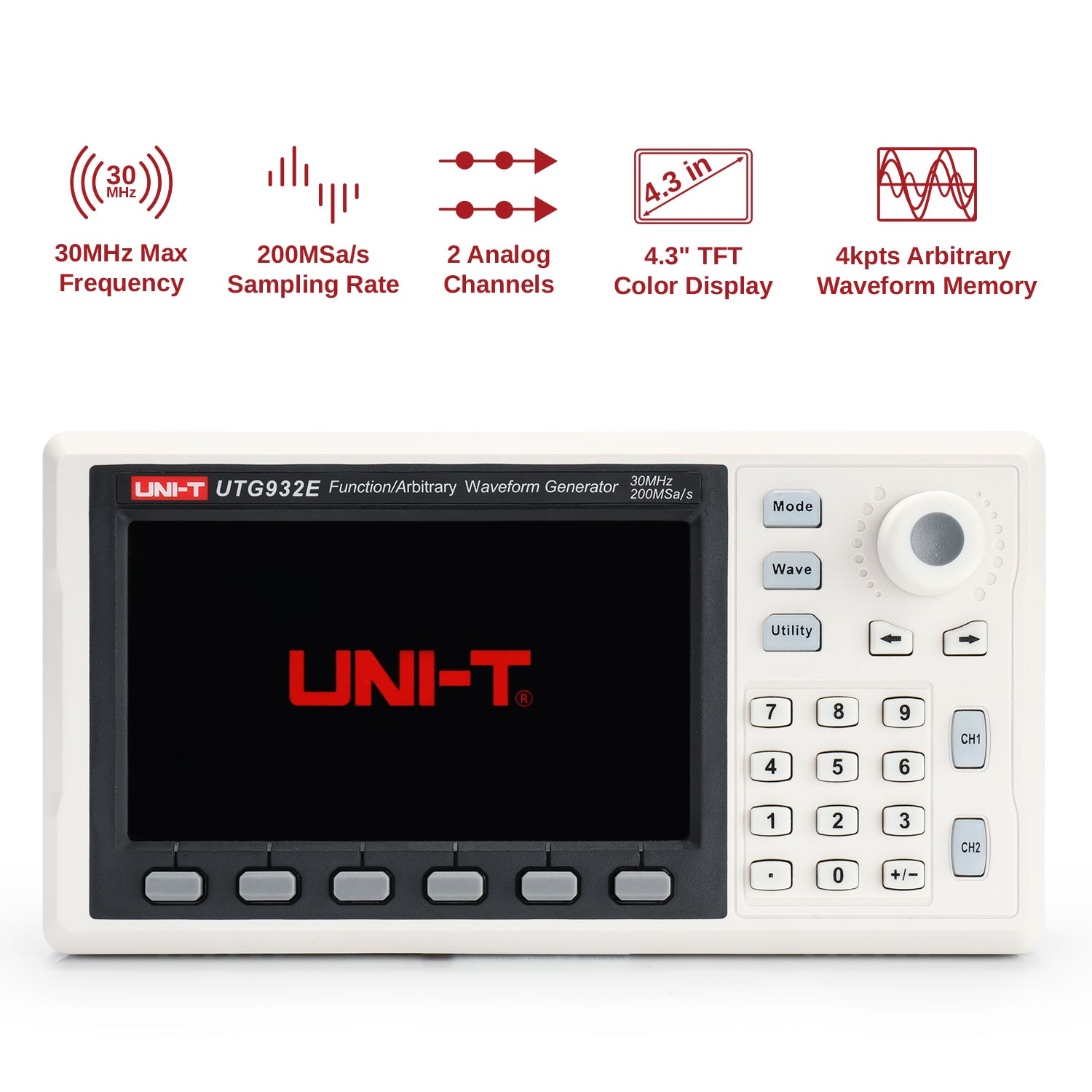

High Quality & High Sampling Rate

UNI-T UTG932E is a high-quality handheld DDS/Arbitrary waveform generator, featuring a 4.3inch HD display panel. Frequency output of 30MHz, full-band resolution of 1 μHz. Use direct digital synthesis(DDS) method, a sampling rate of 200 MSa/s and vertical resolution of 14 bits.

Low jitter & 6 Digits high accuracy

TTL level signal compatible 6 digits high accuracy frequency counter, and Low jitter square wave output, support frequency scanning and output, and powerful upper computer software.

24 Groups storage & USB

At most 24 groups non-volatile arbitrary waveform storage. Standard configuration interface: USB Device. Simple and useful modulation types: AM, FM, PM, PSK.

Multi-Application

UTG932E is used in the development, test and repair of electronic equipment. For example, they can be used as a signal source to test amplifiers or to introduce an error signal into a control loop.

Quick to Start & One-Year Warranty

Provide professional technical support services and make you start quickly. And also provide a one-year warranty on the UNI-T waveform generator.
View full details
OVERVIEW

UNI-T UTG932EA is economical, high-performance, multi-functional arbitrary waveform generators that use direct digital synthesis(DDS) technology to produce accurate and stable waveforms. UTG932EA’S convenient interface, superior technical indexes, and user-friendly graphical display style can help users to complete study and test tasks quickly and improves work efficiency.

WHY CHOOSE UNI-T?

Uni-Trend Technology(UNI-T) is one of the leading Test and Measurement solutions provider since 1988.

For all products, UNI-T provides professional technical support services and make you start quickly.

SPECIFICATIONS
  • Max Frequency: 30MHz
  • Channels: 2
  • Sampling Rate: 200MSa/s
  • Waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
  • Working Modes: Output gating, continuous, modulation, frequency sweep
  • Modulations: AM, FM, PM, FSK, Line, Log
  • Vertical Resolution: 14 bits
  • Sine: 1μHz~30MHz
  • Square: 1μHz~15MHz
  • Pulse: 1μHz~15MHz
  • Ramp: 1μHz~400KHz
  • Arbitrary: 1μHz~10MHz
  • Noise: 30MHz (-3dB)
  • Resolution: 1μHz

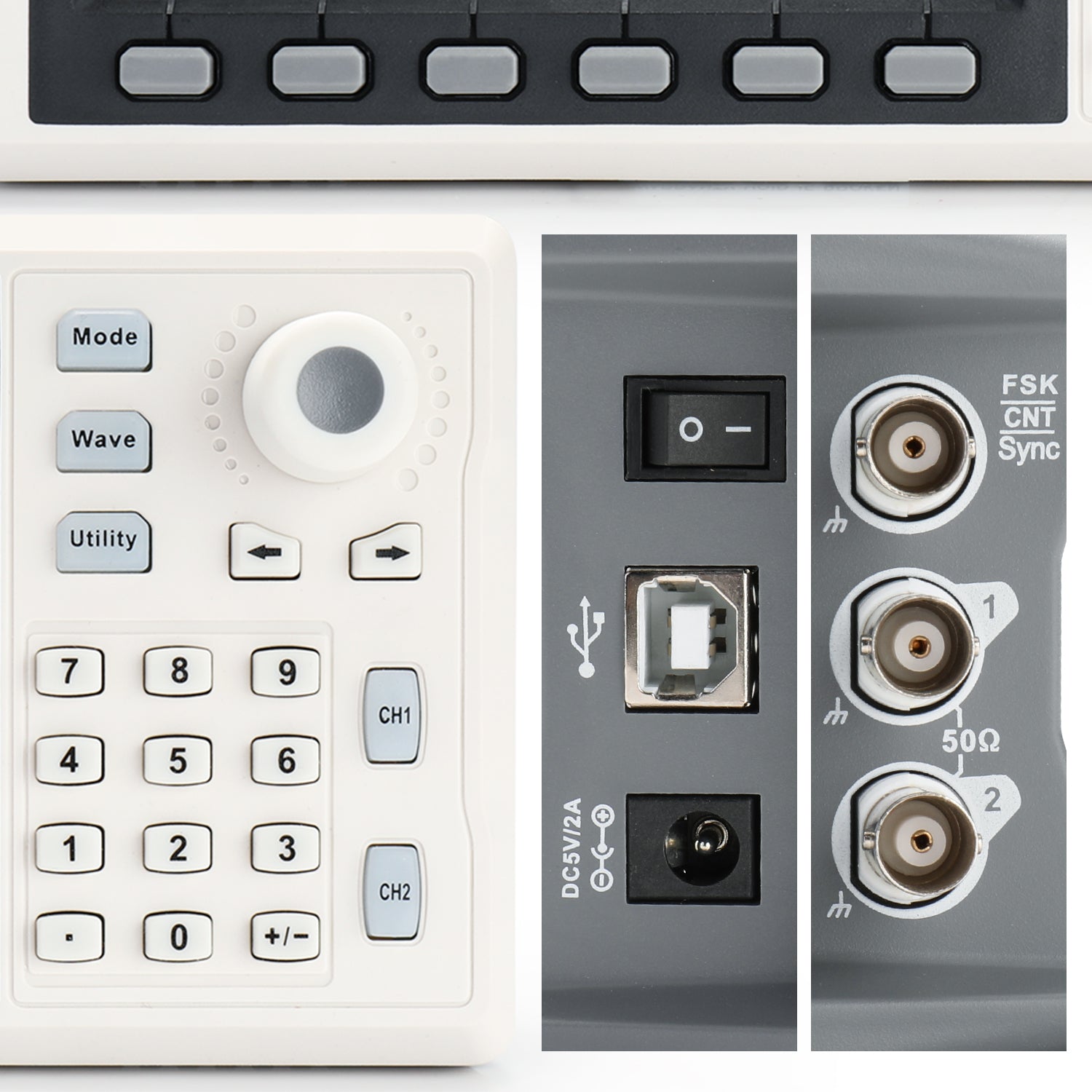

  • Interfaces: USB Device
  • Power: DC5V, 2A
  • Power consumption: Less than 10W
  • Display: 4.3-inch TFT LCD, WVGA (480 x 272)

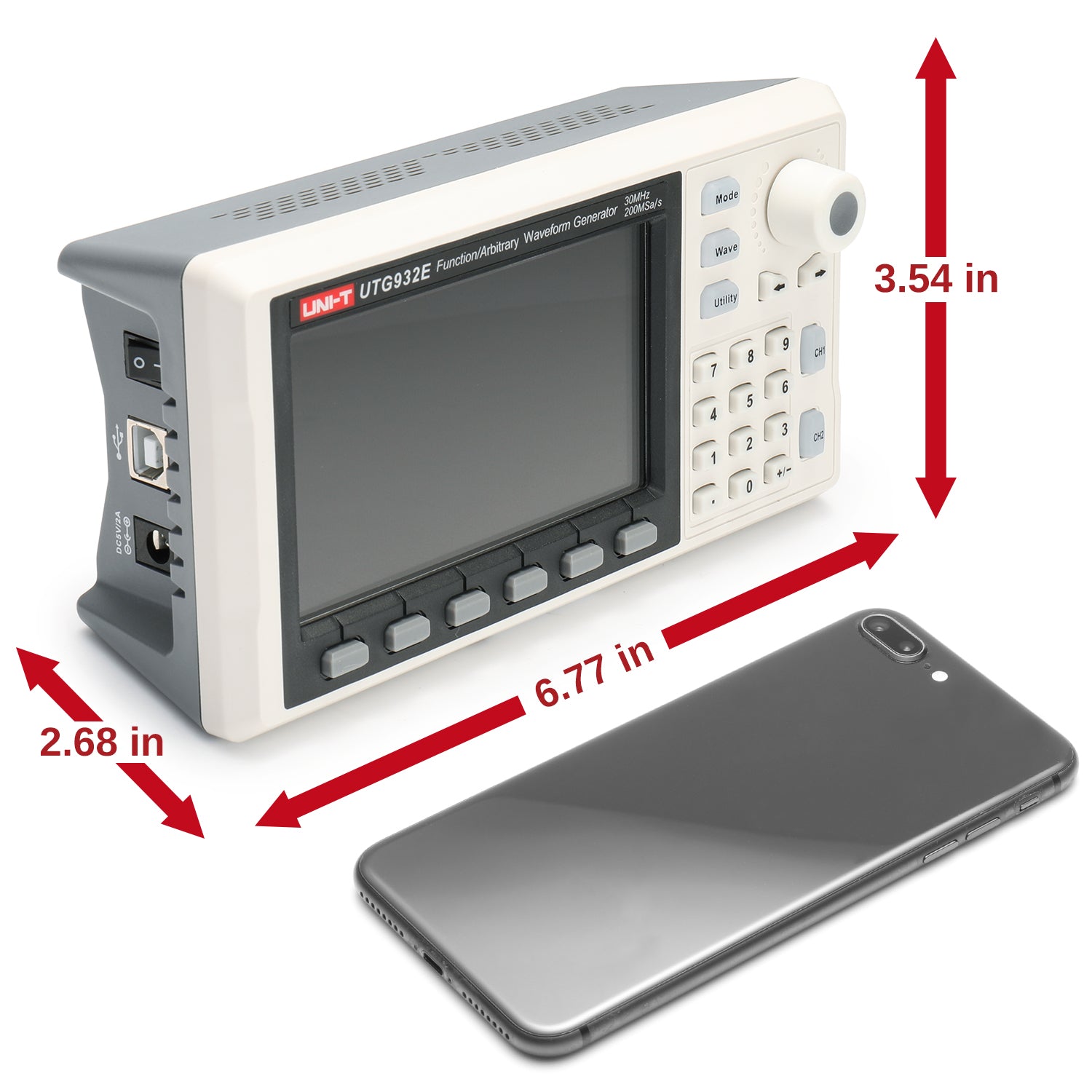

  • Item Size: 6.8 x 3.6 x 2.7 inches

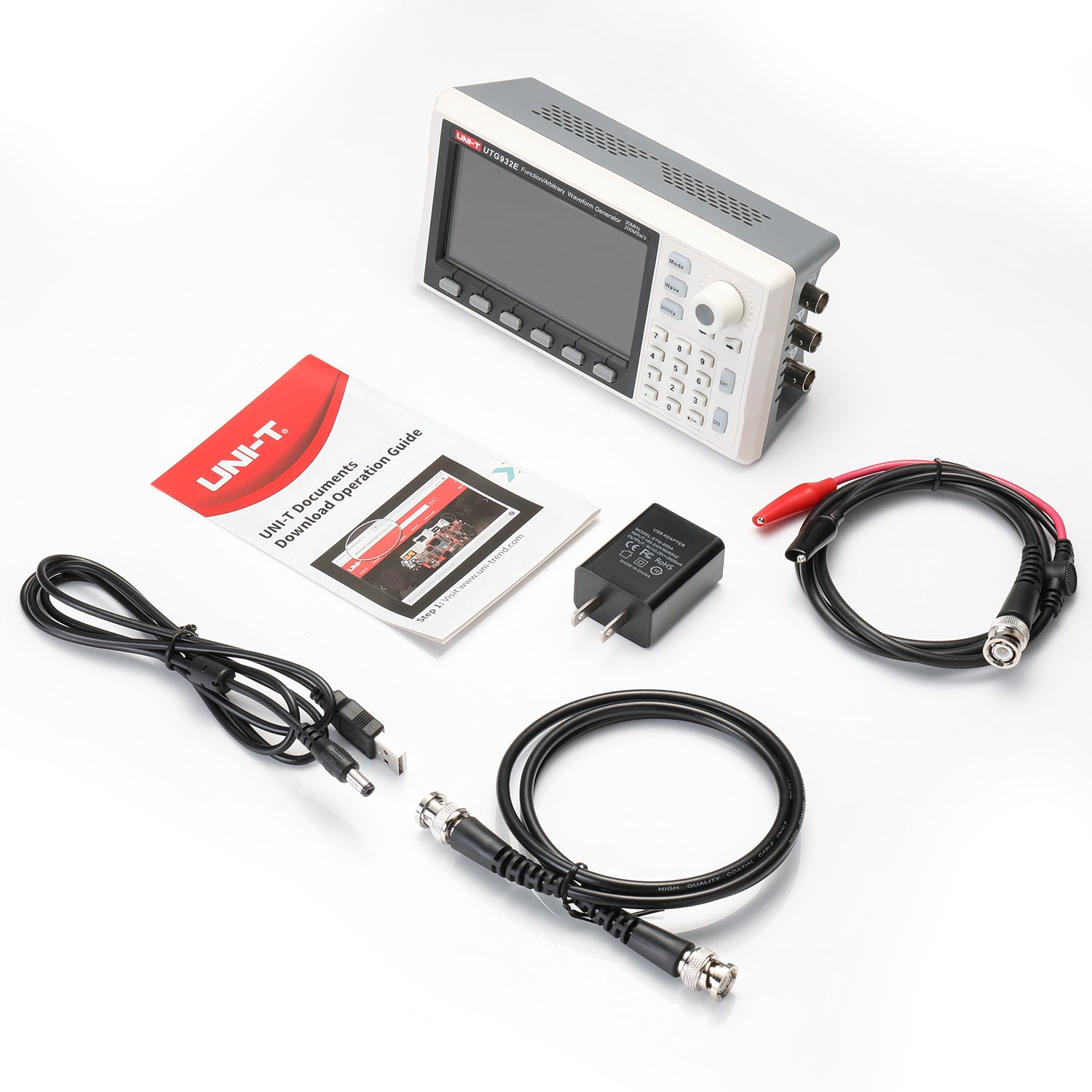

  • Standard Accessories: A power line up to local standard, A BNC-alligator clip cable, A BNC cable(1 m)
WHAT'S IN THE PACKAGE
  • 1 x UNI-T UTG932EA Function/Arbitrary Waveform Generator
