UNI-T UTi80P Mini Infrared Thermal Camerabrand: SainSmart SKU: UNT-TI-80P

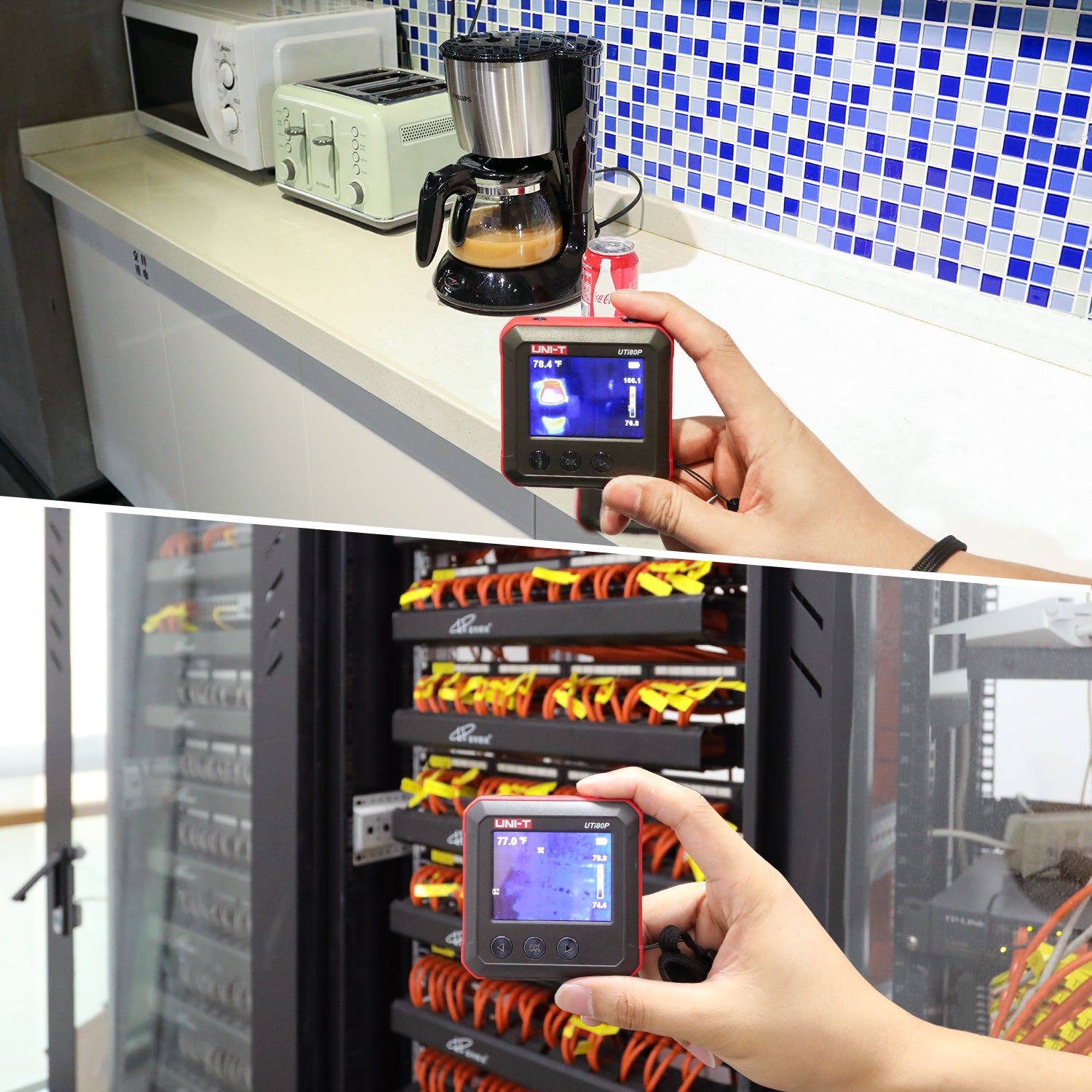

Professional and Home Use
From home inspection to professional field use, the UTi80P is perfect for jobs that require accurate temperature readings from -14 °F to 752 °F
The UTi80P’s compact design allows it to be easily stowed and transported and includes a rechargeable lithium battery for extended use and a lower environmental impact compared to other disposable battery devices.

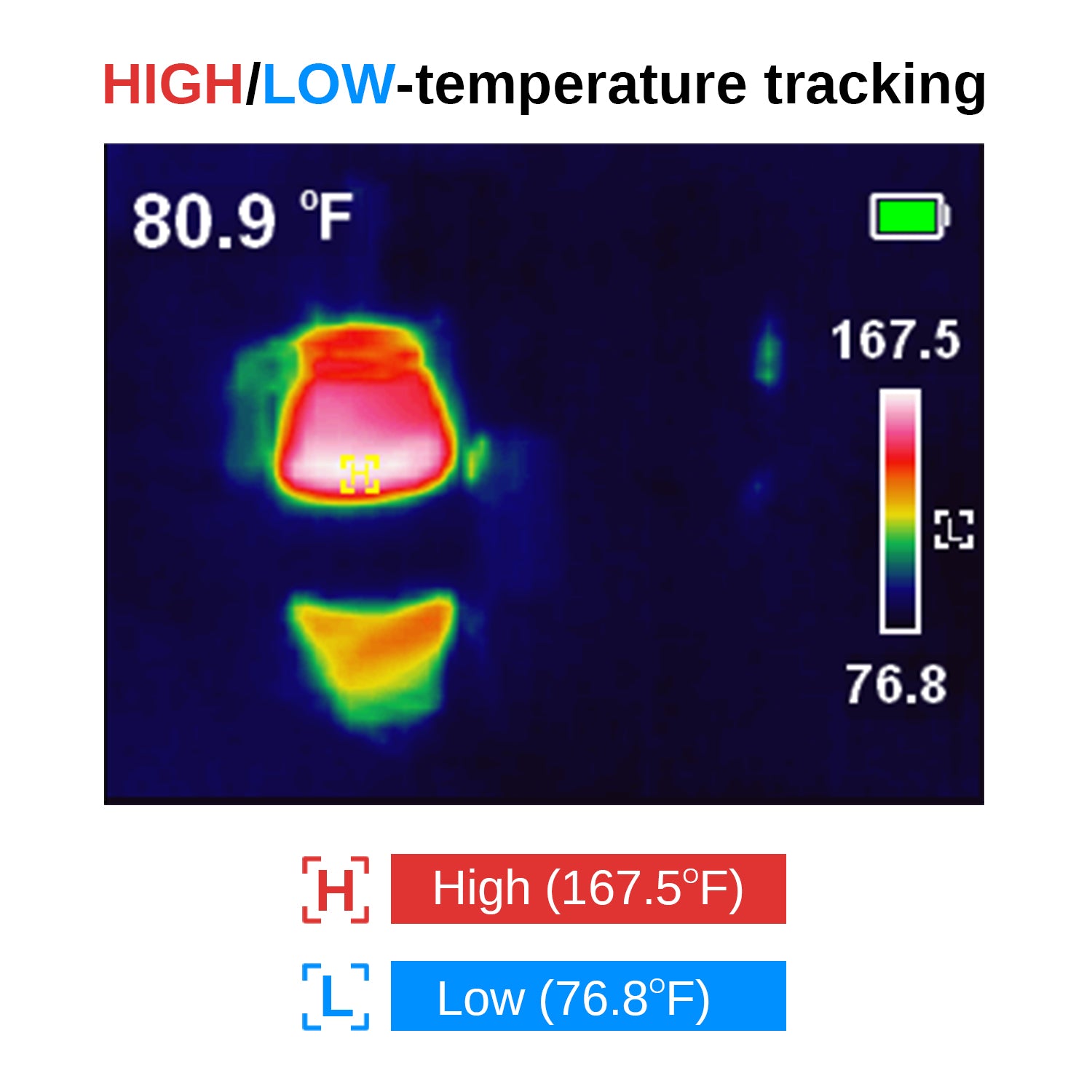

Thermal Tracking Modes
This device supports fast thermal tracking and high/low-temperature tracking modes, which can quickly locate the heat source and avoid potential danger. When there are many heat sources in the field, the highest temperature point can be highlighted.

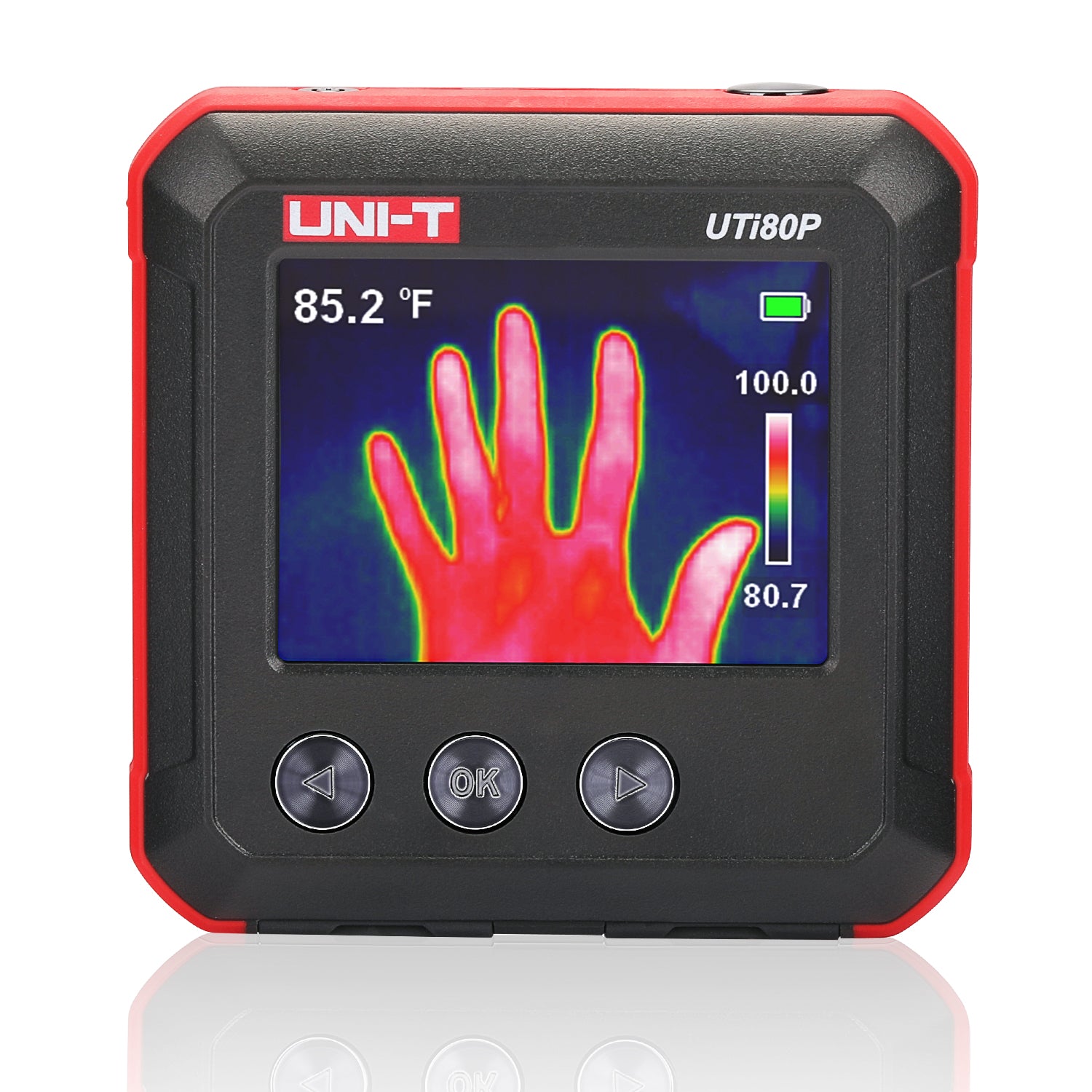

The 80 x 60 pixel thermal imaging and 2.4 inch TFT LCD screen allows you to view and capture high-resolution professional images for later evaluation or reporting.
16GB Memory Card Storage
Images and data can be easily saved into the included 16GB microSD card for later troubleshooting and documentation.
As a leading Testing and Measurement solutions provider, SainSmart provides a 1-year product warranty.
The UTi80P is a portable thermal Camera that supports fast thermal and high/low-temperature tracking, enabling you to quickly troubleshoot and detect dangers. 16GB memory card can store a large number of images and data and comes with a rechargeable Lithium battery for extended usage.
- Temperature Range: -14 °F to 752 °F
- Accuracy: ±2 °F / ±2%, whichever is greater
- Emissivity: 0.95 (default, 0.1-0.99 adjustment)
- Measurement Resolution: 0.1 °F
- Response Time: ≦500ms
- IR Resolution: 4800 pixels (80 x 60)
- Pixel Size: 17µm
- Color Palette: Rainbow, iron red, grey, fast thermal tracking
- Spectral Range: 8~14µm
- FOV: 50° x 38°
- Thermal Sensitivity: ≦150mk
- Frame Rate: ≦9Hz
- Image Format: BMP (320 x 240)

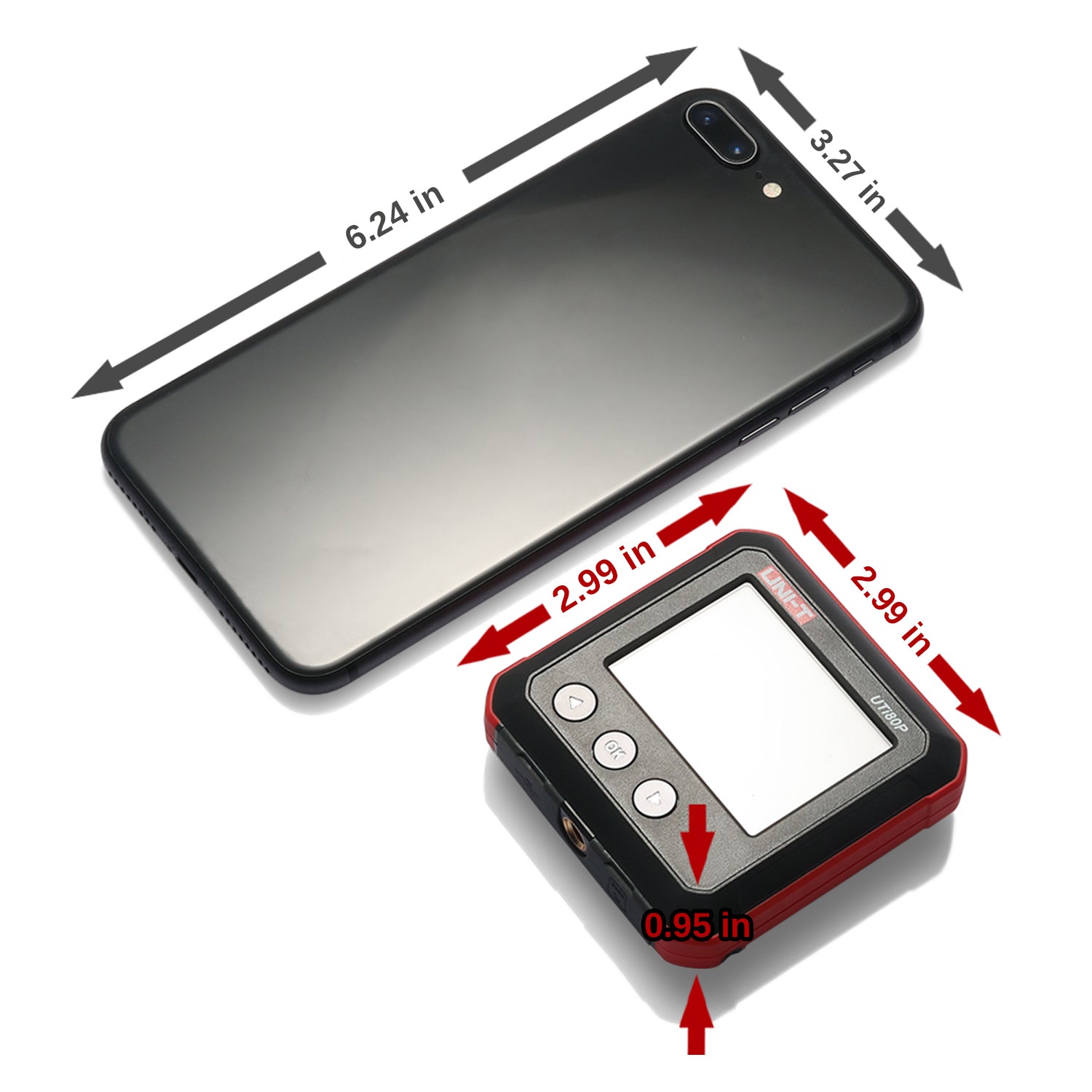

- Item Size: 3 x 3 x 0.9 inch
- Display Type: 2.4” TFT LCD
- Display Resolution: 320 x 240 pixels
- Battery: 3.7V/1300mAh, Rechargeable Lithium Battery
- Auto Power Off: Yes
- Battery Life: Approx. 3-4 hours
- Certification: CE
- Storage Card: 16GB Micro SD card
- Storage Temperature: -4 °F to 140 °F
- Working Temperature: 32 °F to 122 °F
- Altitude: ≦ 2000 meters

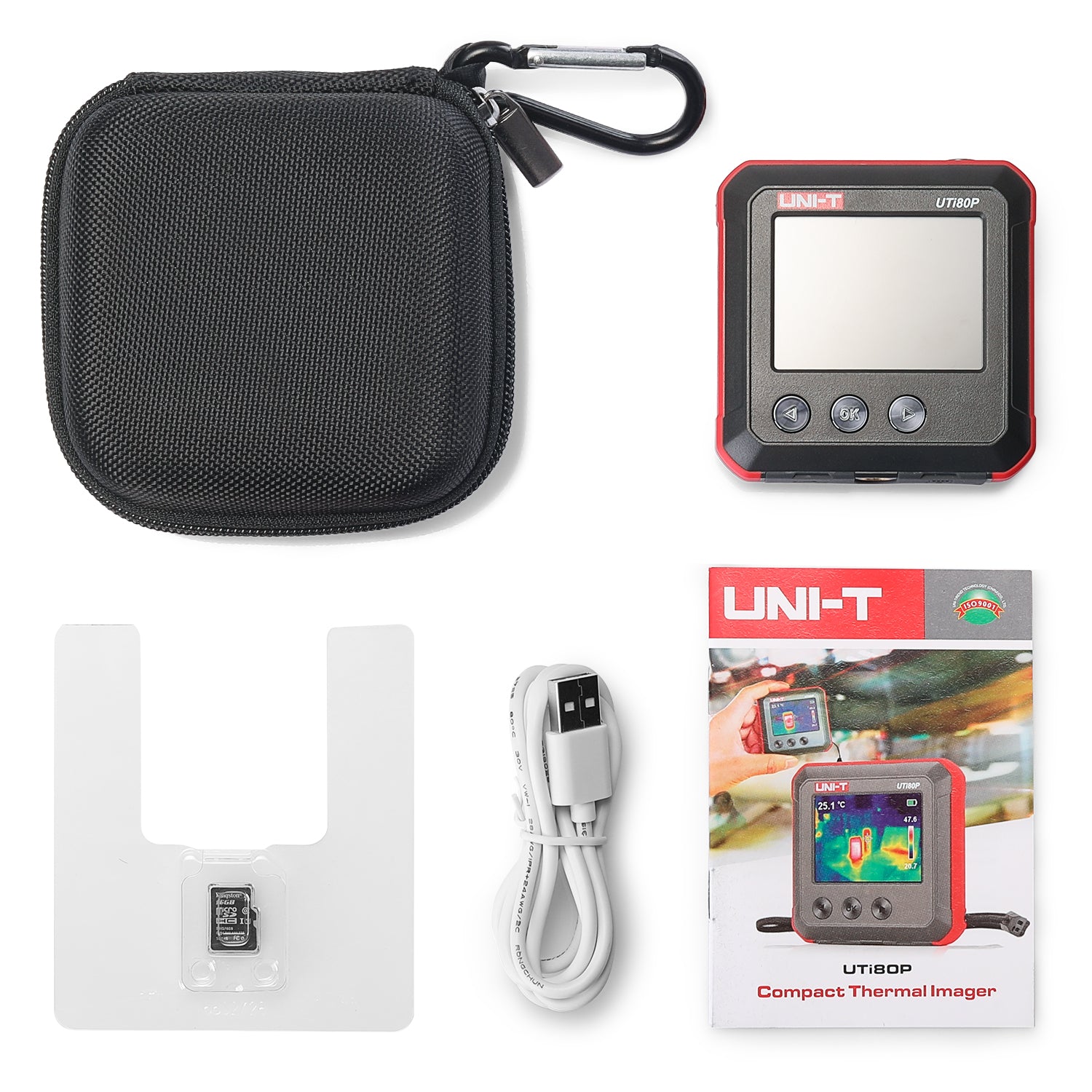

- 1 x UTi80P Compact Thermal Camera
- 1 x 16GB Micro SD Card
I was looking for a thermal imaging camera for use in my business doing power electronics design as well as home use for checking freeze dried food. I've had some prior experience with SEEK cameras and while they are higher resolution, they are very finicky about the phones they work with. With an 80x60 sensor this was adequate for my needs and the SD card capture feature puts it ahead of many more expensive "professional" cameras with the same or lower sensor resolution. The unitized camera and display is much easier to work with. I have already been asked by multiple friends who have seen it where to get one.
