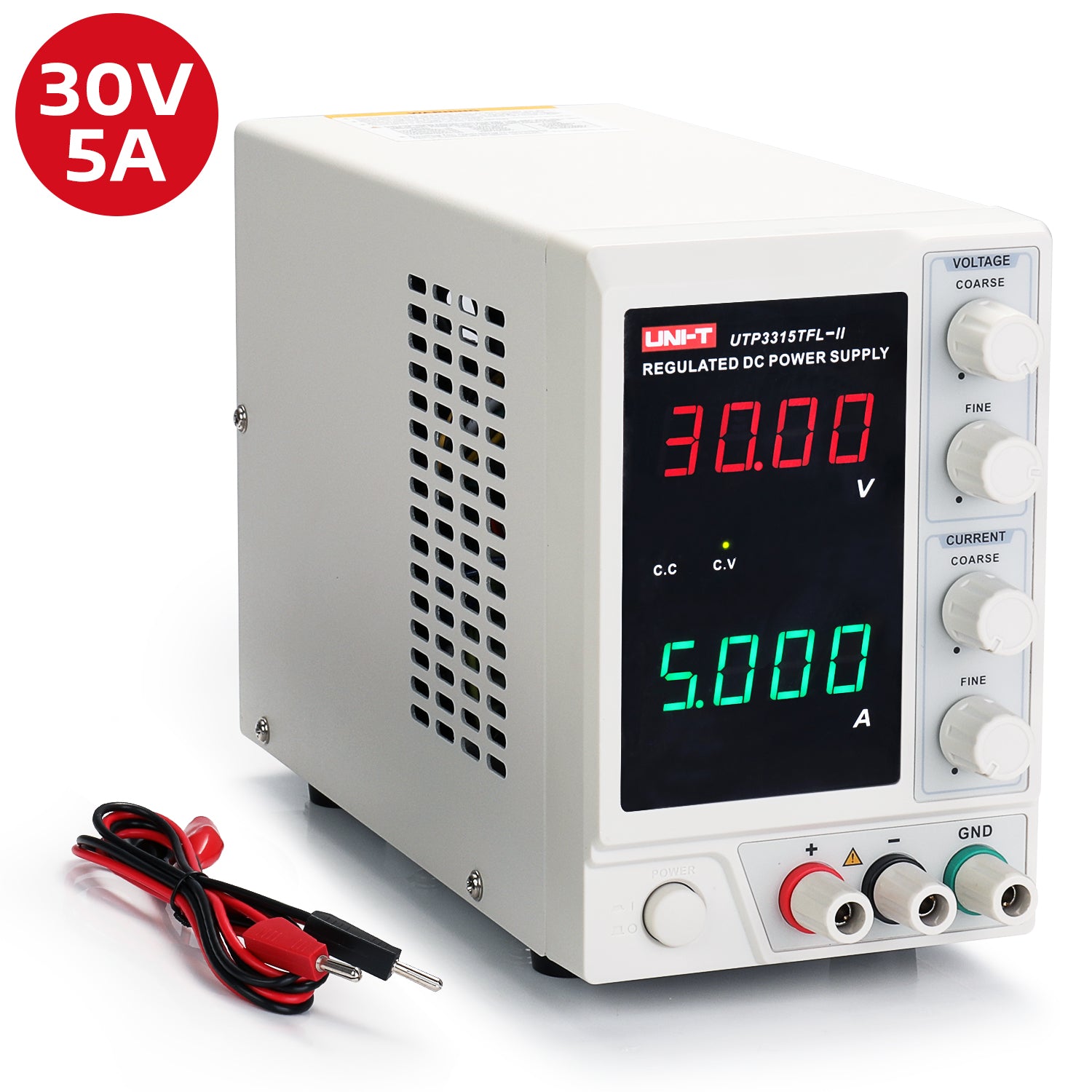

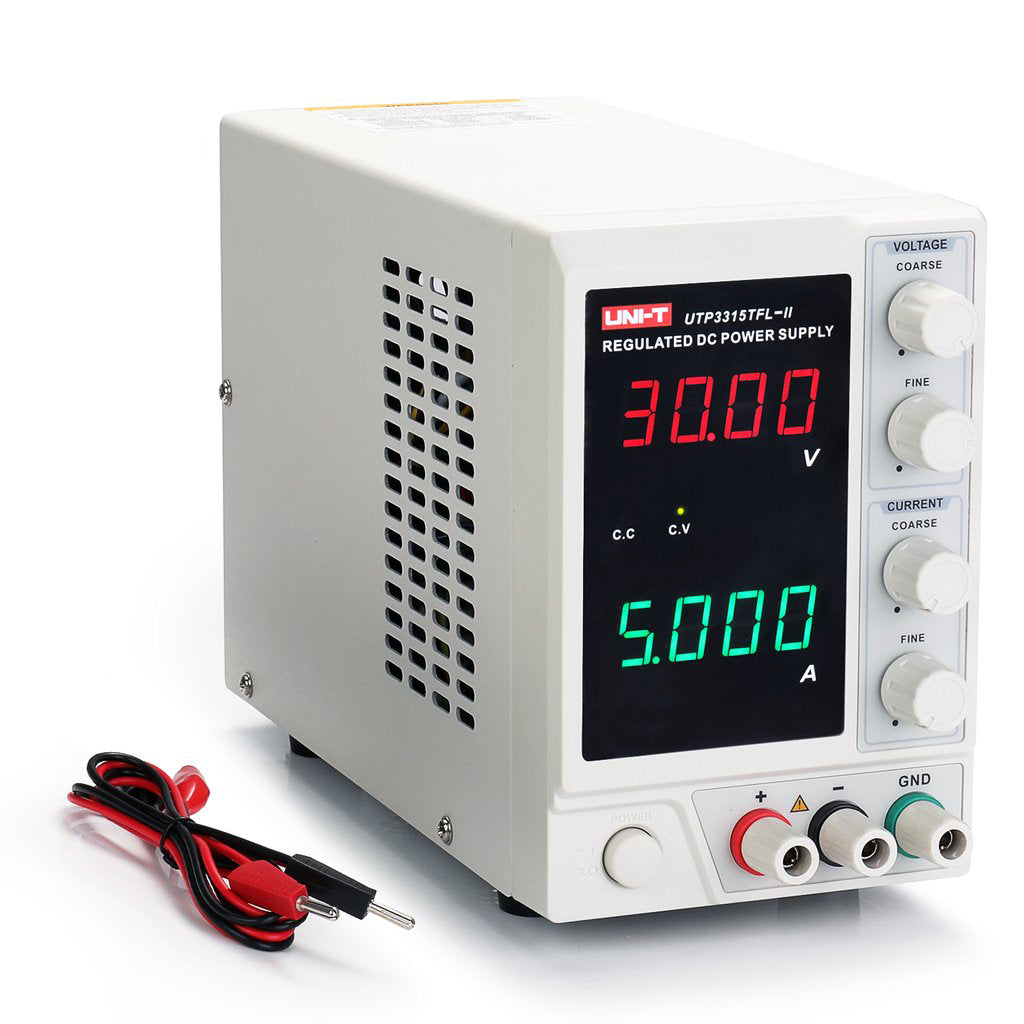

UNI-T UTP3315TFL-II DC Power Supply

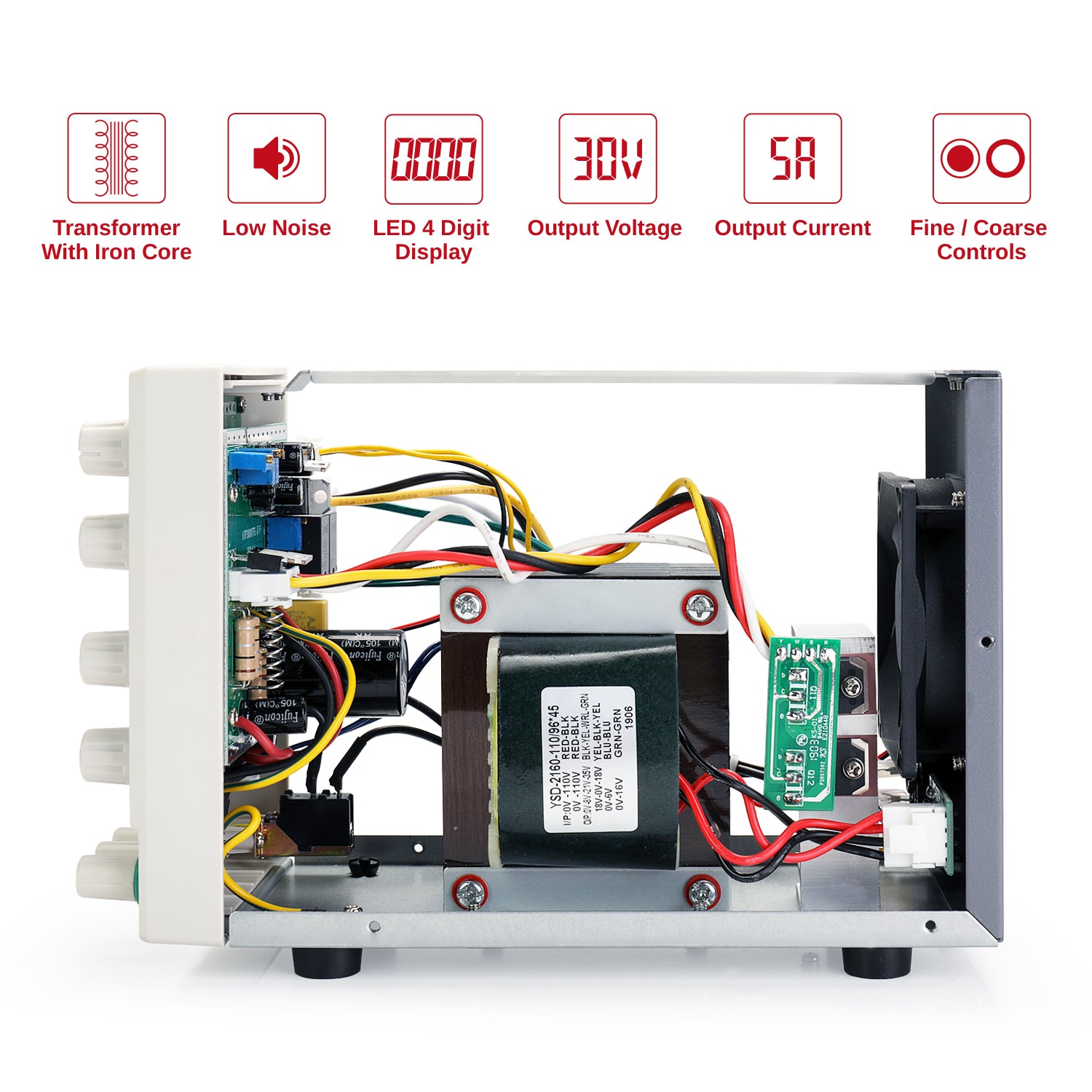

Regulated & Linear: Made by wire isolation transformer as the voltage conversion, Linear power supply is quiet, no noise and costs higher while switching power supply is a transistor conversion which gives much noise and interference, but low cost and low stability.
4-Digital Display & High Precision: Equipped with 4-Digit LED display allows you to see the voltage and current in an easy-to-read interface. Variable to as precise as 0.01V and 0.001A.
Safety Protection: Featuring systems for short-circuit protection, overload protection, and reverse polarity protection, UTP3315TFL-II is a highly reliable bench power supply.
Portable & Easy to Use: A small footprint of 4.1" x 6.5" x 9.8" makes this power supply easy to carry. Separate keys to avoid misoperation.

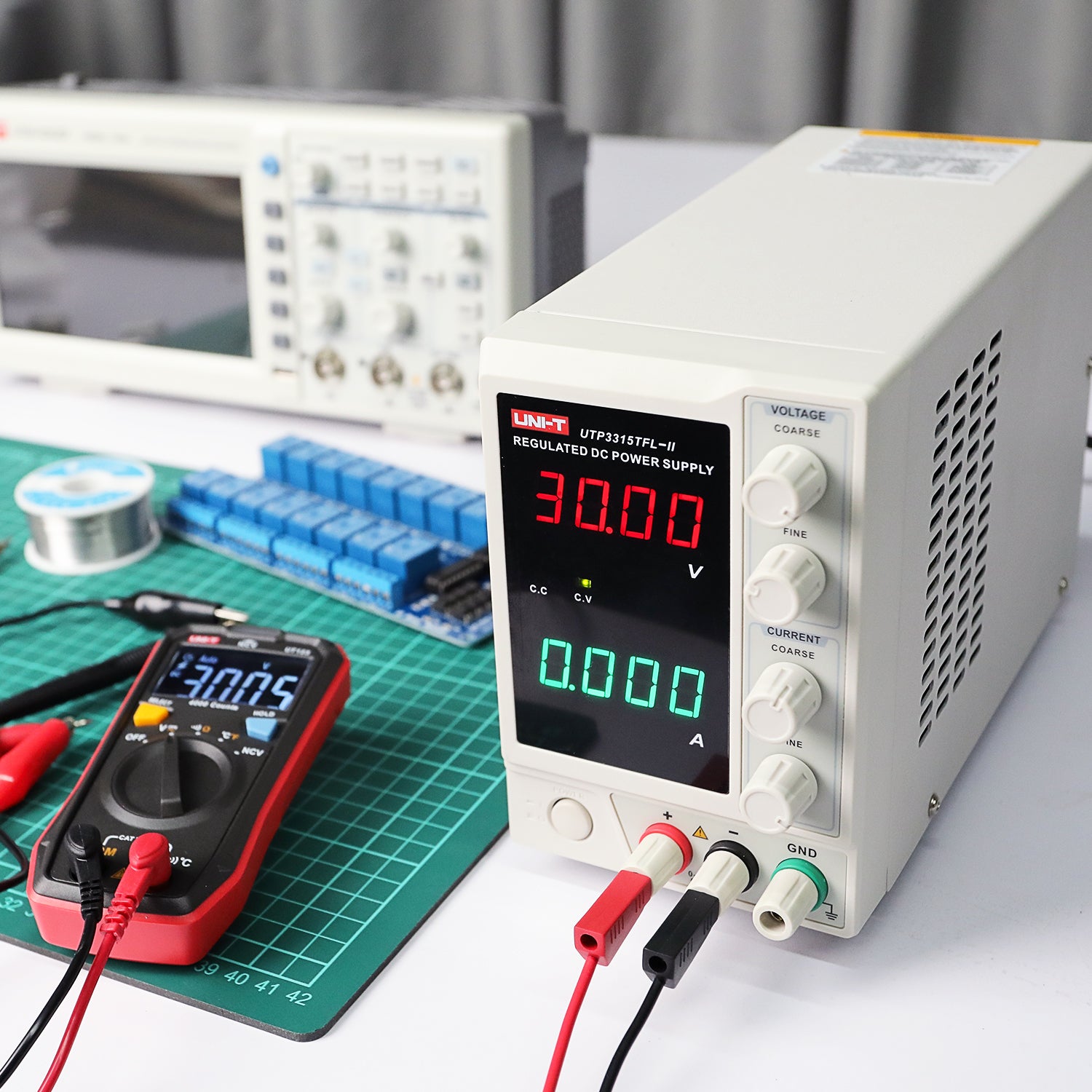

Multi Applications: Regulated output of 0-30V and 0-5A, Linear power supply is a perfect kit with oscilloscope and function generator. It is an ideal tool for DIY electronics hobbyists, institutions of higher education, enterprise production lines, household appliance repair companies.
UNI-T UTP3315TFL-II Regulated DC power supply is a high-quality and stable device, which outputs pure and stable signals with low noise. General applications of Linear regulated power supply including, but not limited to Low noise Amplifiers, Signal processing, Data Acquisition - including sensors, multiplexers, A/D converters, and sample & hold circuits, Automatic test equipment, Laboratory test equipment, Control circuits. Anywhere that excellent regulation and/or low ripple is required.
WHY CHOOSE UNI-T?
Uni-Trend Technology(UNI-T) is one of the leading Test and Measurement solutions provider since 1988. For DC Power Supply, Any quality problem you can return it immediately. Also professional technical support service.

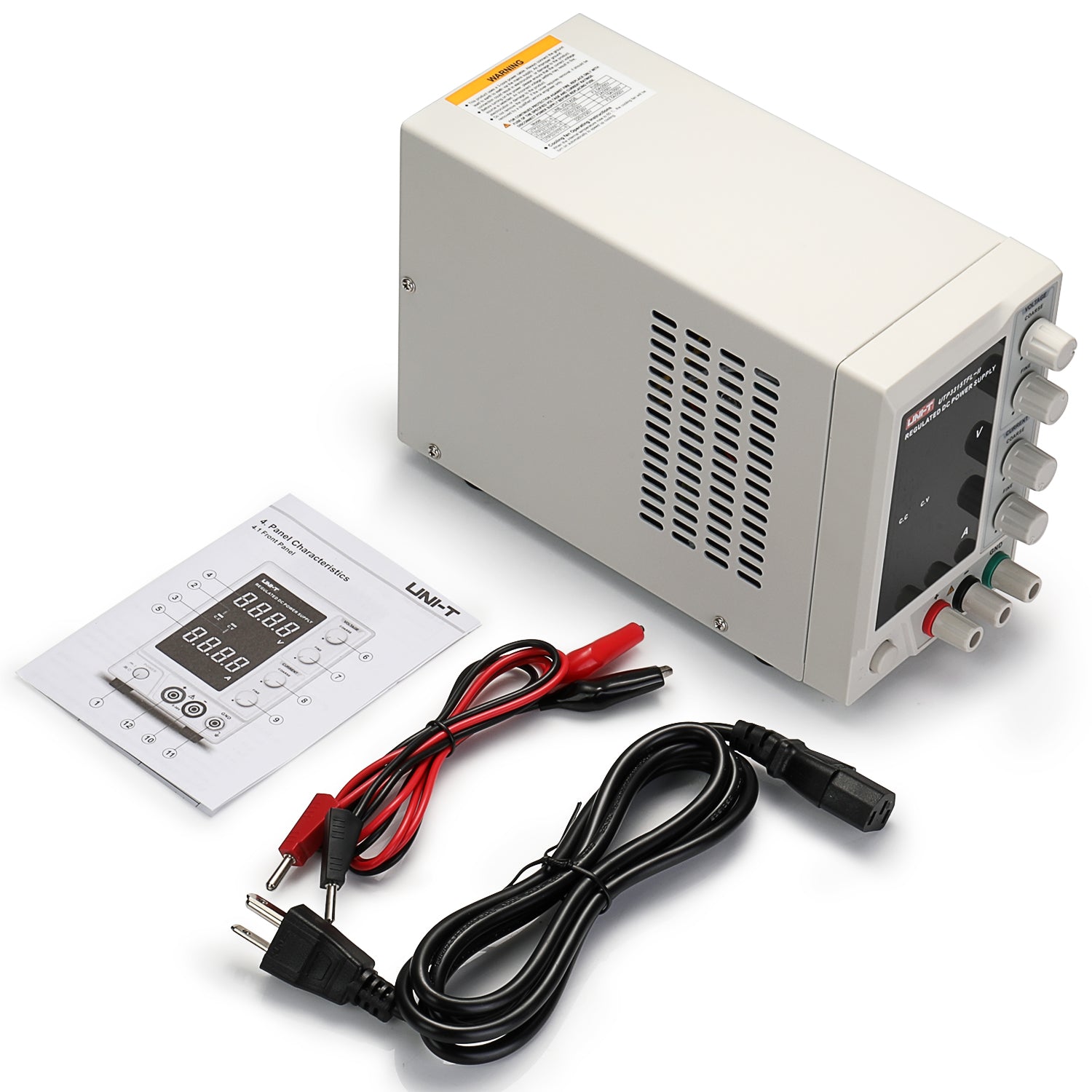

1 x UNI-T UTP3315TFL-II DC Power Supply
1 x Power Cord
1 x Fuse
How to Use
User Manual: Electronic Edition download above or Paper User Manual in the package.
Technical Support: Online technical support team.
Large LED, High Precision

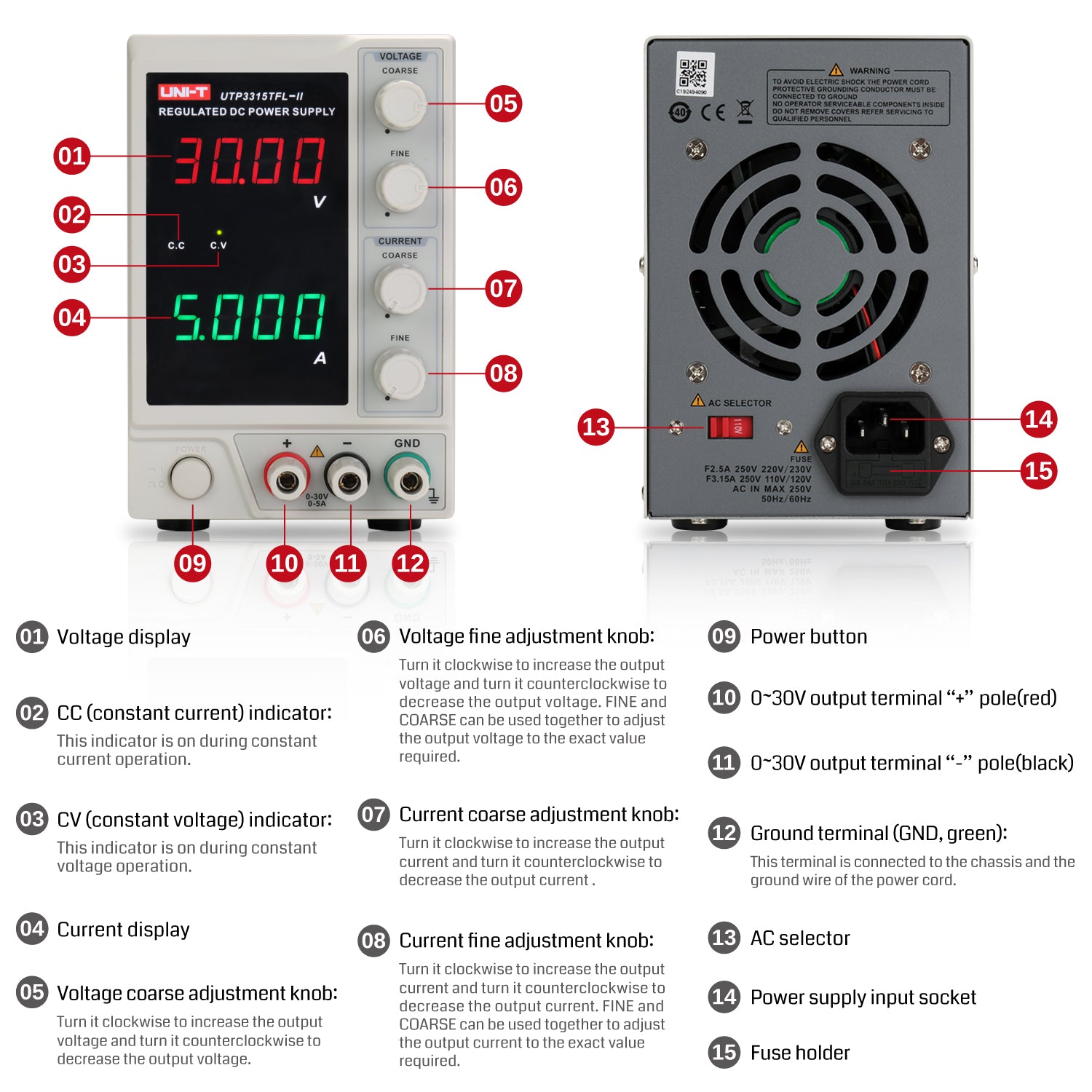

Separate Buttons, Multiple Protection
Cooling System, Low Noise
Output Voltage: 0-30V
Output Current: 0-5A
Output Power: 160W
Load Regulation: CV≤0.01%+5mV, CC≤0.1%+10mA
Accuracy (25℃±5℃) Voltage: ＜0.5%+20mV
Accuracy (25℃±5℃) Current: ＜0.5%+10mA
Ripple and Noise: ≤2mVrms
Output Regulation Resolution: CV: 10mV (typical), CC: 1mA (typical)
Reliability: MTBF(e): ≥2000hrs
Display Mode: LED voltage and current dual display
Feature: Auto conversion of constant voltage and current with current limit protection
Input Voltage: 110V/220V±5% AC; Frequency: 50Hz/60Hz

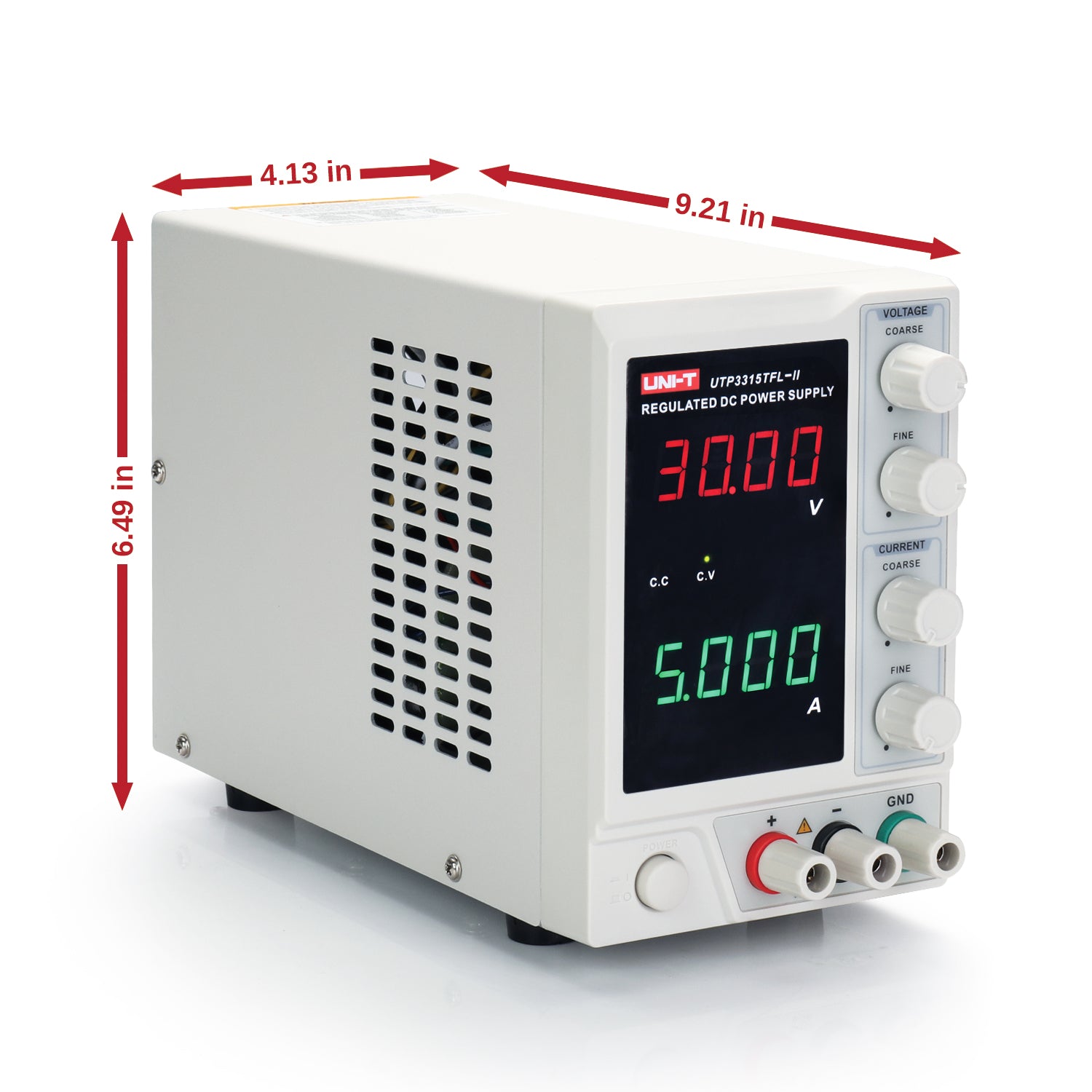

Item Size: 4.1 x 6.5 x 9.8 inches
This is a very nice bench top power supply, yet it is small enough to carry temporarily to other locations. The voltage and current ranges cover a lot of situations. The coarse and fine adjustments for both voltage and current make setting exact values very easy. Plus being able to run in constant voltage or constant current makes it applicable in different situations.
This is a pretty great power supply it comes with everything you need and best of all if you save your points you can get it at an unbelievable price. If there is anything wrong with it I would say I wish it had double hook ups that the reason for only 3 stars. But other then that it's perfect.
I always wanted a good linear power supply with Voltage and Current control - this fits unit the bill perfectly!
