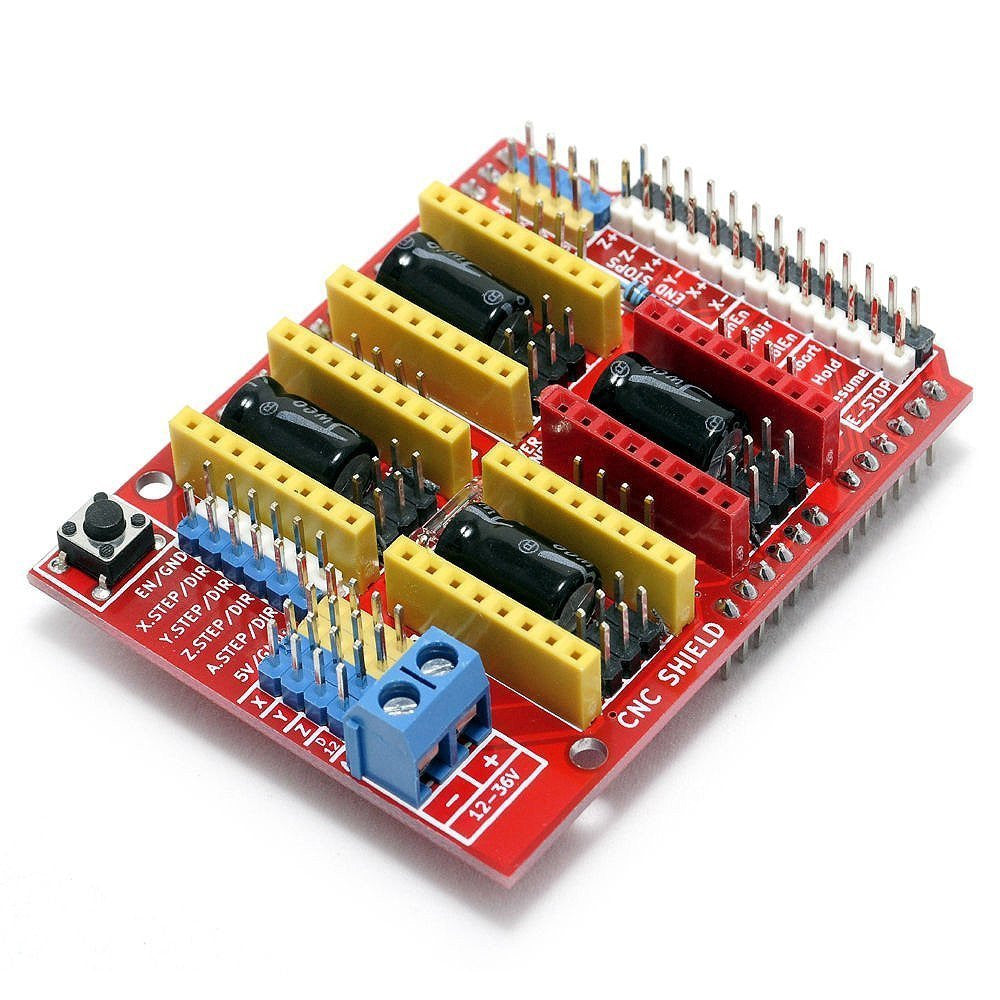

V3 Engraver Shield Expansion Board A4988 Driver for Arduino 3D Printer CNC

brand: SainSmart SKU: 101-60-507 Variants ID: 45102771284
$8.99
Oops, 0 In Stock
DESCRIPTION
  • Latest CNC Shield Version 3.0
  • GRBL 0.9 compatible. (Open source firmware that runs on UNO compatible with Arduino that turns G-code commands into stepper signals)
  • PWM Spindle and direction pins
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
  • 2 x End stops for each axis (6 in total)
  • Coolant enable
  • Uses removable A4988 or DRV8825 compatible stepper drivers
  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping)
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
  • Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

WHAT'S IN THE PACKAGE

1xCNC Shield V3 Board
