Brand: SainSmart SKU: 101-60-113

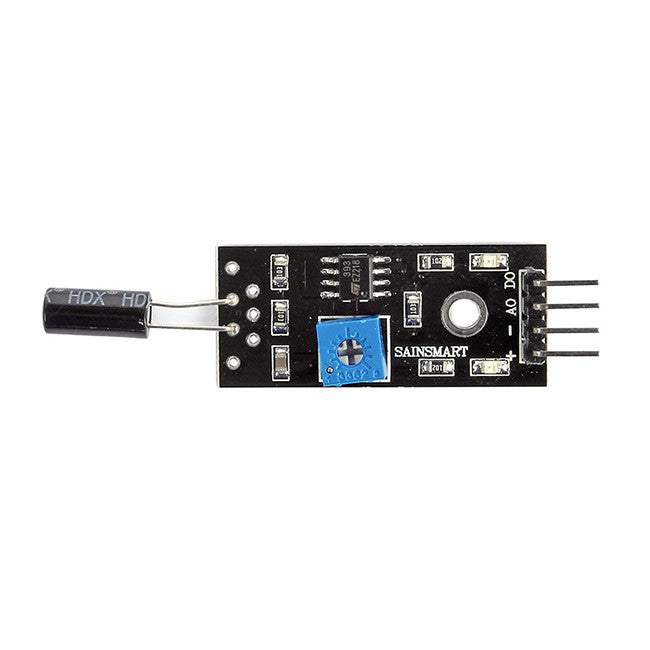

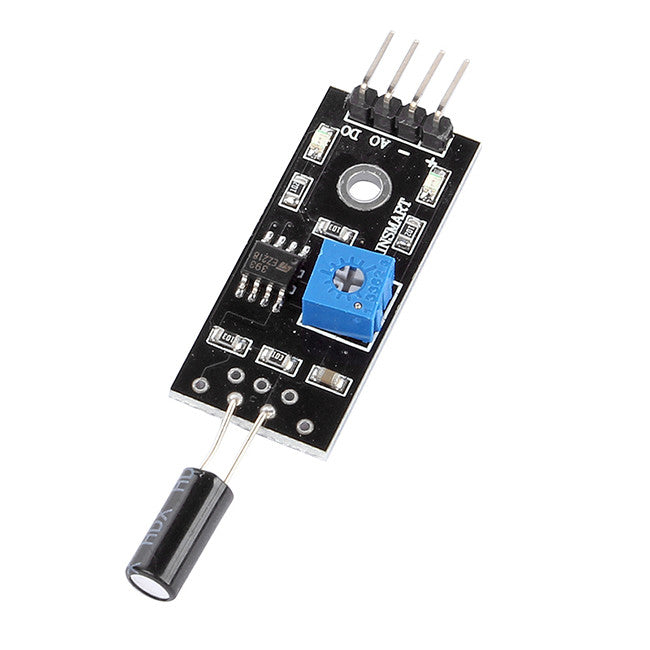

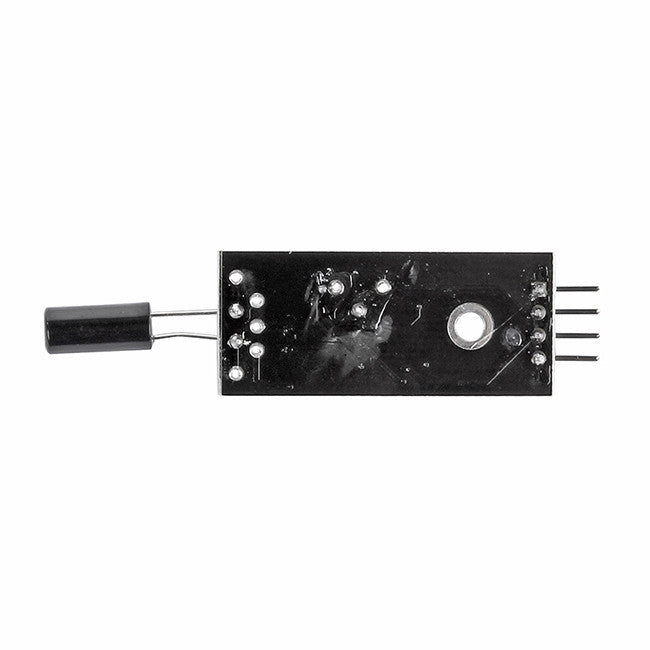

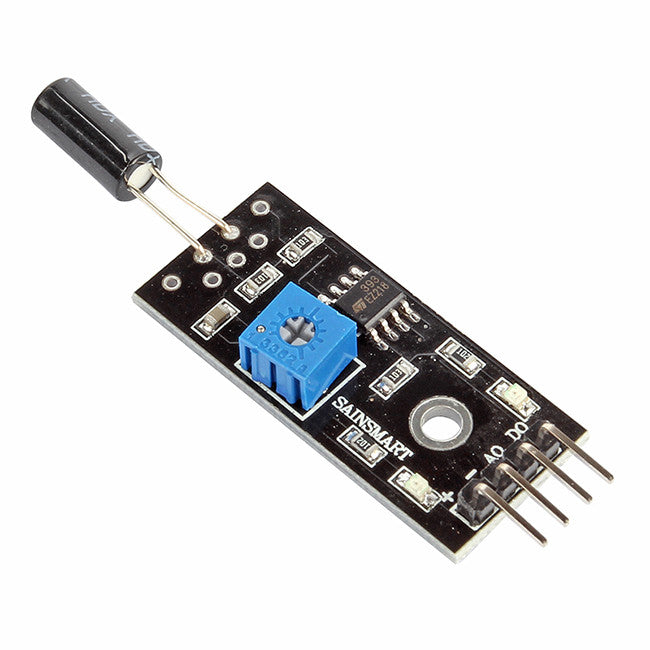

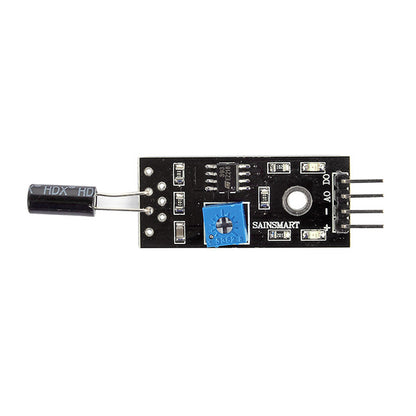

[Discontinued] Vibration Switch Shock Sensor Module Alarm Module

SKU: 101-60-113 Variants ID: 45100947924
$2.99

The module is triggered when the time will be very short induction into small vibration , enough to drive a relay , some people 's information and relay modules can be connected directly to the actual use of ineffective.

The module is triggered when the time will be very short induction into small vibration , enough to drive a relay , some people 's information and relay modules can be connected directly to the actual use of ineffective.


DESCRIPTION

For a variety of shock triggering effect , reported stolen alarm, smart car , electronic building blocks and so on.

Please note that this module is triggered when the time will be very short induction into small vibration , enough to drive a relay , some people 's information and relay modules can be connected directly to the actual use of ineffective.



FEATURE
  1. Using the company's various sensitivity vibration switch , default by SW-18020P vibration sensors .
  2. The comparator output signal is clean, good waveform , driving ability , more than 15mA3. The working voltage of 3.3V-5V4. The output format : digital switching outputs ( 0 and 1 )5. A fixed bolt holes for easy installation6. Small PCB board size : 3.2cm x 1.4cm7. Using a wide voltage LM393 comparator.

Directions:

  1. Product no vibration, vibration switch is disconnected, the output end of the output high level, the green light is not bright;
  2. Product vibration, the vibration switch transient conduction, output of low level, the green light is lit;
  3. Output can be directly connected to micro-controller, through single chip microcomputer to detect the high and low level, thus to detect whether there is a vibration environment, call the police
WHAT'S IN THE PACKAGE

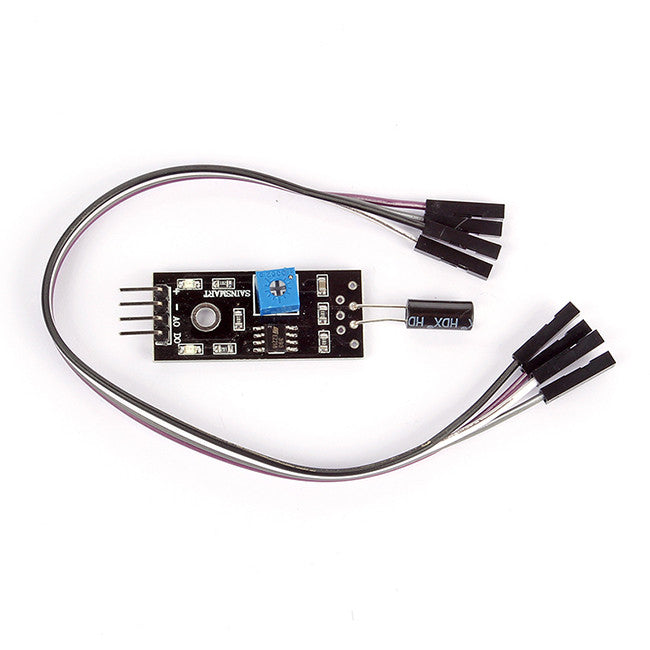

  • 1x SainSmart Vibration Switch Shock Sensor Module Alarm Module
  • 4X Dupont Wires
