Description

• Designed wheelbase as 600mm because consider the torsibility of wooden frame. After thousands of twisting resistance tests that verified which is the best wheelbase value.
• Choosing the wheelbase of 500mm make the helicopter steadier that is better for beginner or FPV.
• Simplified outline includes human oriented design for different flight mode, especially consider for battery fixing and FPV platform.
• Light weight design makes more flying time.
• Perfect rotor efficiency and rotor load to get best wind resistance
• Main frame Made by Friber Glass.
• Rotor design as foldedform can easy to putup.

Features

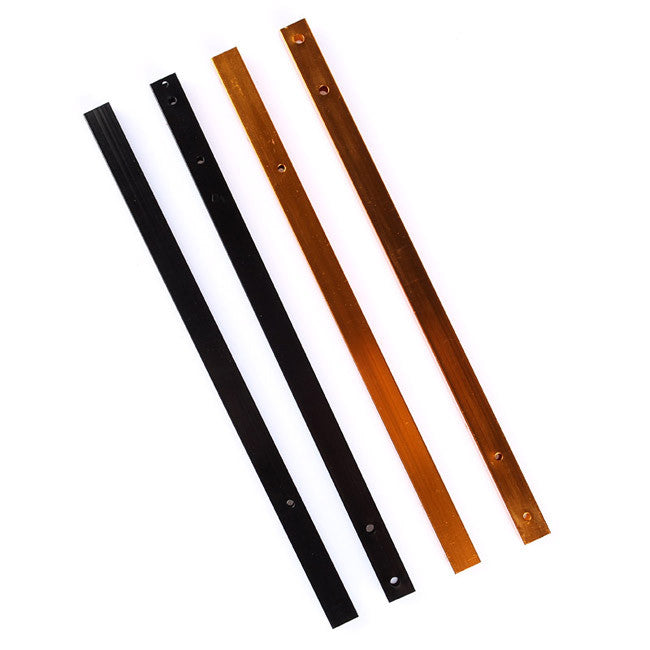

1. Quadrate aluminium pipe, folding type, high rigidity, very easy to install and carry

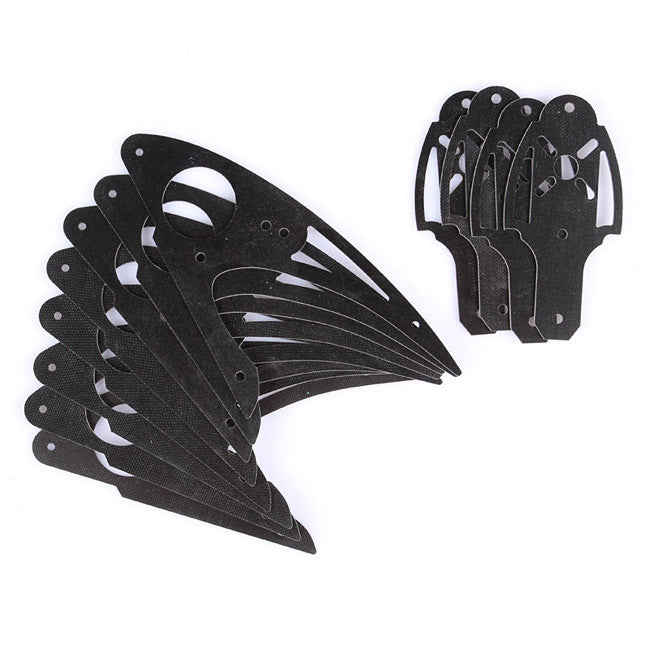

2. Specially designed elasticity landing skids

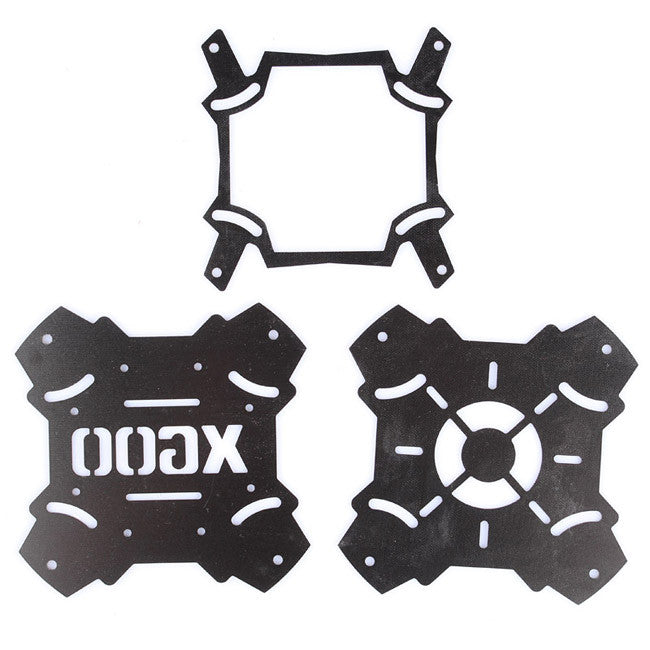

3. Highly compatible glass fiber centre mount and motor mount with CNC processing
4. Light weight design brings longer flight time
5. Wheelbase 600mm, suitable for 4-rotor X and + flying mode
6. High compatibility, easy to update and FPV
7. High flexibility and proper stability, easy to do 3D actions and common flight.

Specification

2.8mm Aero plywood laser engraving
High rigidity screws and nuts
Wheelbase: 600mm
Suitable for Cross and X axis flying

Recommended config (Not Included)

11.1V, 980KV brushless motor
ESC 30A
11.1V 2200mAh 3S LiPo battery
1045 Forward & Reverse propellers

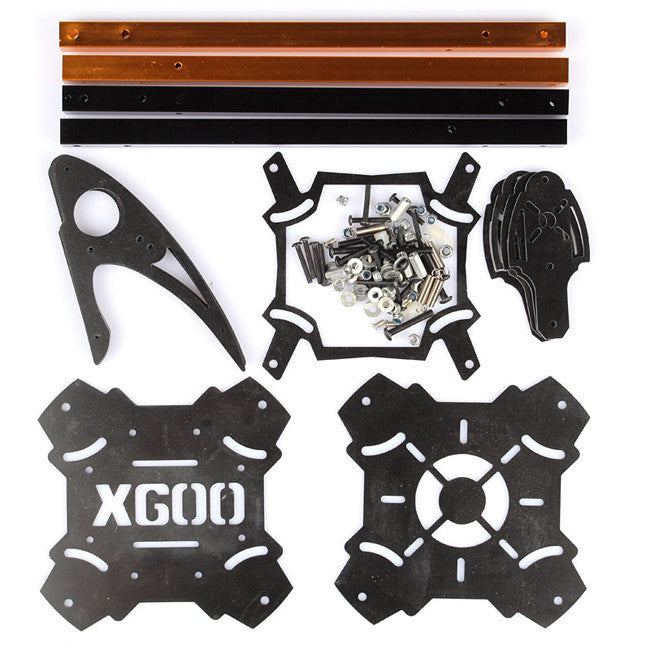

Package inside: (Not assembled, just a kit )

Main frame*1set
Fastening piece*1 set
