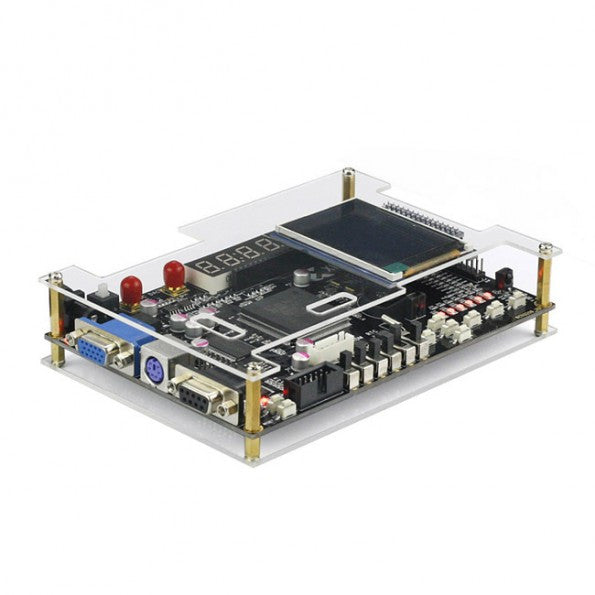

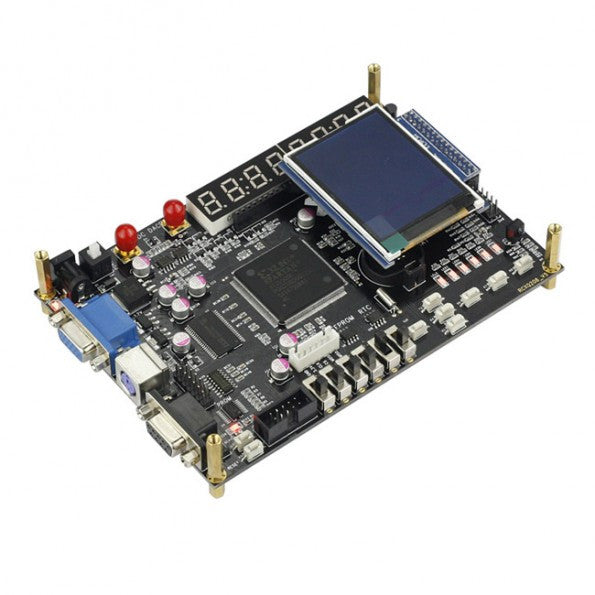

[Discontinued] Xilinx FPGA Development Spartan-3E XC3S500E-PQG208 Board 2.4
Brand: SainSmart SKU: 20-016-111

[Discontinued] Xilinx FPGA Development Spartan-3E XC3S500E-PQG208 Board 2.4" TFT LCD

SKU: 20-016-111 Variants ID: 45100442004
$147.99

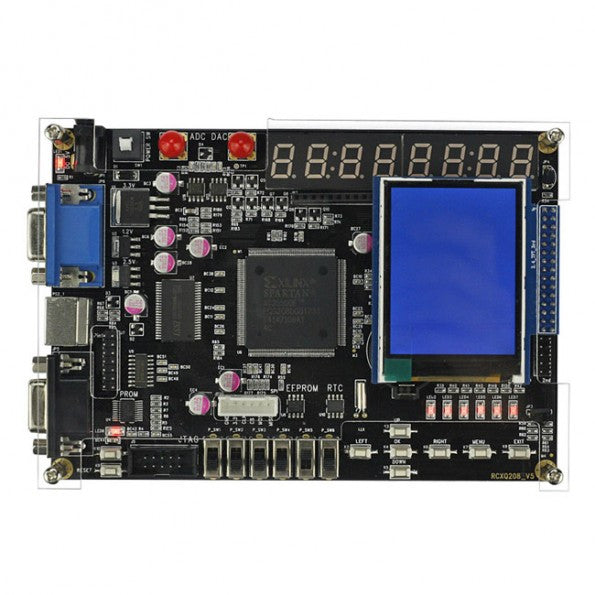

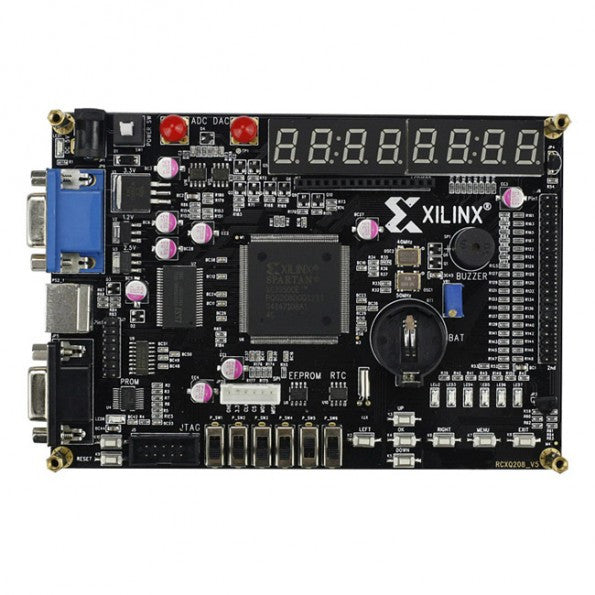

Mainboard Resources List:

*FPGA core chip:  XC3S500E-PQG208
*FPGA Configure chip:  XCF04S
*SRAM:  IS61LV25616AL-10T
*Temperature sensor:  DS18B20
*ADC:  TLC549
*DAC:  TLC5615C
*EEPROM:  24C08
*RTC:  DS1302
*IR recerver:  38KHz carrier
*Dual-active crystal:  50MHz/40MHz
*Dual nixie tube:  CPS04041BR
*BUZZER:  1 (passive buzzer)
*Tact key:  8(programable)
*LED:  6
*VGA:  1
*UART:  1
*PS2:  1
*JTAG:  1
*DIP switch:  6

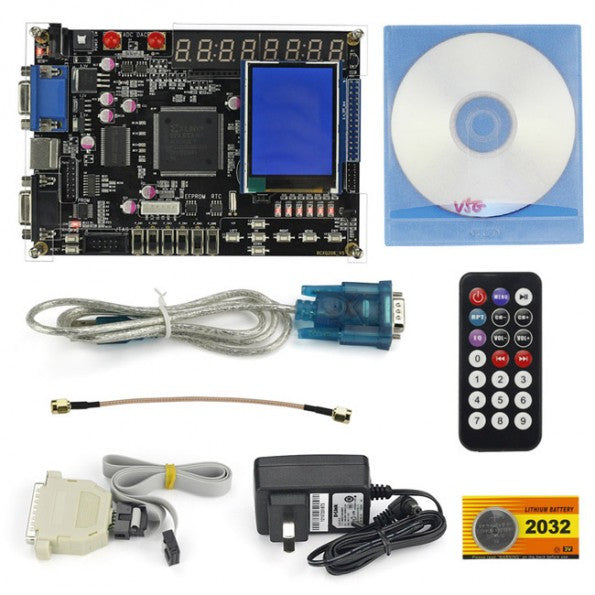

Package List:



1x RCXQ208_V5 XILINX BOARD

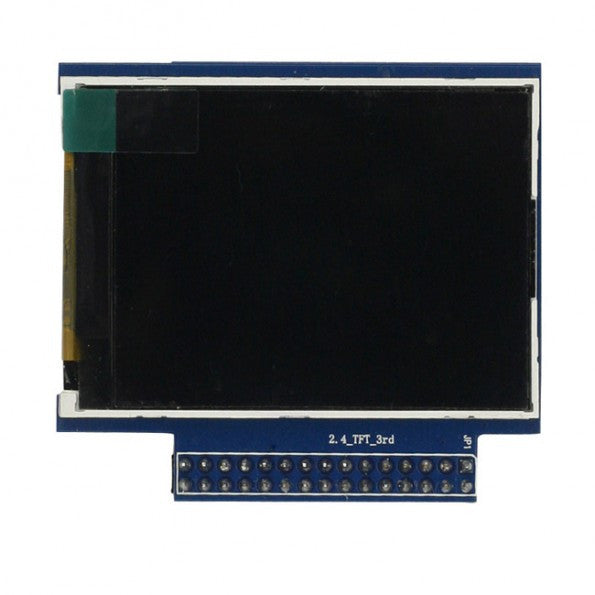

1x 2.4 RGB Panel board
1x Remote control
1x USB 2 serial cable
1x CR2032 Lithium battery
1x 5V / 3A Power adapter
1x SMA shielding line
1x Parallel download cable
 2x DVD DISC
