Brand: XpertMatic

XpertMatic Accurate DL1909 Digital Angle Gauge Magnetic VA Display with Level Vials

SKU: 82-003-003 1 review Variants ID: 32503525146703
$24.99 $34.99 Save $10.00

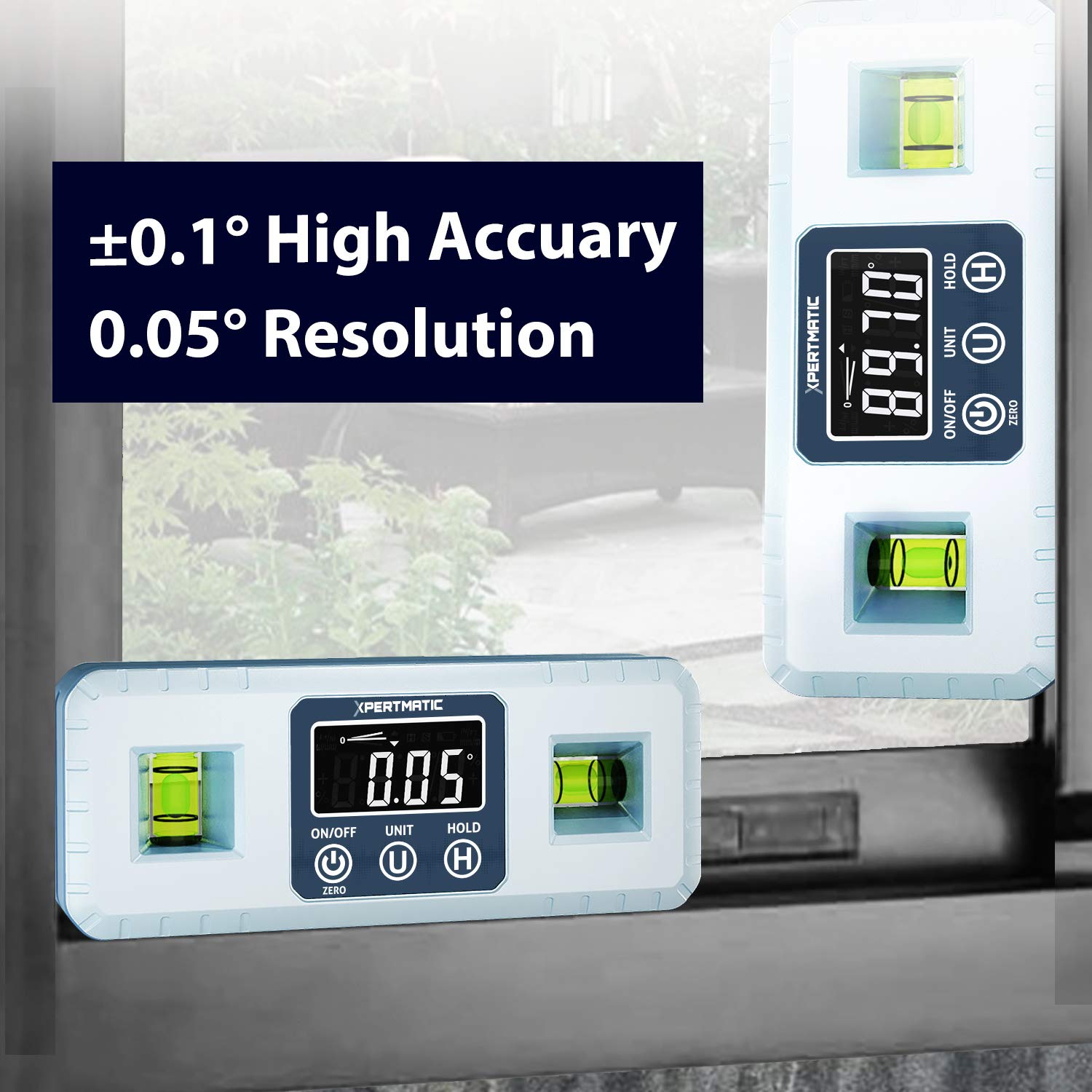

Ultra Accurate: ±0.1° Accuracy at 0° and 90°; ±0.2° at the rest angles. Resolution: 0.05°. Measuring Range: 90°x4. We know your pursuit of high precision.

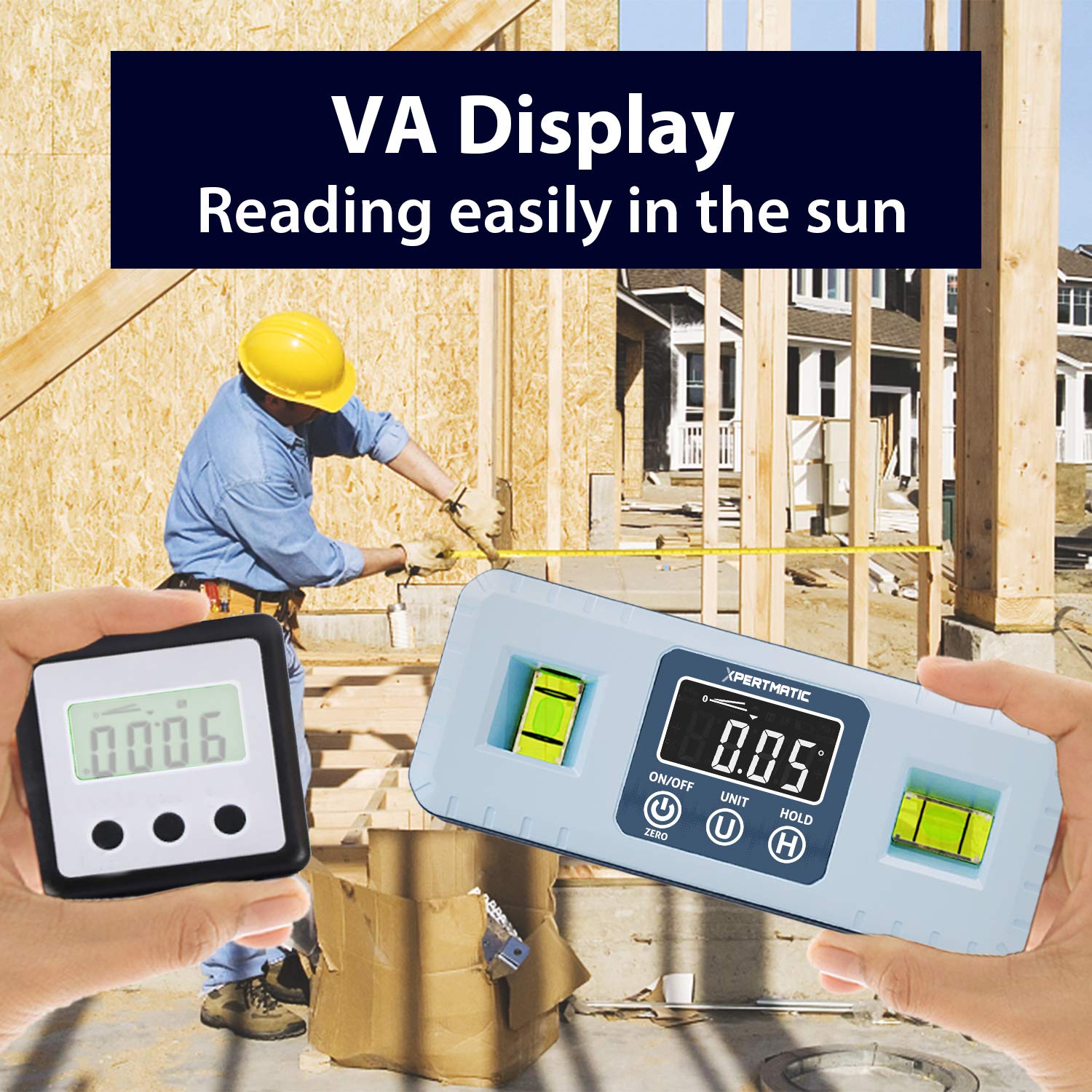

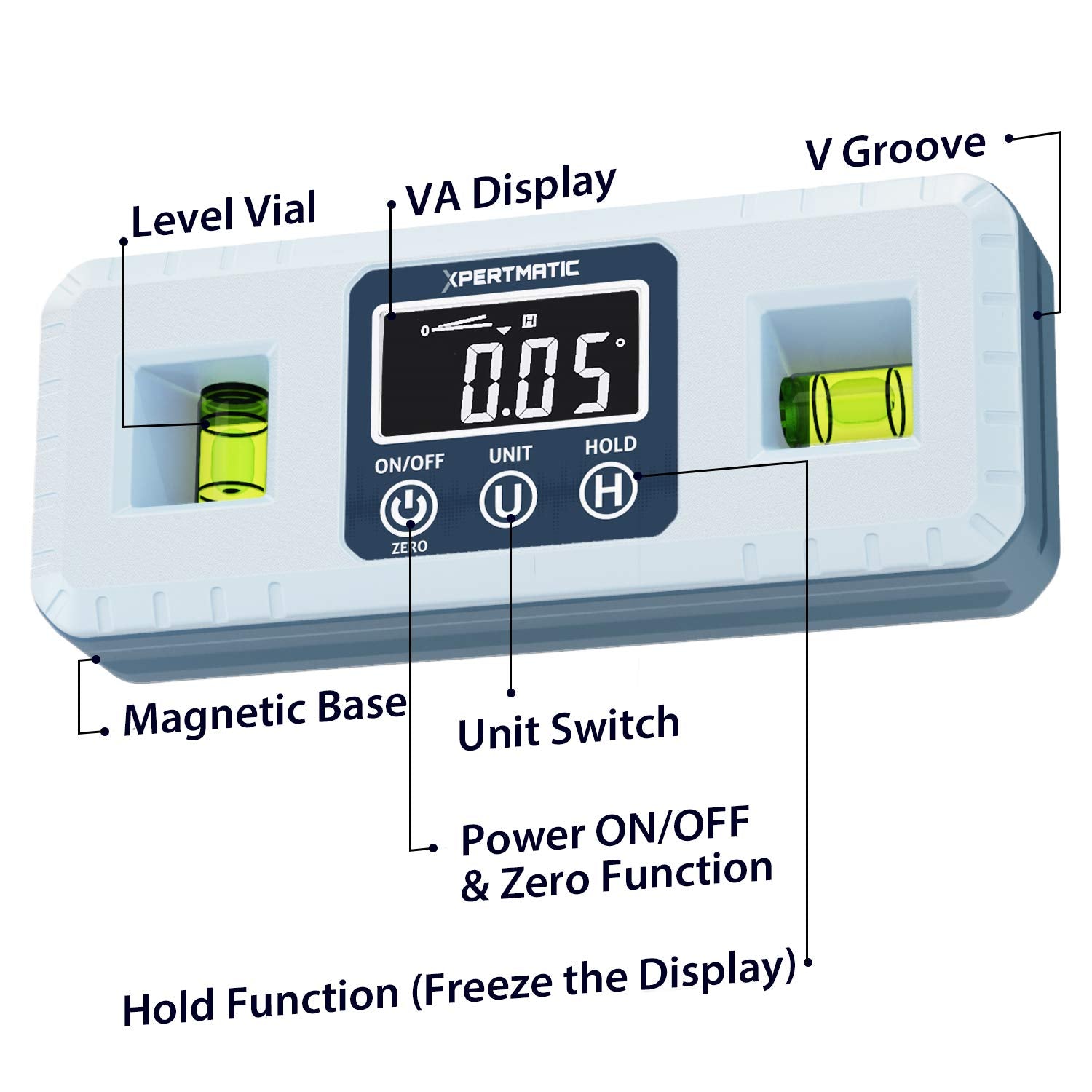

Easy to Read: The VA display provides higher brightness, better color reproduction, and better viewing angles than the traditional LCD. And there is a hold function to freeze the display for easier reading. The readings invert when the unit is inverted.

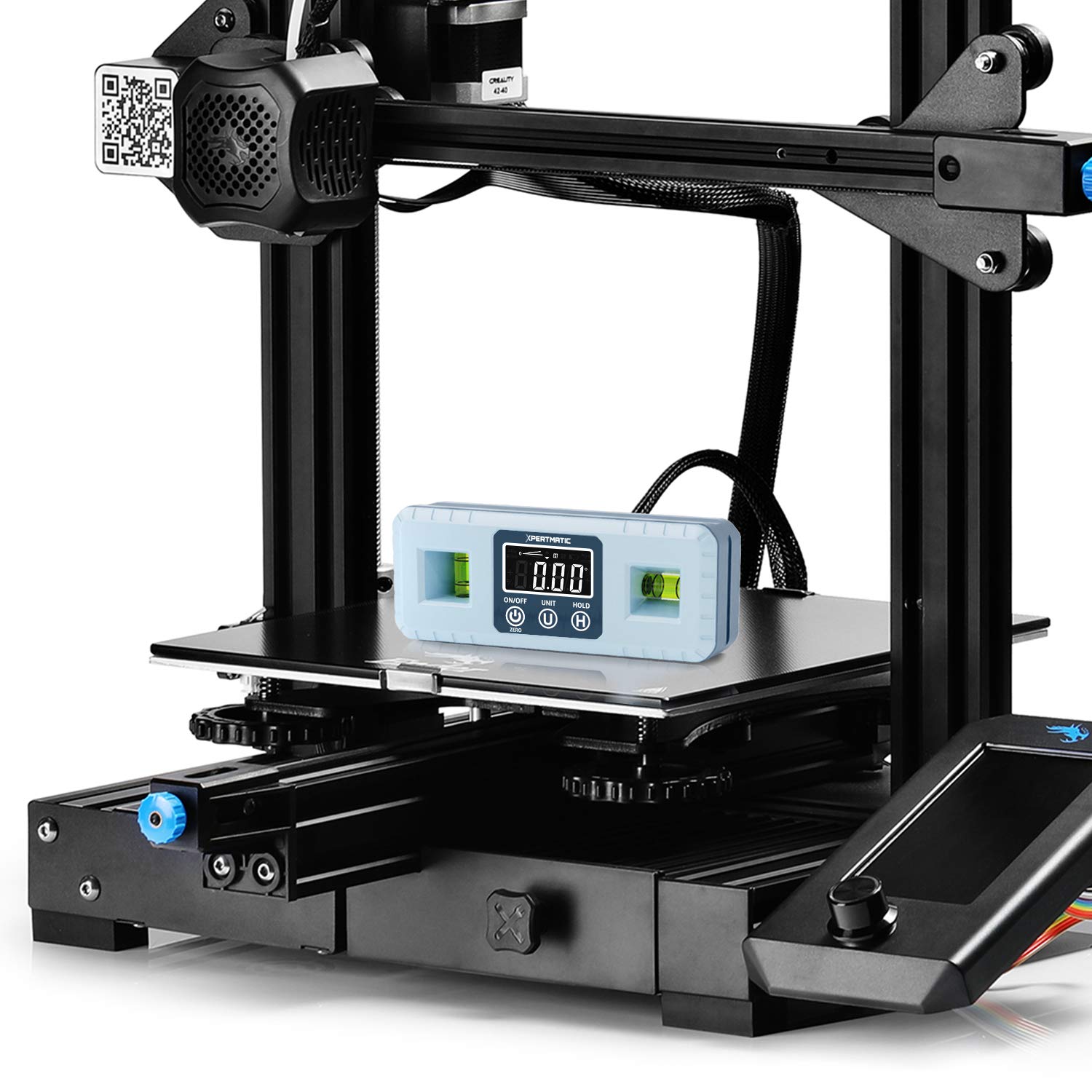

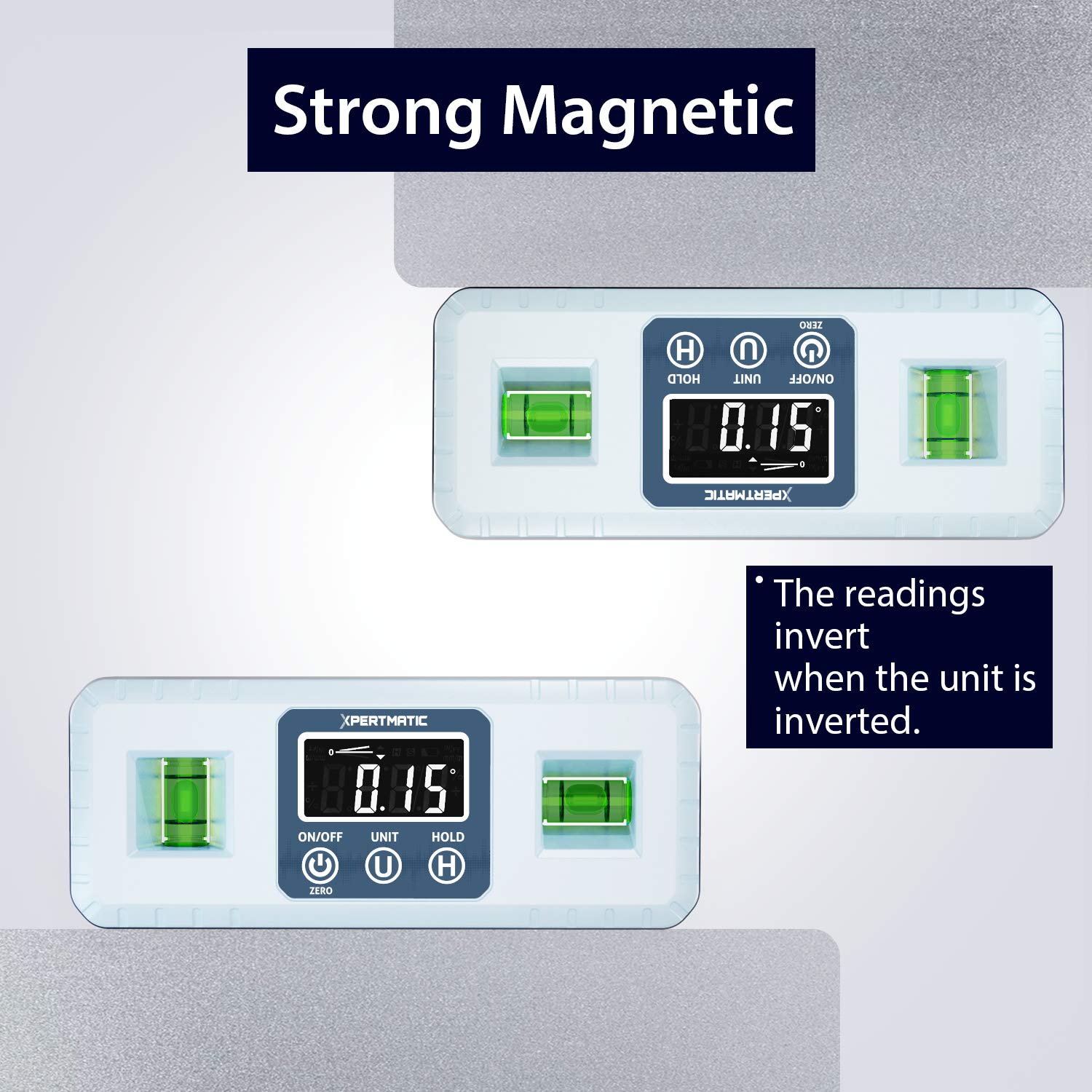

V Groove Strong Magnetic Base: The base of the digital level is magnetic for firmly attaching to metallic surfaces, such as saw blades, router table, the print bed of a 3D printer, and many more. Besides, it features V groove edges to simplify pipe measurements.

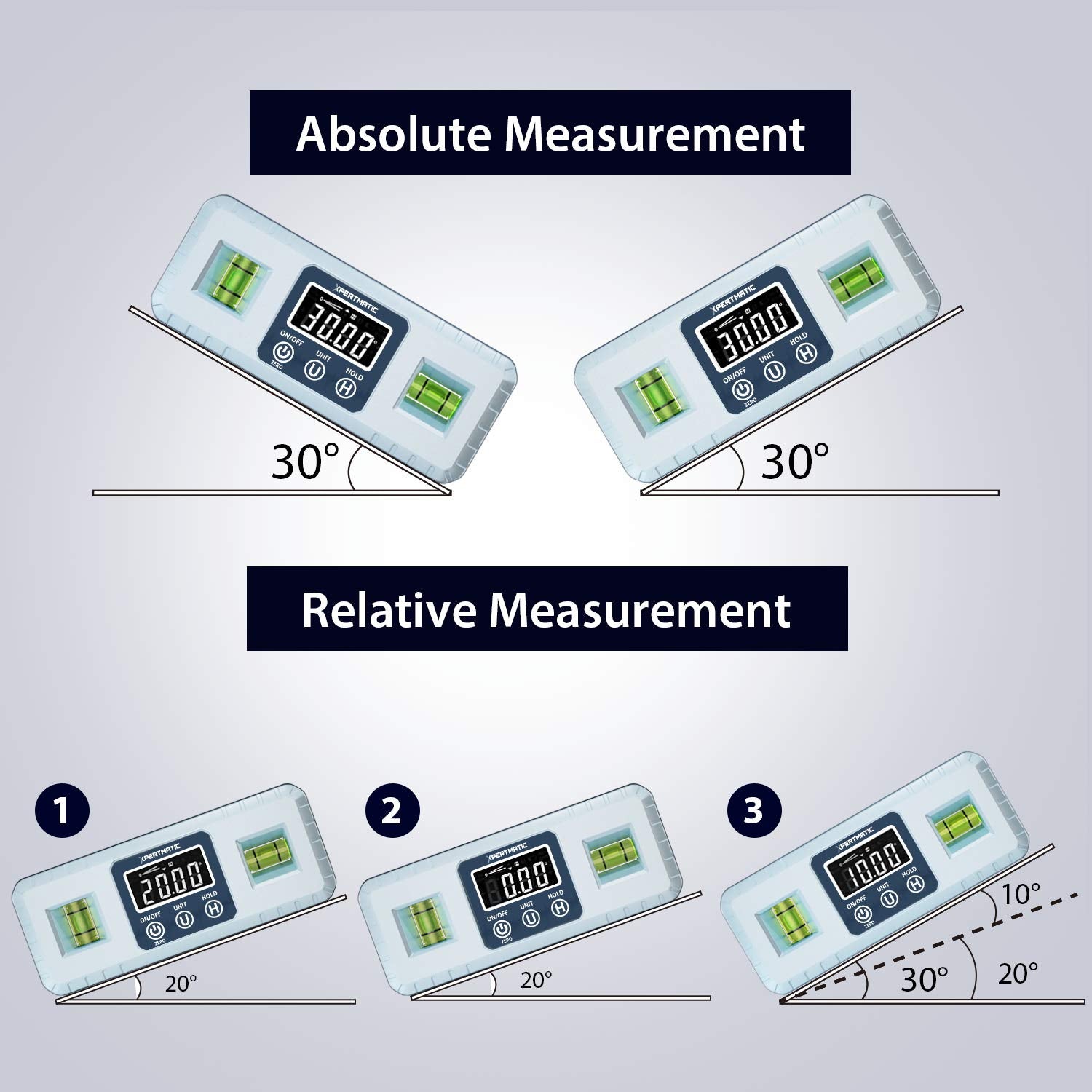

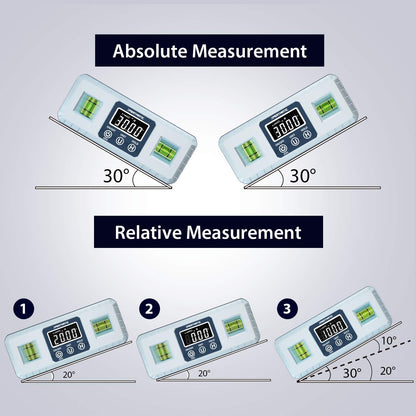

Absolute and Relative Measurement: In addition to the absolute measuring mode, the digital angle gauge also has a relative measuring mode for measuring the relative angle between two measured surfaces quickly.

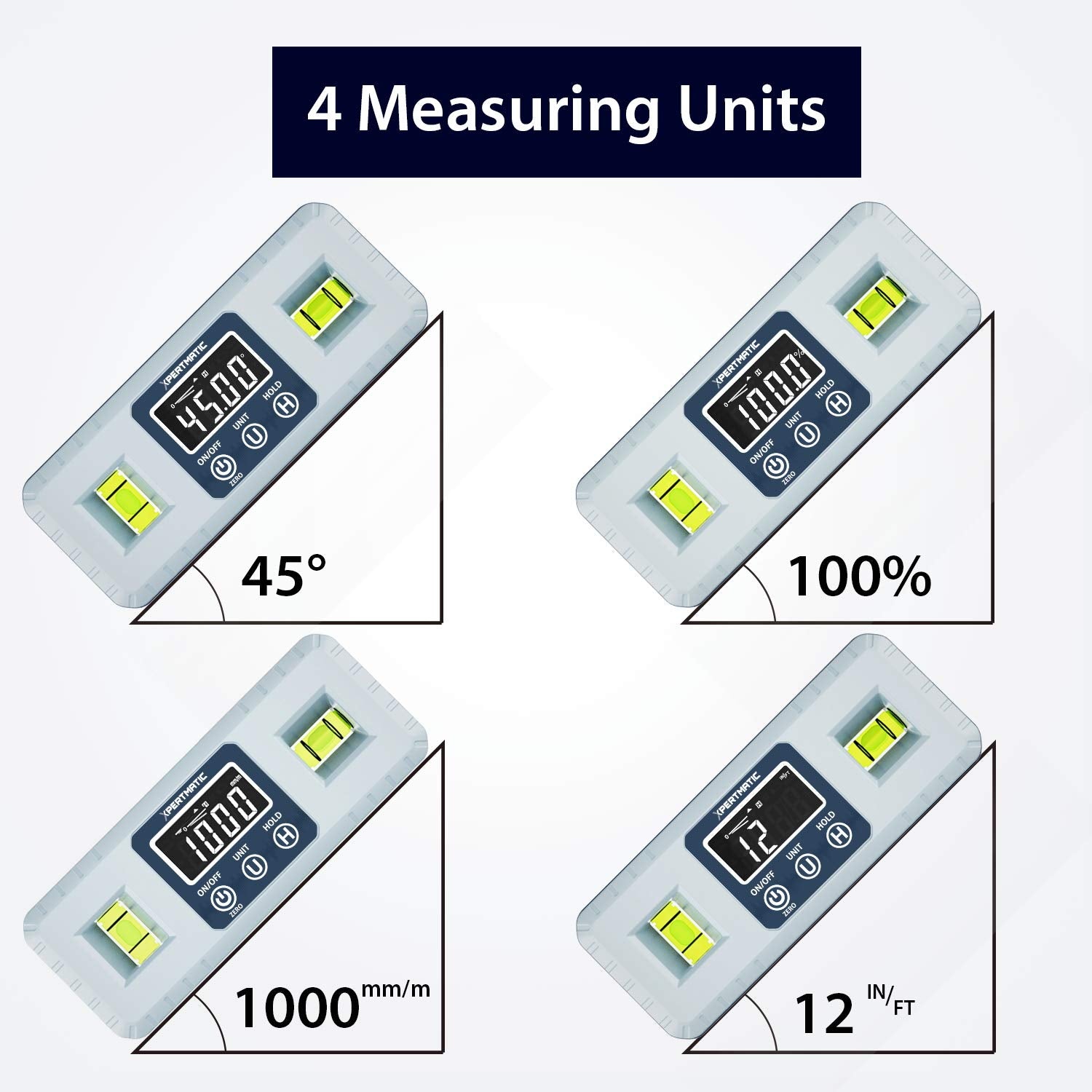

4 Measuring Units: There are 4 measuring units ° degrees, %, mm/m, IN/FT for easier unit conversion.



Ship to

XpertMatic DL1909 Digital Angle Gauge--A Tool for The Pro!

Accuracy is the core of all precise projects! This angle gauge is designed for those who are looking for high accuracy. And because it is sensitive, you get these accurate readings very quickly.

In addition, this digital level has a VA display so that you can easily read your measurements, whether in bright sunshine or in darkness. The display rotates automatically when upside down for easy reading. With the XpertMatic angle gauge, you will never be frustrated by the difficulty of reading the display.

XpertMatic digital angle gauge can be widely used in woodworking, welding, decoration alignment, home furnishings alignment, leveling RVs, square up a 3d printer,square up a CNC router machine,and many more. No matter if you are an enthusiast or an expert, the DL1909 angle gauge is your secret to be a pro!

Tip: There is a protective film on the display, please remove it before use.

Specifications

Measuring Range: 4 × 90° (0~360°)

Digital Display of Resolution: 0.05°

Digital Display Accuracy : ±0.1° at 0° and 90°, ±0.2° at other angles

Measurement Units: °degrees, %, mm/m, IN/FT

Power: 2 x 1.5V AAA Batteries (Not included)

Working Temperature: 32°F~104°F (0°C~40°C)

Storage Temperature: 14°F~122°F (-10°C~50°C)

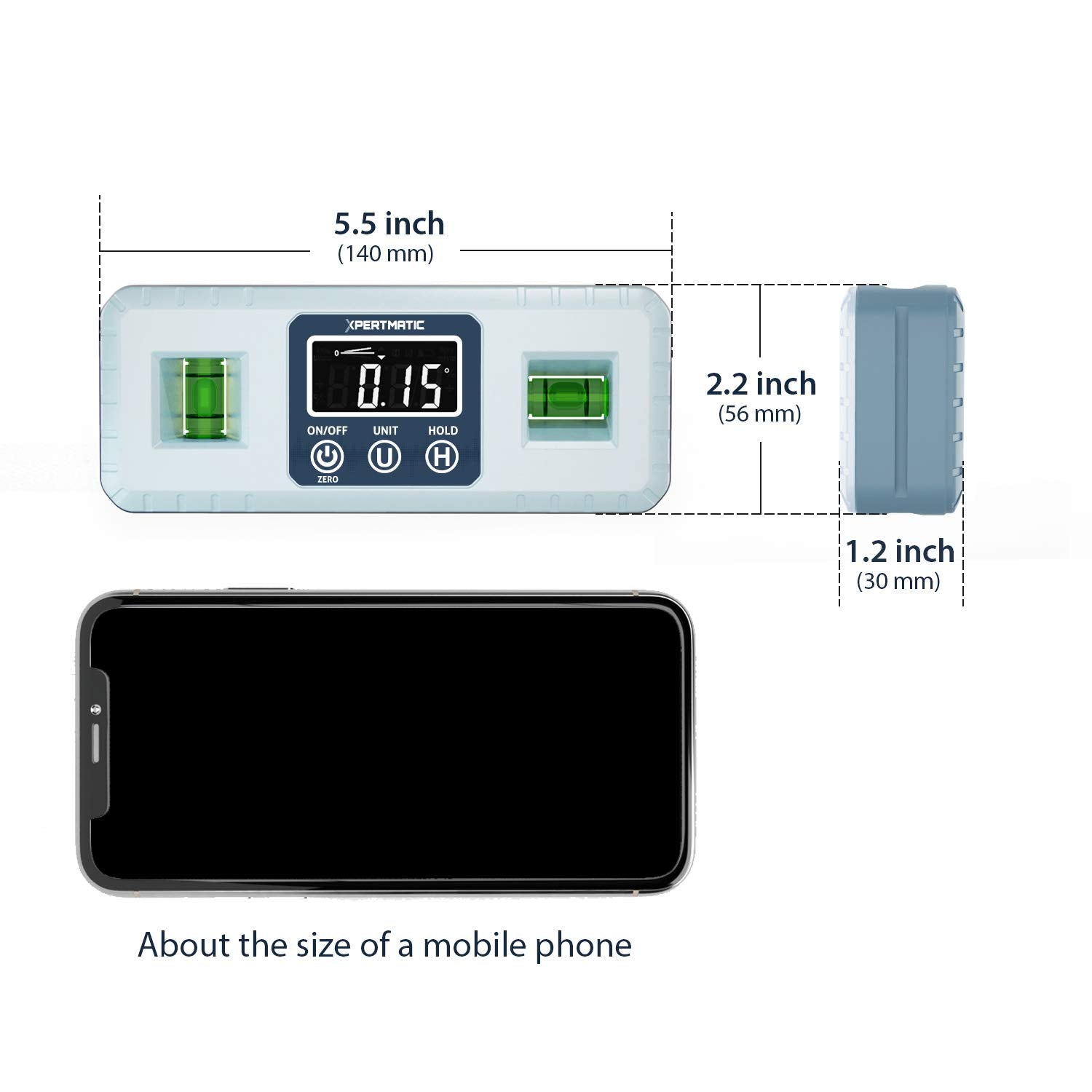

Dimensions: 5.5 x 1.2 x 2.2 inches /140 x 30 x 56mm (L x W x H)

Weight: 0.28lbs (129g)

What's in the package

1 x DL1909 Digital Angle Gauge

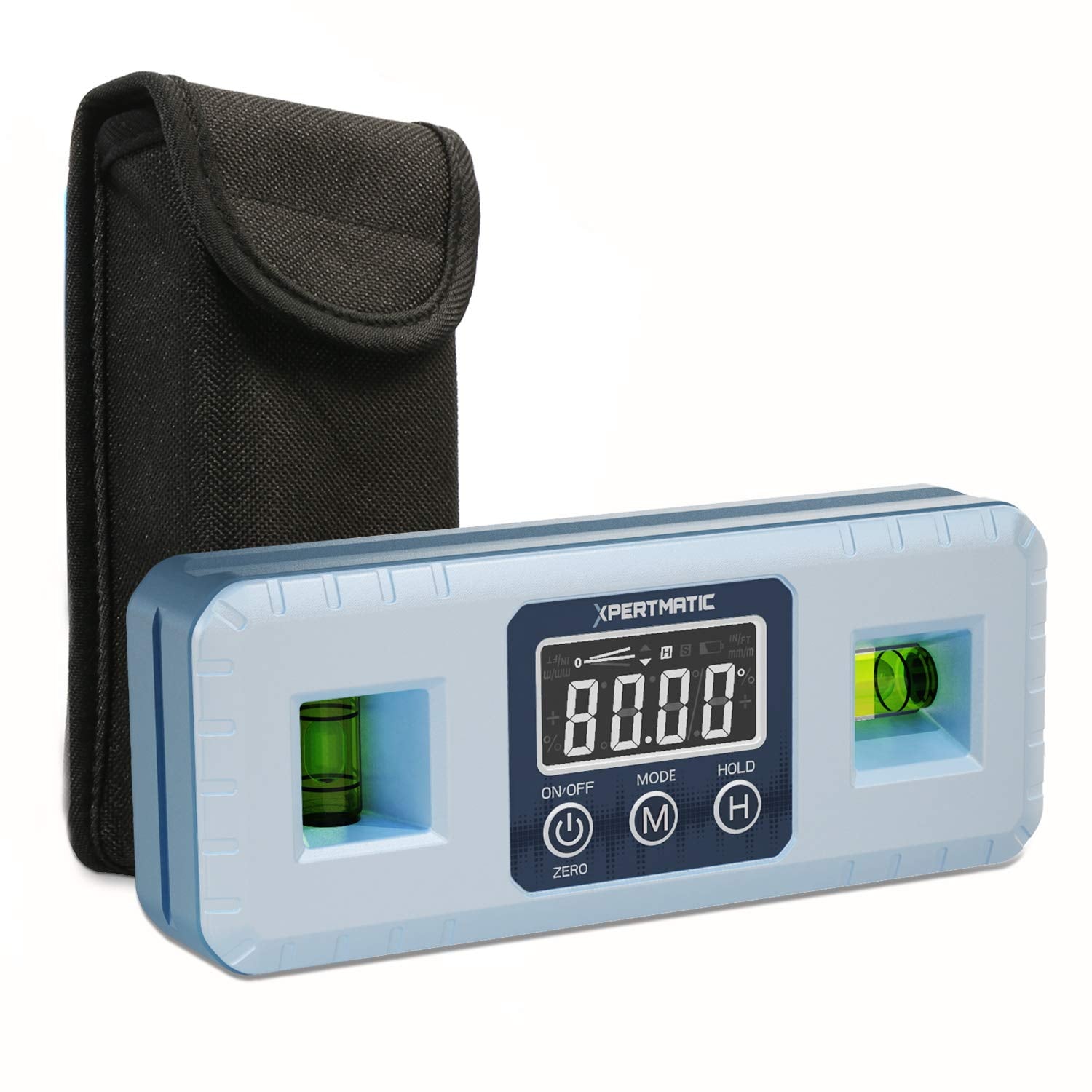

1 x Protective Pouch

1 x User Manual
