3040 Aluminum HDF Spoilboard for 3018 CNC Extension Kit
High Quality: Made of high-strength aluminum alloys. Stable, strong, and durable.
Smooth Finish: The aluminum base has a smooth finish for easy mounting of spoil boards or jigs.
Easy to Use: The Aluminum Base comes with 4 T-Slots on both sides. It’s easy to install and can be used with most bench clamping systems.
Increase rigidity & expand your mounting options: The aluminum base is a great platform to build on and expand with a spoilboard or specialty jigs.

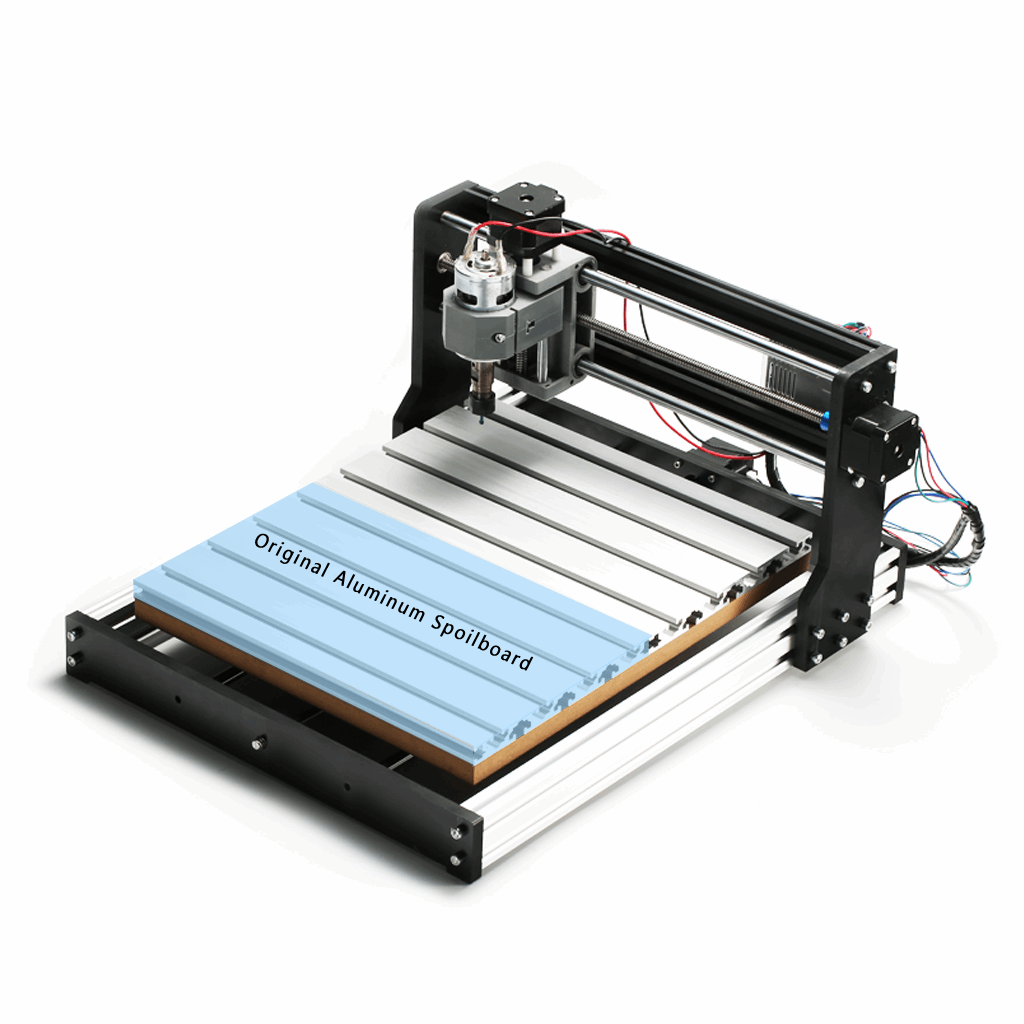

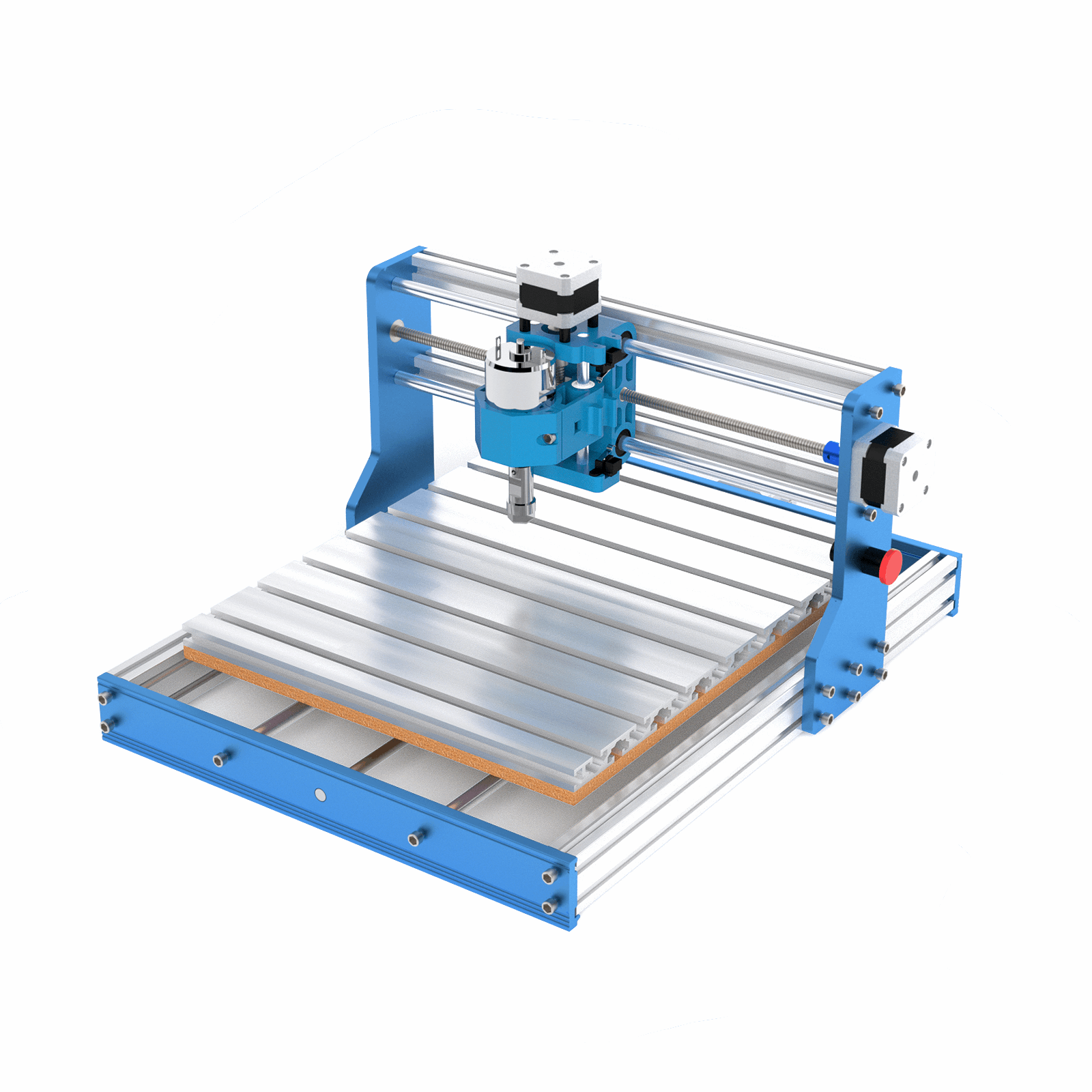

Application: Combine your Original Aluminum Profile with the one that comes from this kit, and easily extend your 3018 Aluminum Spoilboard to 3040 Aluminum HDF Spoilboard. (Not Genmitsu 3018 CNC? Please contact us before buying.)
You may also like 3040 MDF Spoilboard
The aluminum base is made of high strength aluminum alloy. It is strong and durable, can be used on a wide range of projects and materials.
You must know that even the slightest inconsistency could throw off your machine's precision. The aluminum base has a smooth finish which ensures your CNC machine works on a level surface. So you can improve the processing precision and reduce error.
Strengthen your base
Strengthen your base with the aluminum t-slot base. Added rigidity and variety of options for clamping systems spoilboards or jigs.

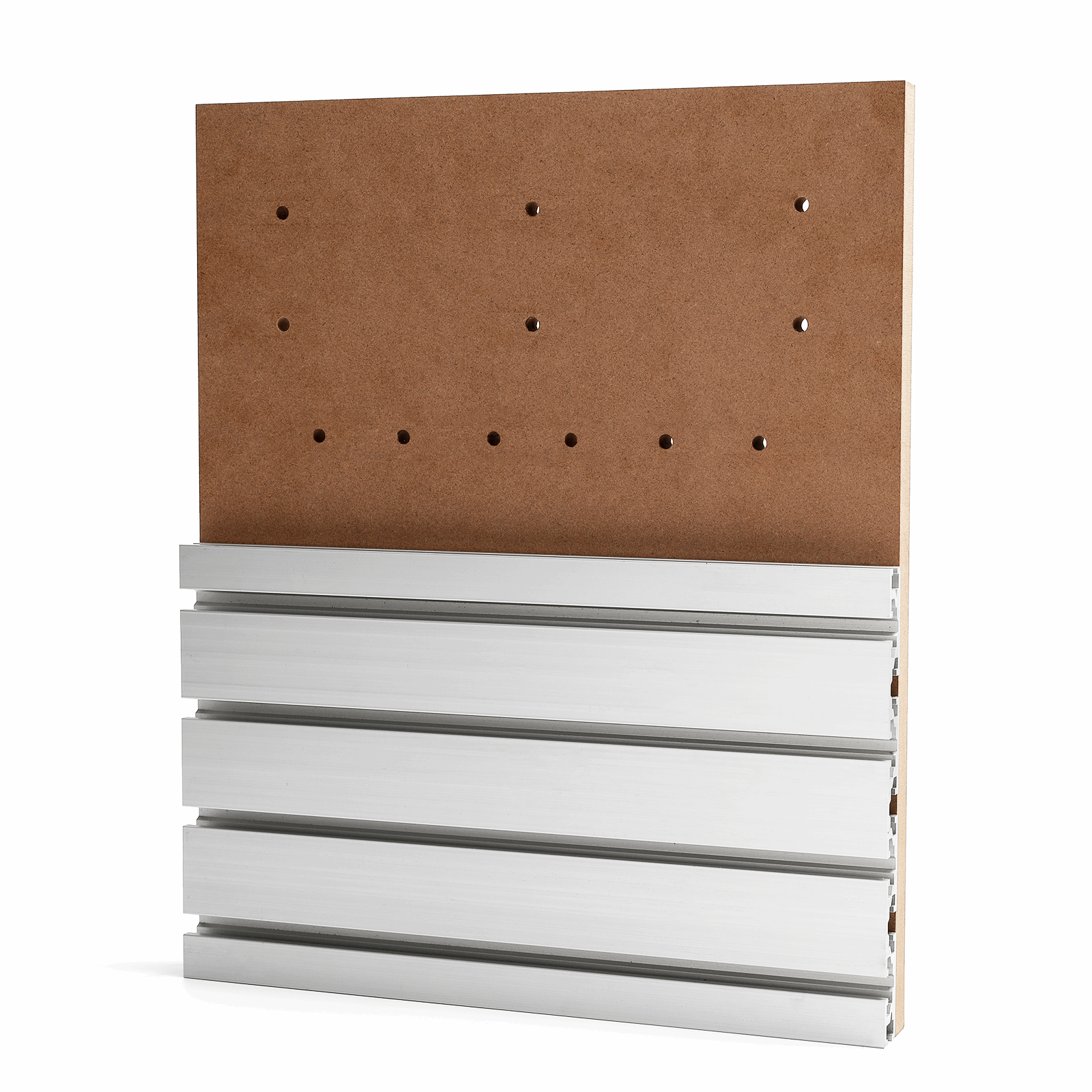

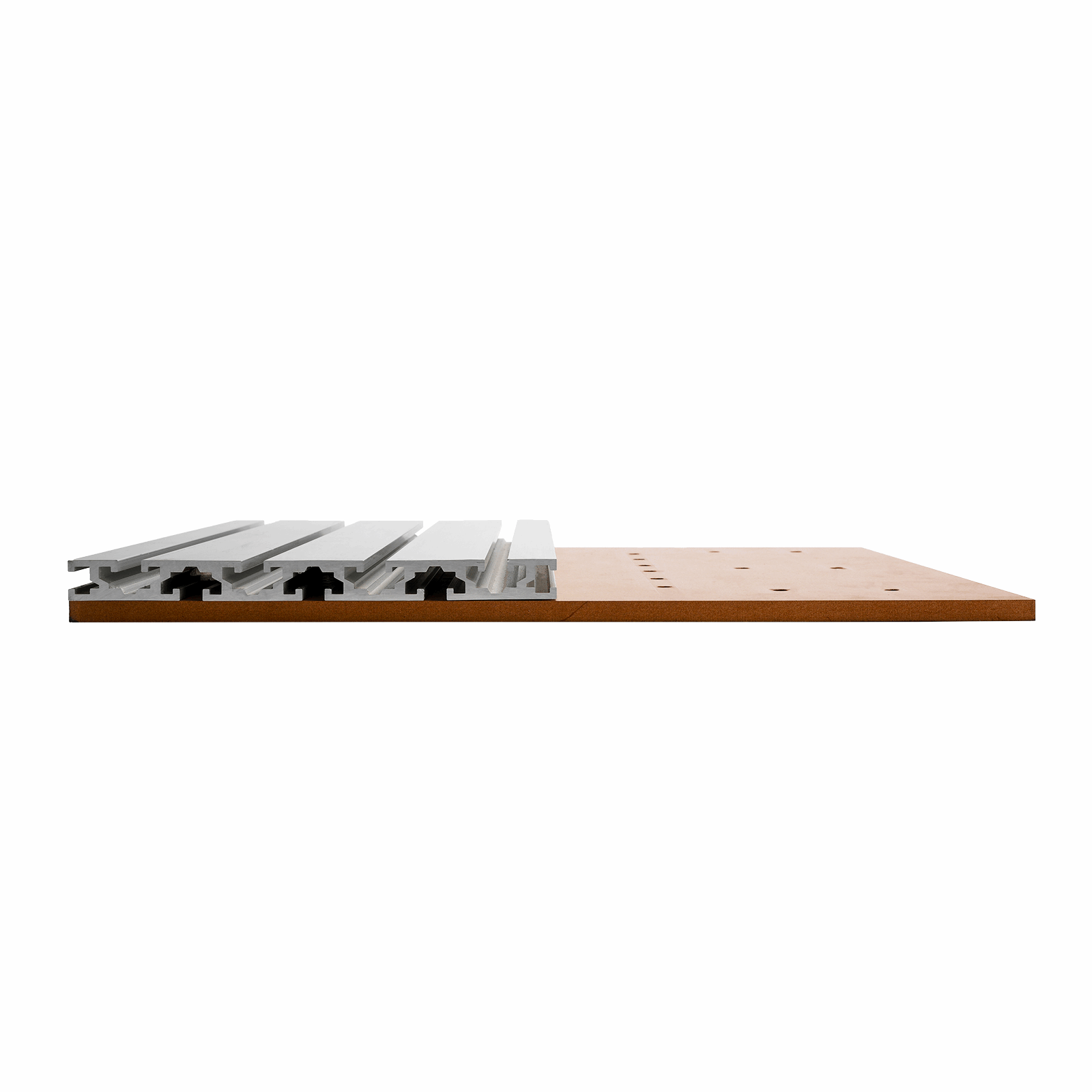

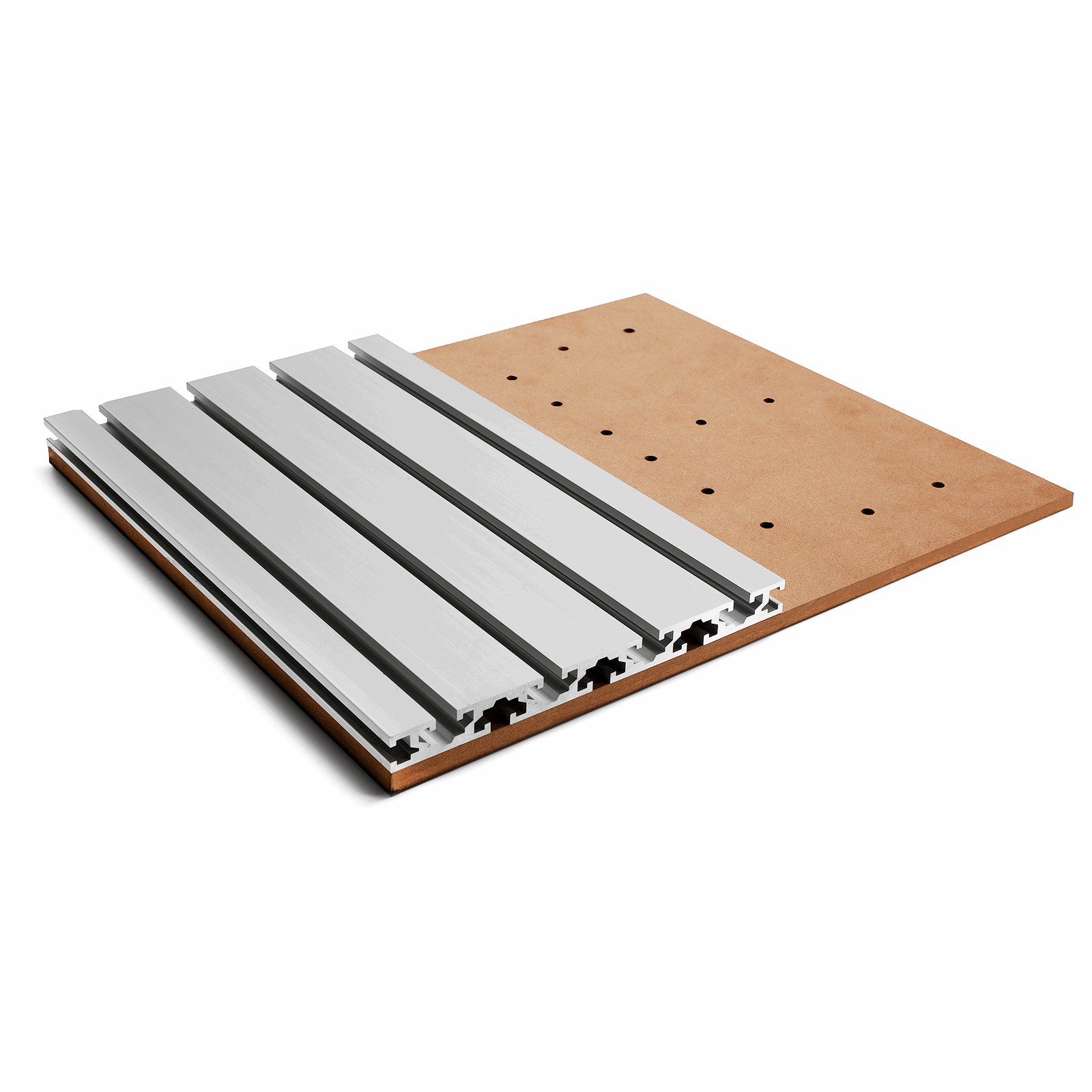

1 x Aluminum Profile (300 x 180x 15mm)

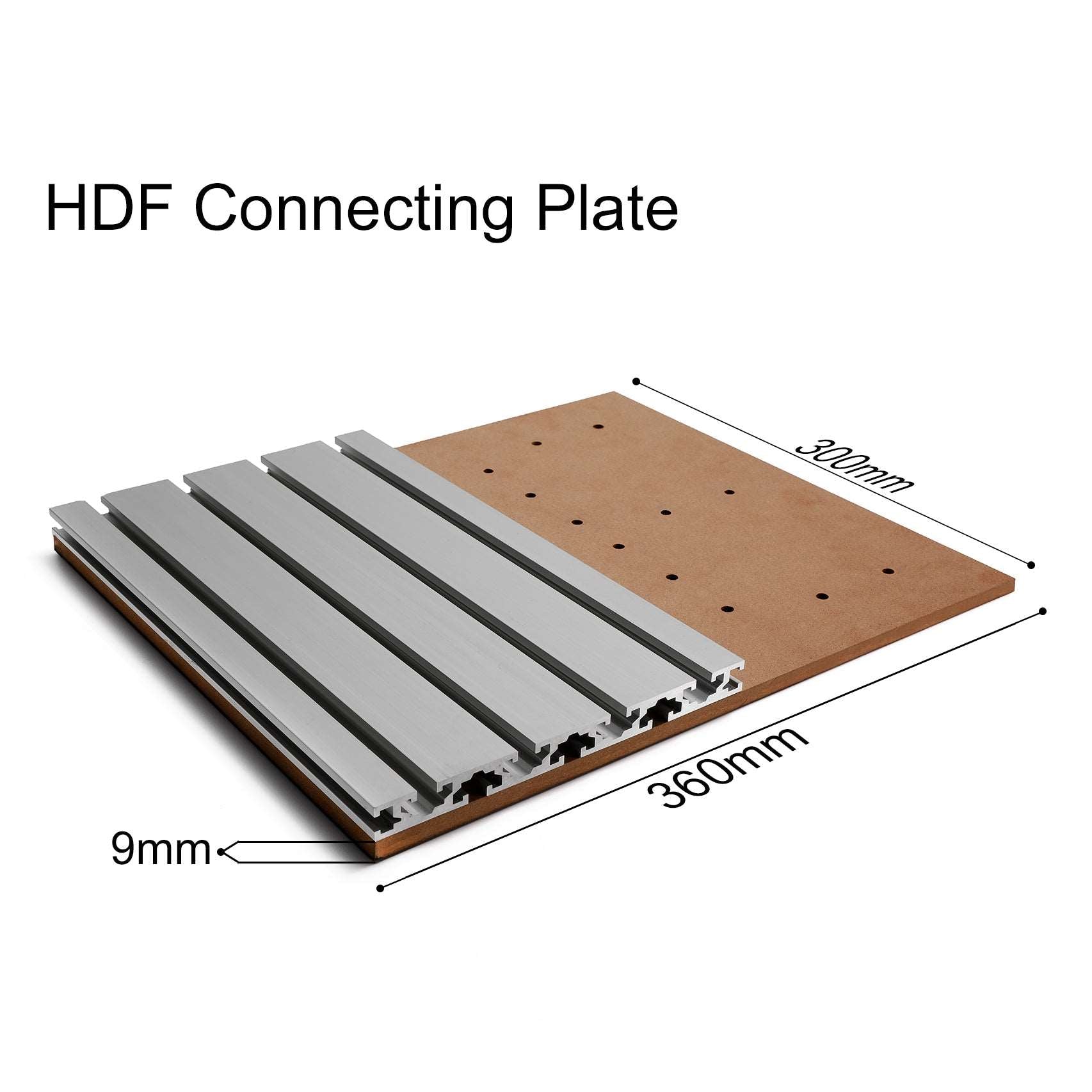

1 x HDF Connecting Plate (300 x 360 x 9mm)
1 x Allen Wrench, 4mm
1 x Allen Wrench, 5mm
1 x Install Positioning Tool
1 x Install Positioning Tool
1 x Limit Switch Cable Y LIM-, 3pin 1m
11 × Hexagon Socket Screw, M6*22mm
13 × Hexagon Socket Screw with Flat Head, M6*16
23 × T-nuts, 30*M6
1 x Assembly Guide
Very good package and informative instructions. God quality
This worked perfectly even though I have a no name cnc. Well done! The company Even contacted me about my concerns pre installation and followed up. Just awesome customer service
Hi, this is not really a spoil board kit, but a completion of an extension kit. These items should have come with the extension kit. The aluminum trays are unprotected with this upgrade and needs to have a spoil board added.
Tops off the 3018 prover nicely. You should purchase the extension kit as well. You need both. Also follow closely the install manual and videos. Some steps are not obvious. Once installed properly the machine homes correctly and you have a huge work area. Looks fantastic.
Quality must have for Y-Axis extention
Instructions are easy to follow and the install went without a snag. The only thing to be conscious of is that one side of the board has recessed holes for the bolt heads.
3018 spoil board extension
Came quickly. Well packed. Supporting documents were clear with solid graphics. Take your time and you’ll have a lot more room to create.
This is priced good. was easy to put together and a quality parts. am going to buy another
From the build to first cut. Sheer joy
It works - but adds limitations
The design with the spoilboard /attaching board works. HOWEVER - it also reduces the Z clearance by 9mm. Couple that with the 7 mm you lose with the aluminum 52mm spindle mount - and you really limit your workspace. Consider if you need the extra board space vs. height. I also installed the extended Y rails which gives you the extra length you want - not sure you really need the double bed size. Installed- i was UNABLE to use the laser on 2" blocks due to height. I ended up removing this - i may consider trying it again - but will use joining plates vs the entire board. I may 3d print some. I think this could have been better implemented with a thin aluminum panel of the same size - with a fraction of the thickness.
This board that I purchased makes my work much easier great purchase Larry
