Brand: Genmitsu SKU: 101-63-XYS6060

6060 XY-Axis Extension Kit for PROVerXL4030 V1

SKU: 101-63-XYS6060 10 reviews Variants ID: 39309185187919
Free Shipping

Ship to

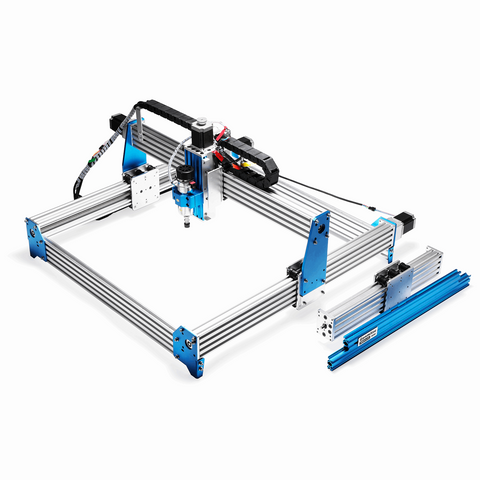

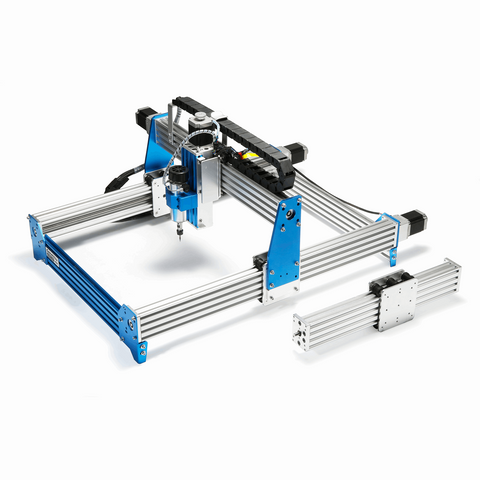

Easily convert your PROVerXL 4030 V1 to a 6060 (24”x 24”) with pre-installed axis carriages. Evolve with your CNC, upgrade as you go, start big and get to making more. Drop-in replacement for use with a Genmitsu PROVerXL 4030 V1.

The 6060 Aluminum Board is available, MDF Board will also be available soon. Simple assembly with the Installation Guide located in our at the resource center.

Note: This extension kit is not compatible with PROVerXL 4030 V2


Built to Suit Your Needs

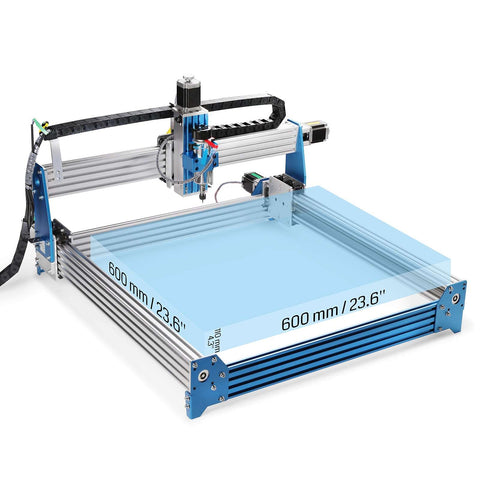

Expand your machine's potential with an easy upgrade, and turn your PROVerXL 4030 into 600 x 600mm (23.6”x 23.6”).


You don’t need to spend tons of the money on a bigger one. Save money by putting your current CNC to better use.

Safe & Stable

We have not cut corners on the XY-Axis extension kit. It is designed to be a direct upgrade to the PROVerXL 4030 using quality parts to match the original design. The kit includes all the parts needed to properly and safely upgrade your machine.

Installation Guide

6060 Expansion Installation Guide is available in SainSmart Resource Center, it will take you step by step to finish assembling.


How to install the 6060 Expansion Kit

Reviews on 6060 Expansion Kit


  • Material: Aluminum
  • Engraving Area: 600 * 600 * 110 mm (23.6 * 23.6 * 4.3 inch)
  • 6060 Dimension After Installation: 40.9 * 38.9 * 23.2 inch
  • Package Weight: 12kg (26.5lb)
  • Package Dimension: 31.50 * 15.75 * 2.95 inch

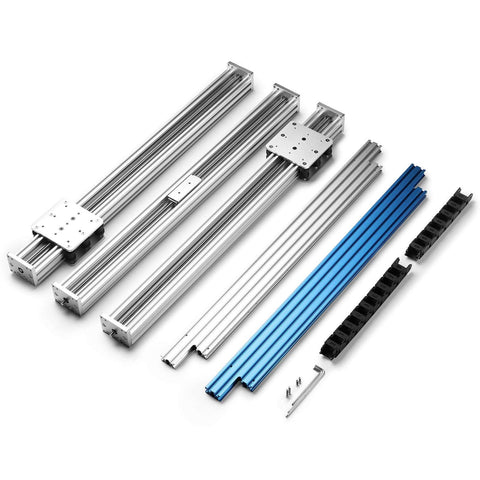

What's included?

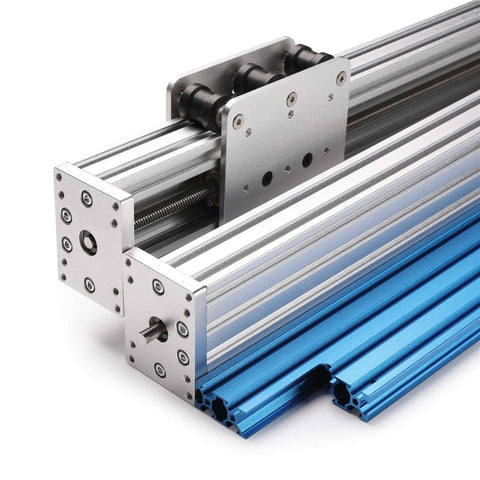

  • 2 x Y-axis Aluminum Extrusion (lead screw included)
  • 2 x X-axis Aluminum Extrusion (lead screw included)
  • 2 x Front/Back Plate
  • 1 x Y-axis Drag Chain (7)
  • 1 x X-axis Drag Chain (9)
  • 4 x Hexagonal Wrench, 4mm, 3mm, 2.5mm, 2mm
