Genmitsu PROVerXL 4030 CNC Router with Carveco Maker Subscription

38 reviews SKU: 101-60-4030prover Variants ID: 32558728216655 Variants ID: 32558728216655
$999.00
US Free Shipping

PROVerXL 4030 Benchtop CNC machine is a new class of easy to assemble and ready to go kits. It's great for an endless variety of cutting, drilling, and carving operations on a variety of materials including wood, MDF, plastics, foams, vinyl, and aluminum.
Take your creativity to the next level working with 6060 Extension Kit, 6060 Aluminum Spoilboard & Laser Module.

  • UK orders: VAT Taxes and fees are included in the shipping.
Ship to
USA
Option
With Free 3-Month Carveco
$999.00
BUY BUNDLE

Bigger and Sturdier
Get serious about milling without the headache. The new Genmitsu Benchtop CNC machine gives you more power, larger work areas than the 3018 desktop CNC machines.
Not only is it larger it also features a completely redesigned control box and drive system, beefy C-BEAM frame, precision NEMA 23 stepper motors, high Power Spindle and adapter for a drop in Dewalt DWP611 upgrade.
NEMA23 Stepper Motor with Manual Jog Wheel
Y-axis Dual Screw Drive
Cable Management
Easy to Set Up

The pre-assembled module of X, Y, Z axis and wires dramatically reduces effort of assembly, allowing you to start carving your projects in less time. Bundled with CARVECO MAKER (12-Month, a $180 value), easily create your next project.

(12-Month, a $180 value)

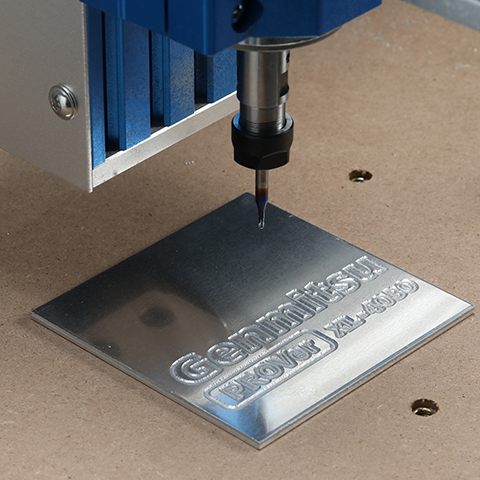

Precison and Performance

Rigid C-Beam structure, Leadscrew Driven, Y-axis Dual screw drive, Z-Axis Optical Axis Drive deliver more stability than the traditional v-slot drive. It's ideal for an endless variety of cutting, drilling, and carving operations on various materials including wood, MDF, plastics, foams, vinyl, and aluminum.

Redesigned Control Box

Compact and simple design that integrates easy to access buttons for boot, emergency stop, motor speed control, unlocking and pausing your machine. The PROVerXL control box’s easy cable management provides an organized solution that makes cleanup easy. Still based on high performance open-source Grbl V1.1 software. (Not work with Mach3)

Easy to Upgrade

Although our standard spindle (DC 24V 300W) can already meet the requirements of most projects, the PROVerXL 4030 CNC kit still comes with an additional spindle holder for broader use, compatible with DeWalt DWP611. The C-Beam Structure makes it easy to configure for larger size work areas with simple upgrade kits as future upgrades. (Coming Soon*)

No Additional Parts Required

Everything you need out of the box, no stripped down kits or add-ons, the Genmitsu PROVerXL 4030 CNC router already includes all of the accessories and components you need at an affordable price, including X, Y, Z axis limit switches, emergency stop switches, speed control, Z-probe and more.

Built to suit your needs
The PROVerXL 4030 CNC platform is just the beginning, if you are looking for an even larger machine get the upgrade kit available in 2 additional sizes 600 x 600mm (24”x 24”), and up to 1000 x 1000mm (40” x 40”). Equip your machine with High Powered Laser Modules with up to 15W of true power output. Evolve with your CNC, upgrade as you go, or start big and get to making MORE. All these upgrade parts will come soon!
Specification
Working area

400 x 300 x 110mm (15.75 x 11.81 x 4.33 inch)

Frame

C Beam Structure and Linear Rails

Drive System

ACME Leadscrew (T10)

Control Board Compatibility

GRBL 1.1h

Stepper Driver

TB6560

Stepper Motors

NEMA 23 (2 Phase, 3A)

Spindle

300W 6A, 12,000 RPM

Max speed

2000mm/min

Extra Mount

Aluminum DeWalt DWP611 Mount (DWP611 router not included)

Accuracy

0.1 mm

Power Supply

600W, 7A, 0-48V

CAM Software

Candle, Carveco Maker, Easel

Homing Switches

X, Y, Z Limit Switches + ESTOP

Leadscrew Size

X-658mm , Y-528mm, Z-208mm

Leadscrew Type

T10 2mm pitch, 5mm lead 5 start acme leadscrew

Overall Machine Size

641 x 755.5 x 580mm (25.23 x 29.74 x 22.83 inch)

Controller Box Size

400 x 200 x 60.7mm (15.75 x 7.87 x 2.39 inch)

Machine Weight

26kg (57lbs)

Shipping Weight

30kg (66lbs)

What's in the package?

1 x Genmitsu PROVerXL 4030 CNC Router (Some parts need to be assembled)

1 x Pre-Installed 300W Spindle

1 x Controller Box

1 x MDF Spoil Board

1 x Aluminum DeWalt DWP611 Mount (DWP611 router not included)

10 x Nano Blue Coat Bits (1/8” Shank, Cutting Edge Diameter 0.8-3.0mm)

10 x Engraving Bits (1/8” Shank, Cutting Edge Diameter 0.2mm, 30 Degrees)

4 x Clamps

1 x Screw/Nut Accessories Box
