SainSmart DSO213 4-Channels Handheld Mini Digital Oscilloscopebrand: SainSmart SKU: 101-10-601
DSO213 is the latest oscilloscope in the family of SainSmart DSO oscilloscope. Compared with DSO203, DSO213 upgrades its analog bandwidth to 15MHz (DSO203 is 8MHz) and max sample rate to 100MSa/s (DSO203 is 72MSa/s)

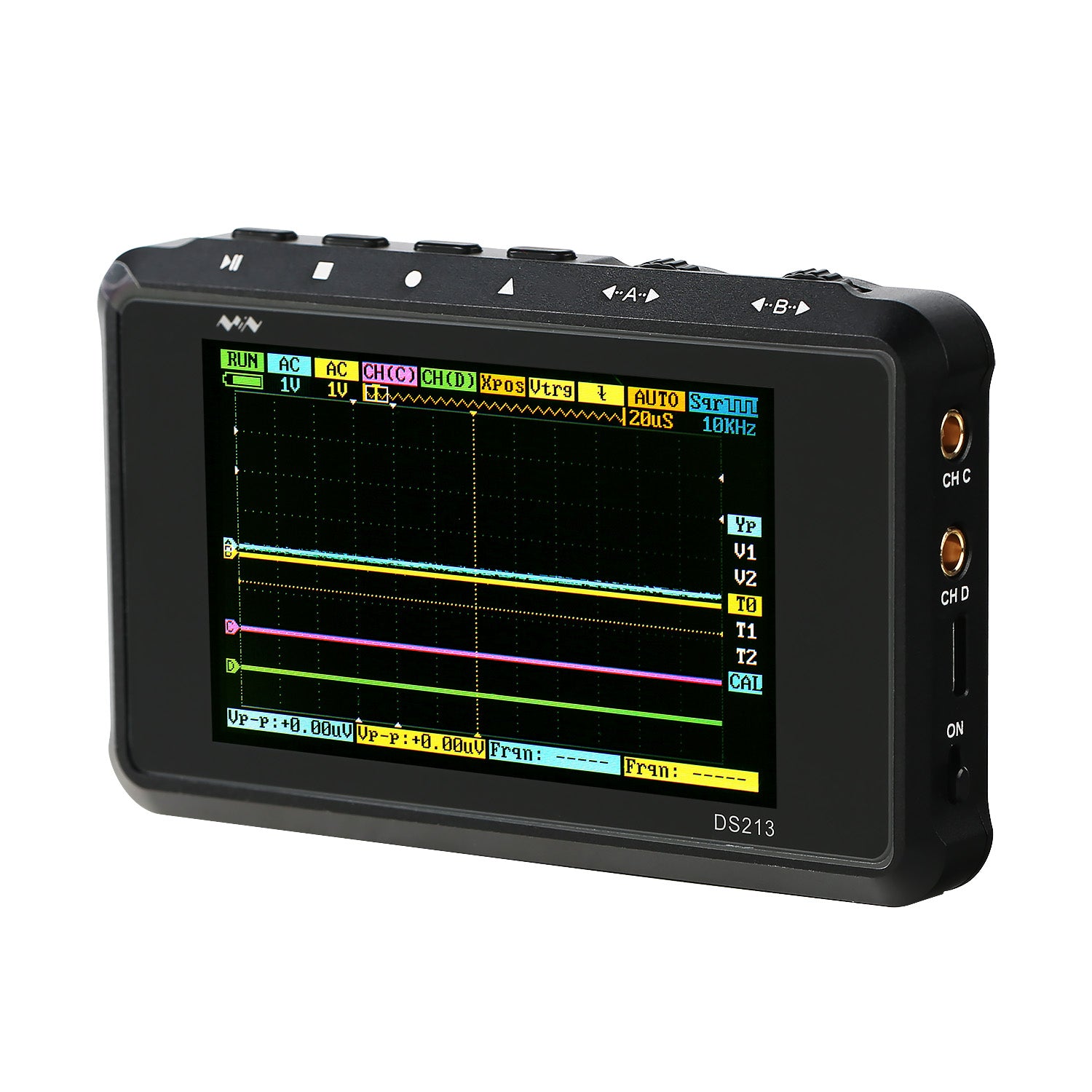

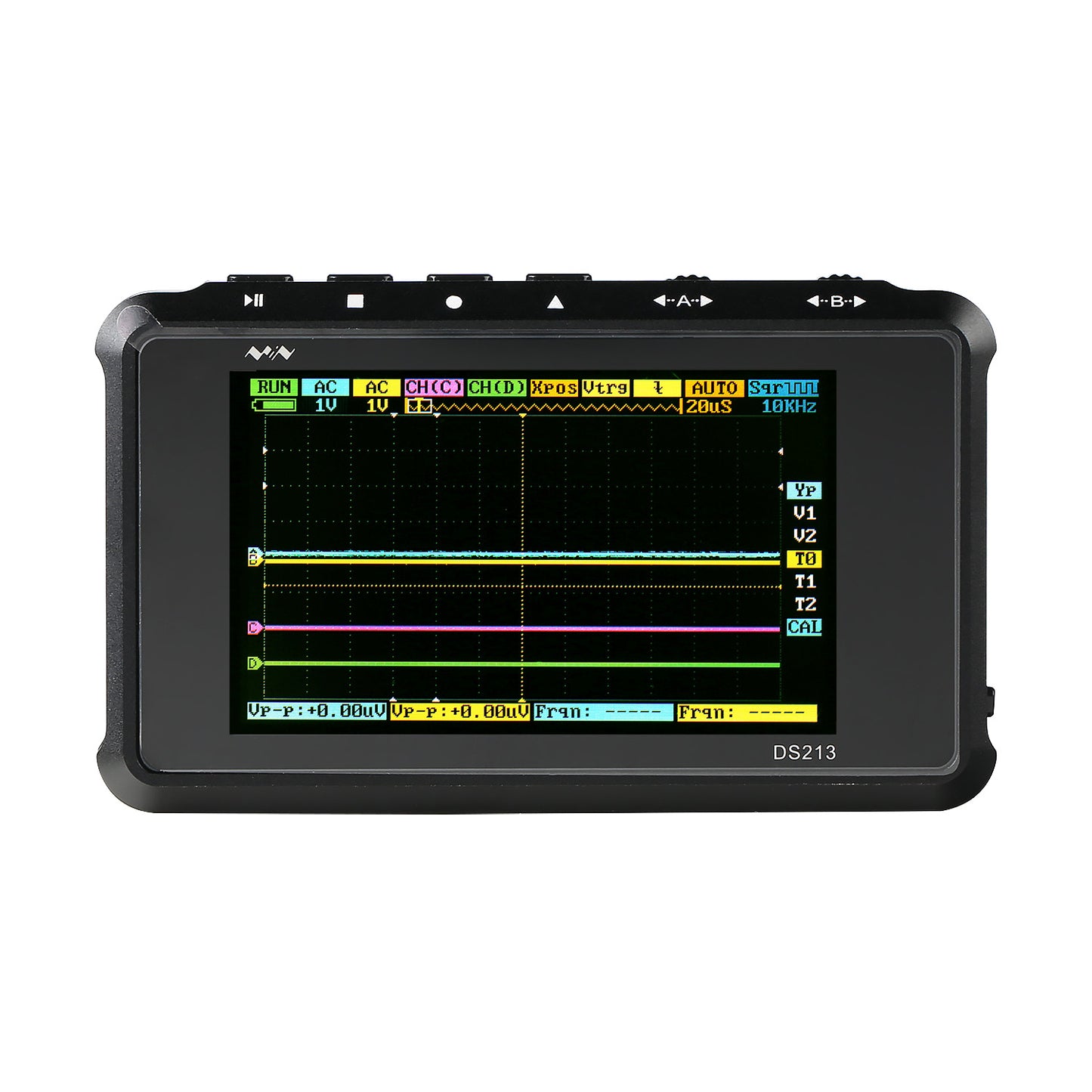

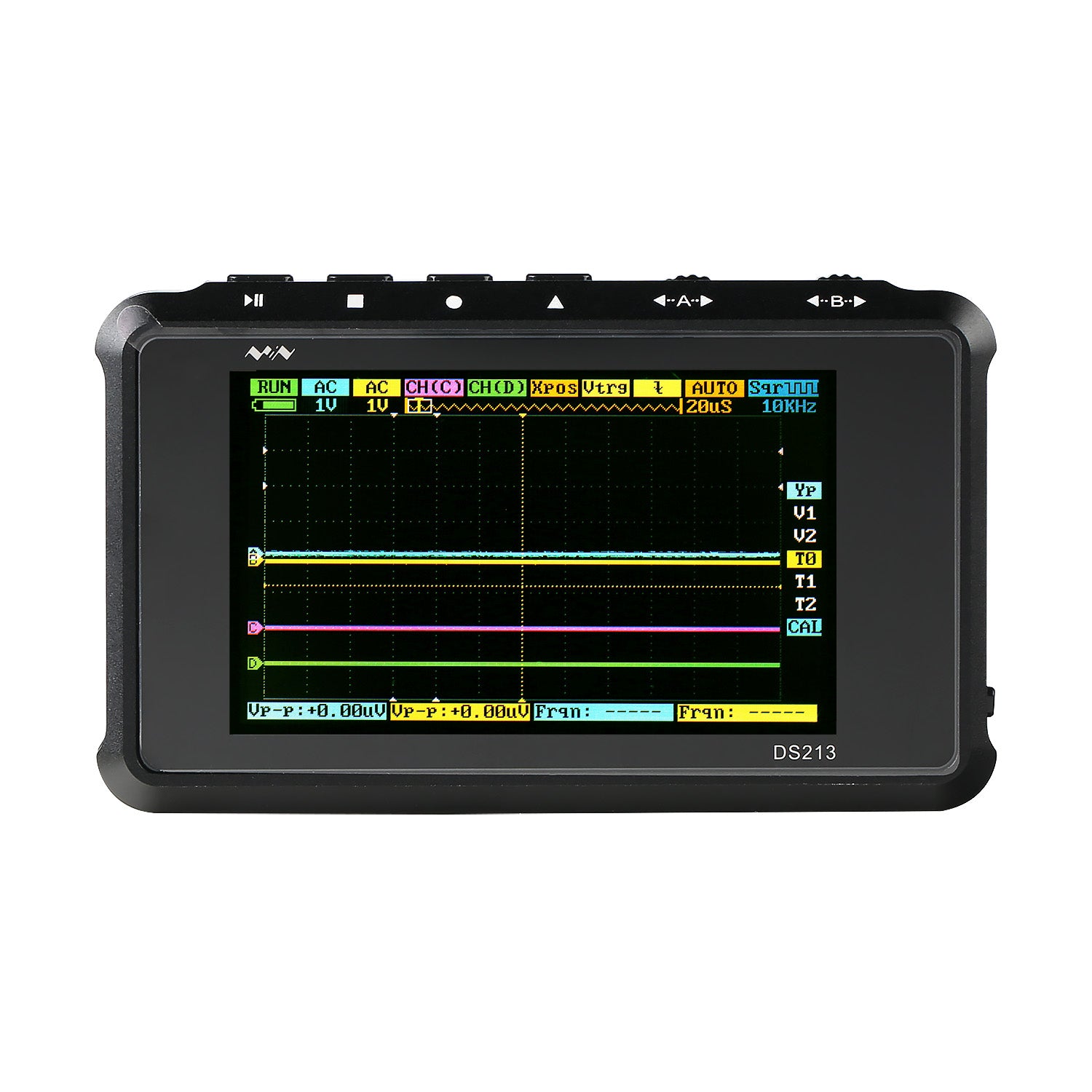

Equipped with a 3 inch 400x240 color display, it presents any measured AC current, including sine, square, sawtooth, and triangle waveforms.
Simple to Use
Operation is simple and easy, just like play a smartphone.
Its small form factor conveniently fits inside any pocket so it’s always ready when you need it.
The built-in 8 MB flash storage makes saving and transferring waveform images easier than ever.
The Newest Model DS213
The DS213 is an upgrade of the previous model DS203, featuring four channels and a wide 15MHz bandwidth. This portable device is a good choice for people who are always on the go. Many students and hobbyists prefer them over benchtop models which are typically heavier and more difficult to carry around.
Comes with 3-inch Display
It has a 3-inch display to study and read the information listed on the screen. The device has a bright display with a simple swipe and one-click operation just like a smartphone.
Offering the Max Sample Rate of 100 MSa/s and 4 digital channels, DSO213 is a great choice for many hobbyists out there. These features help you come with coming up with reliable results of waveforms, including sine, square, sawtooth, and triangle waveforms.

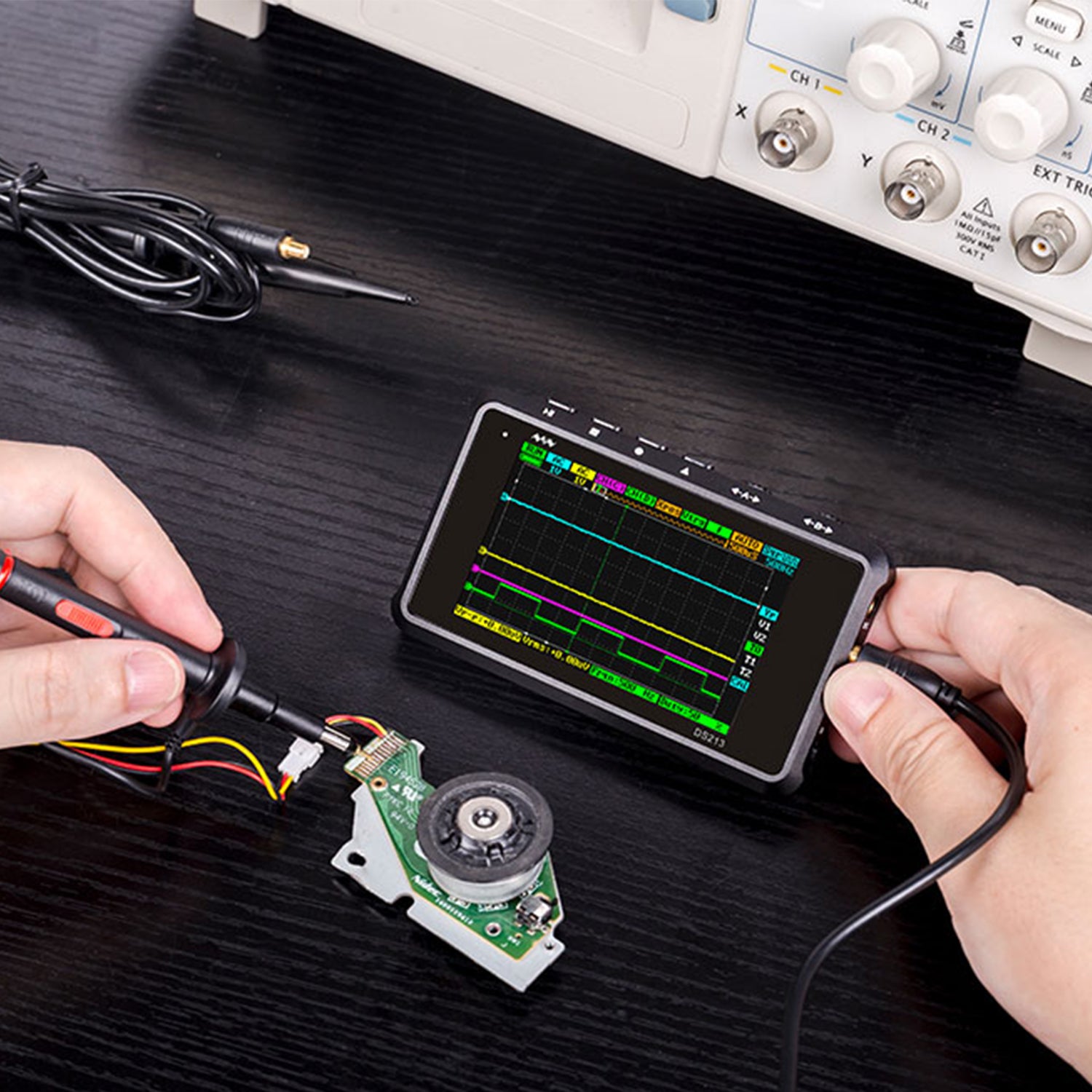

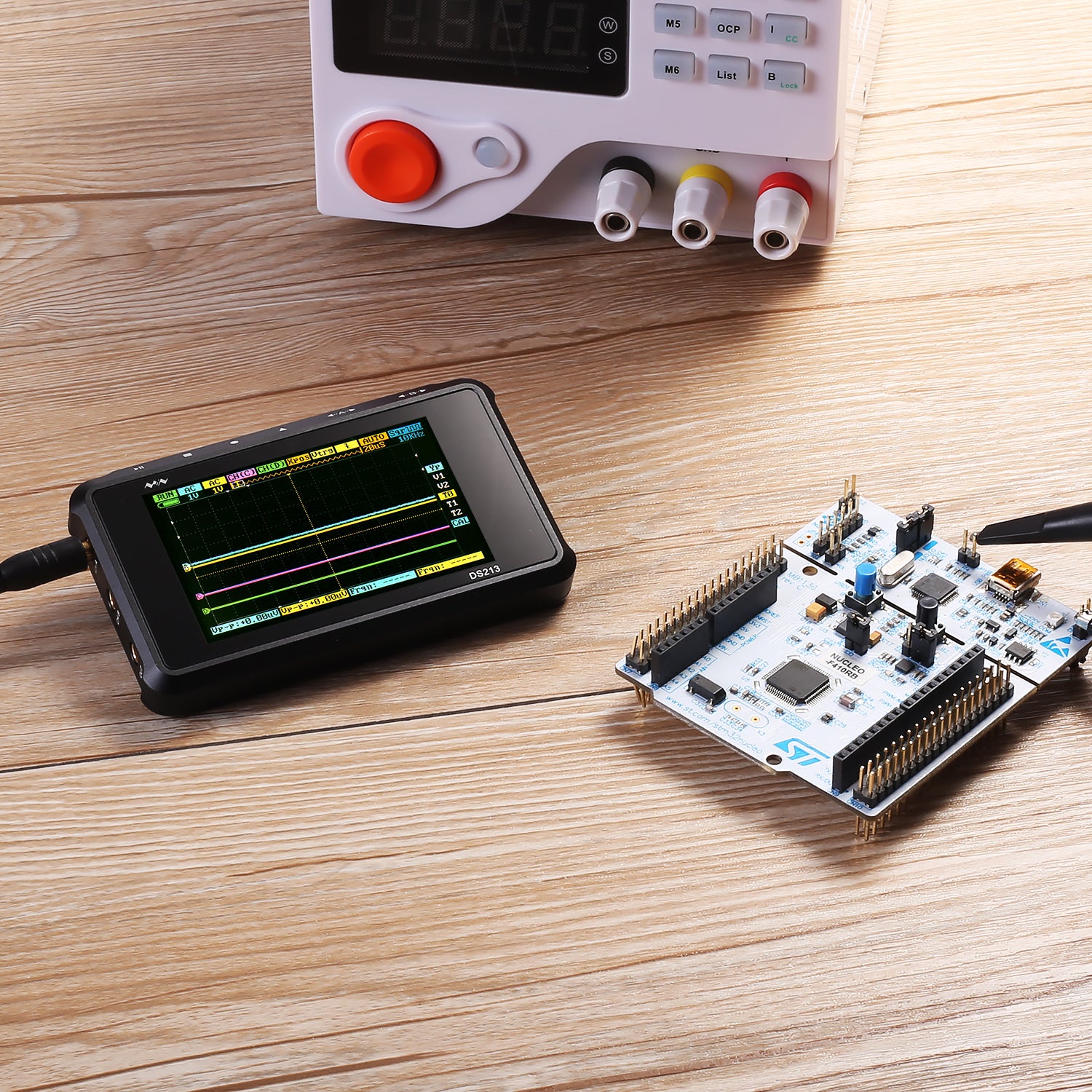

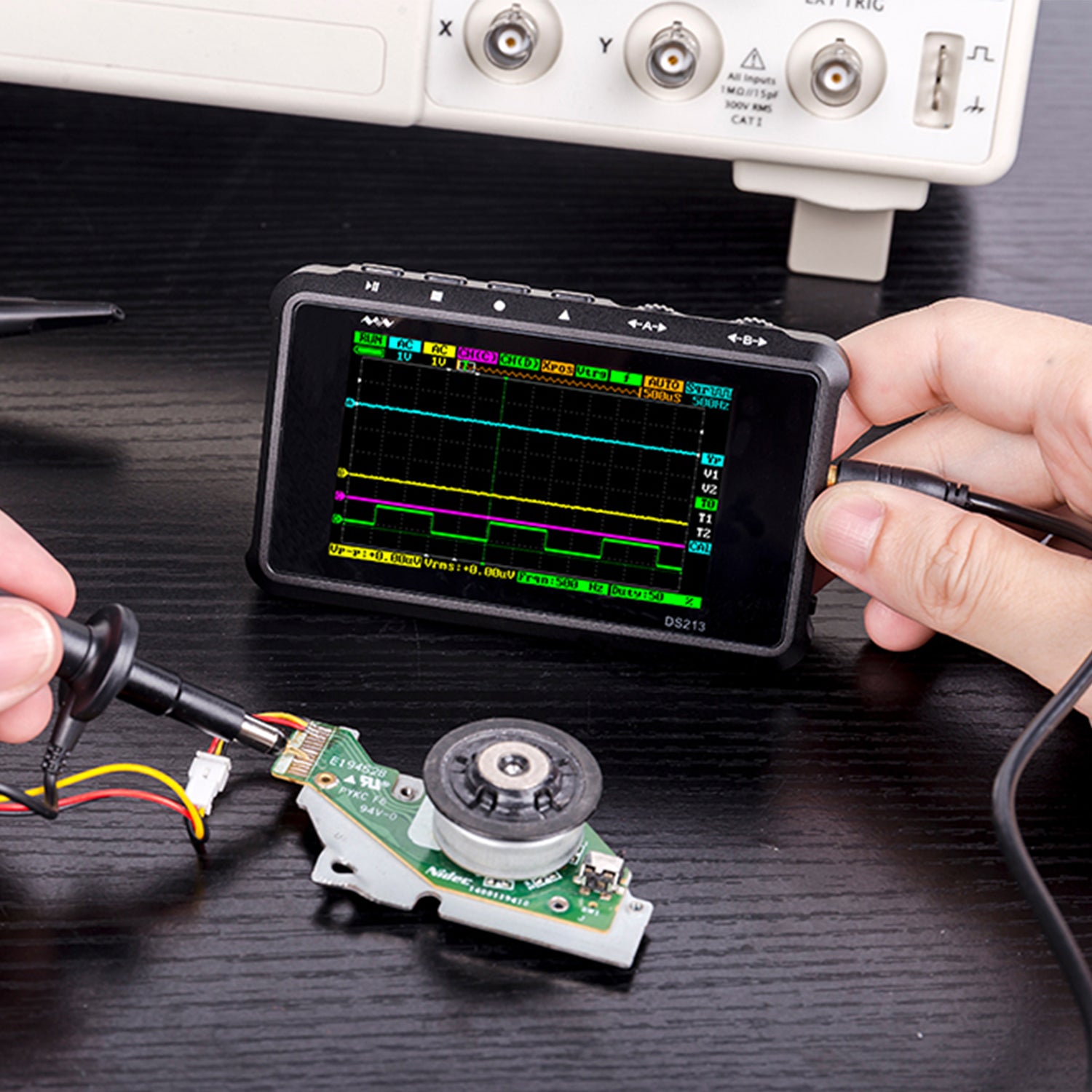

DS213 can be used as diagnostic tools to detect electronic malfunctions and are also popular in every hobbyist’s lab who likes to experiment and measure the electric current. It is suitable for people who need to work in the class, the workshop or other locations. They’re lightweight and compact enough to fit in your pocket or backpack.

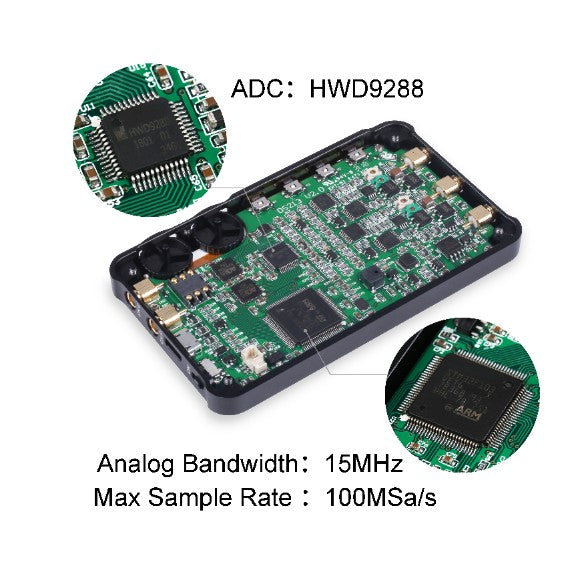

DSO213 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware. Equipped with the newest ADC, the analog bandwidth is up to 15MHz and max sample rate is up to 100 MSa/s.

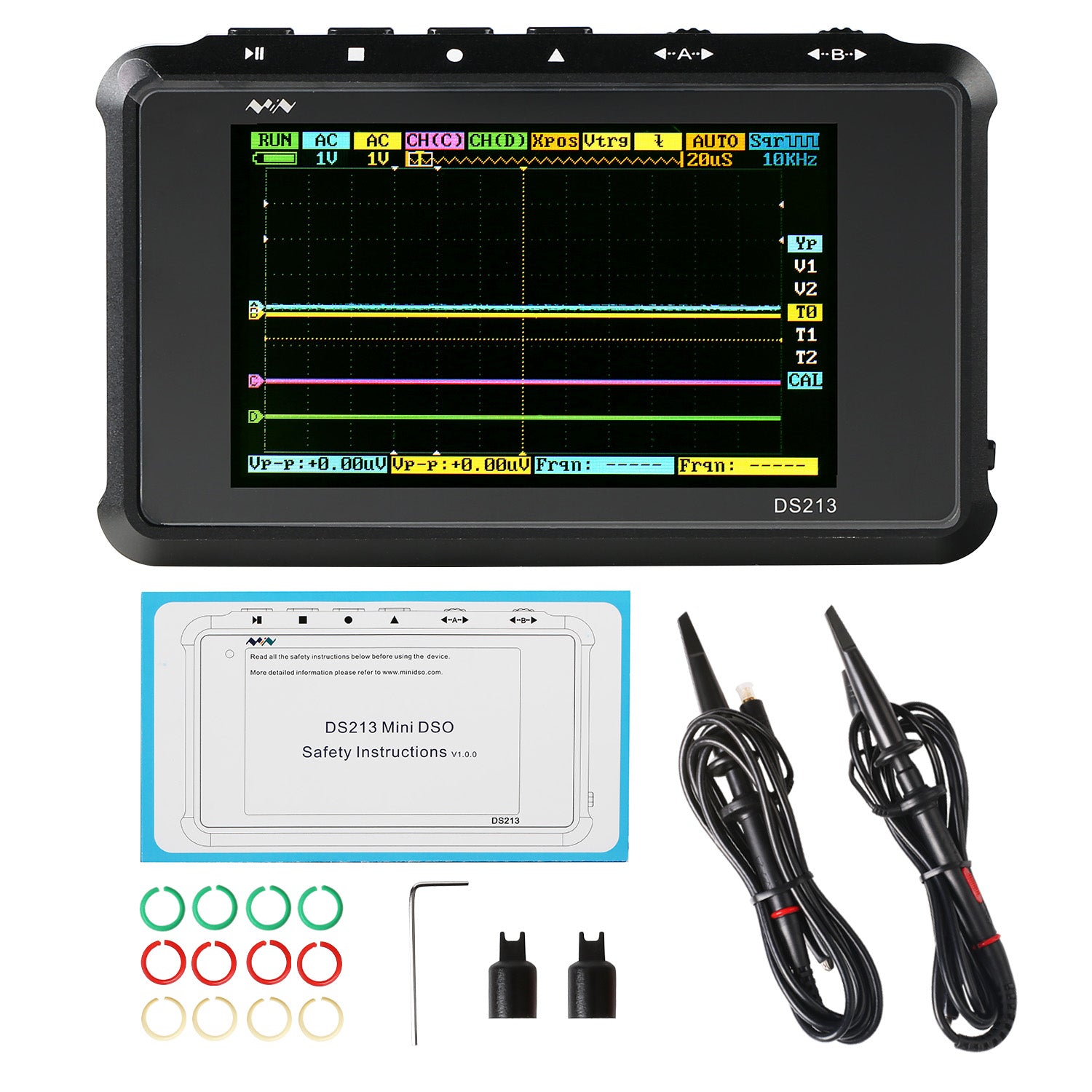

WHAT'S IN THE PACKAGE
- SainSmart DSO213 Oscilloscope
- X10 Probe Analyzer ×1
- X1 Probe Analyzer ×1
- Safety Instructions ×1
- Hex Key ×1
Comparison between DSO213 & DSO203
|Channels||2 analog, 2 digital||2 analog, 2 digital|
|Max Sample Rate||100MSa/s||72MSa/s|
|Maximum Memory Depth||4K||4K|
|Horizontal Sensitivity||100nS/Div~1S/Div(1-2-5sequence step)||0.1uS/Div~1S/Div(1-2-5sequence step)|
|Vertical Sensitivity||10mv/Div~10V/Div(1-2-5sequence step)||50mv/Div~10V/Div(1-2-5sequence step)|
|Coupling||DC / AC||DC / AC|
|Auto Adjustment Mode||NO||NO|
|Calculation Waveforms||-A,-B,A+B,A-B RecA,RecB,RecC||-A,-B,A+B,A-B RecA,RecB,RecC|
|Storage||8MB USB flash disk memory||8MB USB flash disk memory|
|Operation||buttons, scrollers||buttons, scrollers|
|USB Interface||Micro USB||Mini USB|
|Screen Resolution||400 × 240||400 × 240|
|Open Source||Application layer Open-Source||Application layer Open-Source|

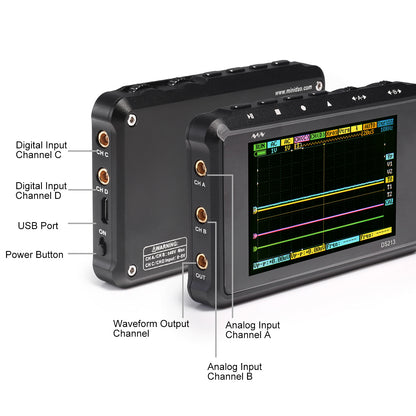

I purchased this primarily to use with my Eurorack synthesizer setup. When I received it, I was surprised and the build quality. The aluminum case is a nice touch. Once I understood how it worked, I found the menuing system quite workable. Please note that this unit uses MCX connectors for the probe inputs and waveform generator output. These are typically used for RF cables and not in my opinion very easy to assemble manually, and there are not many adapter options to connectors for audio formats. I purchased exxtra scope probes and converted them to 3.5mm connectors on the scope probe end. Another quirky thing is tha *** does nto seem to save your most recent settings when it is posered doen - you have to resotre all your settings manually each time you power up. I'm hoping they will fix that with a future software update - even a manual save woud be better than no save at all. With those caveats, I can recommend this unit and give it four stars.
The device is ok for smps and audio. The connectors on the probes are not the most reliable but are usable.
