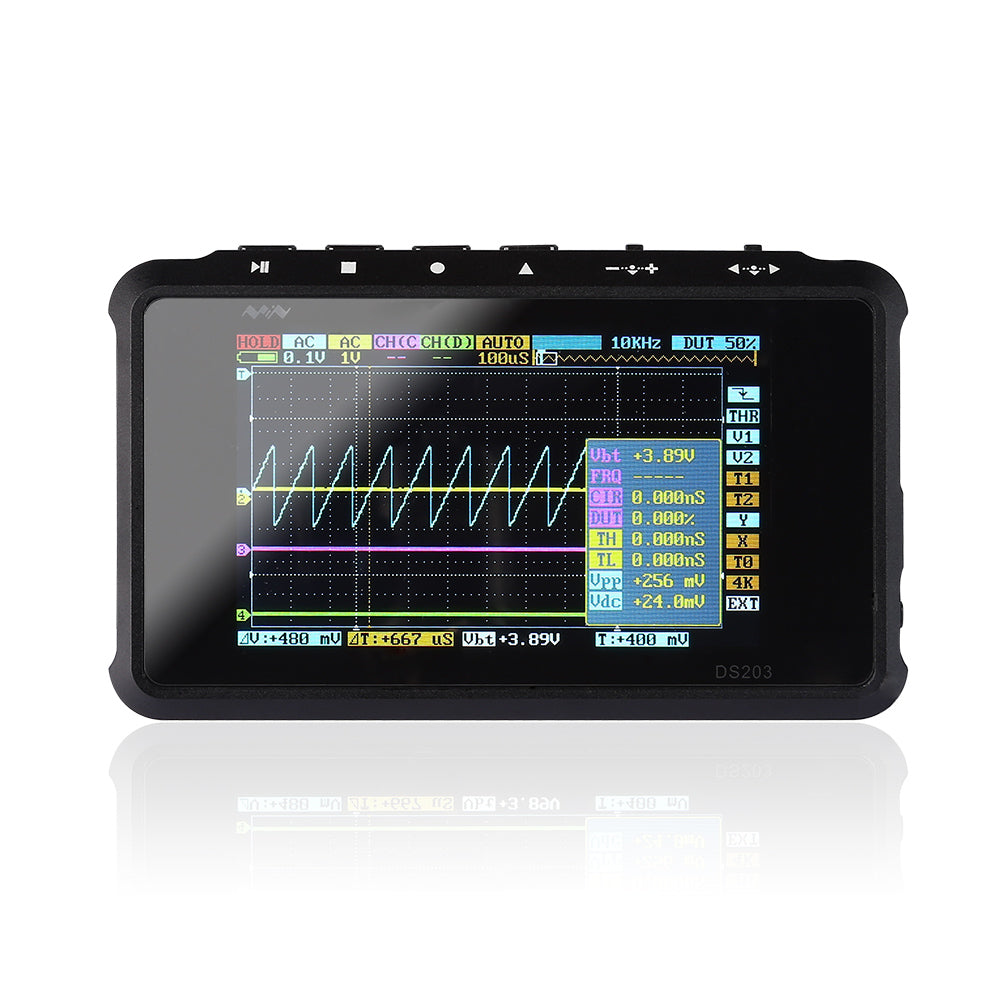

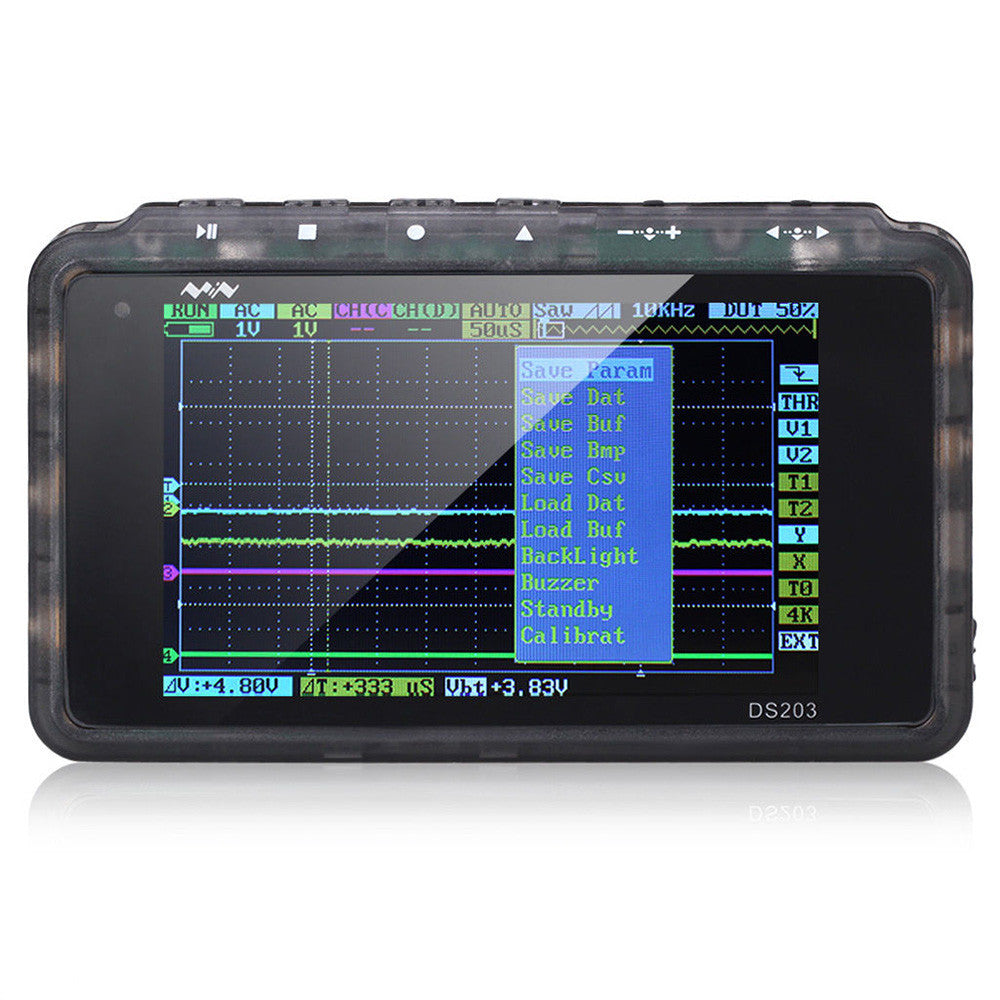

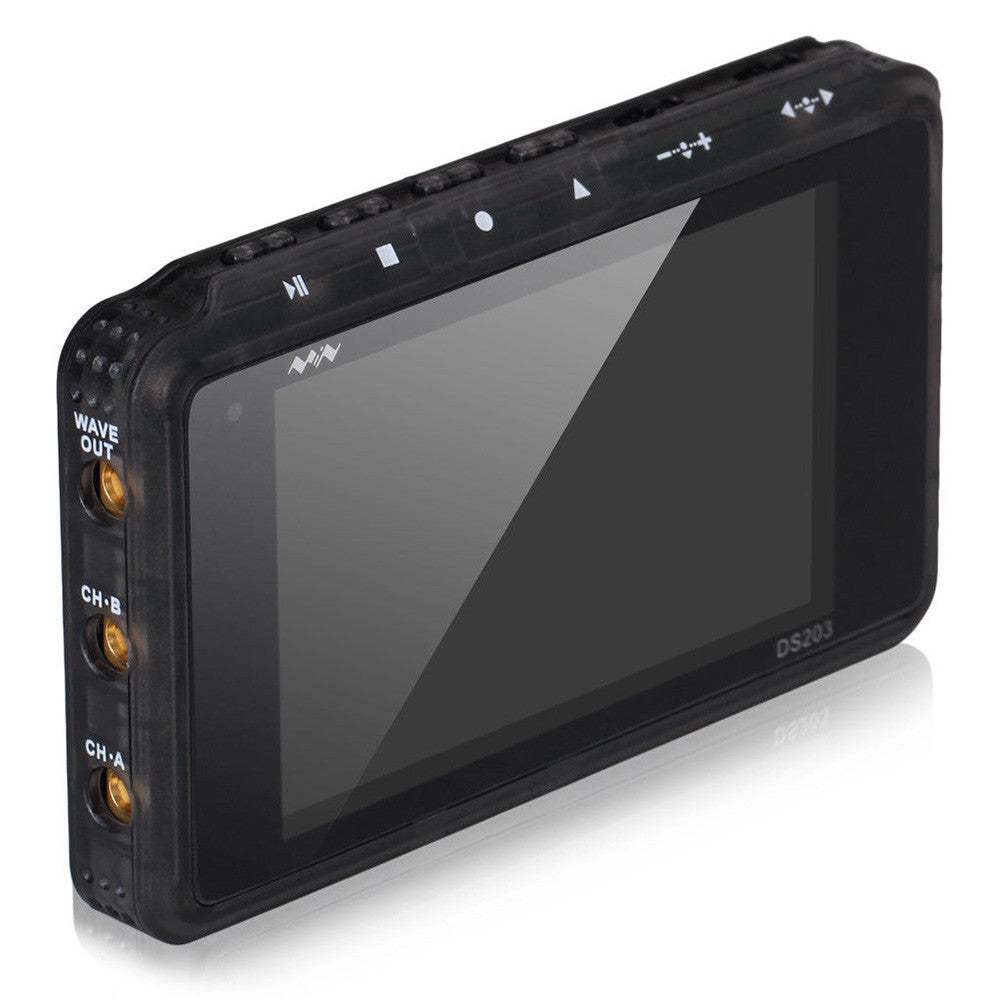

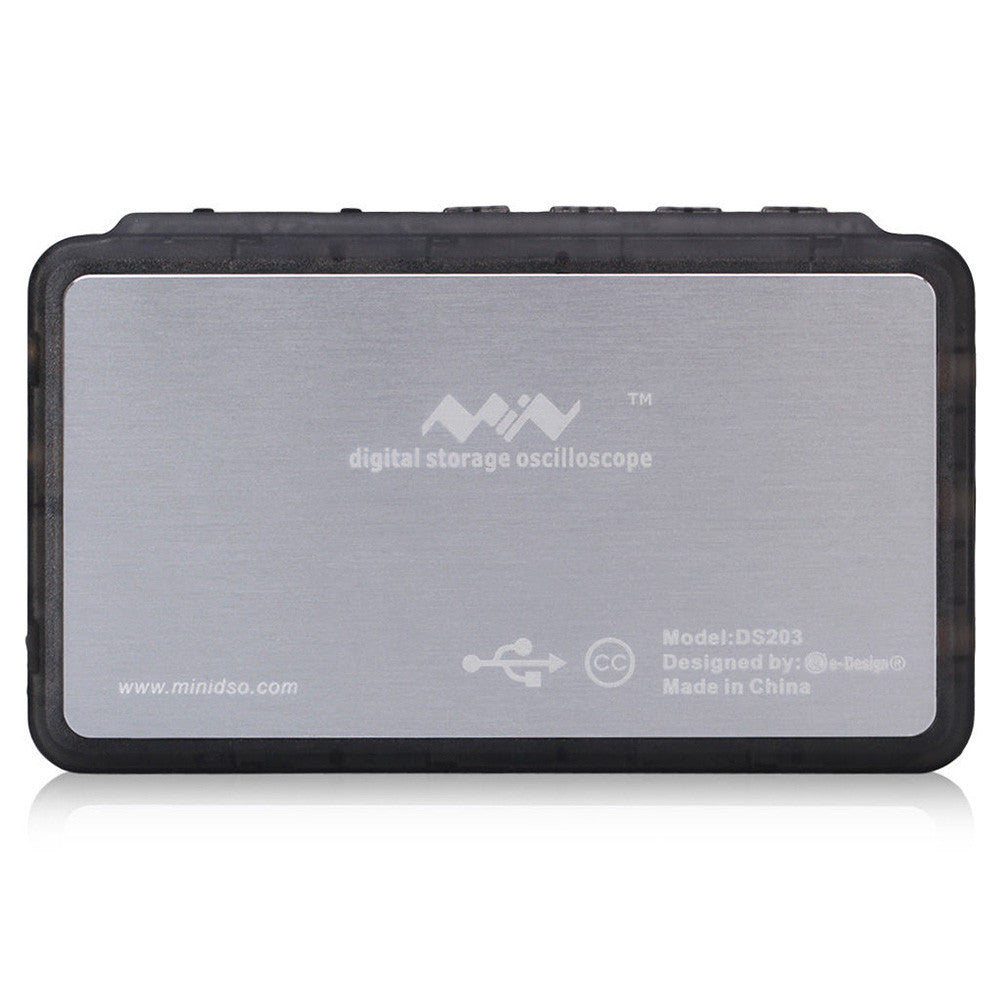

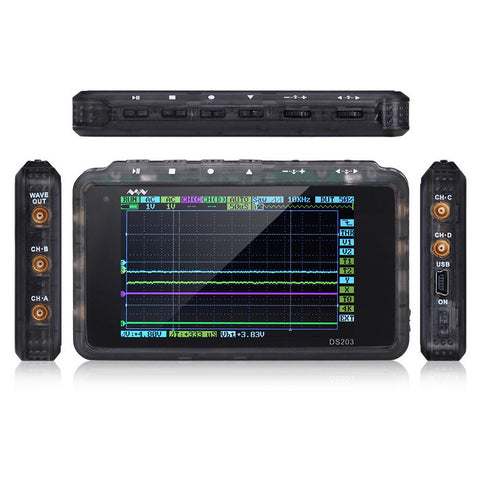

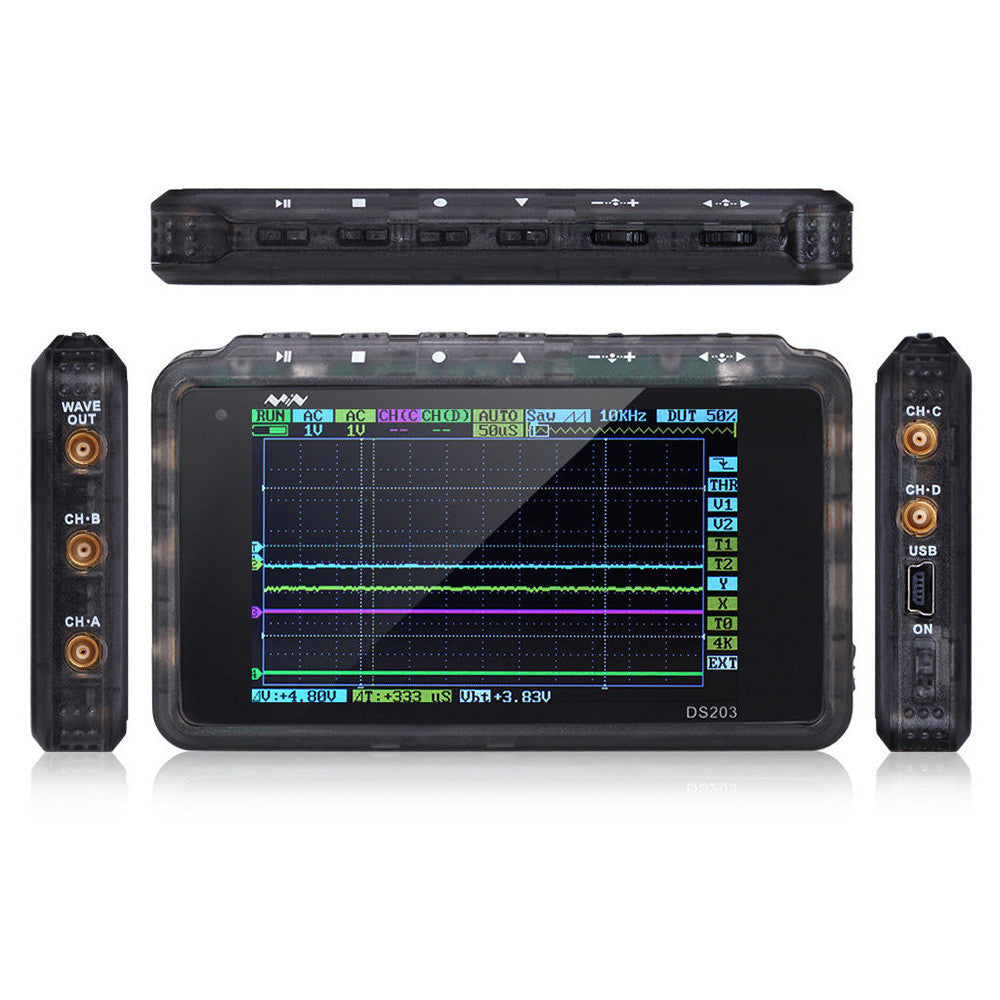

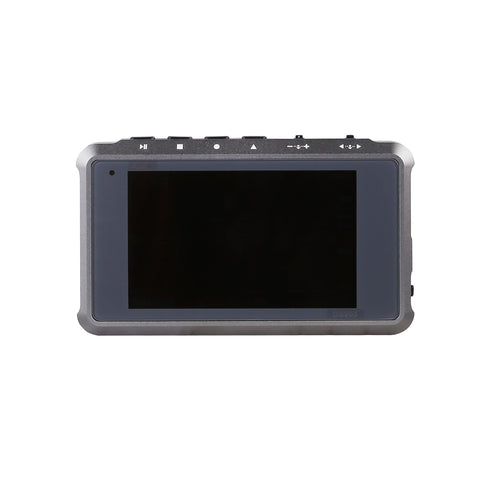

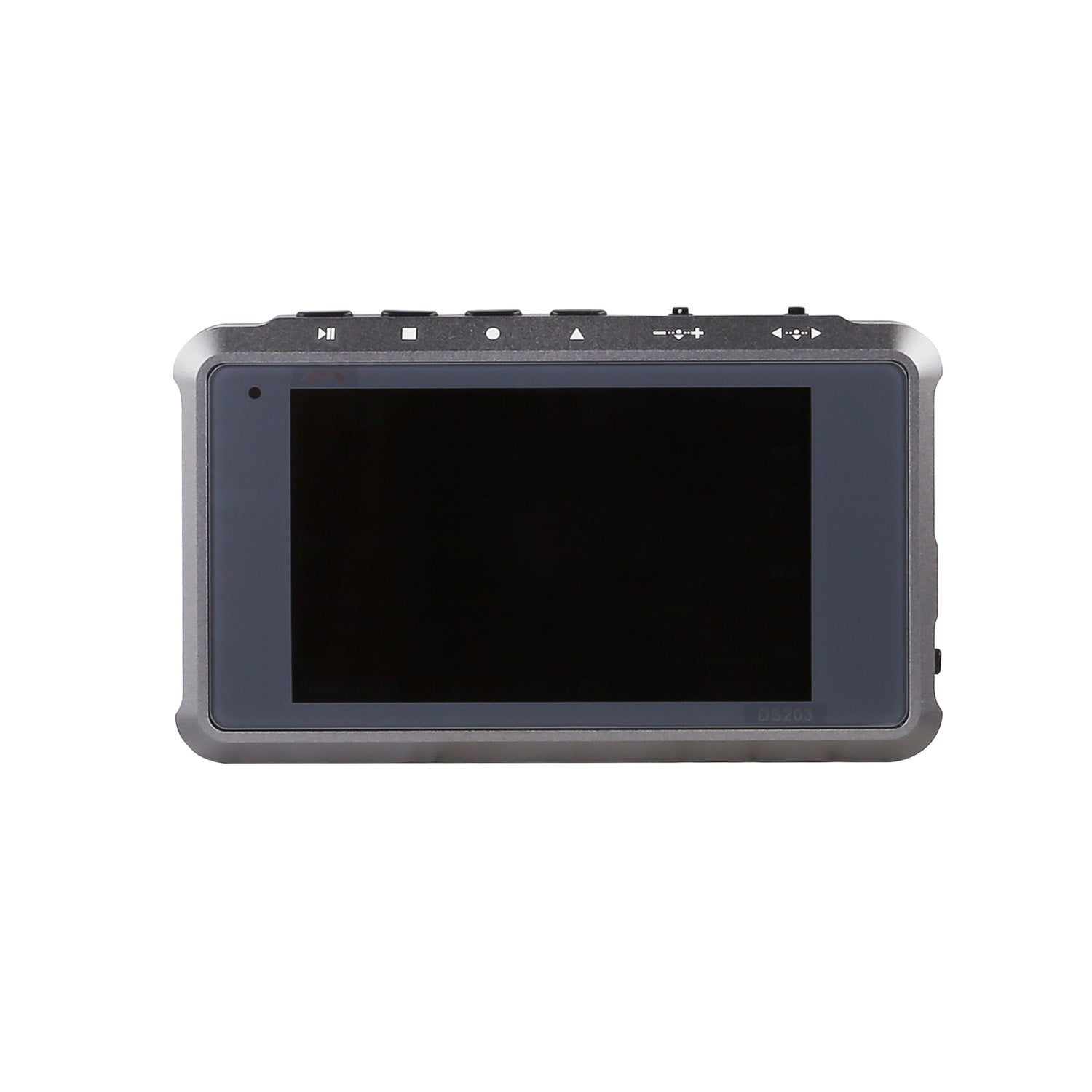

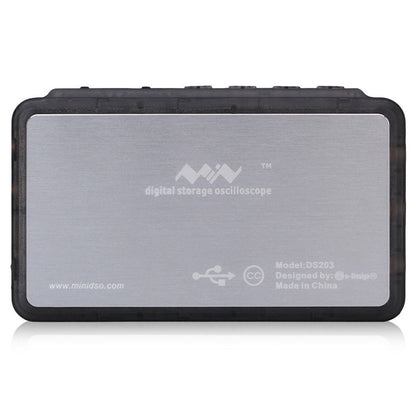

[Discontinued] DSO203 4-Ch Handheld Mini Digital Oscilloscope

SKU: 101-10-101-01 9 reviews Variants ID: 45099729876
$154.99 $169.99
Save $15.00

DSO203 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware.

  • Two 72Mhz analog channels and two digital channels
  • AD9288-40 dual A/D converter analog channels from 36MS/s to 72MS/s.
  • Signal Generator, auto measurement, various triggering option
  • Easy waveform storage, firmware upgrade, user applications, open source
  • Built-in 8M USB disk
  • 12 months' warranty

Click here to check the latest version DSO213 Oscilloscope.

DSO203 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware.

  • Two 72Mhz analog channels and two digital channels
  • AD9288-40 dual A/D converter analog channels from 36MS/s to 72MS/s.
  • Signal Generator, auto measurement, various triggering option
  • Easy waveform storage, firmware upgrade, user applications, open source
  • Built-in 8M USB disk
  • 12 months' warranty

Click here to check the latest version DSO213 Oscilloscope.


DESCRIPTION

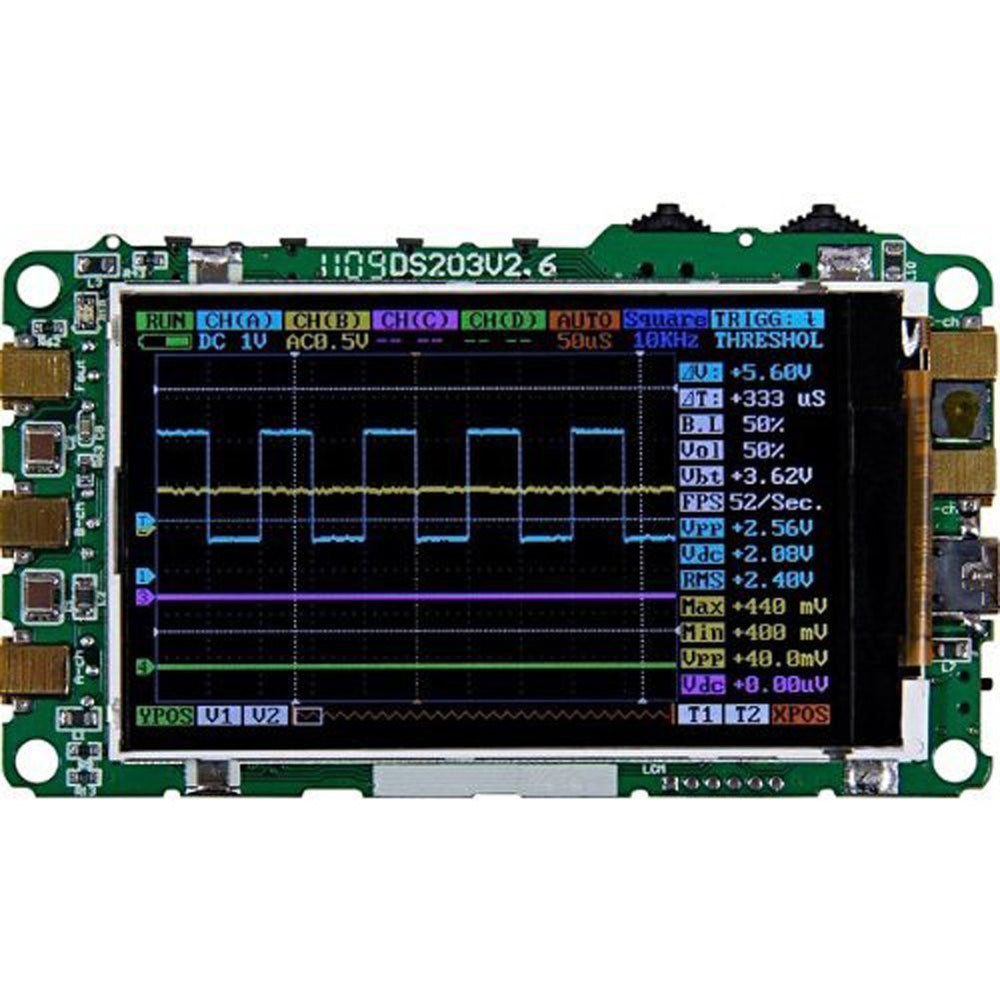

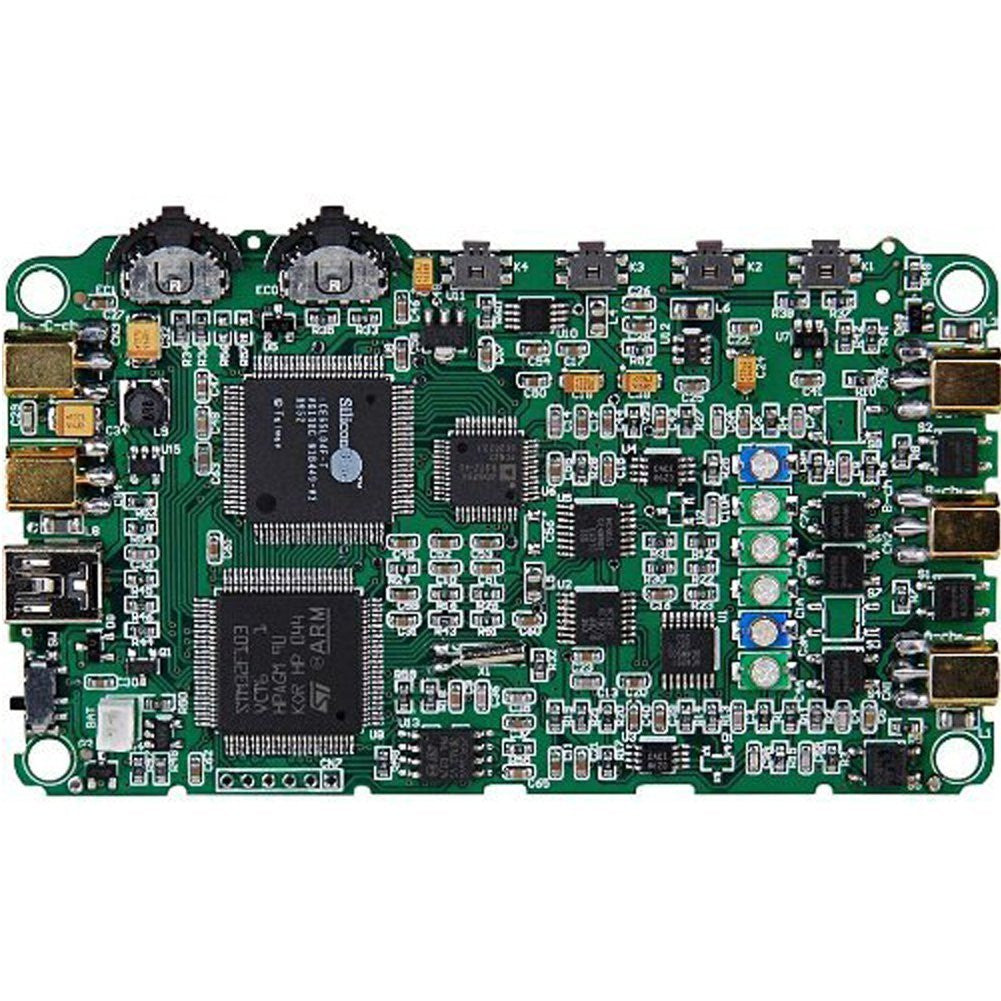

DSO203 is based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high-speed ADC. Internal 8MB USB disk could be used to store waveform, user application and upgrade firmware.



Note: Due to the metal conductive shell of DSO 203, its operating voltage should be controlled under 40V during working in case of any damage to the Quad itself or human

DSO Series:

Model DSO Nano (DSO211) DSO Note II (DSO202) DSO 212 DSO Quad (DSO203)
MCU STM32F103VC STM32F303VC STM32F303VC STM32F103VE
ADC MCU internal ADC MCU internal ADC MCU internal ADC AD9288
Channels Analog channel 1 + 1 internal channel 2 analog 2 analog 2 analog, 2 digital
Analog Bandwidth 200KHz 1MHz 1MHz 8MHz
Max Sample Rate 1MSa/s 10MSa/s 10MSa/s 72MSa/s
Maximum Memory Depth 8K 8K 8K 4K
Horizontal Sensitivity 1uS/Div~2S/Div(1-2-5sequence step) 1uS/Div~2S/Div(1-2-5sequence step) 1uS/Div~2S/Div(1-2-5sequence step) 0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity 20mv/Div~10V/Div(1-2-5sequence step) 20mv/Div~10V/Div(1-2-5sequence step) 20mv/Div~10V/Div(1-2-5sequence step) 50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance 1MΩ 1MΩ 1MΩ 1MΩ
Coupling DC / AC DC / AC DC / AC DC / AC
Auto Adjustment Mode AUTO_FIT AUTO_FIT AUTO_FIT NO
Calculation Waveforms -A, RecA, A + RecA -A,-B,A+B,A-B RecA,RecB,RecC -A,-B,A+B,A-B RecA,RecB,RecC -A,-B,A+B,A-B RecA,RecB,RecC
Storage  8MB USB flash disk memory  8MB USB flash disk memory  8MB USB flash disk memory  8MB USB flash disk memory
APP Installed 1 2 2 4
Operation buttons button,touch area buttons,scrollers buttons,scrollers
USB Interface Micro USB Micro USB Micro USB Mini USB
Battery 500mAh 500mAh 500mAh 1000mAh
Screen Size 2.8inch 2.8inch 2.8inch 3.0inch
Screen Resolution 320 × 240 320 × 240 320 × 240 400 × 240
Open Source Application layer Open-Source

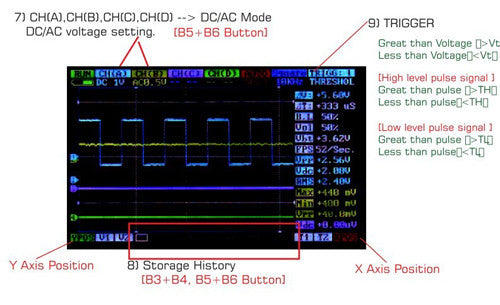

Quick Starter guide

DSO 203 Instruction for beginners



SPECIFICATION
  1. Analog channel * 2 : [CH_A]  [CH_B];
  2. Digital channel * 2 :   [CH_C]  [CH_D];
  3. Vertical Scale: 20mV-10V/div (1-2-5 step) on x1 probe; 200mV -100V/div (1-2-5 step) on x10 probe
  4. Vertical solution: 8 - bit ;
  5. Input coupling: AC/DC ;
  6. Max input voltage: 80Vpp (x1 probe) / 400Vpp (x10 probe);
  7. Storage: 4K per channel
  8. Software trigger type: edge, pulse, level (to be added)
  9. Hardware trigger type: edge
  10. Trigger source: CH1/CH2/EXT
  11. Test Signal generator: 10Hz to 1Mhz
  12. Storage: internal 8MB USB disk
  13. Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
  14. Cursor measurement: Level, Voltage
  15. Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
  16. Sampling mode: real time
  17. Sampling rate: 1KSa/s - 72MSa/S

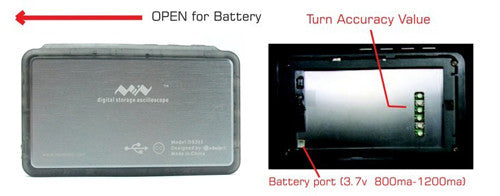

  18. Power: Li-ion battery
  19. Dimension: 98 x 60 x 14.5 mm    3.9 x 2.4 x 0.6 inch
  20. Weight: 80g (without battery)

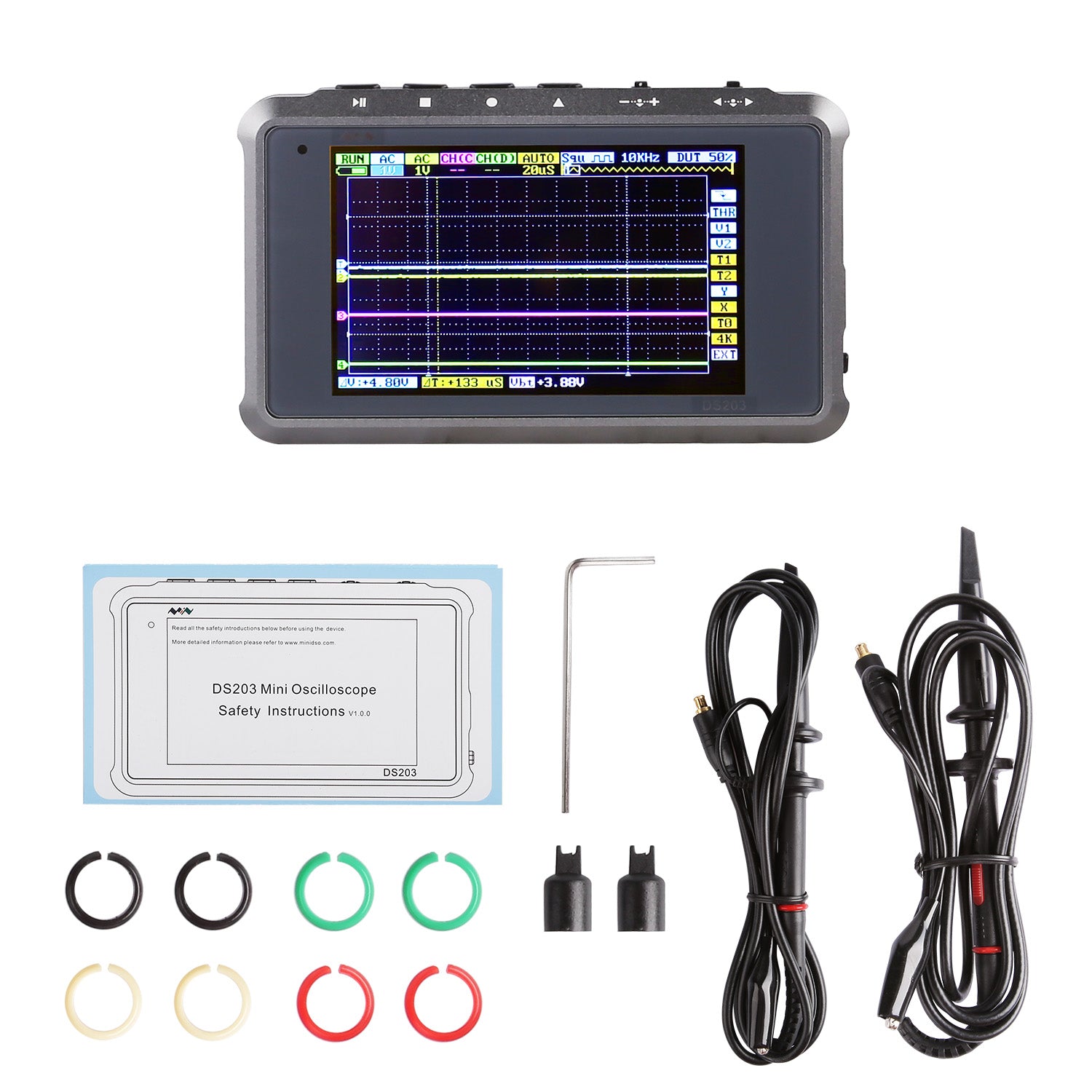

WHAT'S IN THE PACKAGE
  • SainSmart DSO203/Quad with battery ×1
  • X10 Probe Analyzer ×1
  • X1 Probe Analyzer ×1
  • Safety Instructions ×1
  • Hex Key ×1

EAN: 6955170801268 101-10-101

EAN:6955170801275 101-10-102
