2/4/8-Channel 5V Relay Module

brand: SainSmart.com SKU: 101-70-100
$5.99 $12.99 Save $7.00
Channel
DESCRIPTION

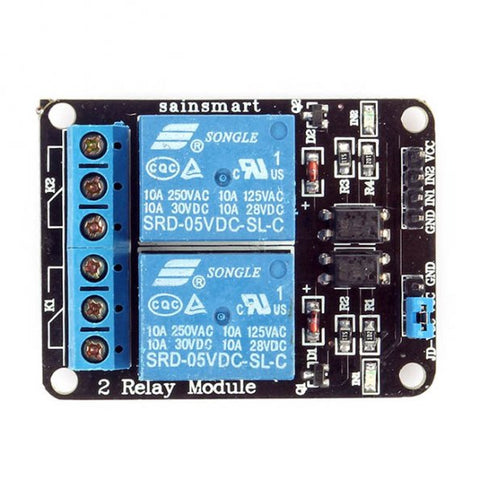

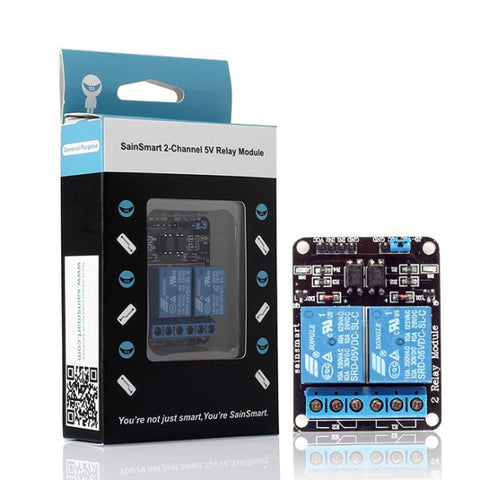

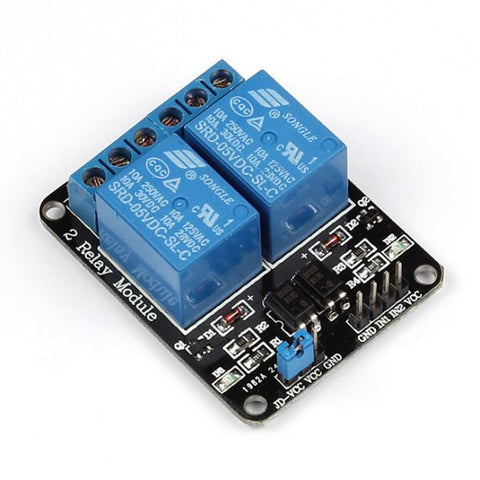

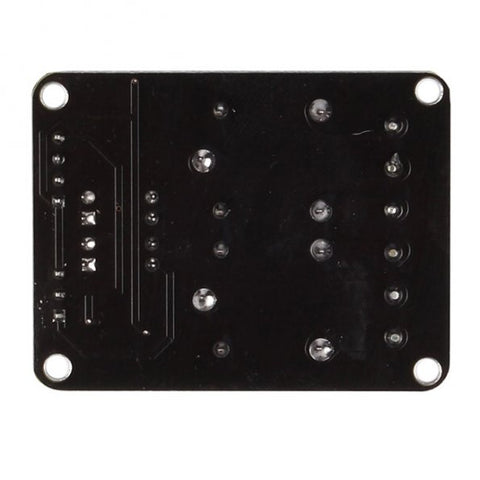

2 Channel 5V Relay Module

  •  5V 2-Channel Relay interface board and each one needs 15-20mA Driver Current
  •  Equipped with high-current relay, AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Indication LED’s for Relay output status
  • It activates on low level

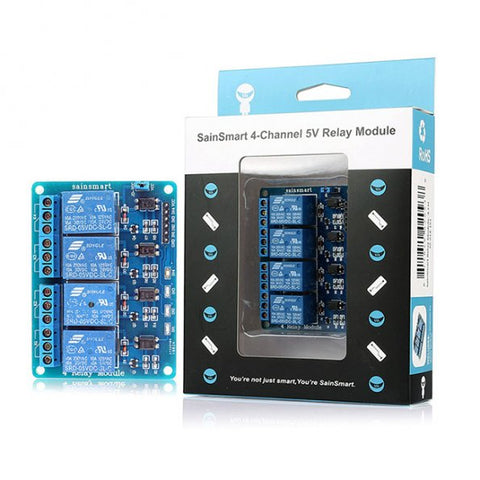

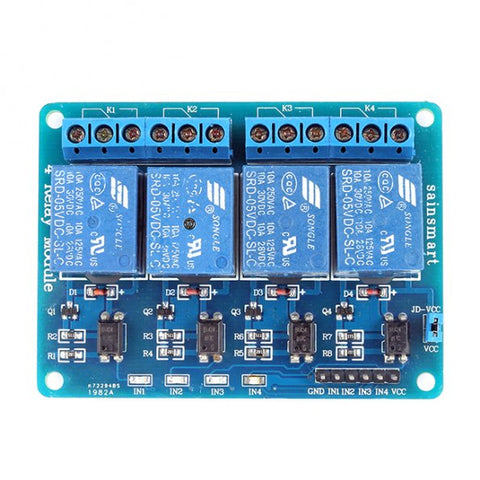

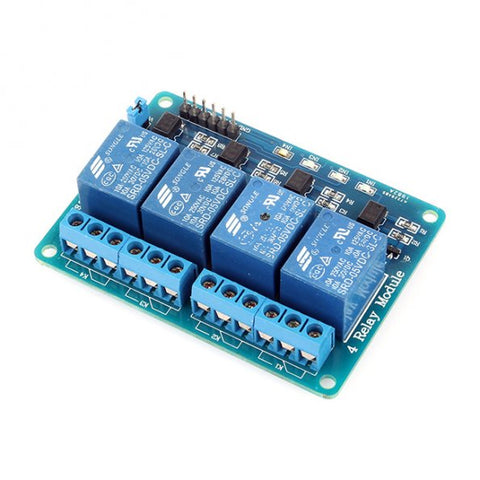

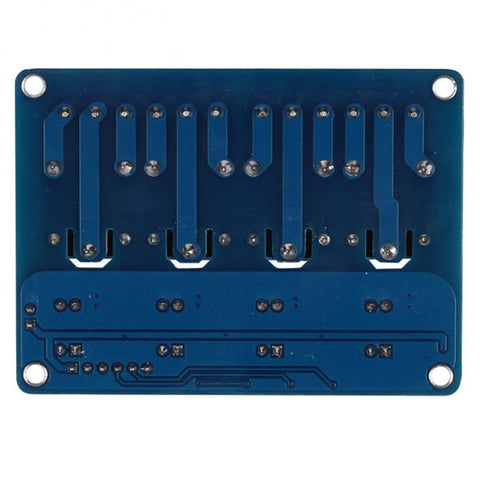

4 Channel 5V Relay Module

  • 5V 4-Channel Relay interface board and each one needs 15-20mA Driver Current
  • Equipped Equipped with high-current relay, AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low)
  • Opto-isolated inputs
  • Indication LED’s for Relay output status

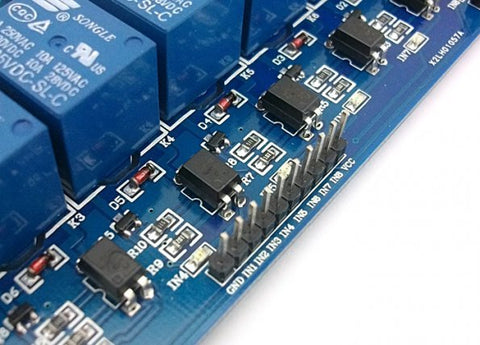

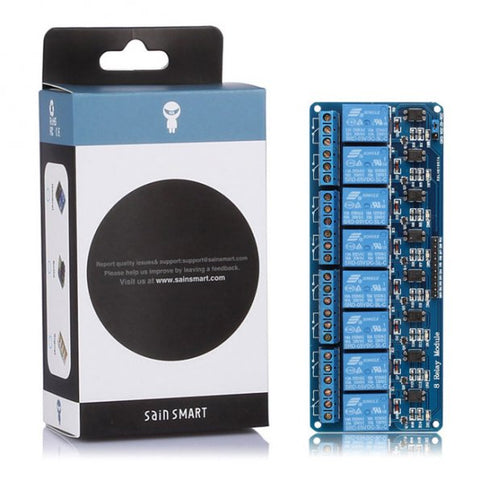

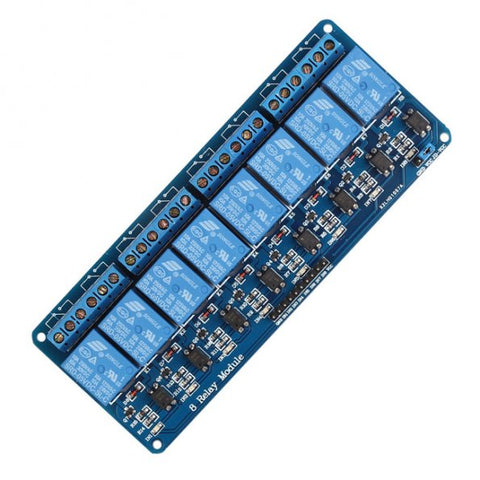

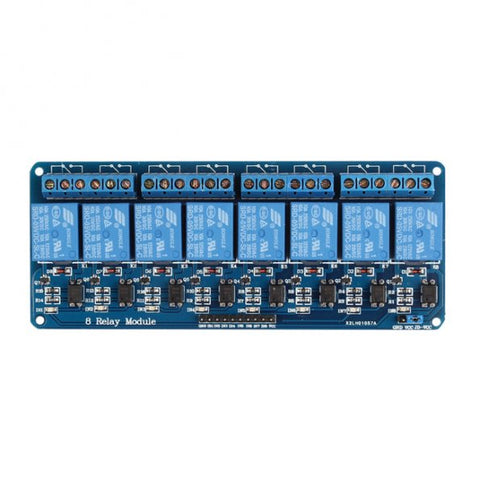

8 Channel 5V Relay Module

A Relay is an electrically operated switch. Many relays use an electromagnet to mechanically operate the switch and provide electrical isolation between two circuits.



  • This 8 channel 5V relay has both optical and magnetic isolation,  providing a lot of protection to the inputs from electrical faults on the outputs.
  • Works well with both 3.3V and 5V logic (Raspberry Pi, Arduino, Teensy..), requiring little current drive.
  • Breadboard friendly, using Female/male dupont makes it extremely convenient for prototyping.
  • LED indicates its working status. Red refers to errors.
  • 3 terminals per SPDT relay.

All of these features make SainSmart relay a great component for automation projects.
