4040-PRO MAX CNC Router Machine, 710W Trimmer & Linear Rail Driven, Enhanced XZ Axis
4040-PRO MAX CNC Router Machine, 710W Trimmer & Linear Rail Driven, Enhanced XZ Axis
SKU: 101-60-4040PM-AJ
18
Regular price
$949.00
-2%
Regular price
$969.00
Sale price
$949.00
Unit price
per
US FREE SHIPPING
Save $20.00
Shipping & Tax calculated at checkout.
- 101-60-4040PM-AJ
- 101-60-VTR-4040PM-AJ
- 101-60-4040PM-AJ
- 101-60-VTR-4040PM-AJ
- 101-60-4040PM-E
- 101-60-VTR-4040PM-E
- 101-60-4040PM-B
- 101-60-VTR-4040PM-B
- 101-60-4040PM-AU
- 101-60-VTR-4040PM-AU
Couldn't load pickup availability
The The Genmitsu 4040-PRO MAX represents the next evolution in desktop CNC machining. Responding directly to user feedback, we have reinforced the chassis, upgraded the motion system, and integrated a powerful 710W router with digital display to handle both intricate wood carving and demanding metal milling tasks with ease.

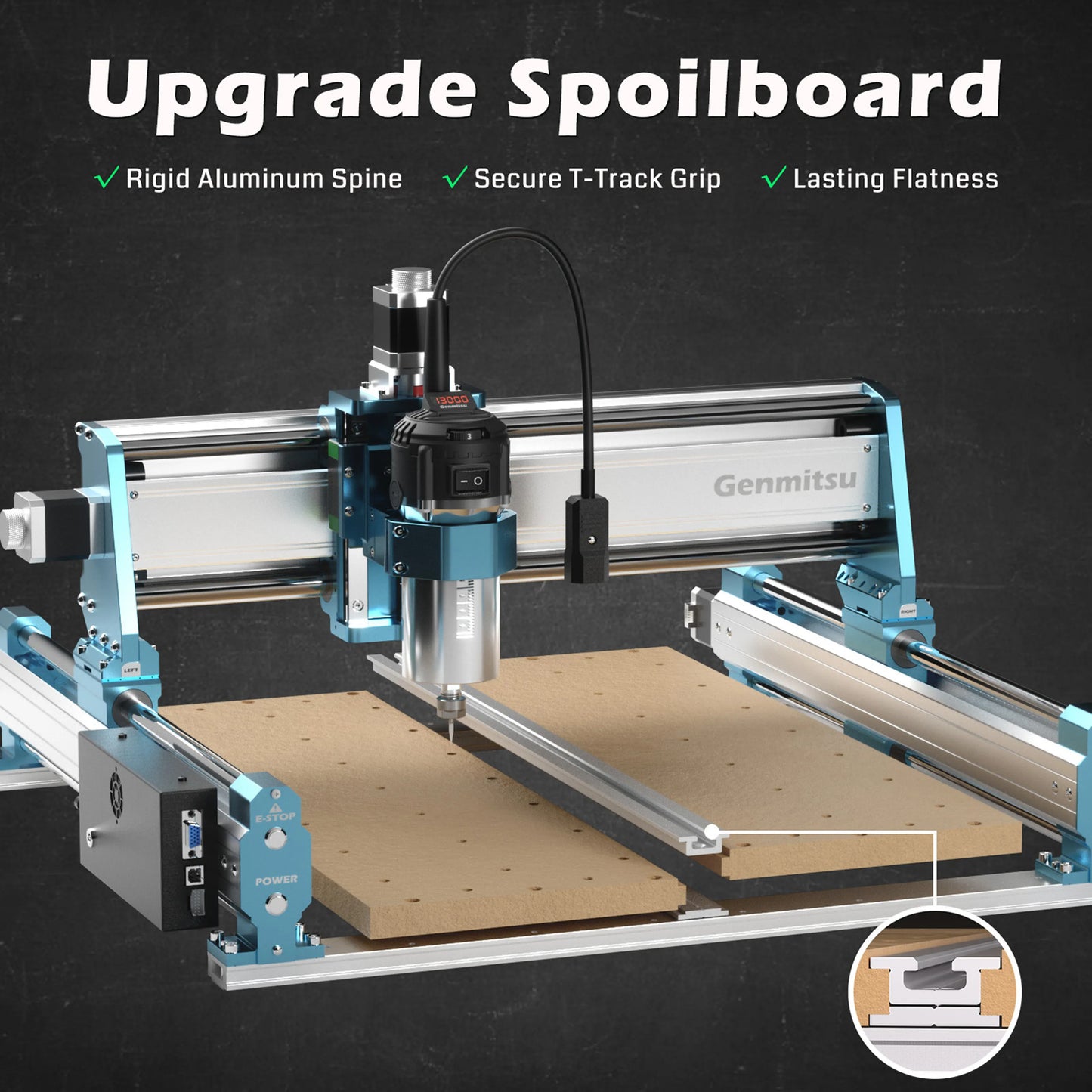

REINFORCED PLATFORM STABILITY
Addressing common flatness issues, the upgraded spoilboard features a central aluminum support bar integrated with T-tracks. This hybrid design reinforces the MDF to prevent sagging under load, ensuring a level surface for precision metal milling and detailed wood carving.

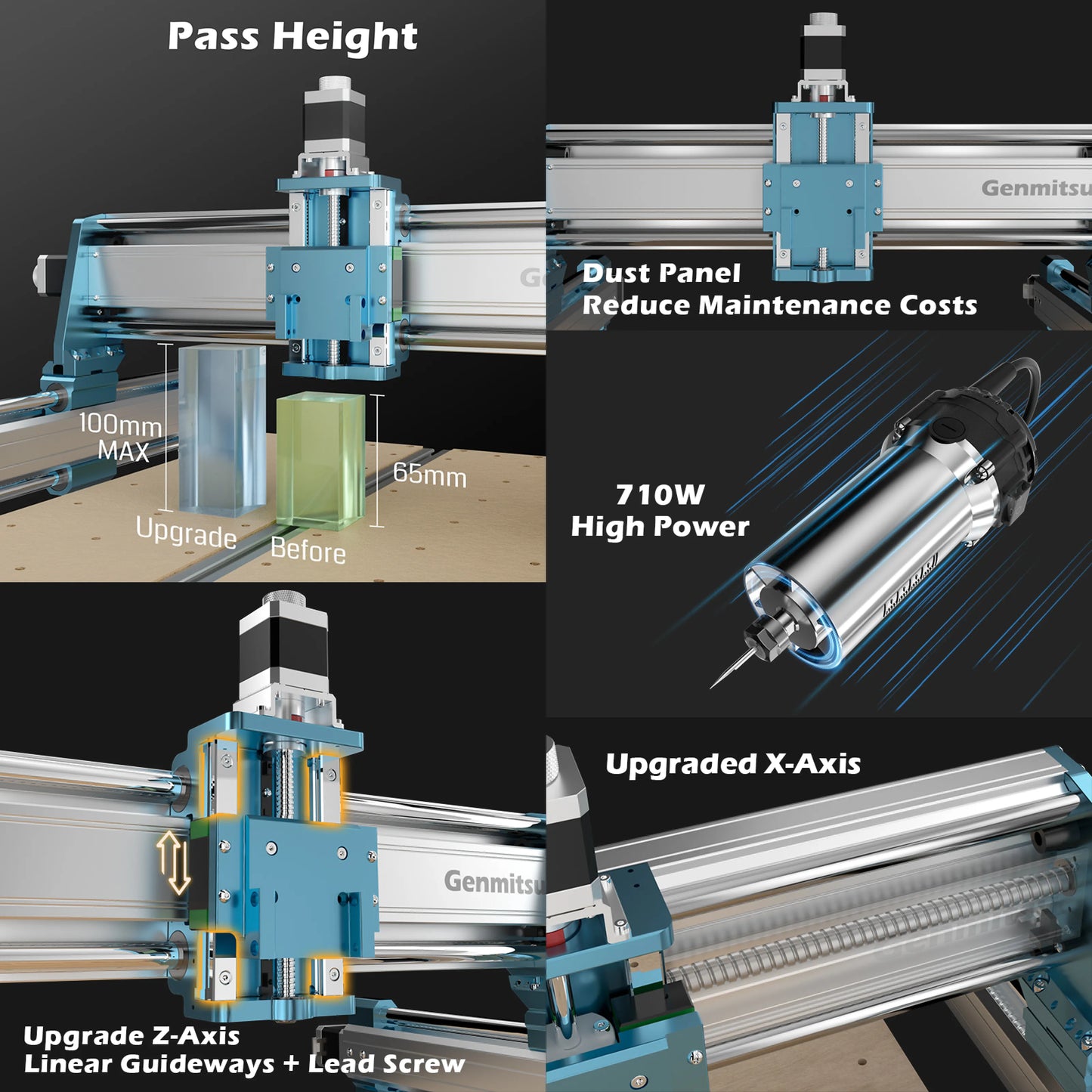

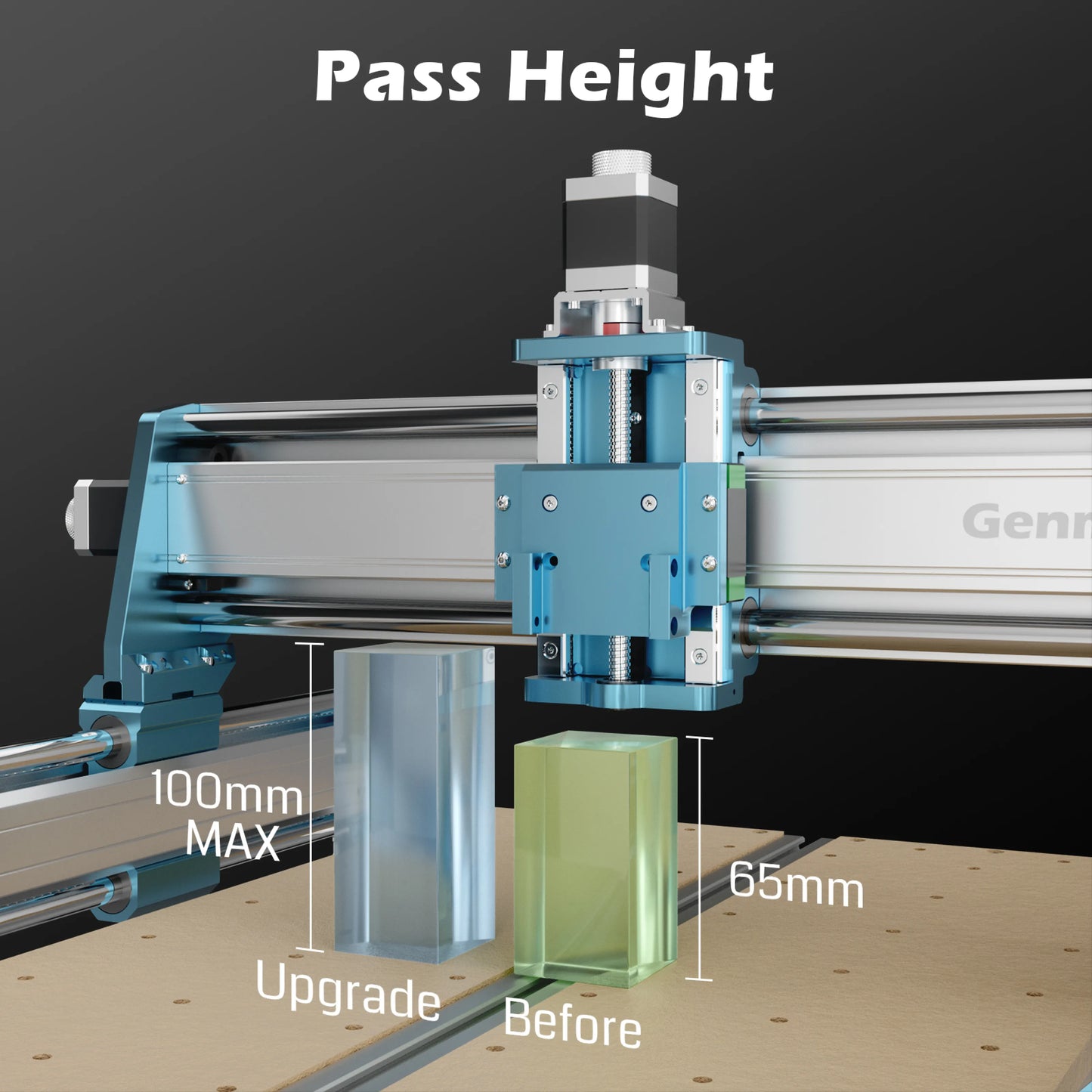

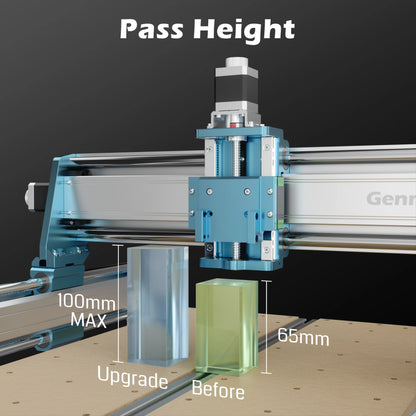

Increased Z-axis Pass Height
With a 400x400x78mm (15.7" x 15.7" x 3.1") active area and a massive 100mm Z-pass height (40% higher than the PRO), this machine easily accommodates thicker stock, tall relief carvings, and add-ons like rotary axes without sacrificing vertical clearance.

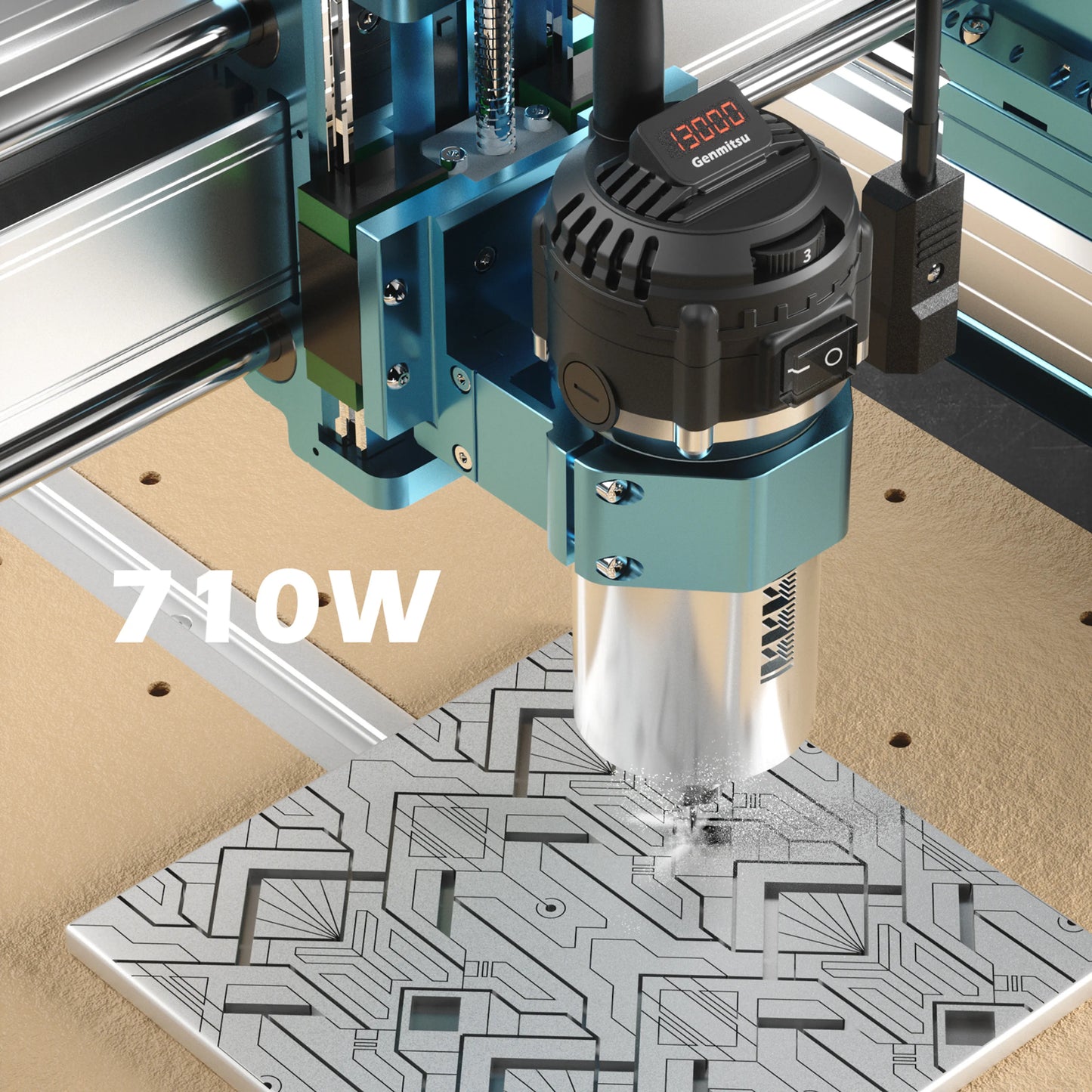

High-Performance 710W Spindle
This CNC router features a powerful 710W spindle, meticulously selected for its ability to cut through tough materials like aluminum effortlessly. With a perfect 5-star rating on Amazon, this spindle is highly recognized by customers for its precision and reliability—it's not just any spindle, it's a choice made with care and customer satisfaction in mind.

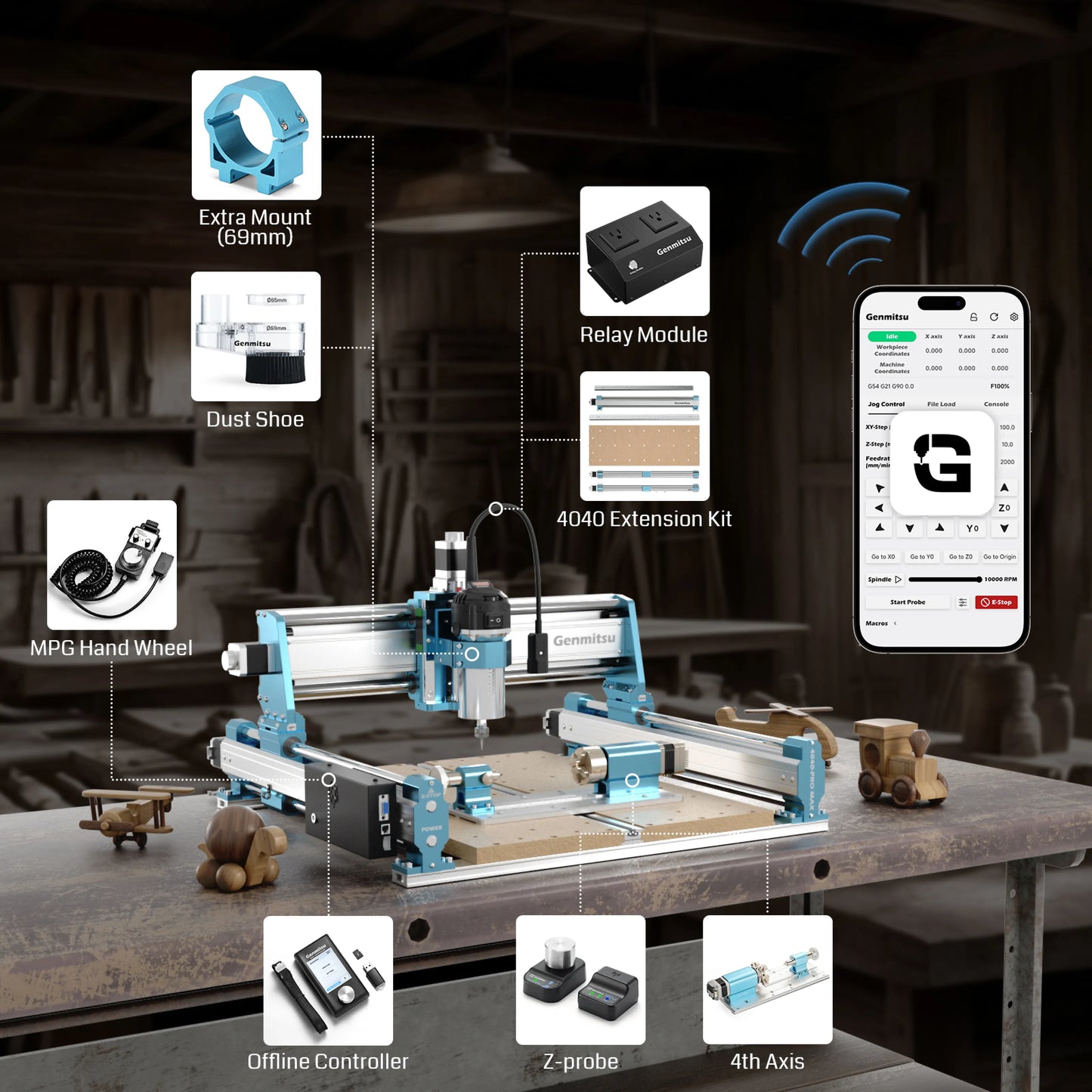

Versatile Compatibility
Compatible with almost 4040-PRO accessories, including routers, four-axis modules, WiFi modules, relays, clamps, and extension parts, the 4040-PRO MAX offers versatile options for customization and expansion. (Only compaitble with the Y-axis extenstion kit.)
User-Friendly Design
Featuring a comprehensive control system with GRBL firmware-compatible software (such as Candle, LaserGRBL, and LightBurn), an intuitive offline controller (sold separately), and safety features like an emergency stop switch and homing button, this CNC router is designed for both novice and experienced users.
Specifications
| Product |  4040-PRO MAX |
 Other 4040 |
| Assembly Time | <30mins | / |
| Frame Material | All Aluminum | Aluminum+Acrylic |
| Max Speed(mm/m) | 2000 | 2000 |
| Max RPM | 6500-30000 RPM | 10000 |
| Running Accuracy | ±0.1mm | ±0.1mm |
| Drive System | Y-axis: Lead Screw, X-axis: Linear Optical Axis Rail, Z-axis: Linear Guide Rail | Belt (X,Y)+Lead screw (Z) |
| Laser Support | ✔️ | ✔️ |
| Semi-Assembled | ✔️ | ❌ |
| Stepper motor | NEMA17 42 | NEMA17 |

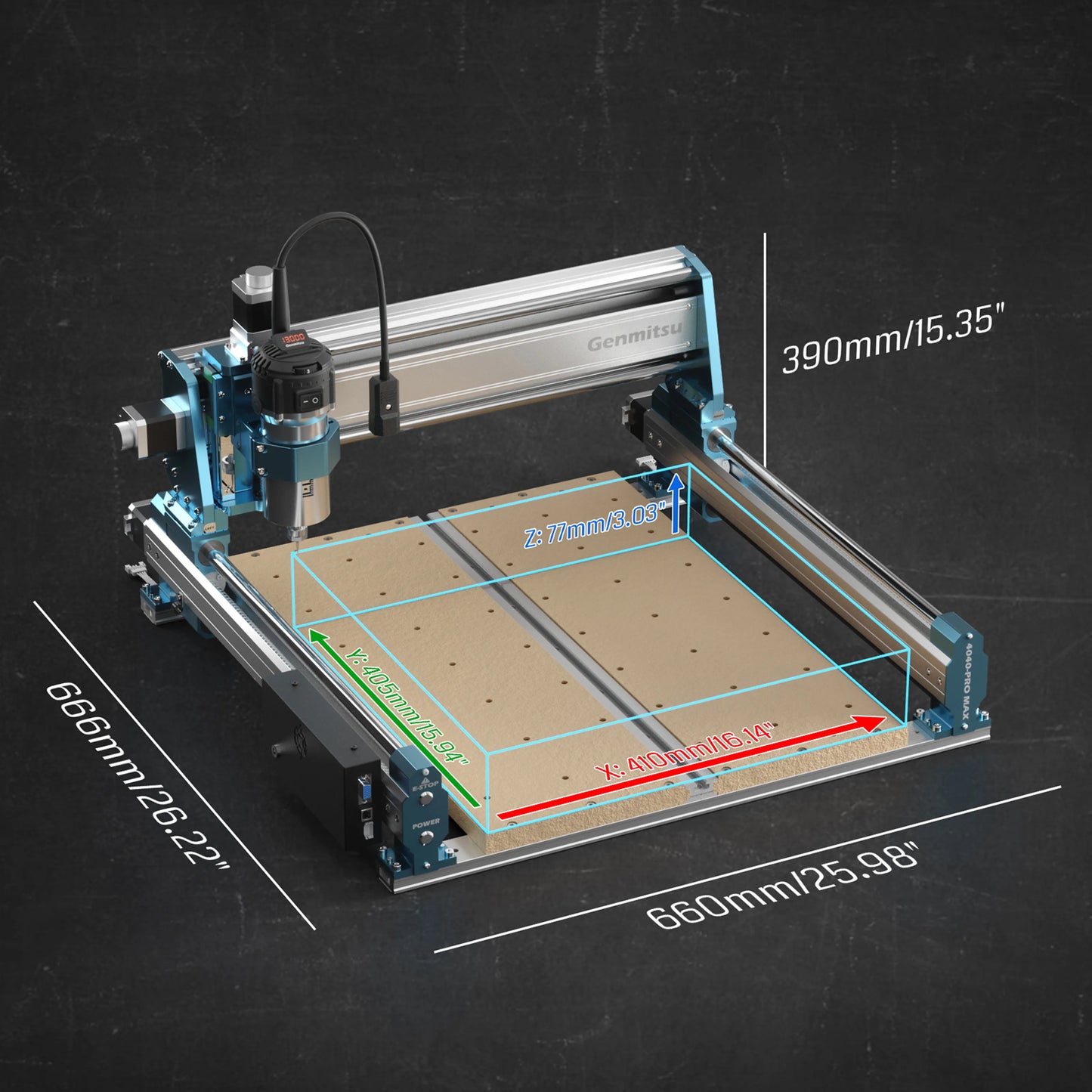

| Working Area | 400 x 400 x 78mm 15.75 x 15.75 x 3.1 in |
400 x 400 x 60mm 15.7 x 15.7 x 2.3 in |
| Machine Size | 660 x 666 x 390mm 26.98 x 26.22 x 15.35in |
/ |
| Weight | 24.6 kg 54.2 lb |
/ |
| Spindle Power | 710W Digital Trimmer Router | 775 60W |
| Spindle Mount | 65mm | 42mm |
| Power Supply | 24V/4A | 12V/5A |
| Limit switches | ✔️ | ✔️ |
| Emergency-Stop | ✔️ | ✔️ |
| Z-Probe | ✔️(Led) | ✔️ |
| Baffles | 4040 Dust Baffles | / |
| Offline Controller | CTL4040 | ❌ |
| Hand-screwed Wheel Support | ✔️ | / |
| MPG Interface | ✔️ | / |
| Platform | T-track Reinforced MDF Platform | MDF Platform |
| 4th Axis Support | ✔️ | / |
| Driver Chip | TB67S109 | / |
| Control | GRBL | GRBL |
| MCU | 32bits | 32bits |
What's in the box
Machine Kit:
- 1x 4040-PRO MAX CNC Router Machine (Uprgaded Design)
- 1x 710W Digital Display Compact Router Kit (φ65mm)
- 1x 52mm Retaining Ring
- 2x MDF Boards for Platform
- 1x Power Supply
- 1x USB Cable
- 1x USB Drive
- 1x Carving Router Bits Set
- 1x Upgraded LED Z-Probe Kit
- 4x Work Clamps
- 2x Collets (ER11 4mm, ER11 3.175mm)
- 2x Spare Limit Switches
- Screw and Tool Kit
XZ-Axis Module for 4040-PRO:
- 1x XZ-Axis Module
- 1x X-axis Support Block (Left & Right)
- 1x Spindle Motor Mount (65mm)
- 1x Sheet Metal Cable Holder
- 1x 52mm Retaining Ring
- 1x D6-L20 Dowel Pin
- 1x X-axis Limit Switch (Spare)
- Screw and Tool Kit
Resource
Find more help articles at SainSmart Resource Center 4040-PRO MAX Resources
Find more uprgade parts at Genmitsu Ecosystem 4040-PRO MAX Upgraded Accessories
