Brand: Genmitsu SKU: 101-63-XYS4030V2-6060

6060 & 1313 XY-Axis Extension Kit, for PROVerXL4030 V2

SKU: 101-63-XYS4030V2-6060 9 reviews Variants ID: 40919974510671
$379.00

Extra 15% OFF

Free Shipping
Size
6060 XY-AXIS
Ship to
USA

Level up your CNC
This kit will extend all of your XY-Axis and hybrid table, and easily convert your PROVerXL 4030 V2 to 6060 and 1313 with pre-installed axis carriages.

The kit comes with Upgraded Ball Screws and Aluminum extrusions, eliminate wobble and increase frame rigidity. A full drag chain and cable harness are also included. You don’t need to worry about making your own wiring extension, just replace it.

We will take you through the assembly process every step of the way. You can find the User Manual located in our resource center





Enhance your workspace with the PROVerXL 4030 V2, designed for durability, precision, and ease of installation. Upgrade your CNC experience today!

Find our Extension Kit Installation Tutorial on PROVerXL 4030 V2 Resource Page



Specifications:

Extension Kit

1313

6060

Work Area

Dimensions: 1318mm (L) x 1311mm (W) x 118mm (H)

In Inches: Approximately 51.89 in (L) x 51.61 in (W) x 4.65 in (H)

Dimensions: 616mm (L) x 603mm (W) x 118mm (H)

In Inches: Approximately 24.25 in (L) x 23.74 in (W) x 4.65 in (H)

Overall Dimensions

Dimensions: 1642mm (L) x 1604mm (W) x 488mm (H)

In Inches: Approximately 64.65 in (L) x 63.15 in (W) x 19.21 in (H)

Dimensions: 942mm (L) x 904mm (W) x 488mm (H)

In Inches: Approximately 37.09 in (L) x 35.59 in (W) x 19.21 in (H)

Max Speed 5000mm/min 5000mm/min

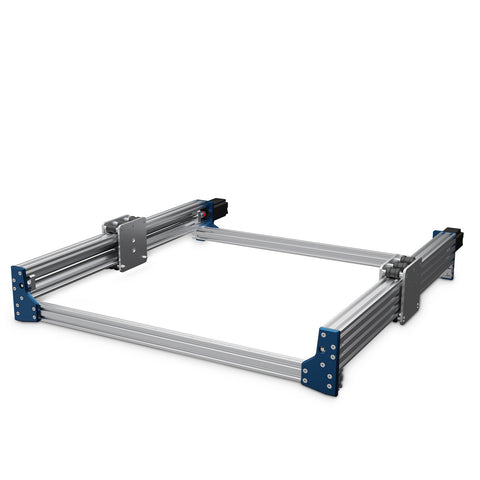

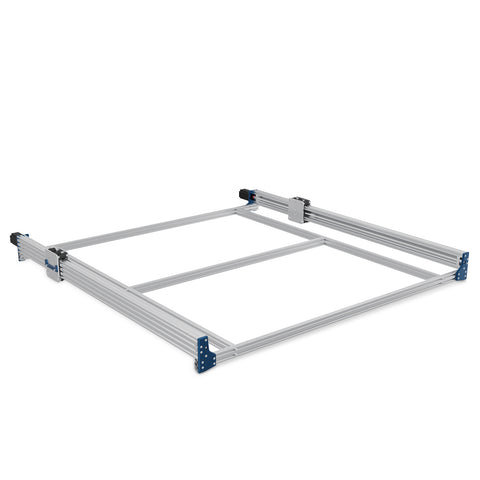

Structural Components
  • Horizontal Reinforced Aluminum Extrusion
  • Vertically Reinforced Aluminum Extrusion - 2 pieces
  • Aluminum Extrusion for Rear Plate
  • Aluminum Extrusion for Front Plate
  • Y1 Axis Aluminum Extrusion
  • Y2-Axis Aluminum Extrusion
  • X-Axis Aluminum Extrusion

  • Aluminum Extrusion for Front Plate
  • Aluminum Extrusion for Rear Plate
  • Y1-Axis Aluminum Extrusion
  • Y2-Axis Aluminum Extrusion
  • X-Axis Aluminum Extrusion

Hybrid Spoilboard

(Purchased separately)

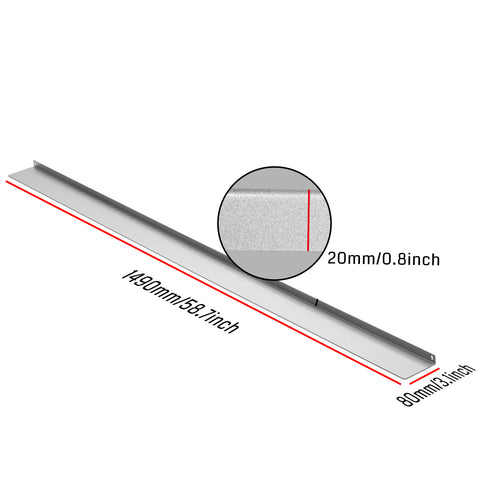

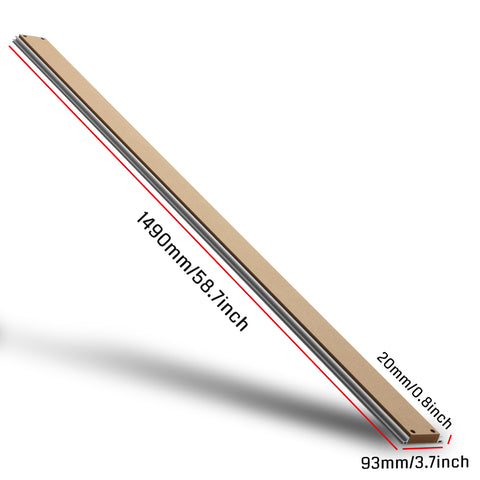

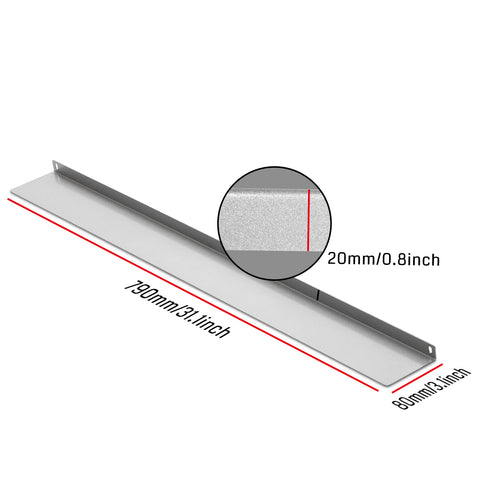

  • 15pcs Aluminum & MDF Hybrid Spoilboard and 2 dust baffles
  • More support than regular boards
  • 7pcs Aluminum & MDF Hybrid Spoilboard and 2 dust baffles
  • More support than regular boards

Convenient Cable Management

  • X-Axis Cable Carriers (with cable)
  • Y-Axis Cable Carriers (with cable)
  • X-Axis Cable Drag Chains (with cable)
  • Y-Axis Cable Drag Chains (with cable)

User Manual

1313 Extension Kit Installation Guide 6060 Extension Kit Installation Guide
