Introducing

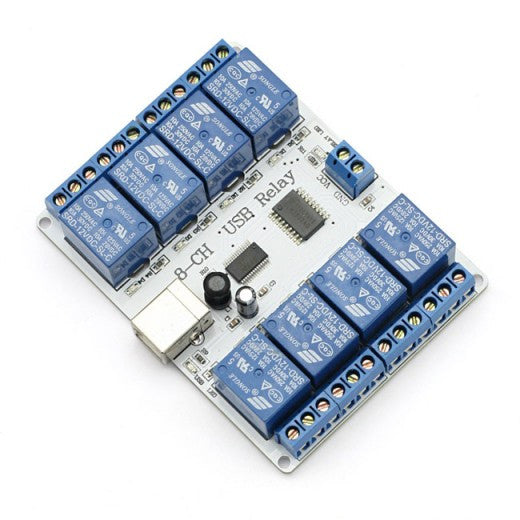

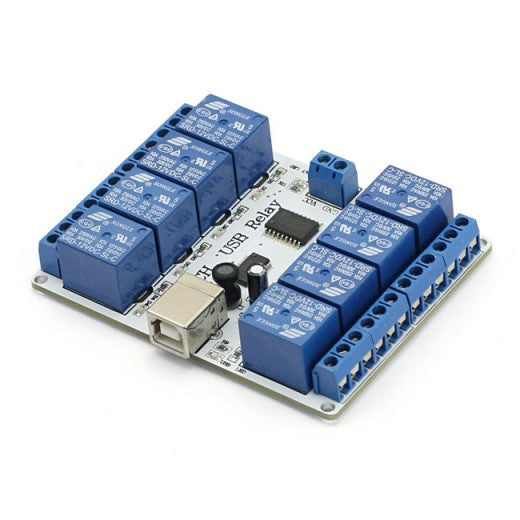

The SRD-12VDC-SL-C relay module is a versatile and robust solution designed for various automation and control applications. Equipped with 8 SPDT relays, this module supports a wide range of switching capacities including 10A at 250VAC, 125VAC, 30VDC, and 28VDC. It operates on a 12 VDC power supply with a nominal current consumption of 300 mA, making it efficient for use in numerous electronic projects.
Key Features:
- 8 SPDT Relays: Each relay is rated at 10A, suitable for controlling high-power devices across multiple voltage ranges.
- Relay Specifications: Model SRD-12VDC-SL-C, with a reliable voltage input range of 11V to 14.4V including ripple.
- Power and Indicator LEDs: Includes LEDs for each relay output, a power LED, and a USB LED for easy status monitoring.
- FT245RL Chip Integration: Offers seamless USB communication; datasheet available for detailed reference.
- Compact Design: Measuring 93mm x 70mm x 16mm, the module's compact size makes it ideal for integration into space-constrained setups.
- PCB Quality: Constructed with FR4, 1.5mm thickness, two-layer design with metallized holes, HAL finish, white stamp, and a solder mask. Extra PCB openings enhance voltage isolation, and high-current tracks are doubled for increased reliability.
- Software Compatibility: Supports Windows-based control software examples including VB6, BCB6, VB.NET 2010 Express, and C++.NET 2010 Express, offering a flexible development environment.
Electrical Characteristics:
- Supply Characteristics: The module operates at 12 VDC, with a power dissipation of 3.6W when all relays are activated. It does not include protection against reverse polarity, so proper wiring is essential.
- Relay Outputs: Equipped with 12V-T73-USB relays, supporting both Normally Open (NO) and Normally Closed (NC) contacts.
Applications:
This relay module is ideal for home automation, industrial control, DIY electronics, and other automation projects that require reliable relay switching with USB control capabilities. Its robust construction and wide-ranging compatibility make it a dependable choice for various switching needs.
Specifications
- 8 SPDT relays SRD-12VDC-SL-C
- Relay specification: 10A 250VAC/10A 125VAC/10A 30VDC /10A 28VDC
- Power Supply - 12 VDC
- Current consumption - 300 mA
- FT245RL. Datasheet (http://www.ftdichip.com/)
- Led for each relay output
- Power Led
- USb led
- Size - 93mm / 70mm / 16mm
- Windows software examples: VB6, BCB6, VB.NET 2010 Express, C++.NET 2010 Express
- PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask

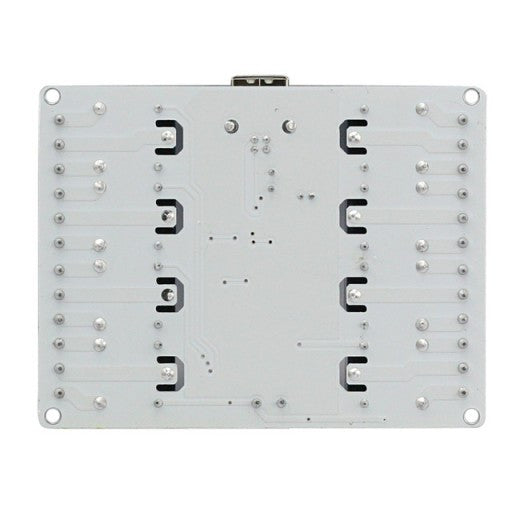

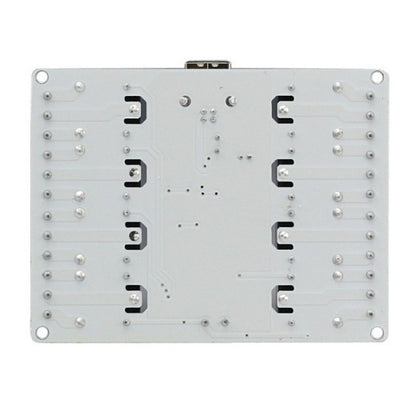

- Extra PCB openings for better voltage isolation
- Doubled high current tracks
Relay output:
| Type | SainSmart Relays | SainSmart Relays | SRD-12VDC-SL-C |
| Recommend voltage | SainSmart Relays | VDC | 12 |
| Voltage limits | Including ripple | VDC | 11...14.4 |
| Nominal input current | Voltage 12VDC | mA | 300 |
| Power dissipated | When all relays are ON | W | 3.6 |
| Protection | Against reverse polarity | SainSmart Relays | None |
Relay output:
| Type | SainSmart Relays | SainSmart Relays | 12V-T73-USB |
| Relay type | SainSmart Relays | SainSmart Relays | T73 |
| Relay outputs count | SainSmart Relays | SainSmart Relays | 8 |
| Contact type | SainSmart Relays | SainSmart Relays | NO, NC |
| Current consumption | 12VDC | mA | 30 |
| Switching parameters | 220VAC | A | 10 |
| 125 VAC / 28 VDC | A | 10 | |
| 250 VAC | A | 10 |
FAQs
Notice:
- When the board is connected to the PC and the PC is restarted, the relays will be toggled several times. This is because of the structure of the FTDI chip.
- The device must be supplied with 12 VDC or order to work.
- There is no protection against reversed voltage! If the VCC(+12V) and GND are reversed the board will be damaged!
- The board can not work without computer
