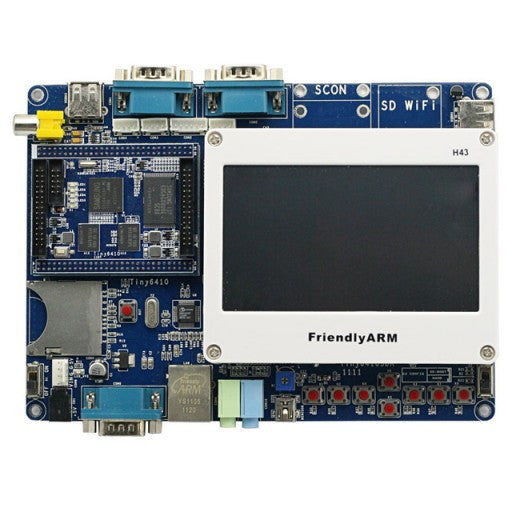

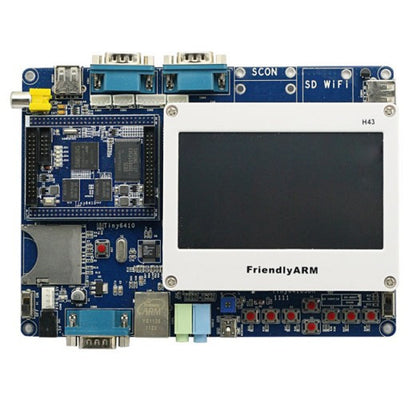

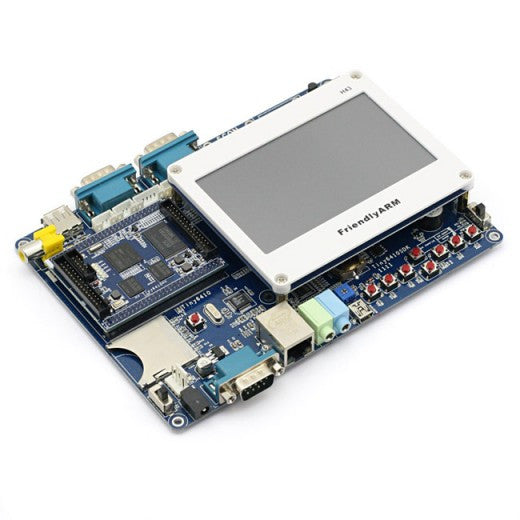

ARM11 Tiny6410 Development Board+4.3'' LCD Touch Screen+256M RAM, 2G NAND Flash

brand: SainSmart SKU: 20-023-100
$149.84 FREE SHIPPING
Oops, 0 In Stock

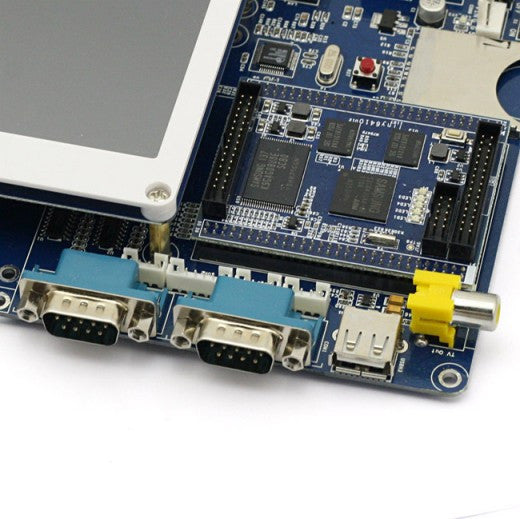

Specification: Stamp Module:
    Dimension: 64 x 50 mm
    CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
    RAM: 128 MB / 256 MB DDR RAM, 32 bit Bus
    Flash: 256 MB / 1GB NAND Flash
    Serial, SPI, USB, LCD, CMOS Camera Interface
    Analog Input and Output
    User Outputs: 4x LEDs
    Expansion headers (2.0 mm)
    Debug: 10 pin JTAG (2.0 mm)
                   OS Support
                   Windows CE 6
                   Linux 2.6
                   Android
                   Ubuntu



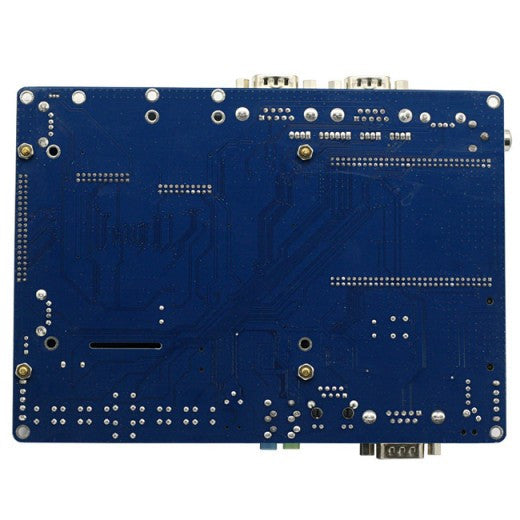

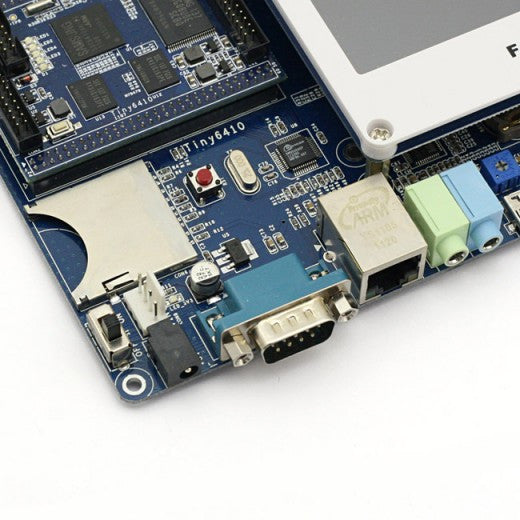

Specification: SDK-Board
    Dimension: 180 x 130 mm
    EEPROM: 1024 Byte (I2C)
    Ext. Memory: SD-Card socket
    Serial Ports: 4x DB9 (RS232)
    IR: Infrared Receiver
    USB: 1x USB-A Host 1.1, 1x miniUSB Slave 2.0
    Audio Output: 3.5 mm stereo jack
    Audio Input: 3.5mm jack
    Ethernet: RJ-45 10/100M (DM9000)
    RTC: Real Time Clock with battery
    Beeper: PWM buzzer
    TV Output: CVBS
    LCD: 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7") and VGA Board
    Touch Panel: 4 pin (resistive)
    User Inputs: 8x buttons and 1x A/D pot
    Expansion headers (2.0 mm)
    Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)

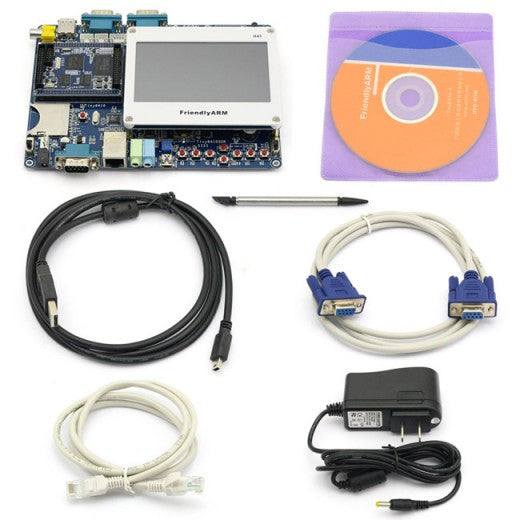

Package list:
1 x Tiny6410 development board(2G NandFlash + 256MB RAM)
1 x 4.3" touch screen
1 x Power Adapter(5V)
1 x DB9 direct link serial cable
1 x USB Cable,Net Cable
1 x Manual, CD

Documents

Download Link For Schematic

Download Link For LCD Manual
