[Discontinued] CNC 4-Axis Kit 4 with Nema23 Stepper Motor & TB6600 Motor Driver Mach3 for Miling Engraving Machine
Brand: SainSmart SKU: 101-60-503

[Discontinued] CNC 4-Axis Kit 4 with Nema23 Stepper Motor & TB6600 Motor Driver Mach3 for Miling Engraving Machine

SKU: 101-60-503 Variants ID: 45102402260
$199.00 $269.99
Save $70.99

DESCRIPTION

This is SainSmart new CNC complete kit for engraving DIY. It comes with necessary and basic parts to make your own engraving machine. It is simple and easy to assemble the parts.



SPECIFICATION

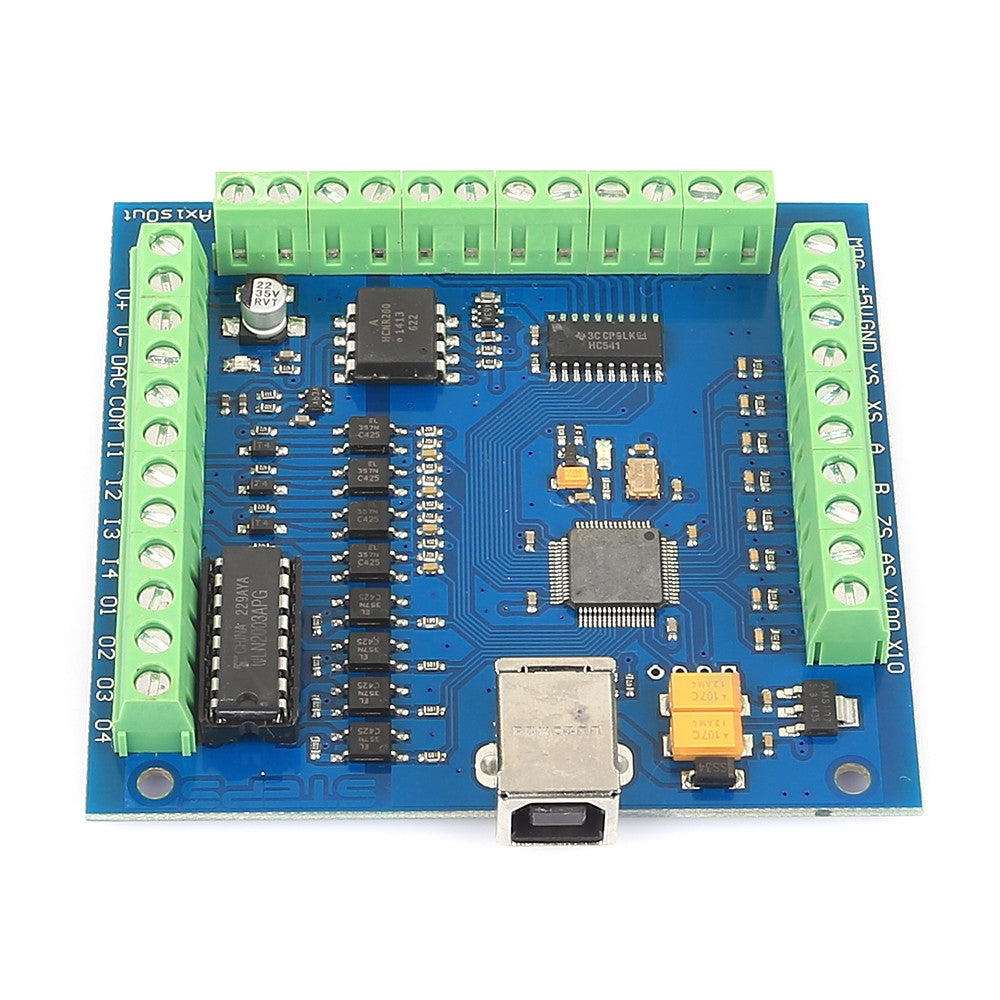

  • Mach3 4 Axis USB CNC Controller Card 100KHz
  1.  Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
  2.  Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
  3.  Support automatic probe tool
  4.  Support Emergency input
  5.  Support for limit switch
  6.  Support for connecting electronic handwheel
  7.  Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
  8.  Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
  9.  4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
  10.  4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;
  11.  1 status LED, indicate connection status on the board.

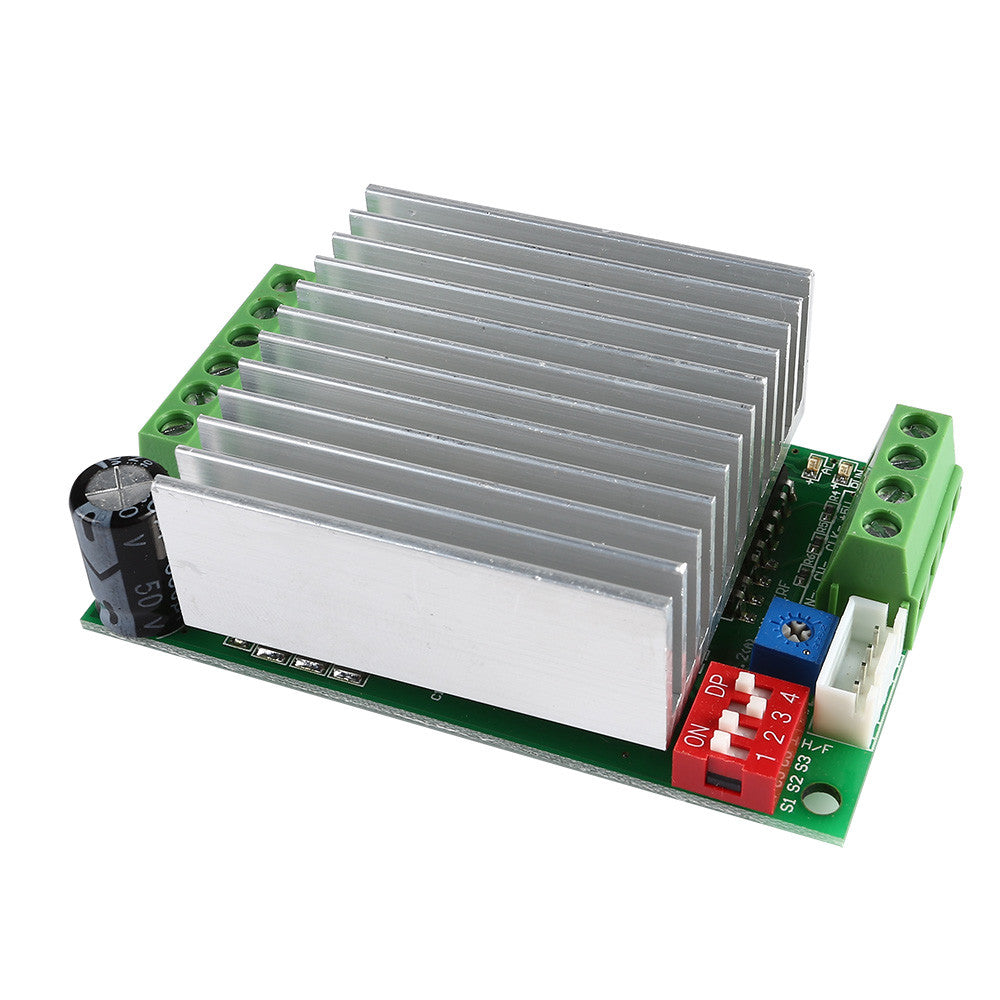

  • TB6600 Stepper Motor Driver

1.DC power input type:12V~40V;

2.Output current:0~4.5A, stepless adjustable;

3.Mircostep:1,2,4,8,16;

4.Automatic half current function: half or full current can be Selected through the switch;

5.Protect form : Overheated protection, over-current protection;

I/O Ports:



  1. 24V+:DC power positive pole
  2. GND:DC power cathode
  3. A+  A-:Stepping motor one winding
  4. B+  B-:Stepping motor other winding
  5. CLK-:Stepping pulse input+5V (Rising edge effective , rising edge duration >10μS)
  6. CW-:Stepping motor direction input, voltage level touched off, high level foreward , low level reverse
  7. ENA-: motor free
  8. +5V: Signal common terminal

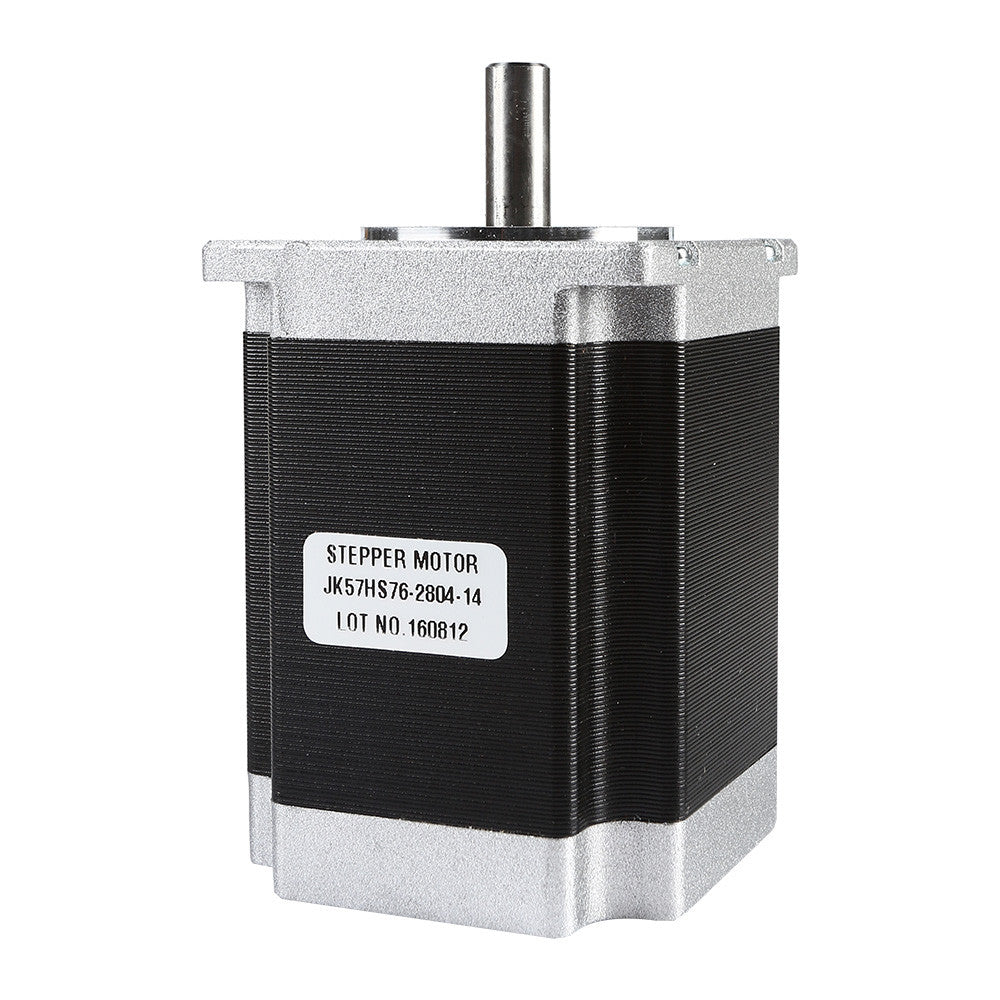

  • Stepper Motor

Model

57HS76

Number of phases

2-phase

Number of lines

4-wire

Phase voltage

3.08V

Phase current

3A

Resistence

1.1Ω

Inductance

3.6mH

Torque

1.89N.M(270 Oz-in)

Shaft Diameter

8mm

Axial length

21mm

Side length

57mm

High

76mm

Weight

1100g

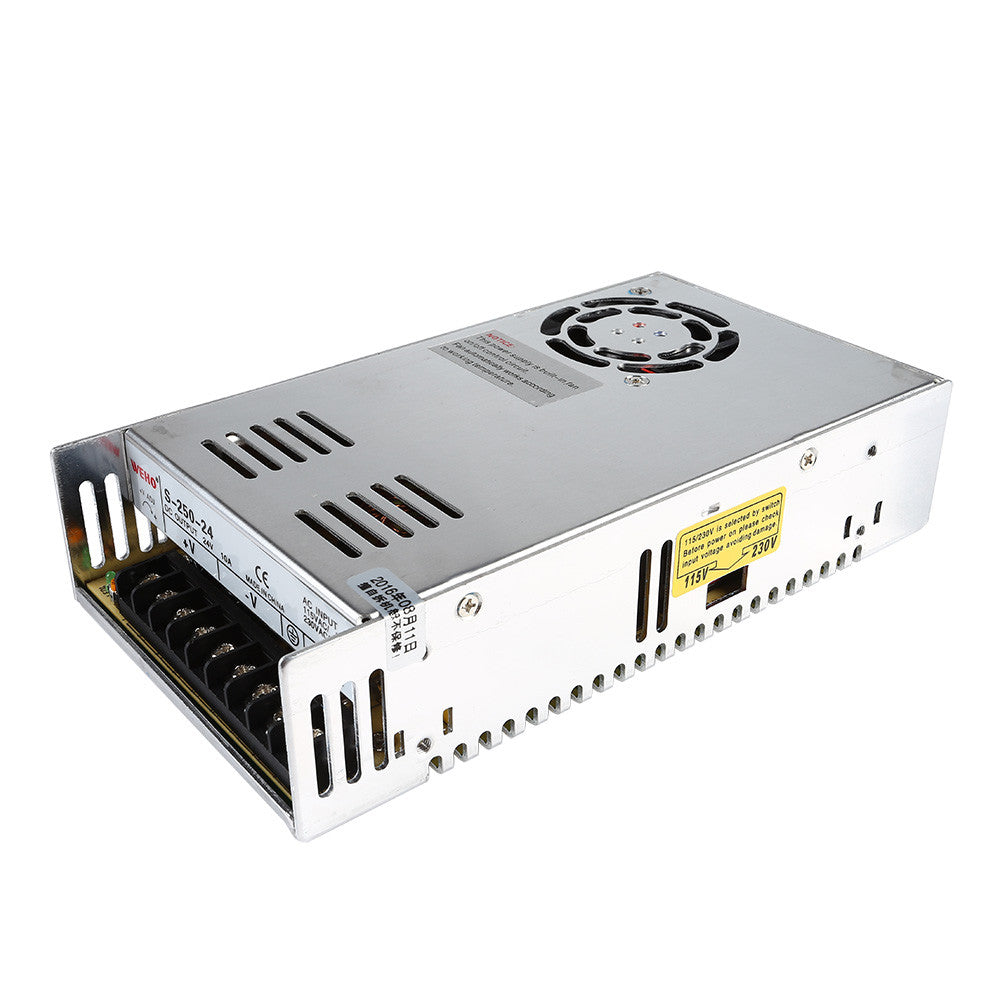

  • Switching power supply
  1. the range of AC input voltage is changed by the switch
  2. high-efficiency, high reliability
  3. 100% full load burn-in test
  4. Protections: Short circuit / overload / over voltage / over temperature
  5. built-in cooling DC fan control
  6. Working frequency is 25 kHz
  7. Input Voltage:220V/115V
  8. Output Voltage:24V
  9. Output Current:10A
  10. Output Power:250W

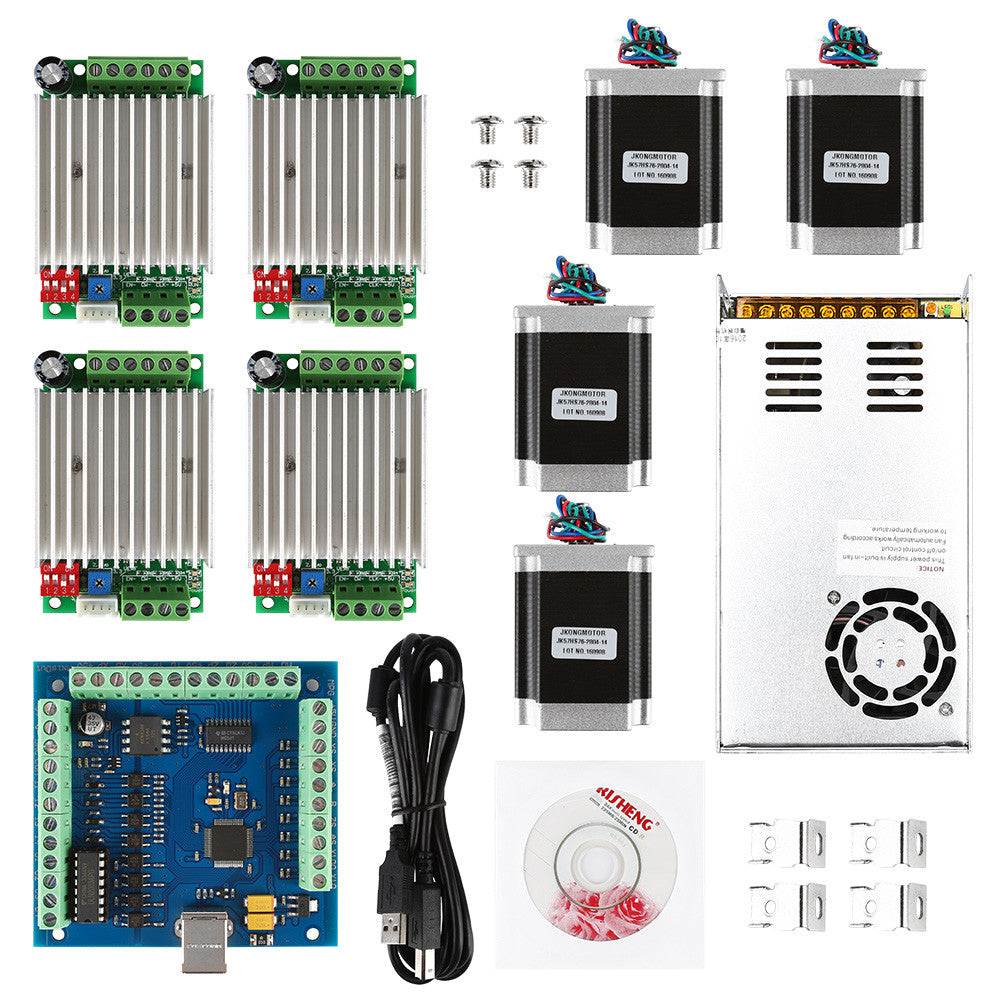

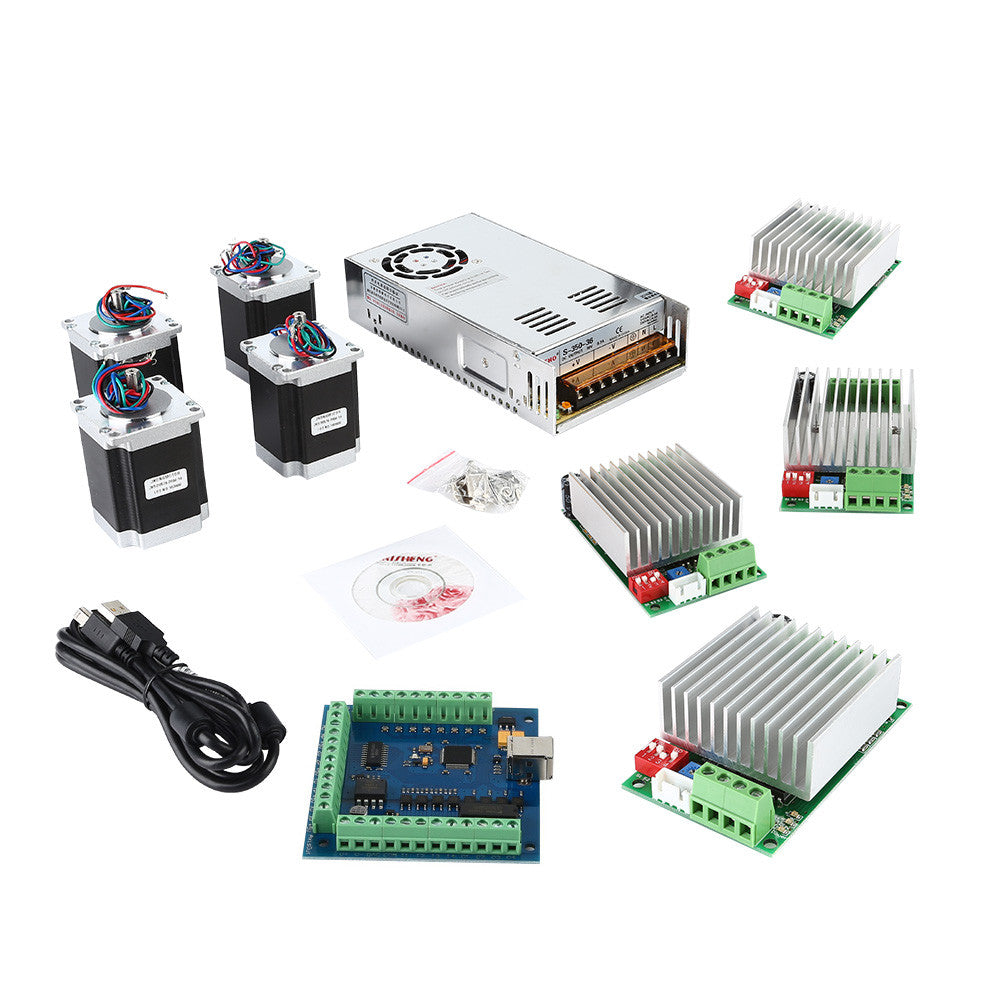

WHAT'S IN THE PACKAGE
  • 1 x mach3 4 Axis USB CNC Controller card 100KHz
  • 4 x single Axis TB6600 stepper motor driver
  • 4 x nema23 76mm length stepper motor
  • 1 x 24V/10A switching power supply
  • 1 x USB cable
  • 1 x CD

Learn
