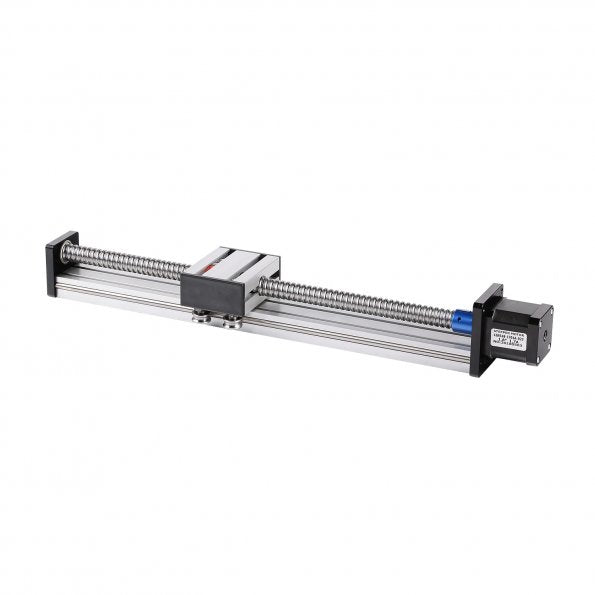

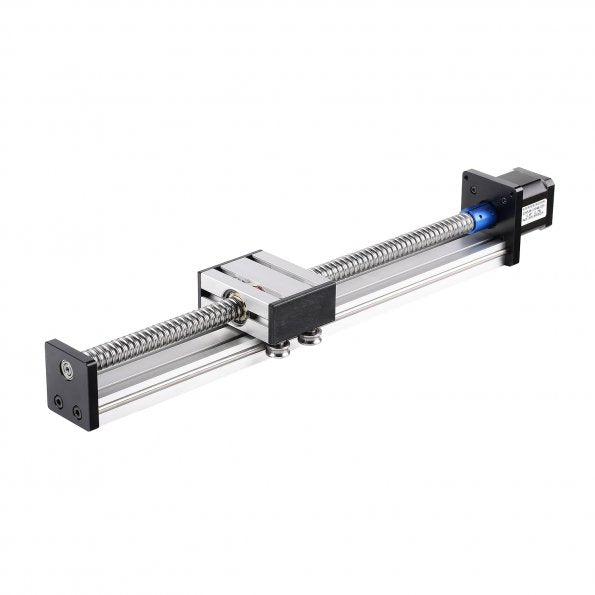

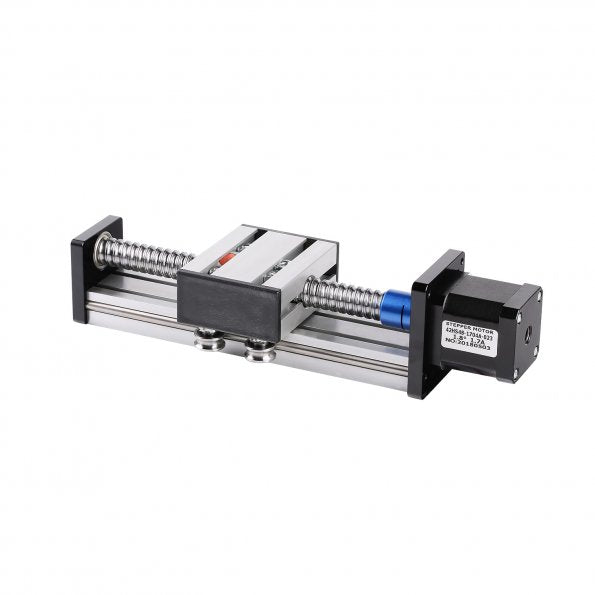

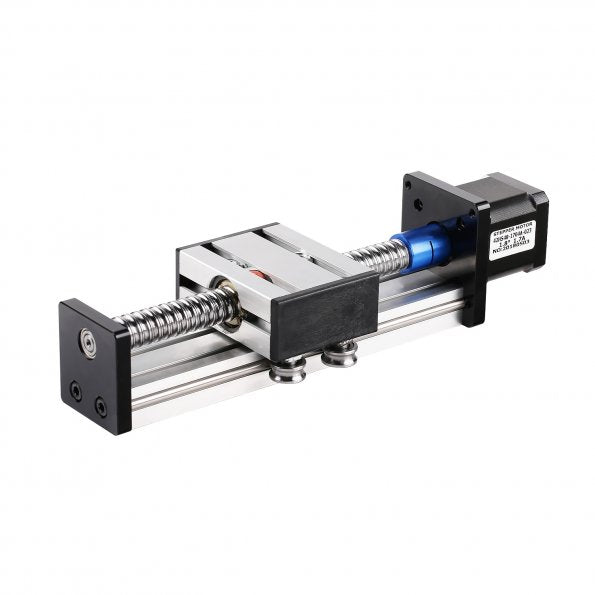

Linear Stage Actuator with Nema17 Stepper Motor for CNC Router
Brand: SainSmart SKU: 101-80-124

Linear Stage Actuator with Nema17 Stepper Motor for CNC Router

SKU: 101-80-124 1 review Variants ID: 39676385624143
$84.99
Free Shipping
  • Effective travel length: 100mm (300mm); Balls crew type: sfu1605; Stepper motor: Nema17.
  • High precision, heavy load resistance; Horizontal maximum load capacity: 20kg, 50mm per second. Vertical maximum load capacity: 10kg, 50mm per second.
  • Repeat positioning accuracy of ± 0.03mm; Level balls crew: c7.
  • Beads screw for movement structural elements executed. With high precision, high efficiency, long life, low coefficient of friction, versatility, etc.
  • Effective travel length: 100mm (300mm); Balls crew type: sfu1605; Stepper motor: Nema17.
  • High precision, heavy load resistance; Horizontal maximum load capacity: 20kg, 50mm per second. Vertical maximum load capacity: 10kg, 50mm per second.
  • Repeat positioning accuracy of ± 0.03mm; Level balls crew: c7.
  • Beads screw for movement structural elements executed. With high precision, high efficiency, long life, low coefficient of friction, versatility, etc.


SPECIFICATION

  • Effective Travel Length: 100mm (300mm)

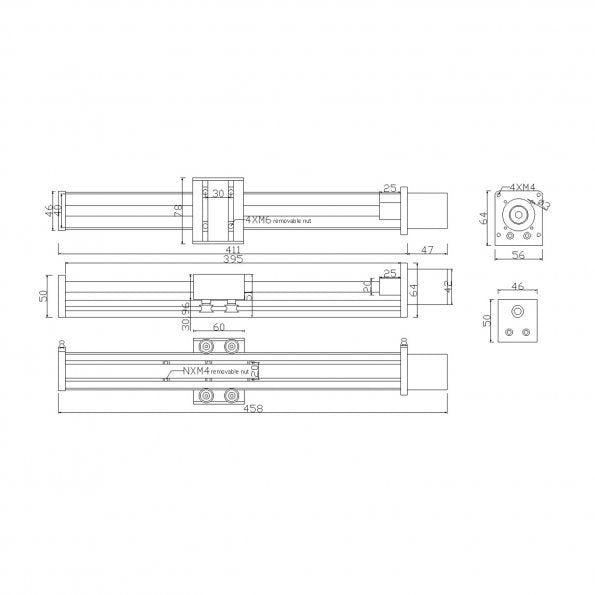

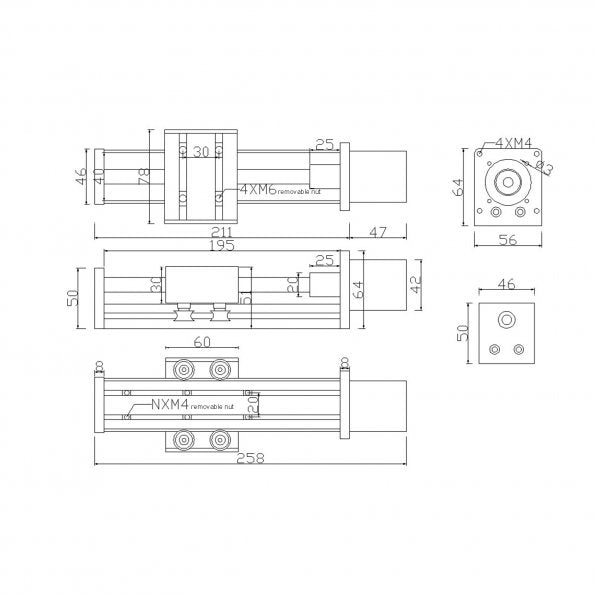

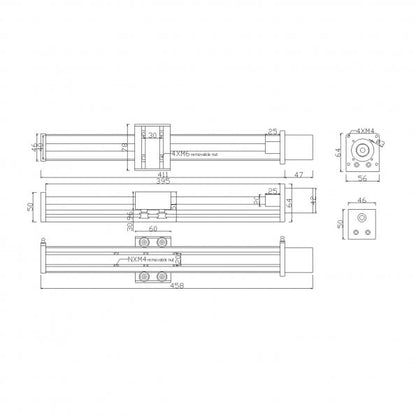

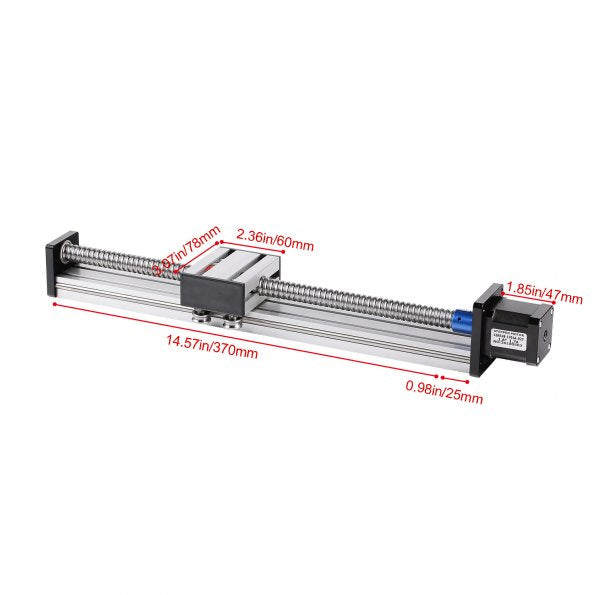

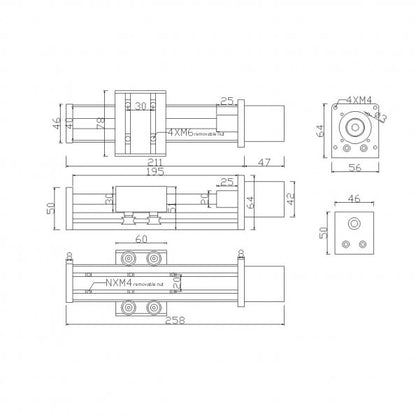

  • Total length: 258mm (458mm)
  • Type: linear system module

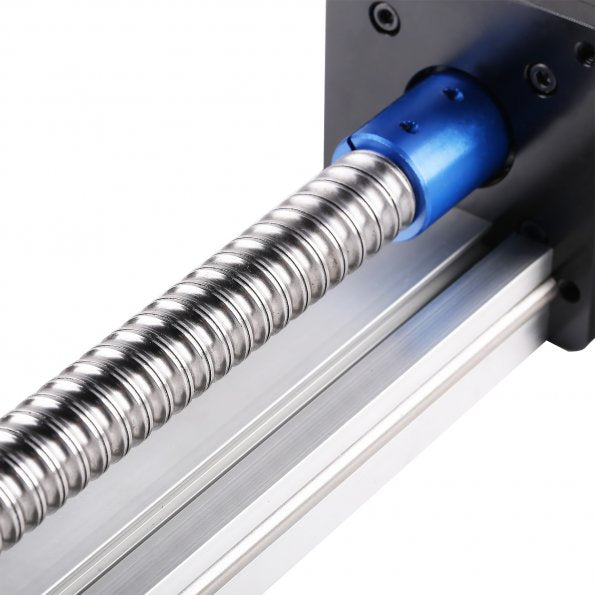

  • Balls crew type: sfu1605 (diameter: 16mm, pitch of screw: 5mm)
  • Level balls crew: c7

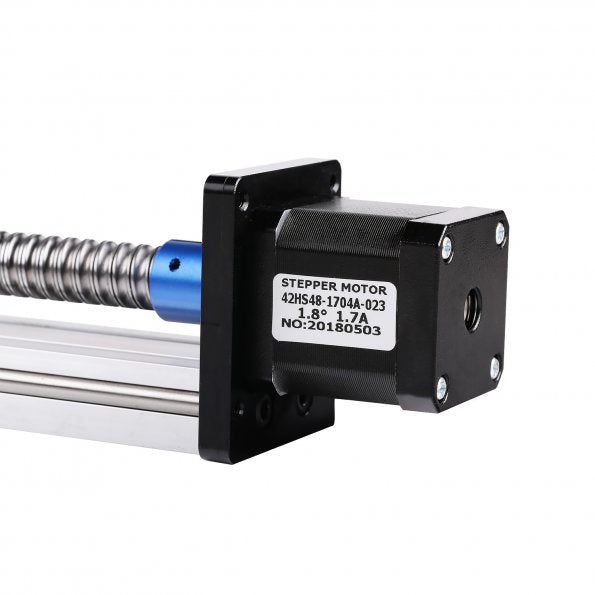

  • Stepper motor: 42mm stepper motor
  • Step angle: 1.8 degree
  • Torque: 0.45N.M
  • Motor size: 42*47mm
  • Horizontal load: <20KG
  • Vertical load: <10KG
  • Speed: 0-50mm/s
  • Repeat positioning accuracy of ± 0.03mm

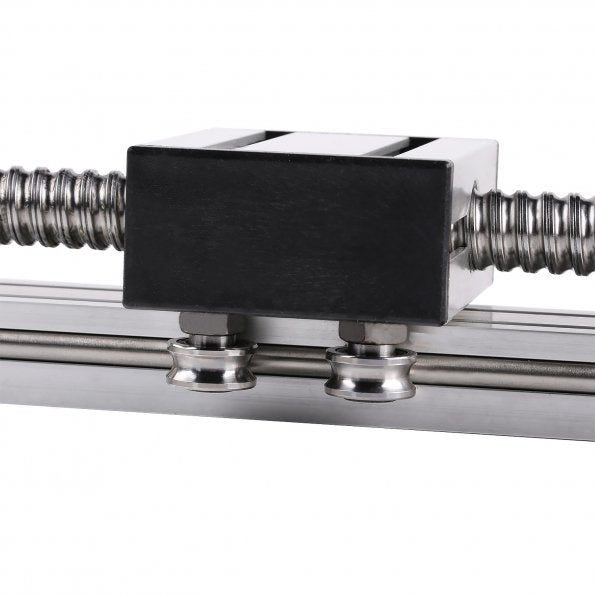

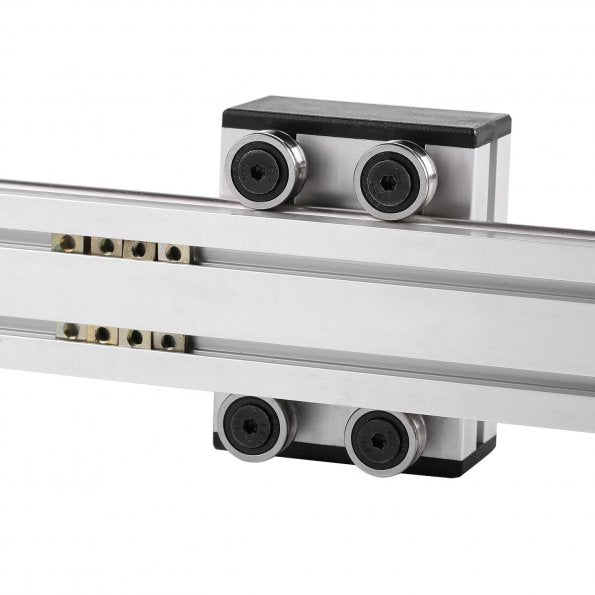

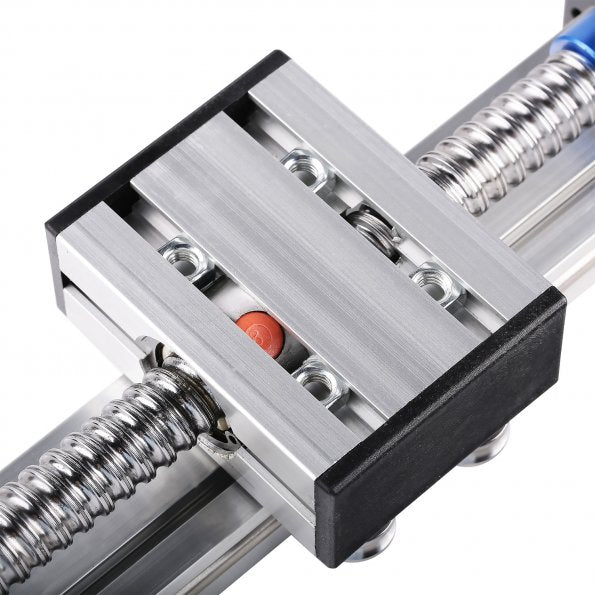

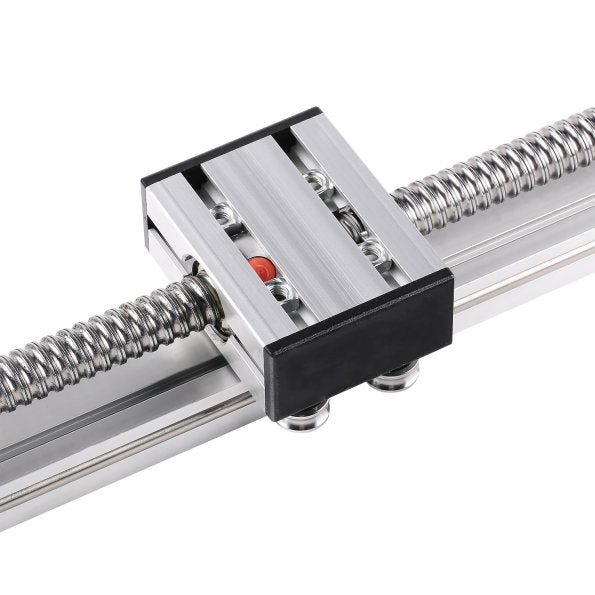

There are 4 M6 nuts on the moving block to fix the workpiece, suitable for 42/57mm stepping motor

Wiring:

  • Red: A+
  • Blue: A-
  • Black: B+
  • Green: B-

WHAT'S IN THE PACKAGE

  • 1x SFU1605 Linear Guide Rail with Nema17 Stepper Motor
