Brand: Genmitsu

EM10A, 1/8" Shank, Micro-Cutting Diameter End Mills Bit Set, 10-PCS

SKU: 101-61S-EM10A Variants ID: 39377564303439
$39.99

4pcs Tapered Ball Nose End Mills

Radius: R0.25, R0.5, R0.75, R1.0mm; Cutting Length: 15mm

4pcs Single Flute Spiral End Mills

Cutting Diameter: 2, 2, 3.1, 3.1mm ; Cutting Length: 8, 8, 12, 22mm
2pcs Flat Bottom Tungsten Carbide Steel Alloy Engraving Bits Cutting Diameter: 0.1, 0.2mm; Angle: 30°



Applicable Materials: Widely used in various materials including plastics, acrylic, aluminum, circuit board, wood, as well as other precision parts processing.

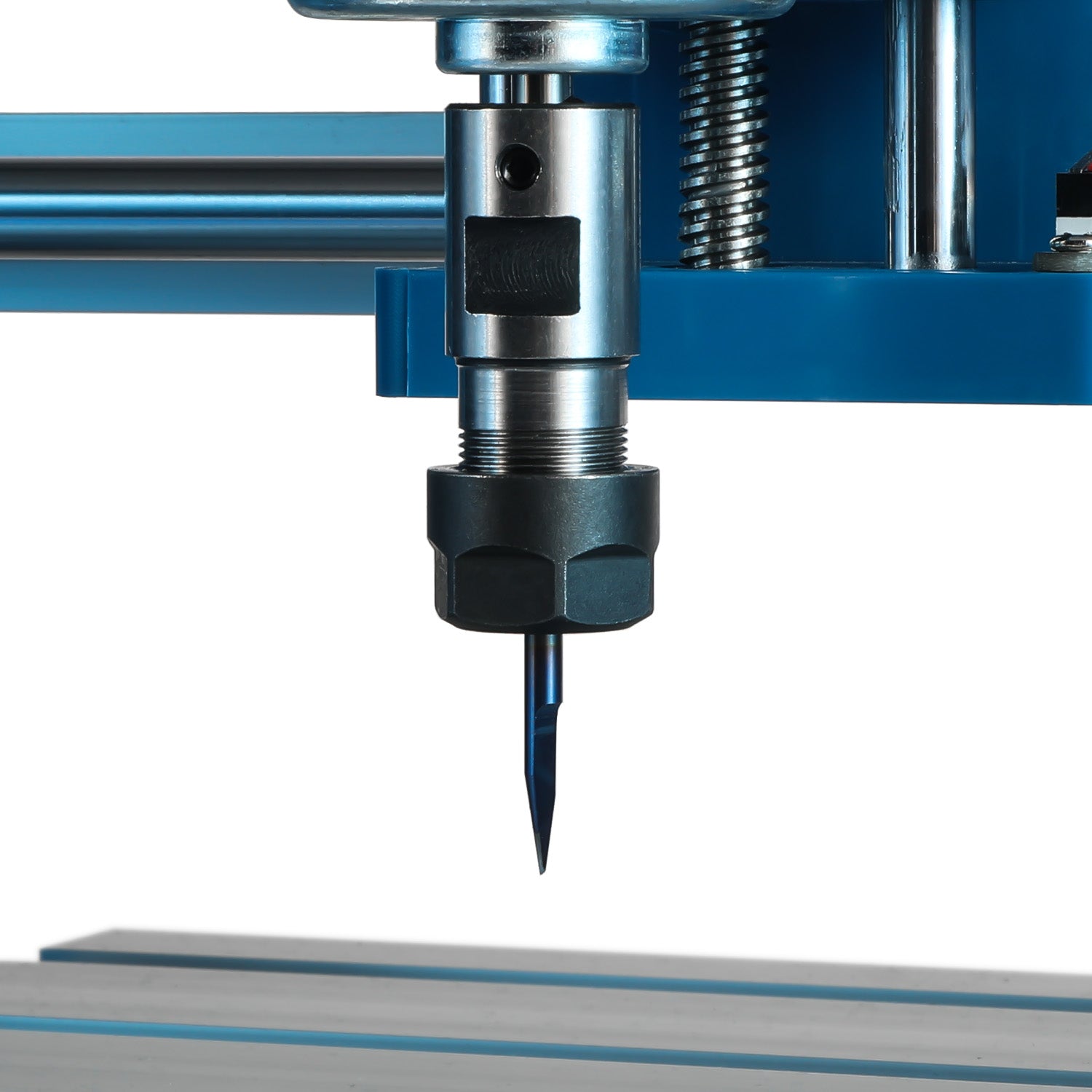

Wide Compatibility: Genmitsu EM10A micro-cutting diameter end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

Ship to
USA

4pcs Tapered Ball Nose End Mills

Radius: R0.25, R0.5, R0.75, R1.0mm; Cutting Length: 15mm

4pcs Single Flute Spiral End Mills

Cutting Diameter: 2, 2, 3.1, 3.1mm ; Cutting Length: 8, 8, 12, 22mm
2pcs Flat Bottom Tungsten Carbide Steel Alloy Engraving Bits Cutting Diameter: 0.1, 0.2mm; Angle: 30°



Applicable Materials: Widely used in various materials including plastics, acrylic, aluminum, circuit board, wood, as well as other precision parts processing.

Wide Compatibility: Genmitsu EM10A micro-cutting diameter end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

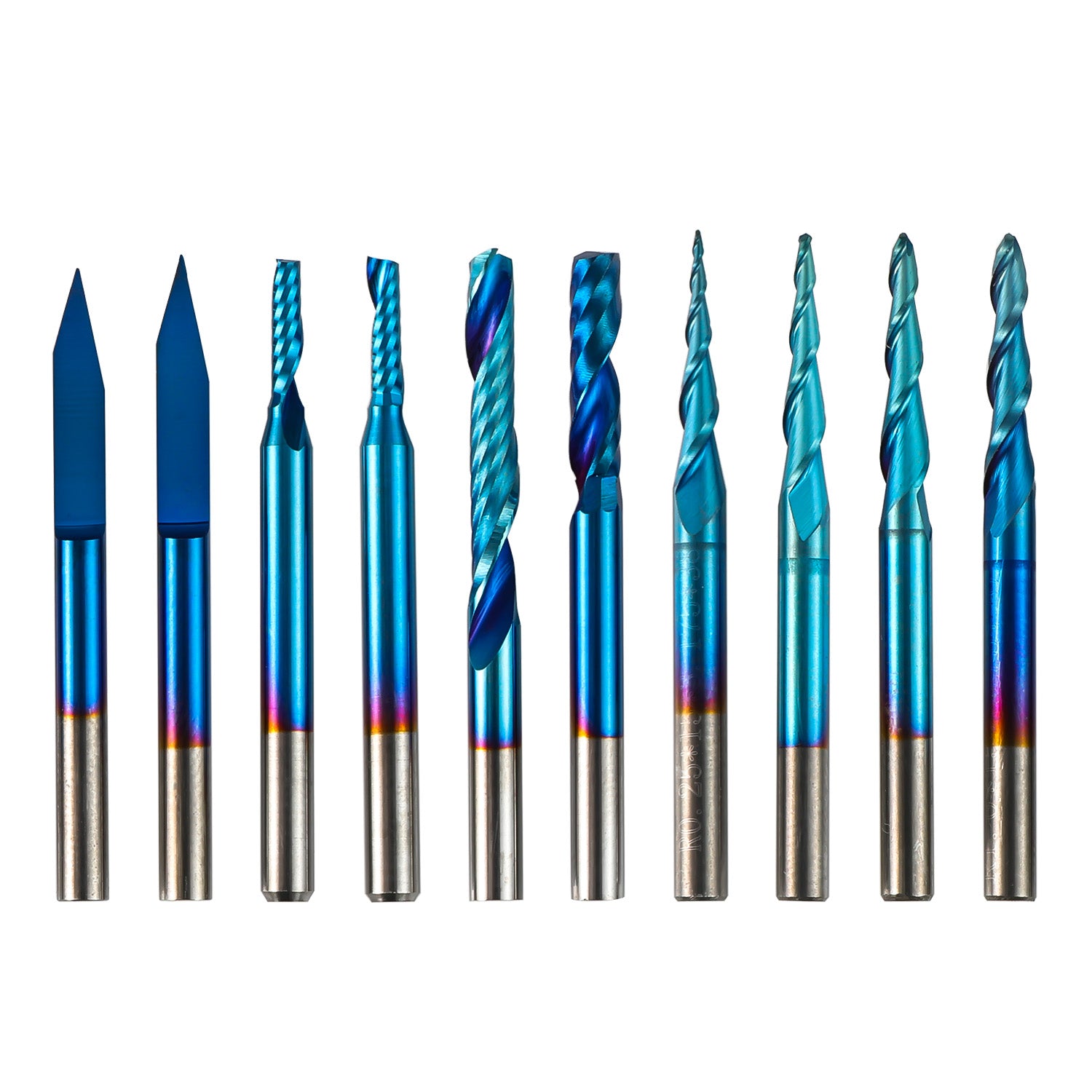

Genmitsu EM10A

10pcs Nano Blue Coat Tungsten Carbide Steel Alloy End Mill Set



  • 4pcs Tapered Ball Nose End Mills: Radius: R0.25, R0.5, R0.75, R1.0mm; Cutting Length: 15mm
  • 4pcs Single Flute Spiral End Mills: Cutting Diameter: 2, 2, 3.1, 3.1mm ; Cutting Length: 8, 8, 12, 22mm
  • 2pcs Flat Bottom Tungsten Carbide Steel Alloy Engraving Bits: Cutting Diameter: 0.1, 0.2mm; Angle: 30°
  • Material: Tungsten Carbide Steel Alloy
  • Surface: Nano Blue Coating
  • Shank Diameter: 3.175mm
  • Overall Length: 38mm
  • What project are you undertaking?
  • What are you cutting? Is it hard or soft wood? Is it stainless steel, fiberglass, MDF, acrylic, or aluminum?

Cost-Effective Set

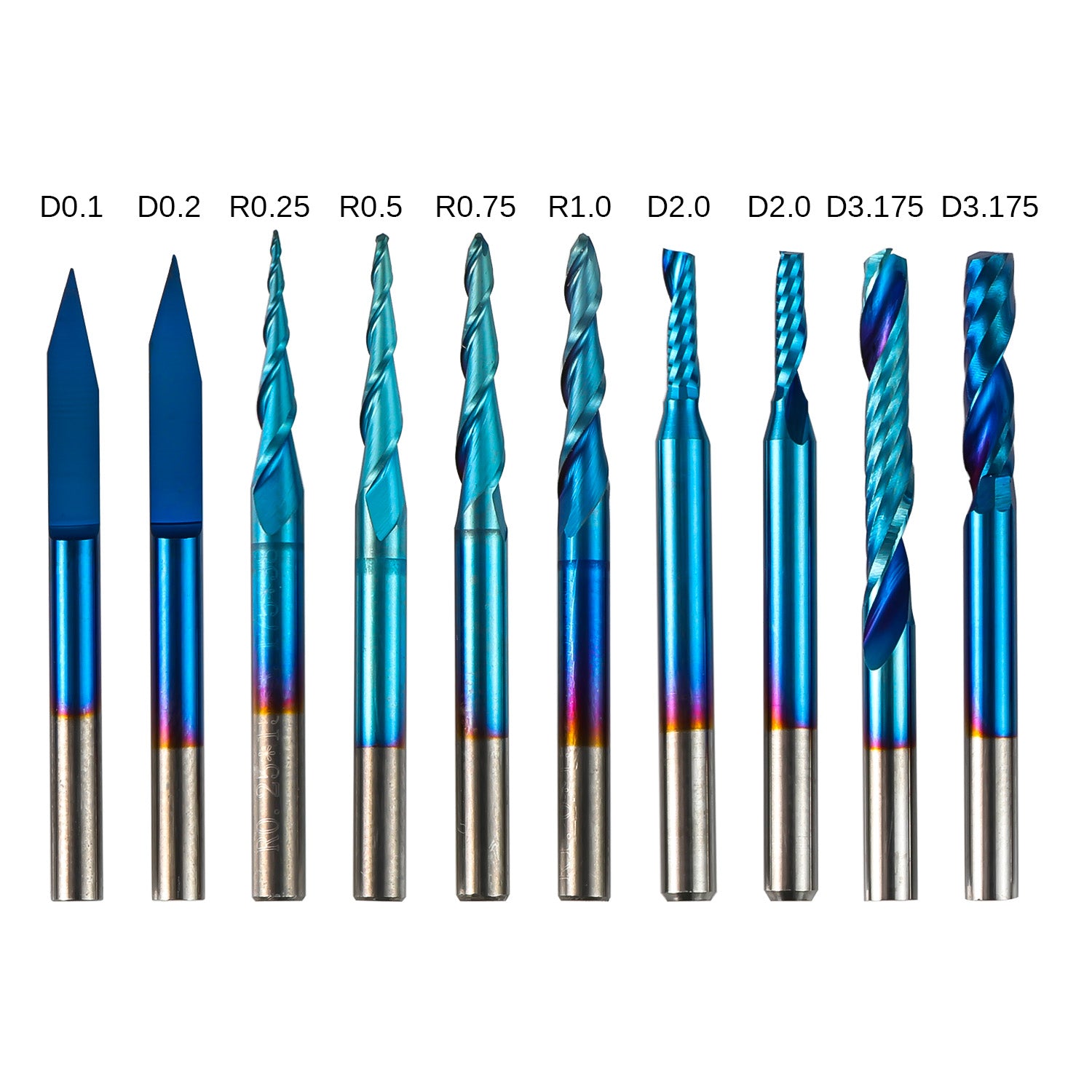

Specially designed for ultra-fine carving projects, including 4x tapered ball nose end mills, 4x single flute spiral end mills, 2x flat bottom Tungsten Carbide Steel Alloy engraving bits. Shank Diameter: 3.175mm, Cutting diameter: 0.1 - 3.1mm (0.1, 0.2, 0.25, 0.5, 0.75, 1, 2, 3.1mm) , Overall Length: 38mm.

Wide Application

Perfect for 3D relief sculpturing, cutting, engraving, slotting, milling, etc. Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches. Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing.

High Quality

The end mills are made of ultra-fine 0.2μm tungsten steel that can keep continuous machining 800 minutes. Moreover, its Nano Blue Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

SPECIFICATIONS

Material: Tungsten Carbide Steel Alloy

Surface : Nano Blue Coating

Shank Diameter: 3.175mm

Overall Length: 38mm

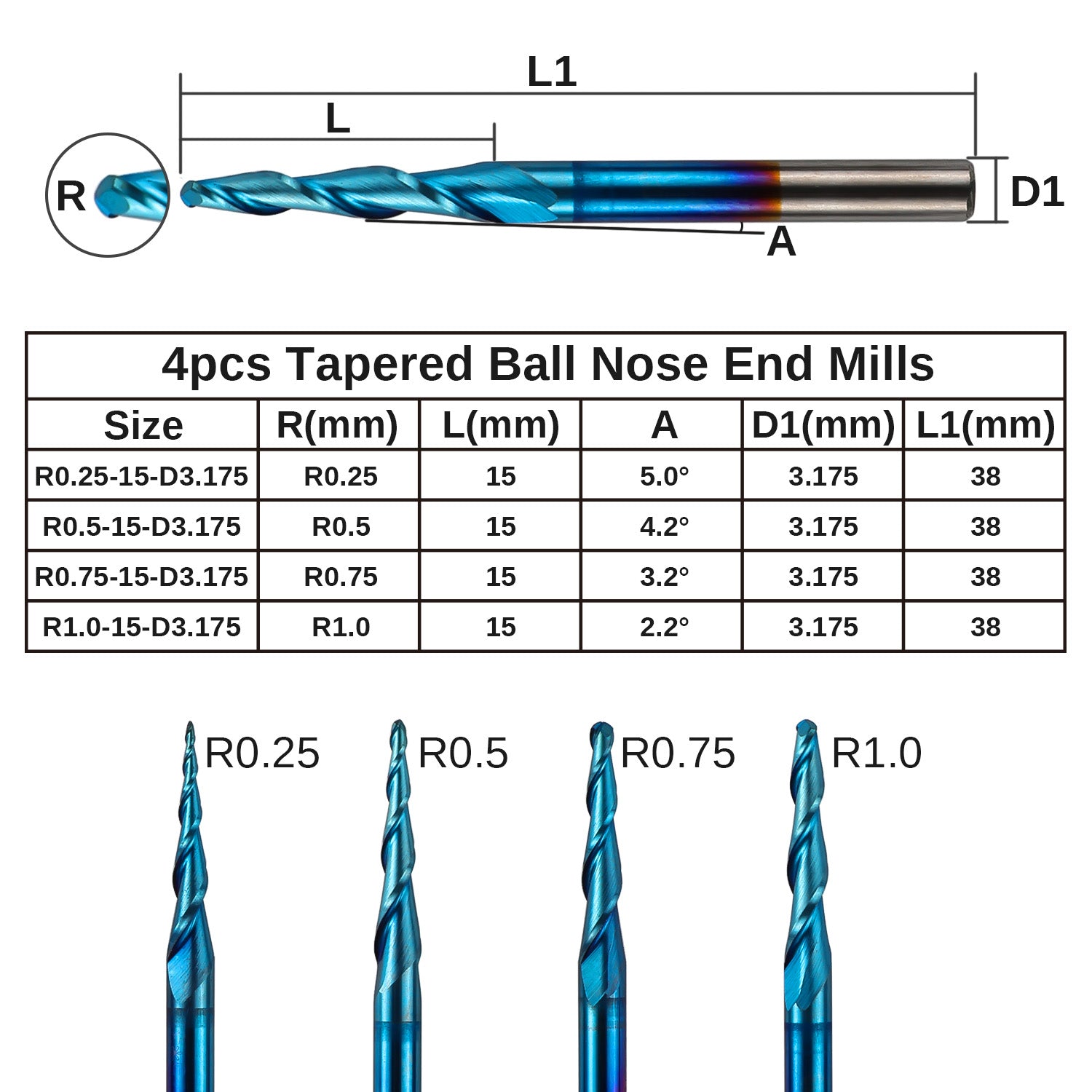

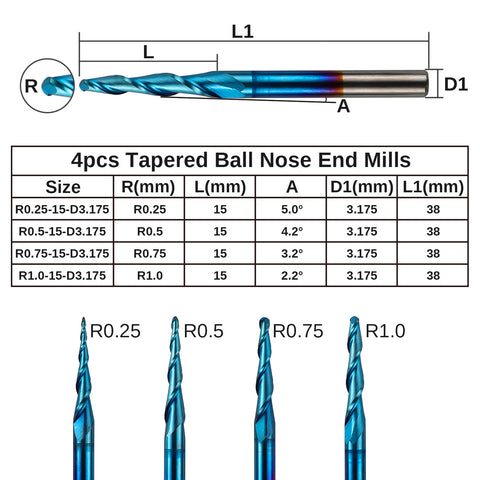

4pcs Tapered Ball Nose End Mills:

Radius: 0.25, 0.5, 0.75, 1.0mm

Cutting Length: 15mm

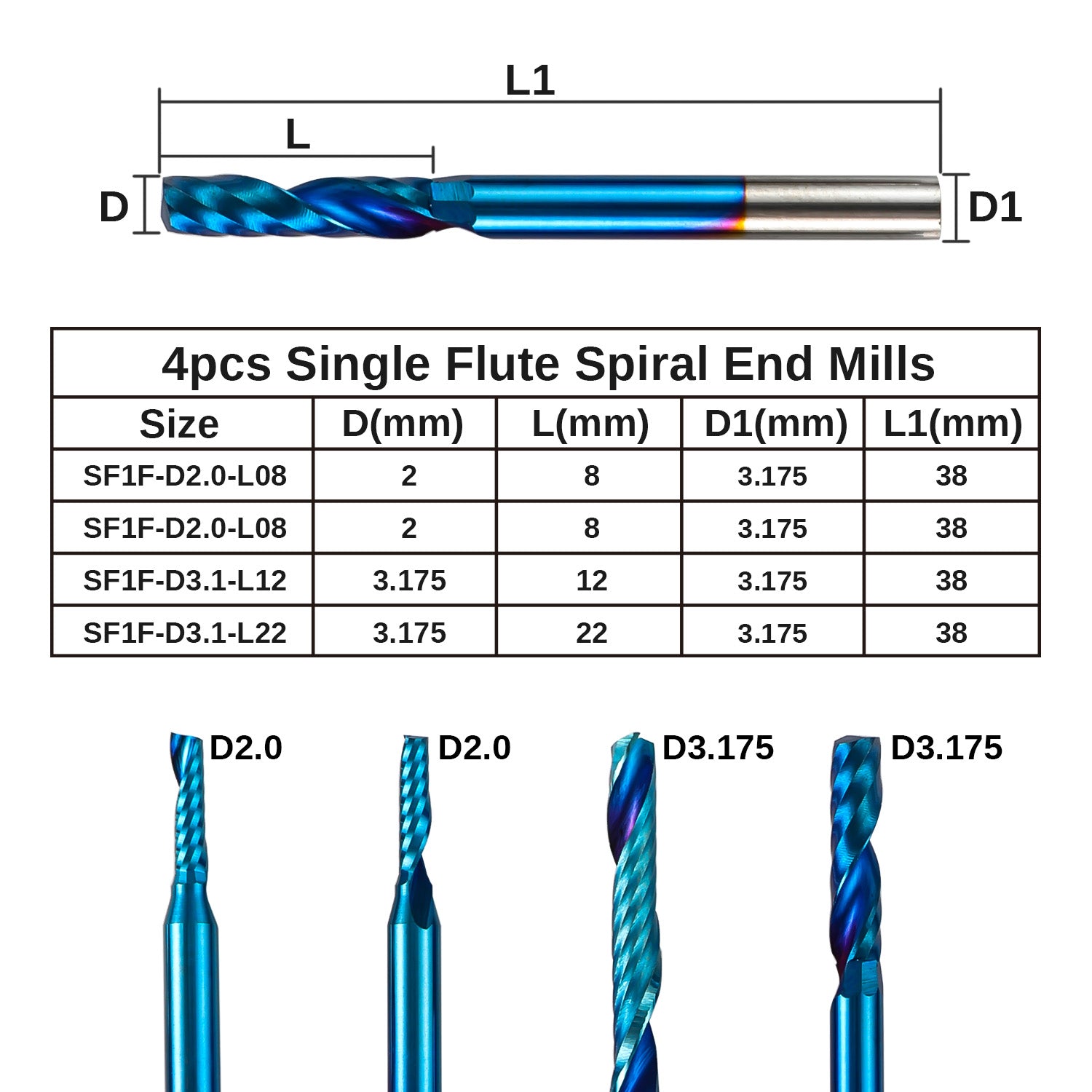

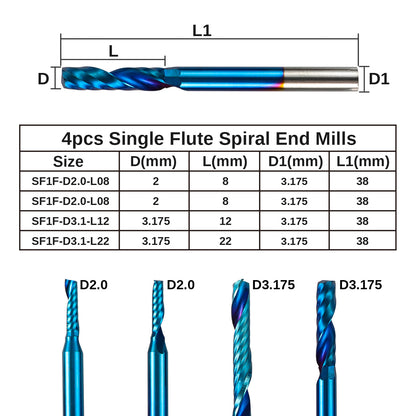

4pcs Single Flute Spiral End Mills:

Cutting Diameter: 2, 2, 3.1, 3.1mm

Cutting Length: 8, 8, 12, 22mm

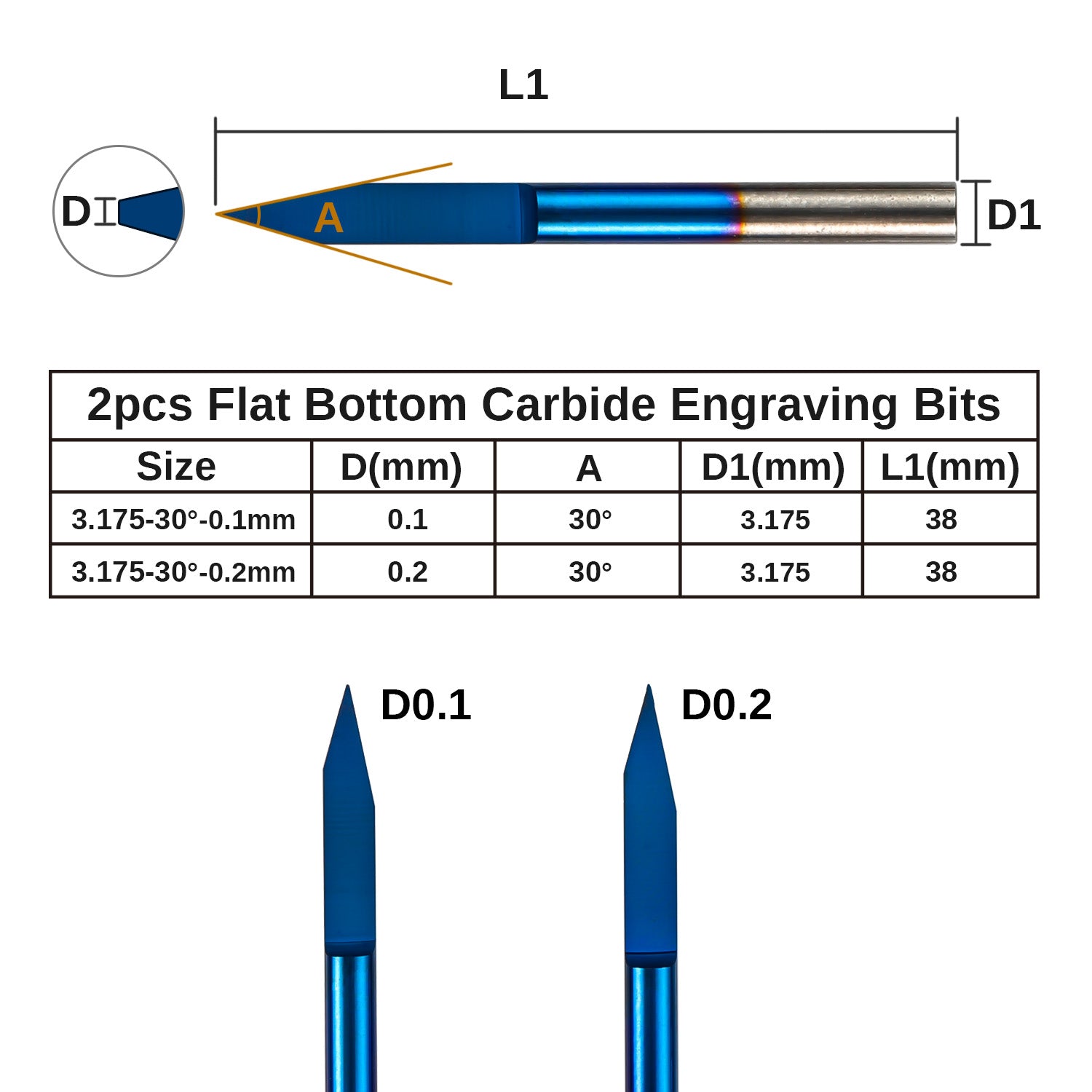

2pcs Flat Bottom Tungsten Carbide Steel Alloy Engraving Bits:

Cutting Diameter: 0.1, 0.2mm

Angle: 30°

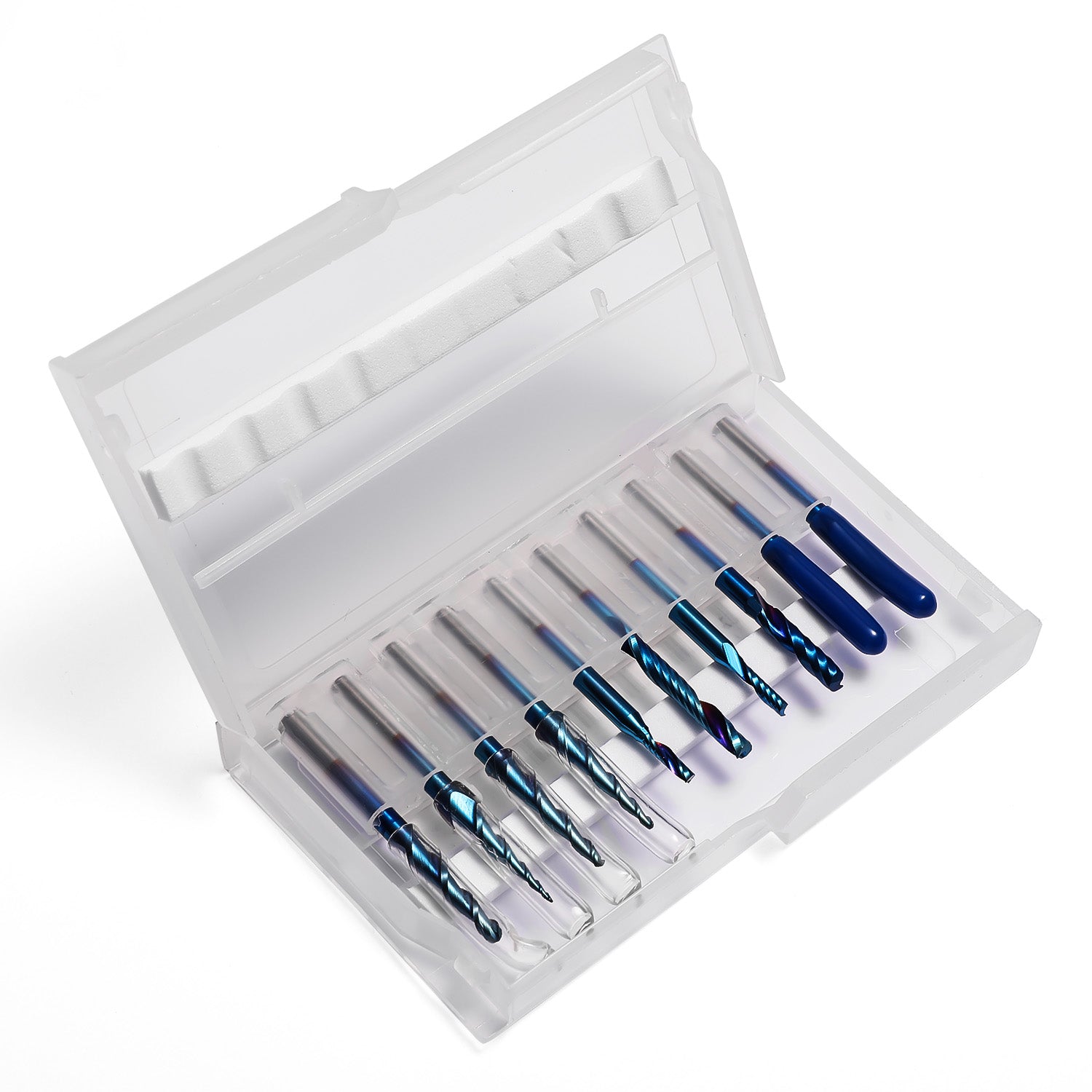

What's in the package

1 x Tapered Ball Nose End Mill (Radius: 0.25mm, Cutting Length: 15mm)

1 x Tapered Ball Nose End Mill (Radius: 0.5mm,Cutting Length: 15mm)

1 x Tapered Ball Nose End Mill (Radius: 0.75mm,Cutting Length: 15mm)

1 x Tapered Ball Nose End Mill (Radius: 1.0mm,Cutting Length: 15mm)

2 x Single Flute Spiral End Mill (Cutting Diameter: 2mm, Cutting Length: 8mm)

1 x Single Flute Spiral End Mill (Cutting Diameter: 3.1mm, Cutting Length: 12mm)

1 x Single Flute Spiral End Mill (Cutting Diameter: 3.1mm, Cutting Length: 22mm)

1 x Flat Bottom Tungsten Carbide Steel Alloy Engraving Bit (Cutting Diameter: 0.1mm, Angle: 30°)

1 x Flat Bottom Tungsten Carbide Steel Alloy Engraving Bit (Cutting Diameter: 0.2mm, Angle: 30°)
