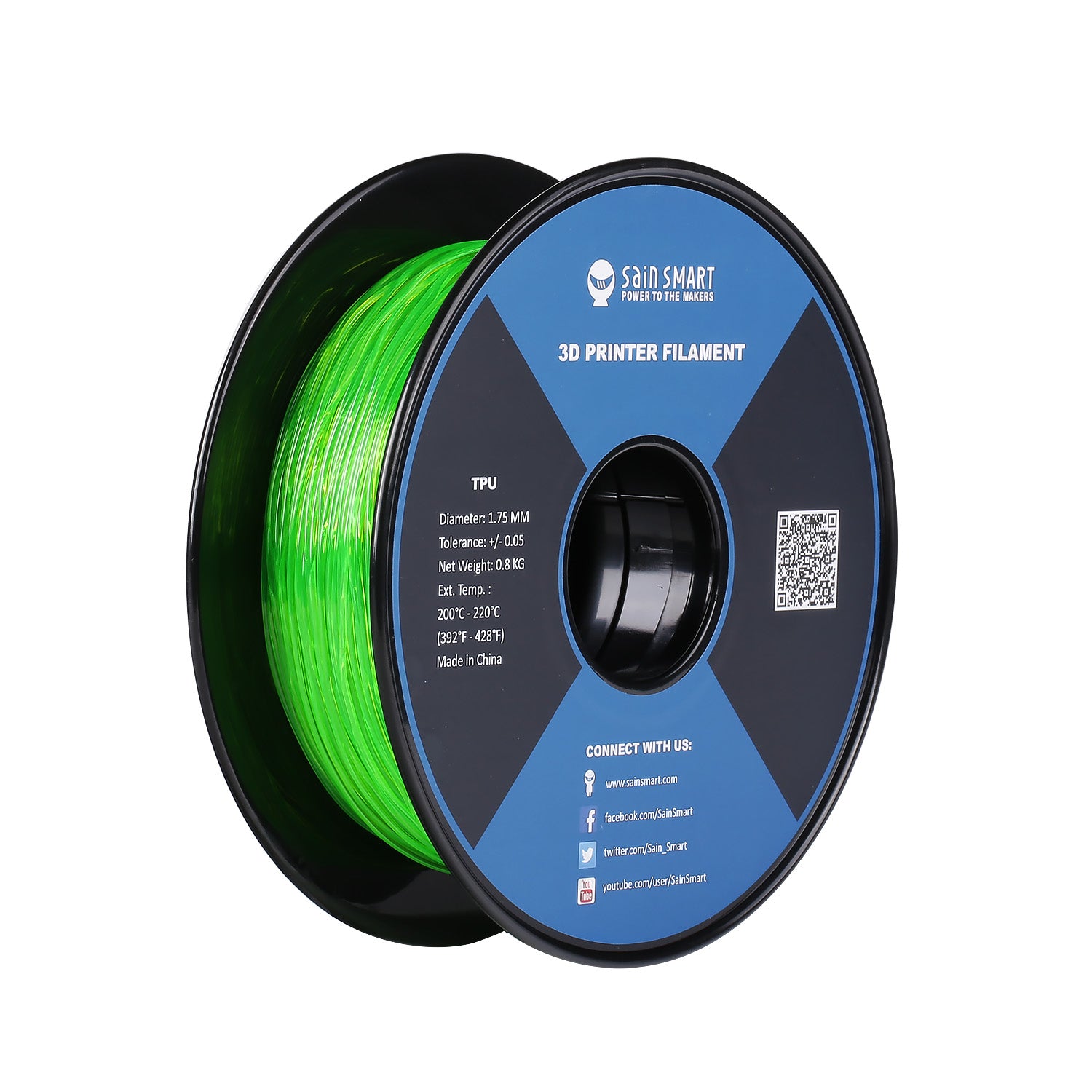

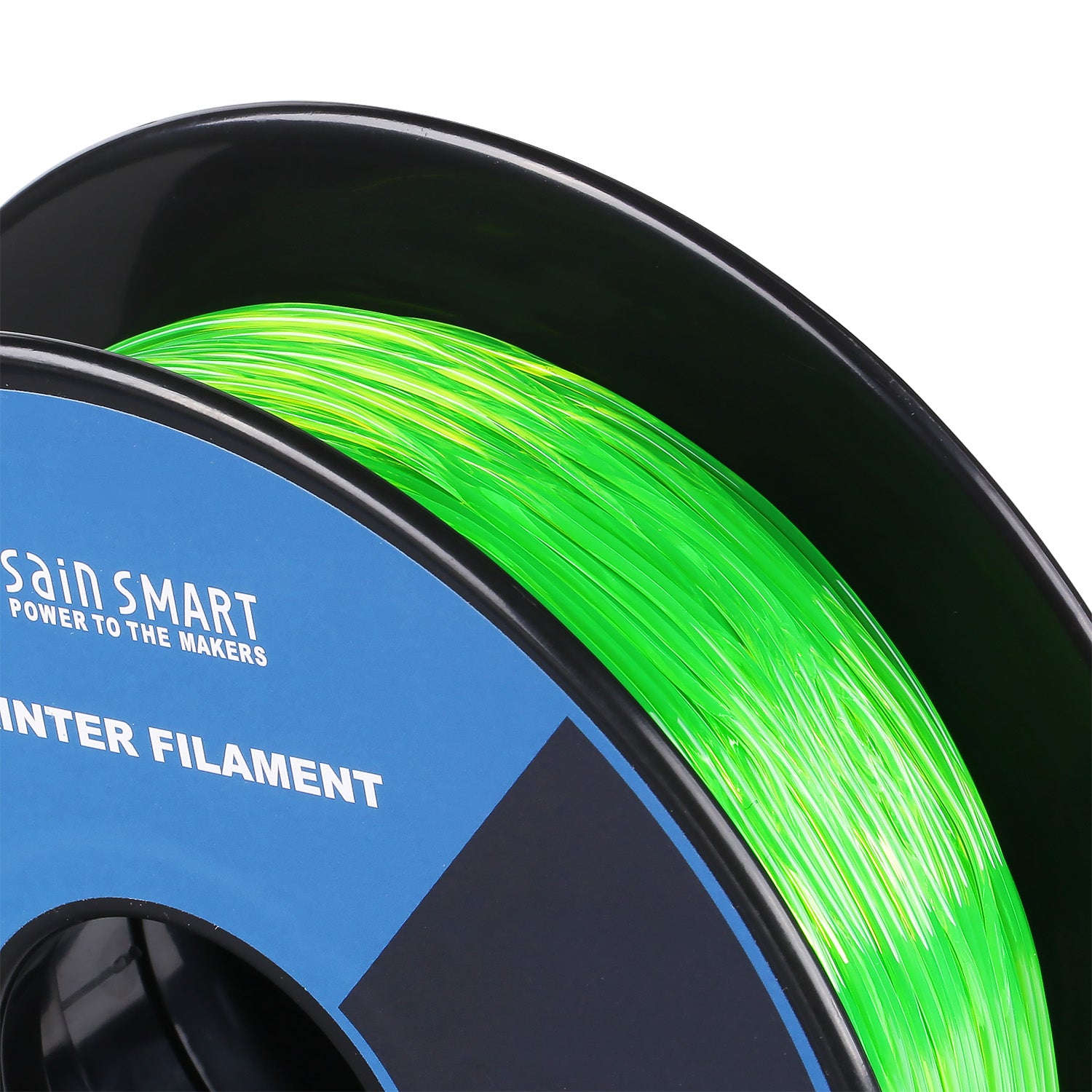

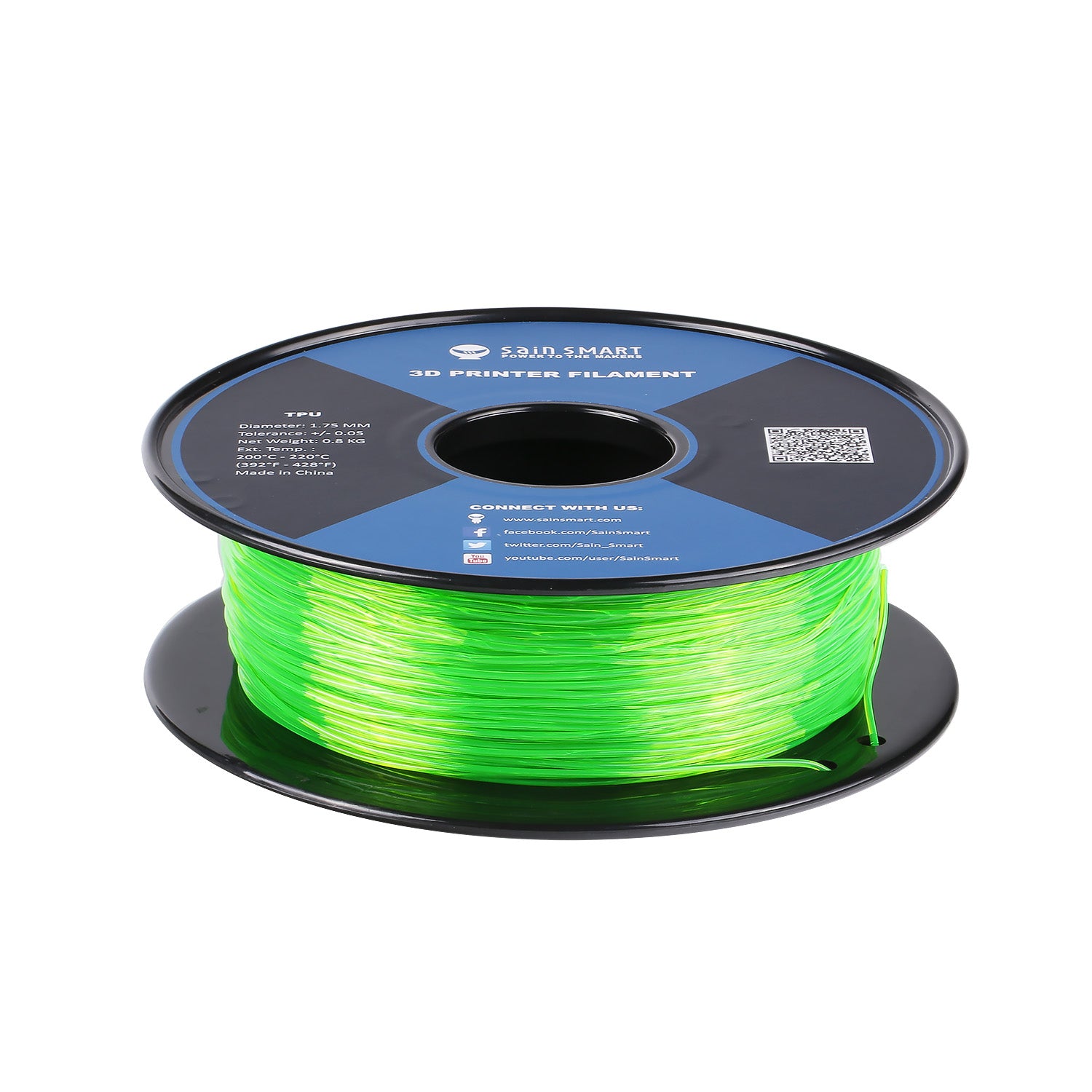

Green, Flexible TPU Filament 1.75mm 0.8kg/1.76lbbrand: SainSmart SKU: 101-90-159
SainSmart TPU filament is featured by its high strength and flexibility, like a hybrid of plastic and rubber.
95A TPU has high abrasion resistance and low compression compared to rubber parts, especially at higher infill.
In comparison with most common filaments like PLA and ABS, TPU must be run much slower.
SPECIFICATION- Material: Rep-Flex TPU - Vacuumed Sealed with desiccant
- Shore Hardness: 95A
- Weight: 1 KG (approximately 2.20 lb) Spool Weight Total, Net Weight 0.8 KG
- Diameter: 1.75mm (+/- 0.05mm)
- Recommended extruder temperature:195 - 230°C
- Recommended platform temperature: 40 - 60°C
PRINTING TIPSRecommended for printers with direct drive extruder, 0.4~0.8mm Nozzles.
With bowden extruder you might pay more attention to these tips:
- Print slow 15-30 mm/s Printing speed
- First layer settings. (Height 100% Width 150% speed 50% e.g.)
- Retraction disabled. This would reduce messy, stringing or oozing printing result.
- Increase Multiplier(Optional). set to 1.1 would help the filament bond well. - Cooling fan on after first layer.
If you are having problems printing with soft filaments, firstly, and most importantly, slow the print down, run at 20mm/s will work perfectly.
It is important when loading the filament to allow it to only just start extruding. Once you see the filament coming out the nozzle hit stop. The load feature pushes filament through quicker than a normal print and this can cause it to get caught in the extruder gear.
Also feed the filament direct to the extruder, not through the feeder tube. This reduces the drag on the filament which can cause the gear to slip on the filament. I
WHAT'S IN THE PACKAGE

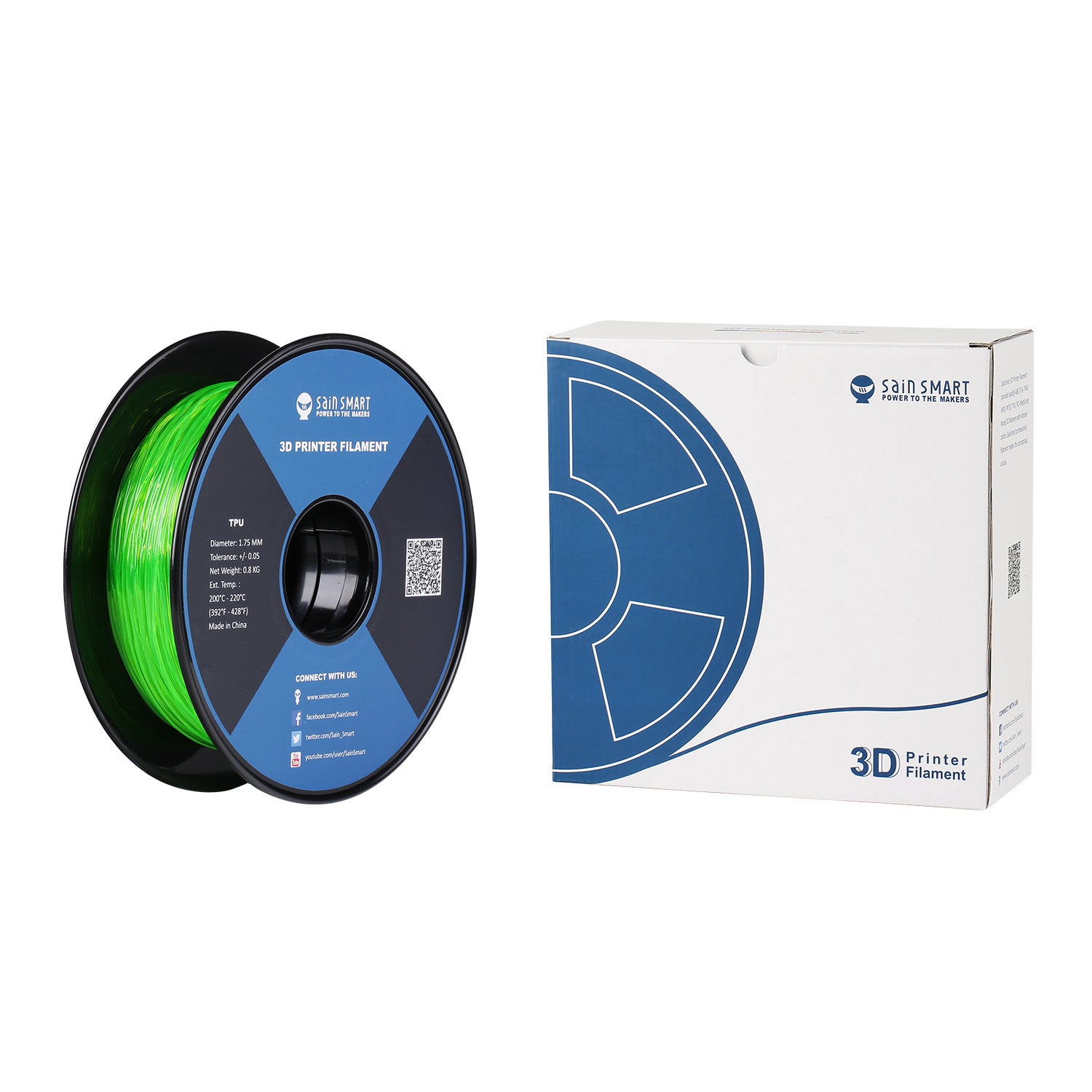

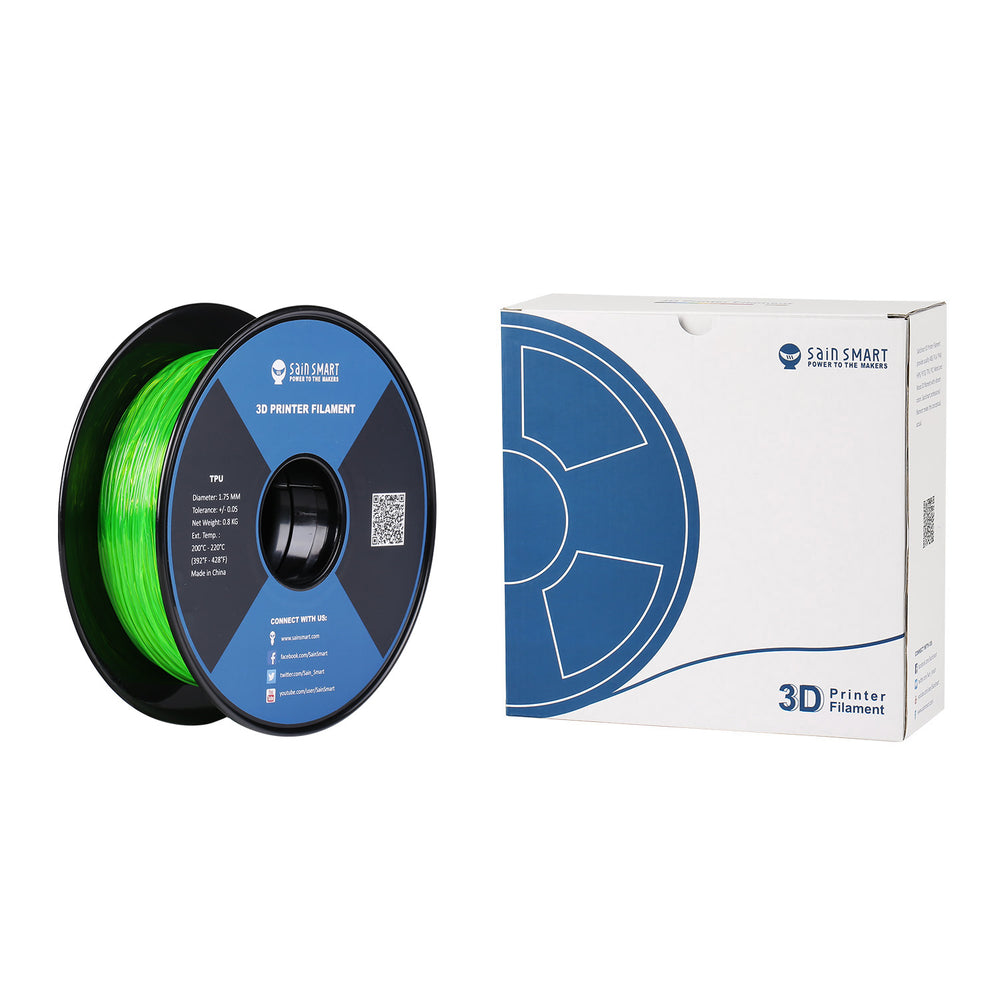

- 1x SainSmart TPU Flexible Filament 1.75mm 0.8kg/1.76lb (vacuum sealed)
