MDP-P906 Mini Digital Programmable Power Supply for Labs and Science Research

MDP-P906 Mini Digital Programmable Power Supply for Labs and Science Research

SKU:  101-92-P906
$179.99
-Liquid error (snippets/price line 160): divided by 0 $179.99
Shipping calculated at checkout.
Ship to
  • 101-92-P906
  • 101-92-P906
  • 101-92-P906
  • 101-92-P906

Upgraded Version of Digital Power Supply:

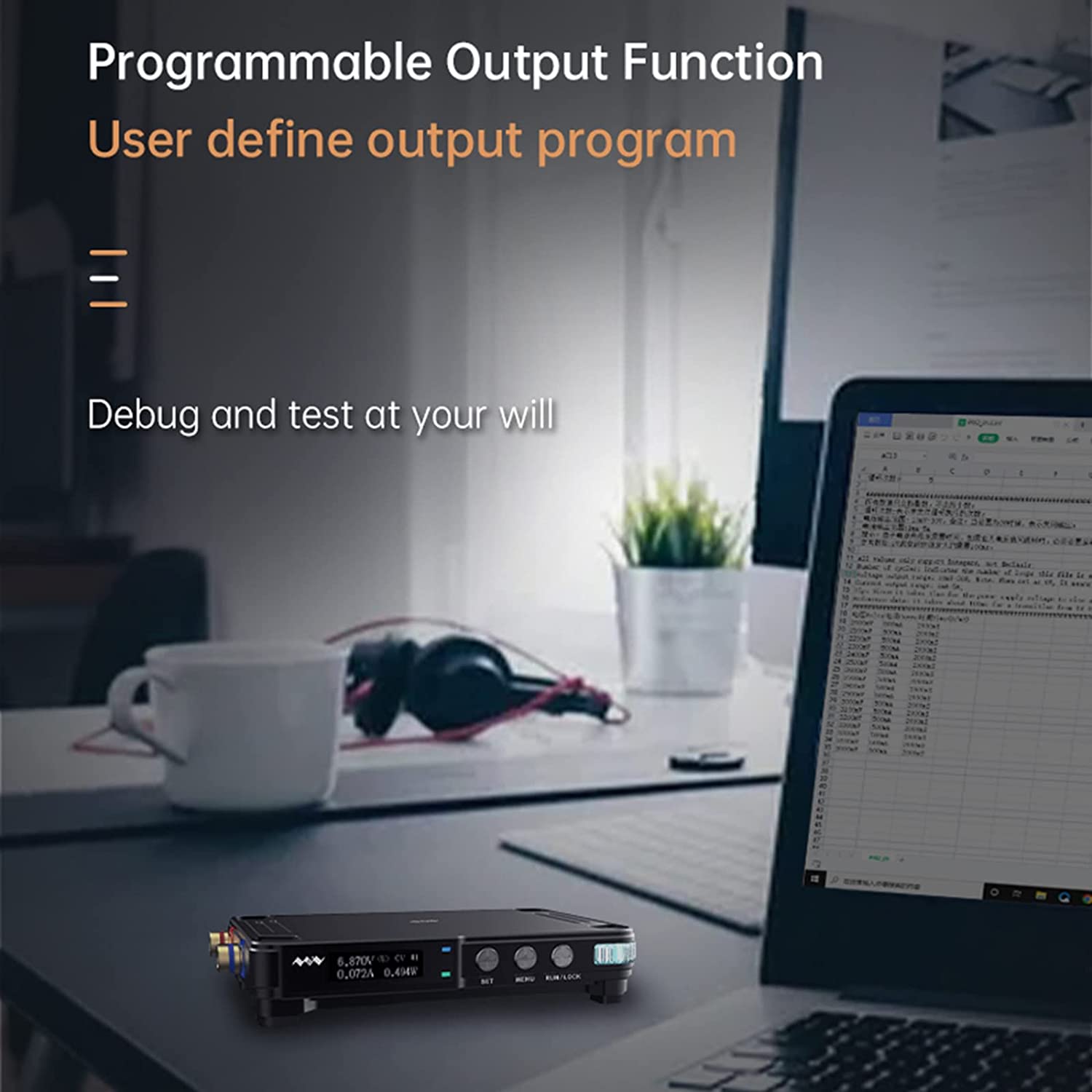

MDP-P906 has higher power, better performance, and can achieve 95% efficient linear output and up to 300W. It provides programmable output, timing output, sequential control, and automatic compensation, which can meet diversiform testing needs.

Exquisite and Tiny Design:

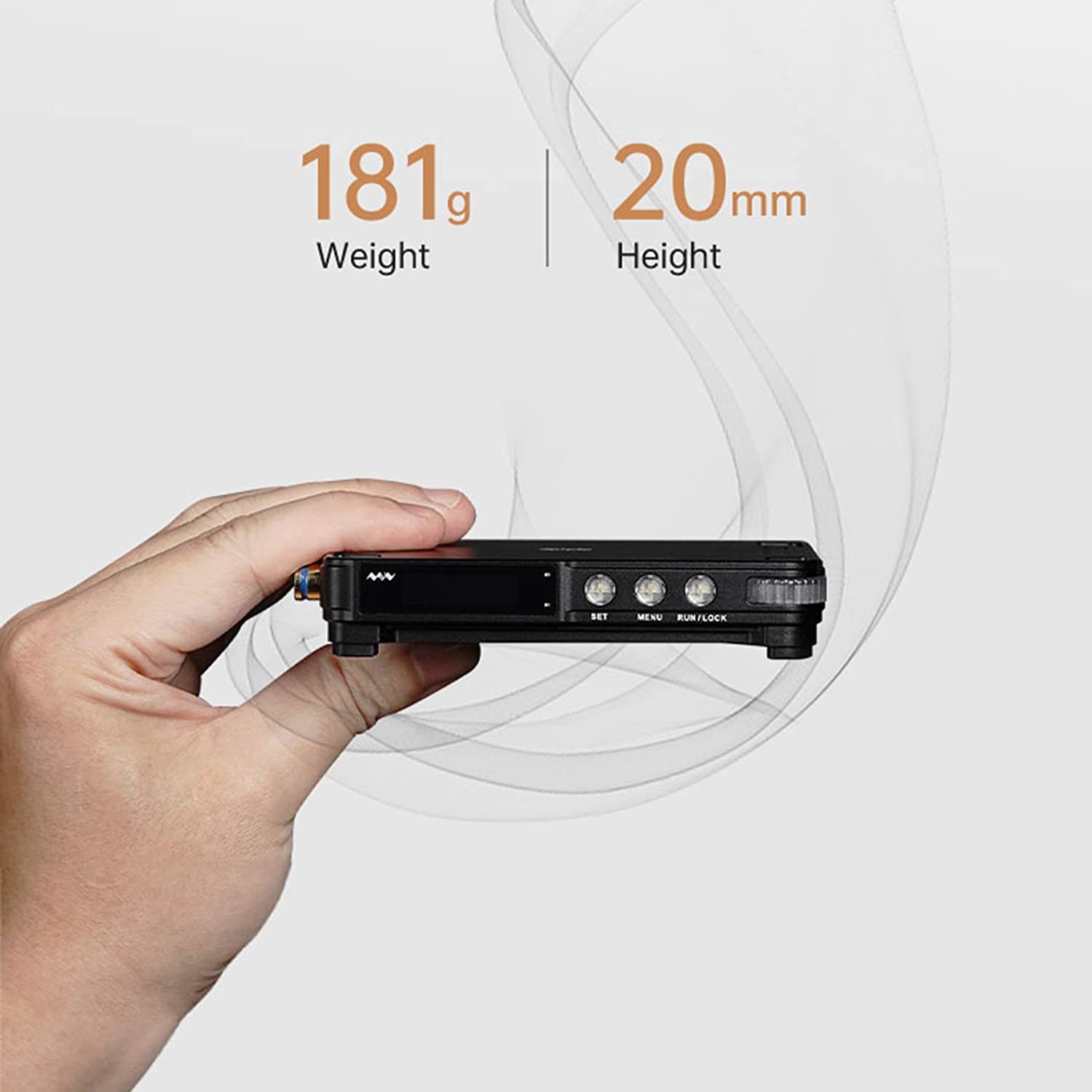

The shell is made of fine CNC processing aluminum alloy. Also, it comes in a lightweight (0.4 pounds) and easy-to-carry design. If you own it you never have to worry about taking up much room while using it, it will fit on your workbench very nicely.

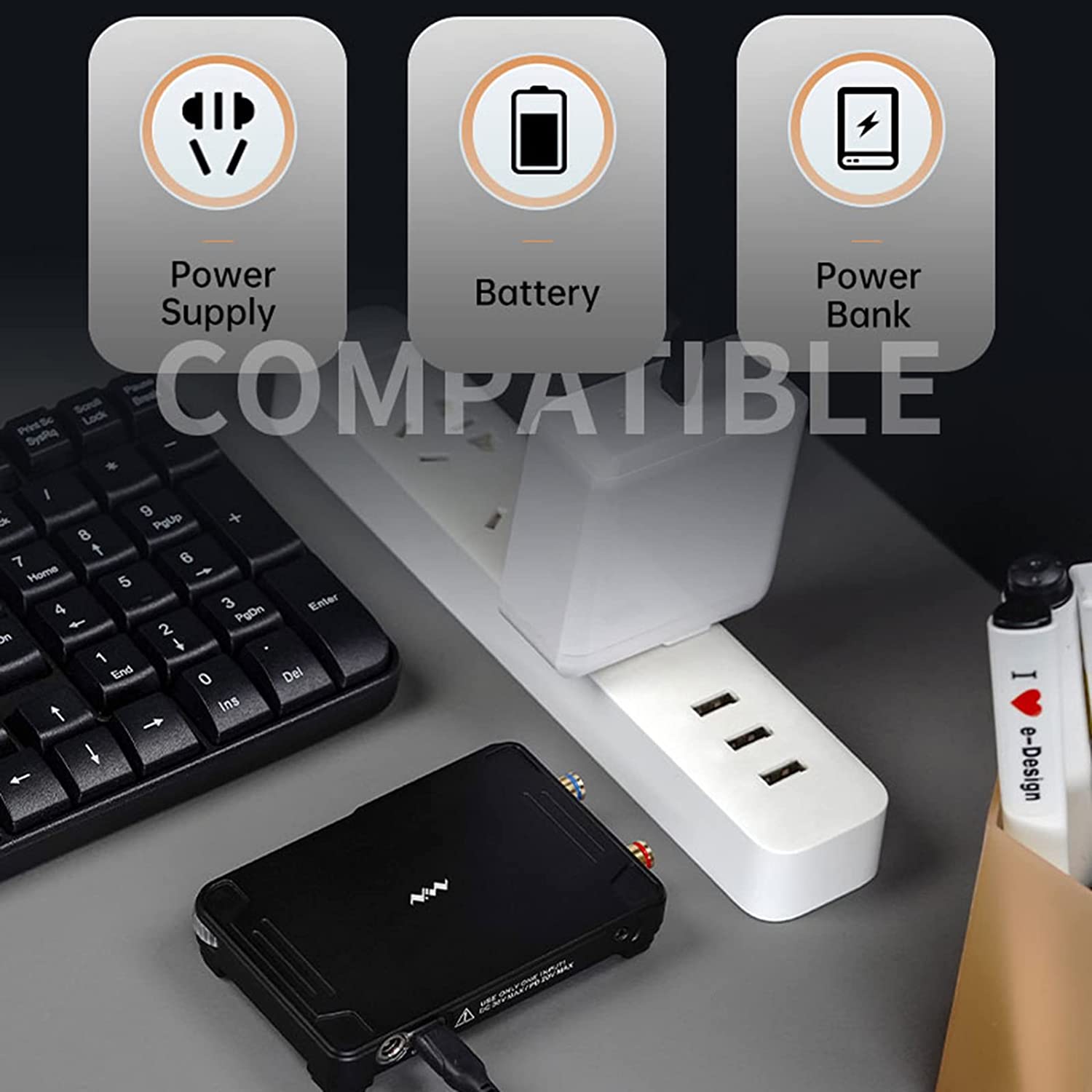

Wide Input Voltage Range:

In some applications, the input voltage is not well regulated and can fluctuate significantly. But this digital power module can accept a DC input between 4.2V and 30V, which is reduced up to 2.7V after startup. A wide input range allows a system to continue operating even when the supply voltage is not stable.

Flexible Stack:

This Mini Digital Power Supply can work independently and can be stacked flexibly. It supports 1 display control plus 6 sub-modules, and a 2.4G Wireless connection with real-time waveform.

Safety Protection:

Over-voltage protection, under-voltage protection, reverse connection protection, backflow protection, over-temperature protection, and over-current protection.
View full details

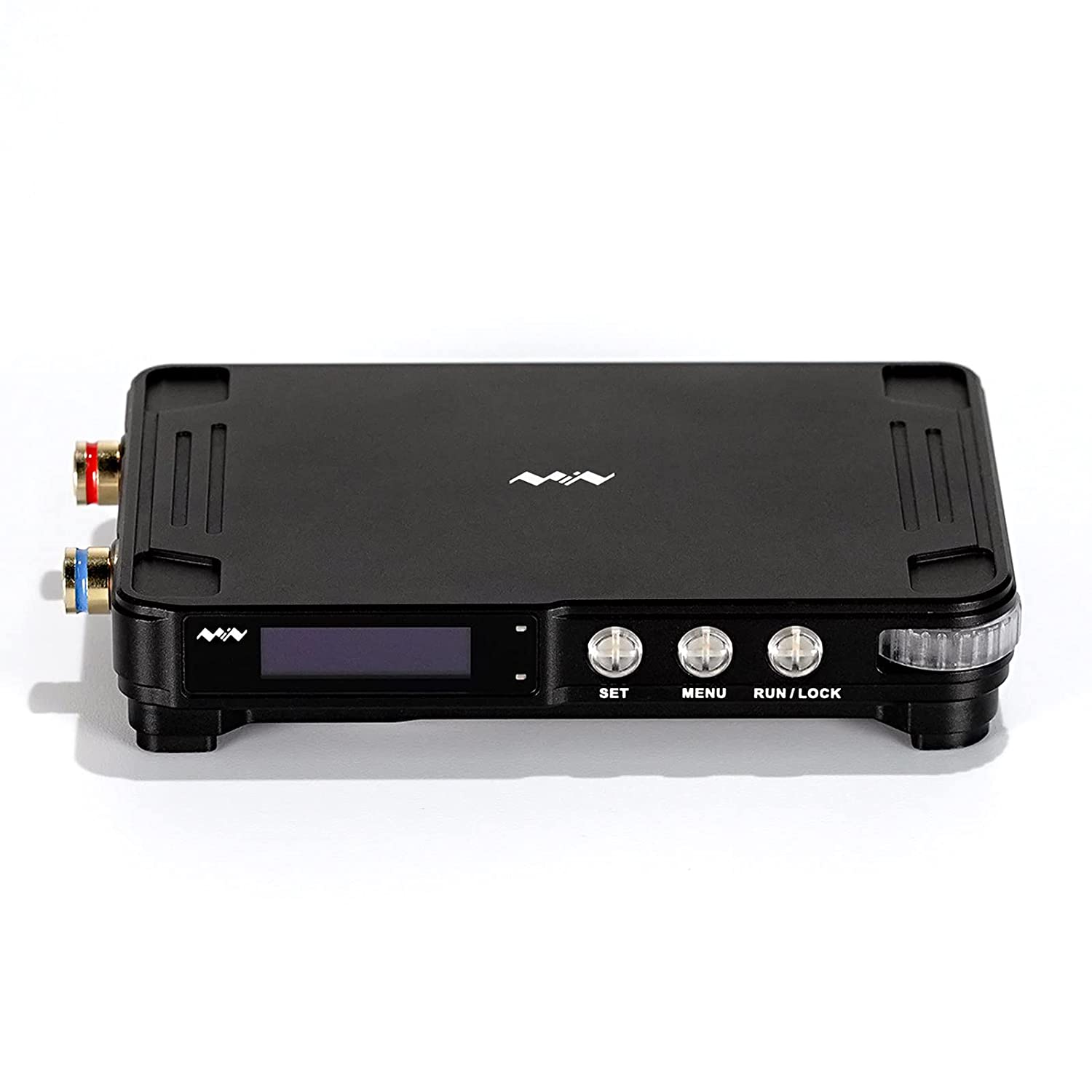

MDP-P906 Mini Digital Programmable DC Power Supply

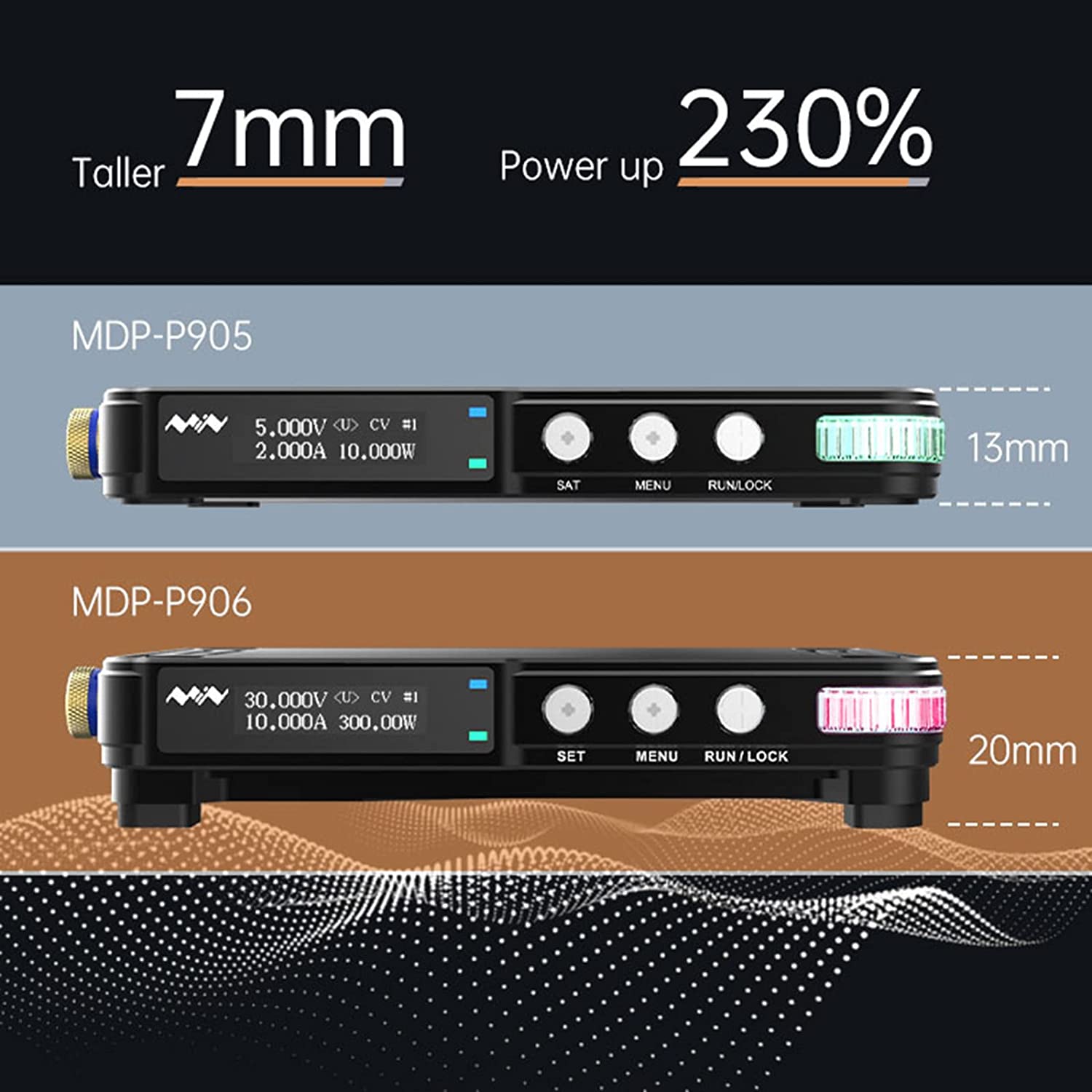

MDP-P906 is the second digital power supply module of the MDP series, following MDP-P905. It features a built-in cooling fan and a maximum output power of up to 300W, meeting a wider range of testing needs and application scenarios. Through 2.4G wireless communication, it can connect to the MDP-M01 Smart Digital Monitor module, allowing for the free combination of multiple channels of 300W per channel. It is also stackable with the MDP-XP set (MDP-M01 + MDP-P905) to form a modular portable mini digital power system.

Exquisite Design in Function & Look

  • MDP-P906 adopts a precision CNC machined aluminum alloy shell, featuring fine workmanship and a novel, mini, beautiful appearance that subverts the rigid image of traditional desktop power supplies.
  • With a stackable modular design and wireless communication function, MDP-P906 can work independently or in pairs, suitable for both workbench use and on-site maintenance. It is an ideal solution for electronic engineers, especially field application engineers, to meet diverse power source needs.

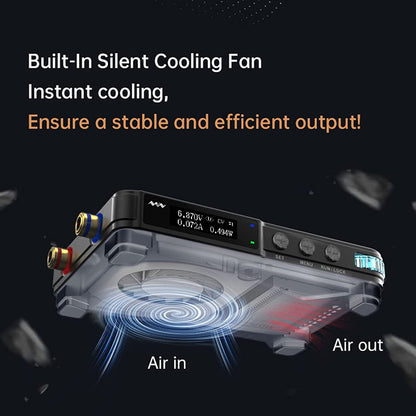

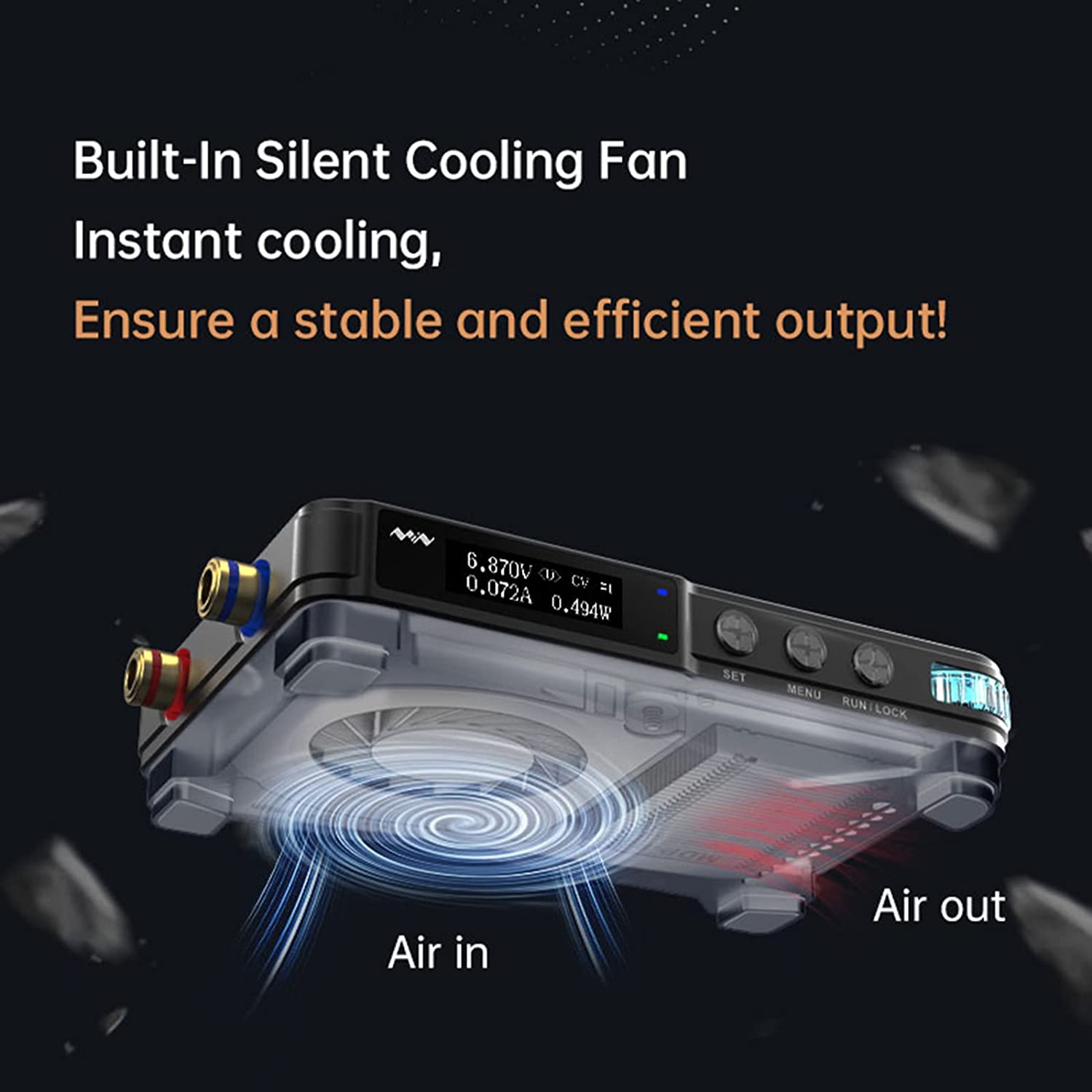

  • Built-in silent cooling fan ensures instant cooling, maintaining stable and efficient output!

Built-in High-Performance MCU

  • Smart linear compensation, constant voltage & constant current.

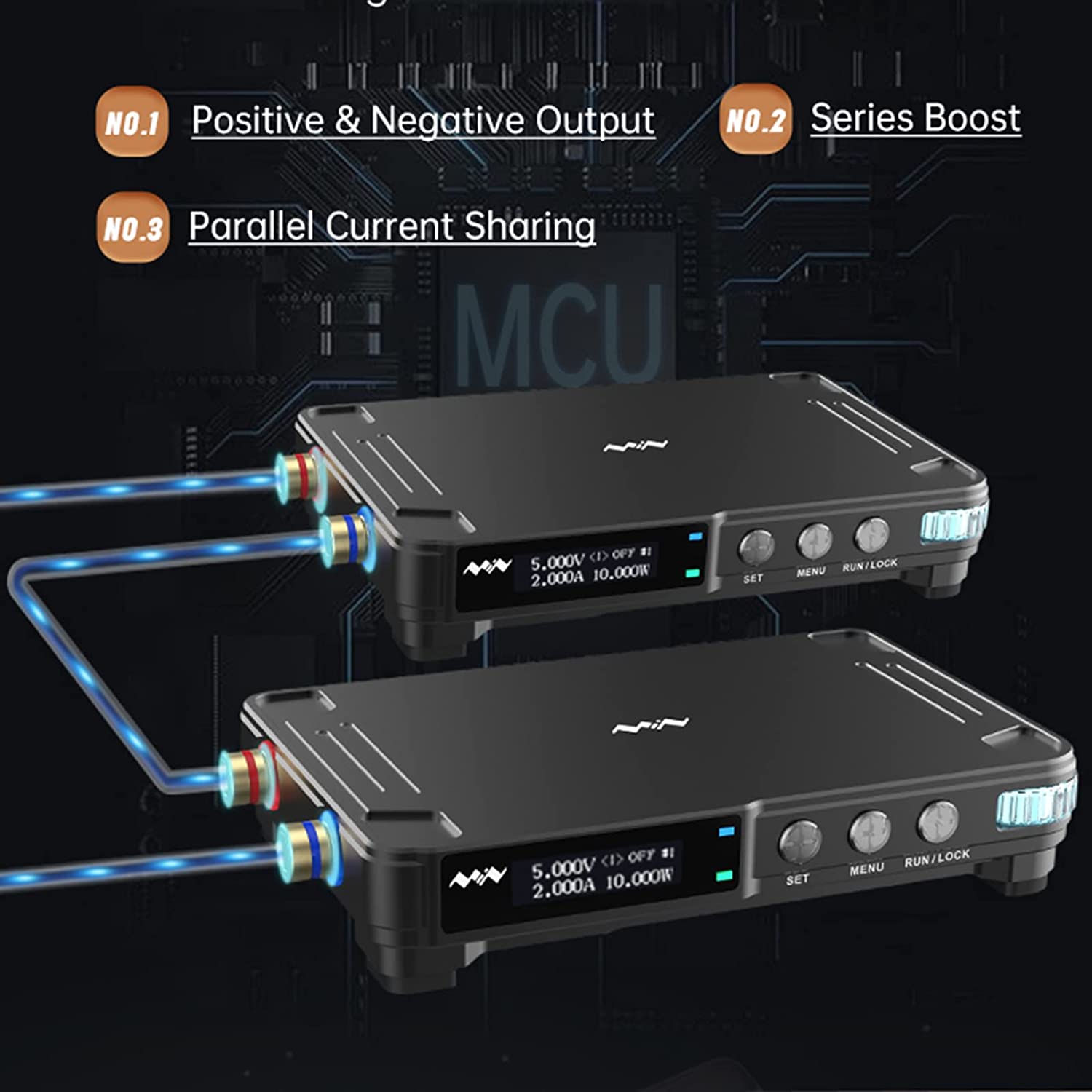

  • Positive & negative output, series boost, parallel current sharing.

Wide Applications

  • Universal tests and teaching experiments in R&D laboratories.
  • Maintenance of digital products.
  • Property verification and fault diagnosis of devices and circuits.
  • Emergency power supply for model airplanes and vehicles.
  • Power supply testing of RF and microwave circuits or modules.
  • Quality control and quality inspection.
  • Supply purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices.
Easy Upgrade

The MDP-XP module supports USB firmware upgrades, which users can perform by connecting to a computer via USB cable. The upgrade will optimize the product experience and introduce additional functionalities.

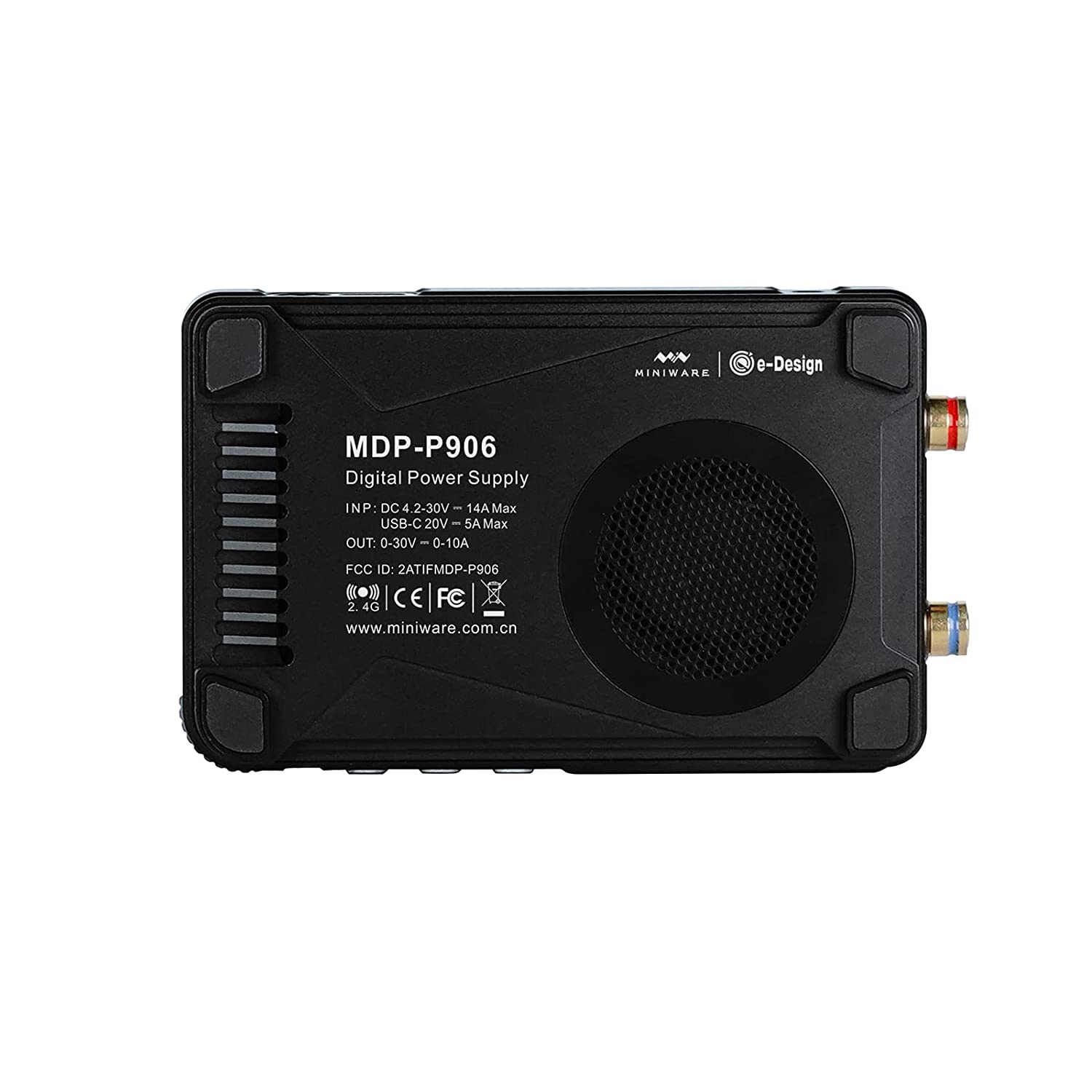

Input: DC 4.2V-30V (After startup 2.7V), 100mA-6A, Supports QC3.0
Output: 30V/10A, 300W
Adjustment Rate: Load adjustment rate < ±0.01%; Power adjustment rate < ±0.01%;
Ripple and Noise: 250µVrms/3mVpp
Transient Response Time: ≤4µs
Line Loss Compensation: 5mR-100mR
Max Surge Protection (Normal): 14A (No spark in short circuit after protection ON)
Protection: Input over-voltage, under-voltage, anti-reverse, output anti-backflow, over temperature;
Data Recording: Max storage: 7MB; Max recording time: 24 hours;
