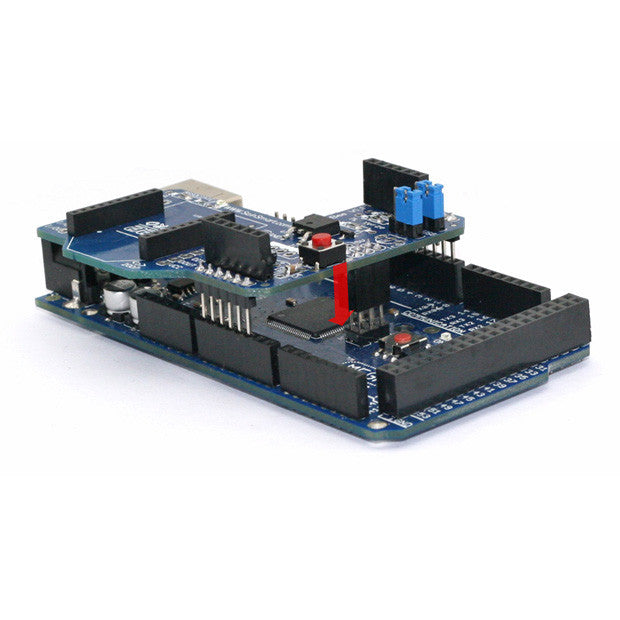

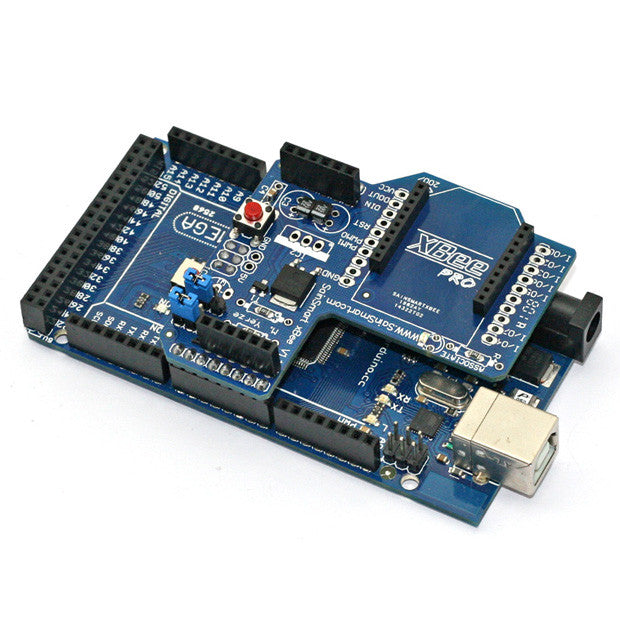

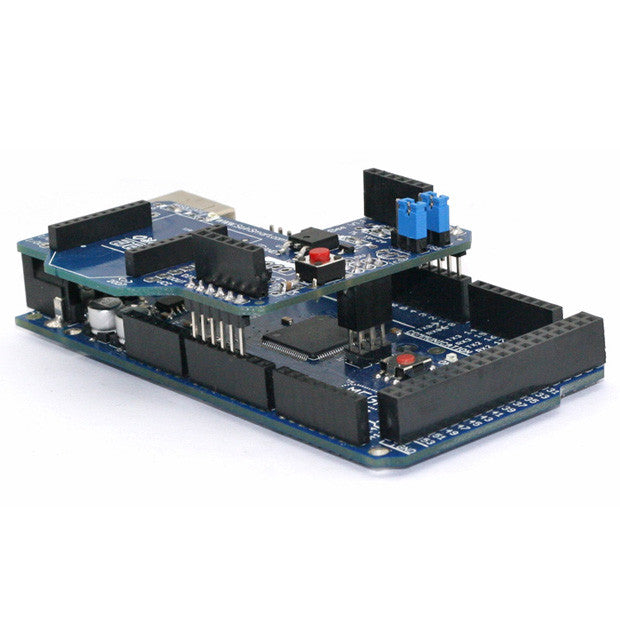

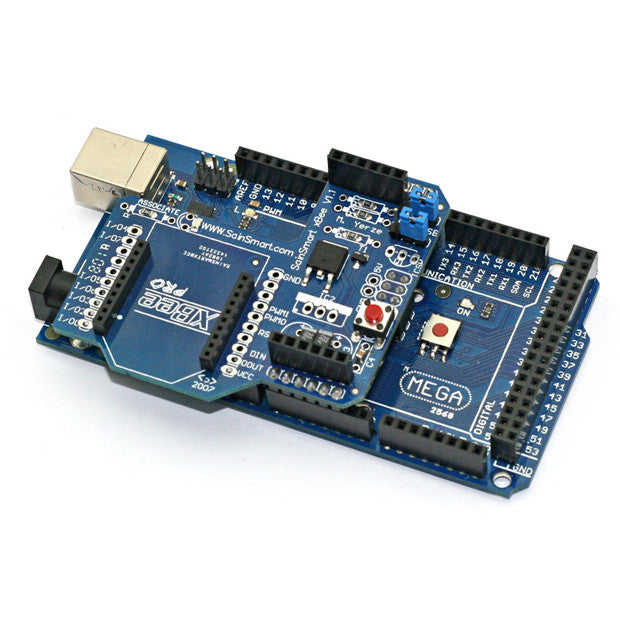

Mega 2560 + SainSmart XBee Shield For Arduino

brand: SainSmart SKU: 101-52-C03
$25.99

Build your wireless communication with Mega 2560 and XBee board

  • The SainSmart Mega2560 has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
  • The XBee board mates directly with the Arduino USB board and allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream
DESCRIPTION

The SainSmart MEGA 2560 Board for Arduino:

This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The SainSmart Arduino XBee board for Arduino:

It mates directly with the Arduino USB board and allows to wireless communicate over a modified ZigBee protocol using the popular XBee module from Maxstream.

The module is easy to use, low power consumption, and the provision of critical data between devices reliable transmission. As the innovative design, XBee-PRO can be in the range 2-3 times beyond the standard ZigBee modules. XBee-PRO modules work in the ISM 2.4 GHz frequency band. The MaxStream's XBee (1 mW) Zigbee module is pin-compatible.You can use a simple AT command to advanced configuration. An OEM developer is now XBee code development package. It is self-developed in collaboration with the MaxStream ZigBee/802.15.4 RF module code.


WHAT'S IN THE PACKAGE
  • 1 x SainSmart Mega 2560
  • 1 x SainSmart XBee Shield
