SainSmart.com
Brand: SainSmart

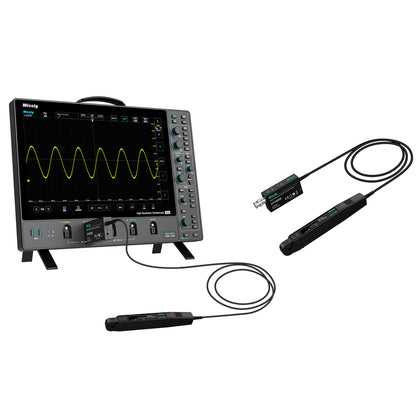

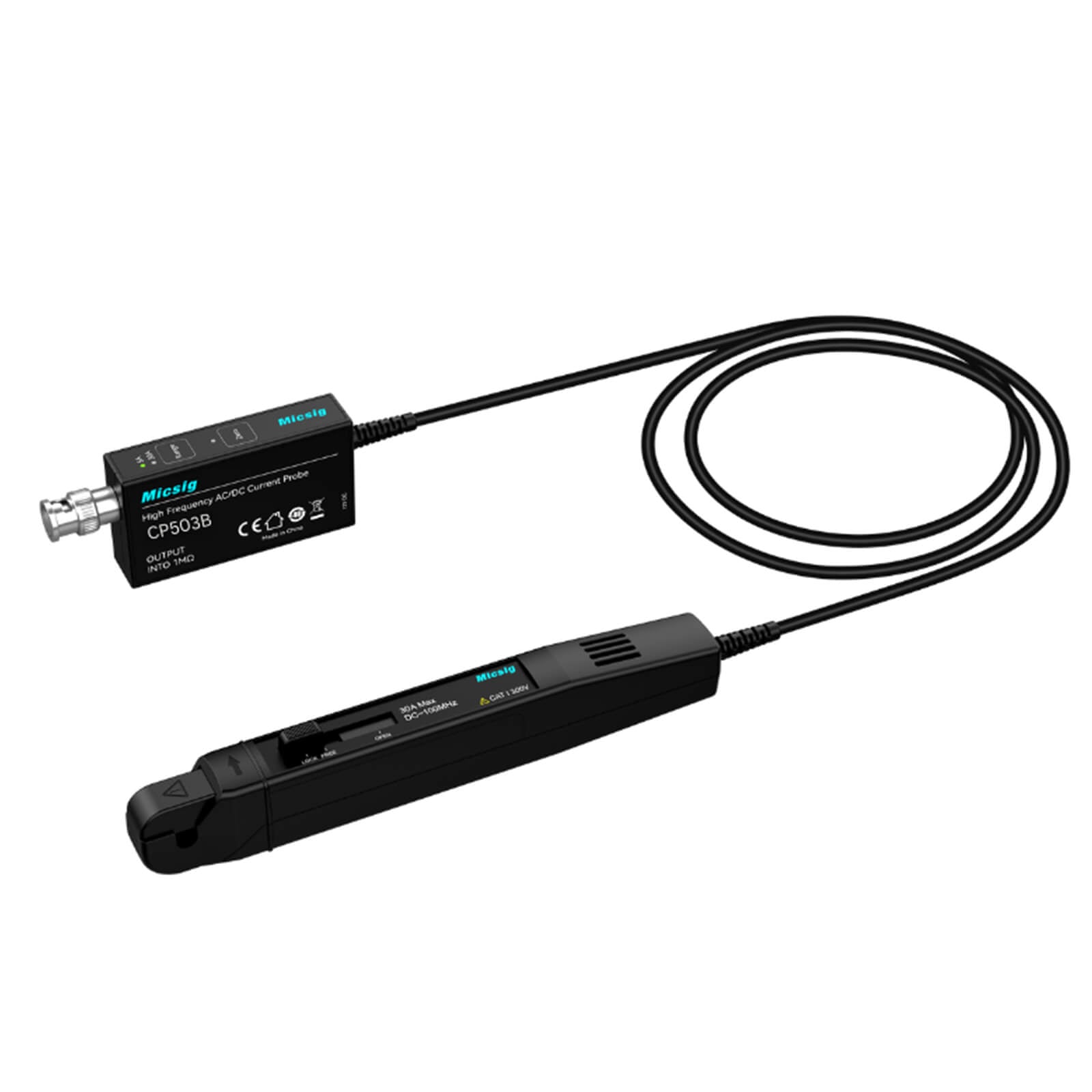

Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes

Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes

SKU:  101-10-CP503B
$599.99
-Liquid error (snippets/price line 166): divided by 0 $599.99
US FREE SHIPPING
Shipping & Tax calculated at checkout.
Ship to
  • 101-10-CP503B
  • 101-10-CP503B
  • High Precision Measurements: Experience accurate current readings with the Micsig CP503B Current Probe, offering a bandwidth of DC~50MHz and a current range of 5A/30A with a typical DC accuracy of ±1%, ensuring reliable performance for your most demanding applications.
  • Compact & Exquisite Design: The Micsig CP503B is not only powerful but also designed with a compact and exquisite form, making it a perfect fit for any workspace without compromising on performance.
  • Advanced Features for Enhanced Usability: Equipped with auto degassing and zeroing functions, along with an overload indicator, this probe simplifies your measurements and ensures that you're always working within safe operational limits.
  • Capture Surge Currents with Precision: The Micsig CP503B is designed to accurately capture surge current waveforms, especially useful when monitoring the power adapter during startup, allowing you to observe and analyze critical high-frequency signals.
  • Ideal for High-Frequency Applications: Whether you're dealing with high-frequency AC or DC currents, the Micsig CP503B is engineered to deliver precise measurements, making it an essential tool for professionals working with oscilloscopes.
View full details
Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes | SainSmart
Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes | SainSmart

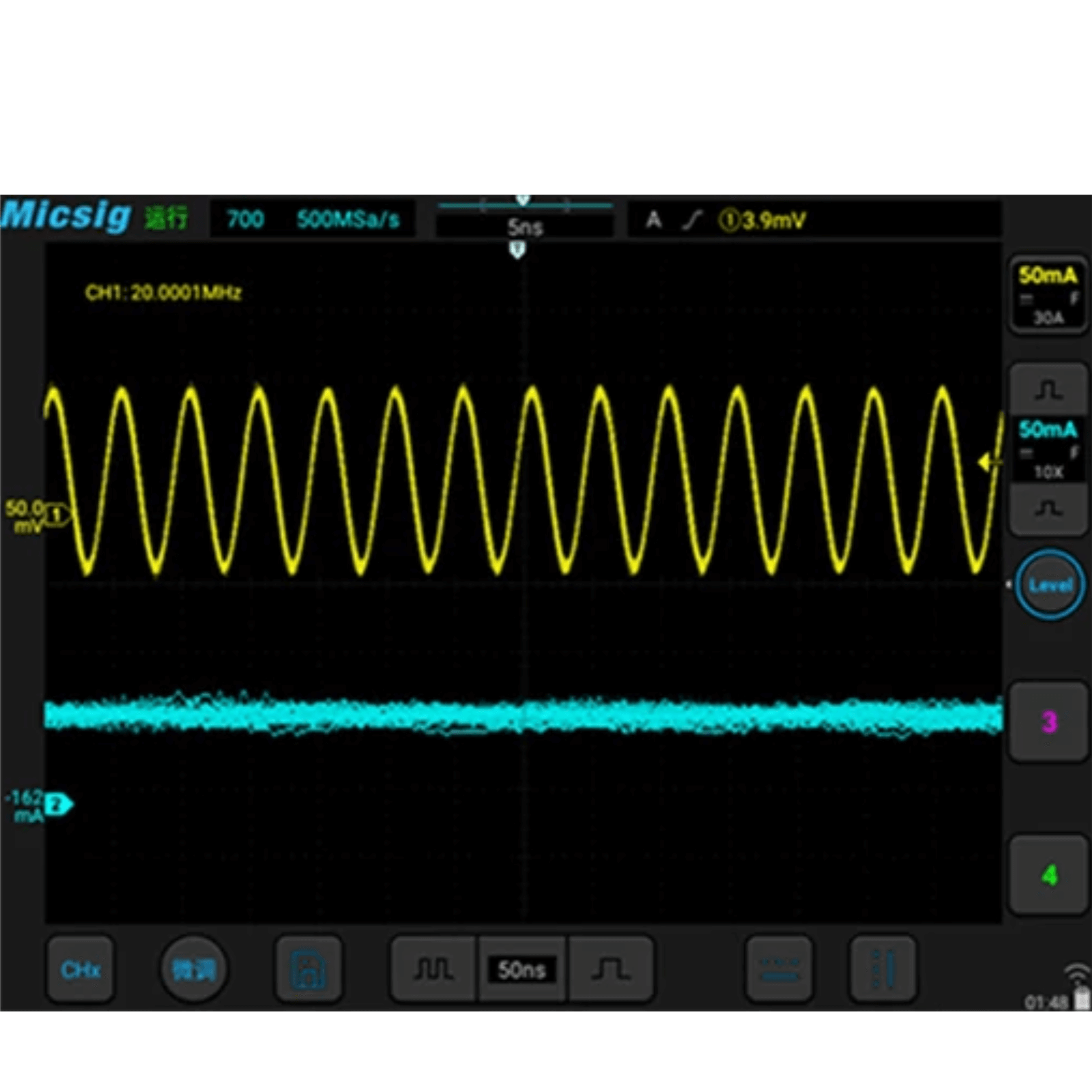

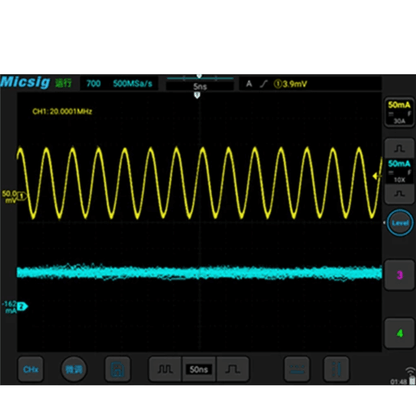

HF Current Signal Measurements

Accurate measurement capability on high-frequency signals >20MHz. (CH1 Yellow). Same signal completely distorted when measured by low-frequency probe. (CH2 Blue)
Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes | SainSmart

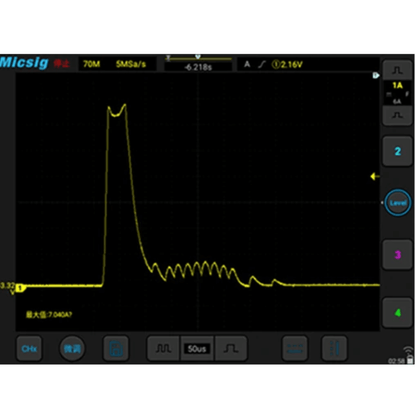

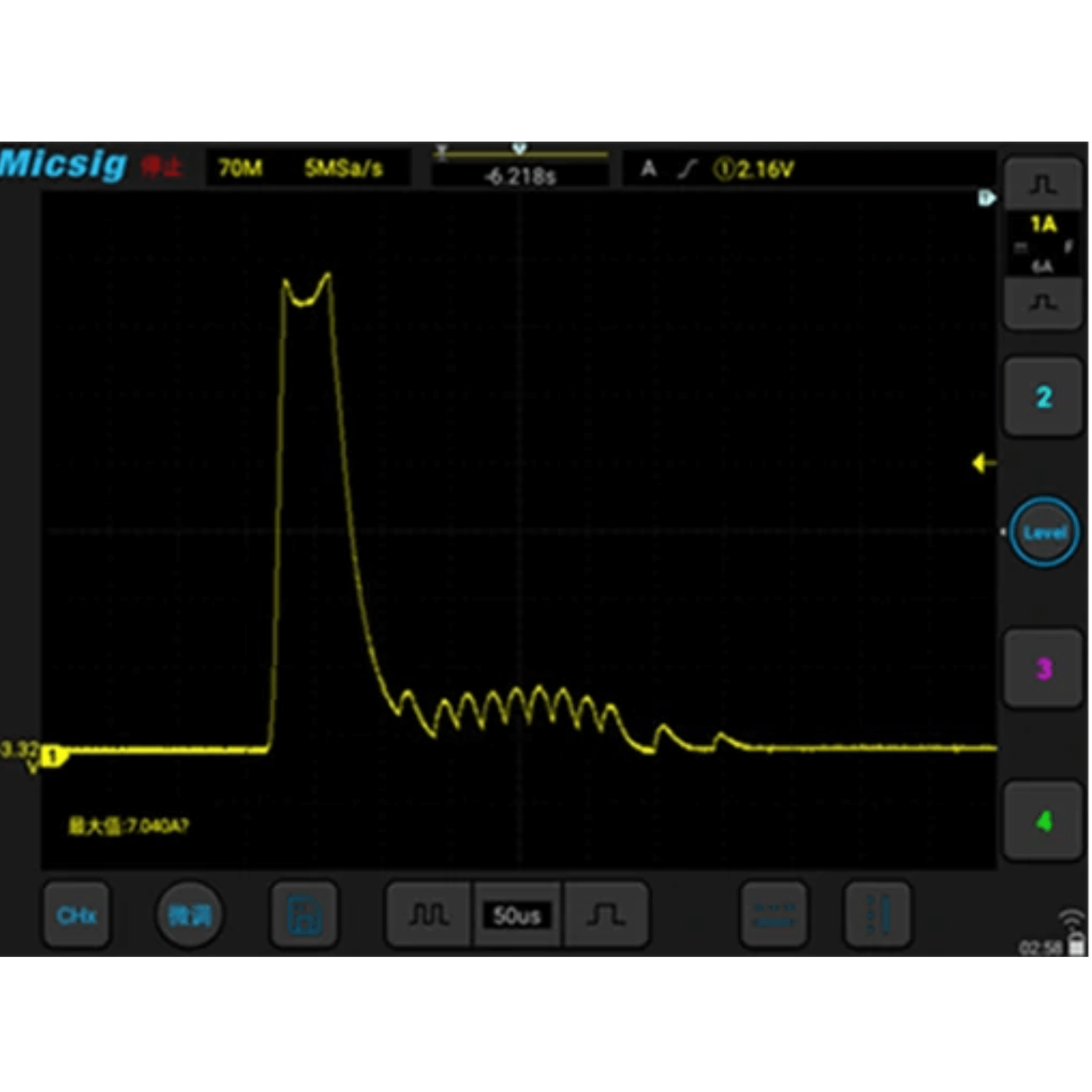

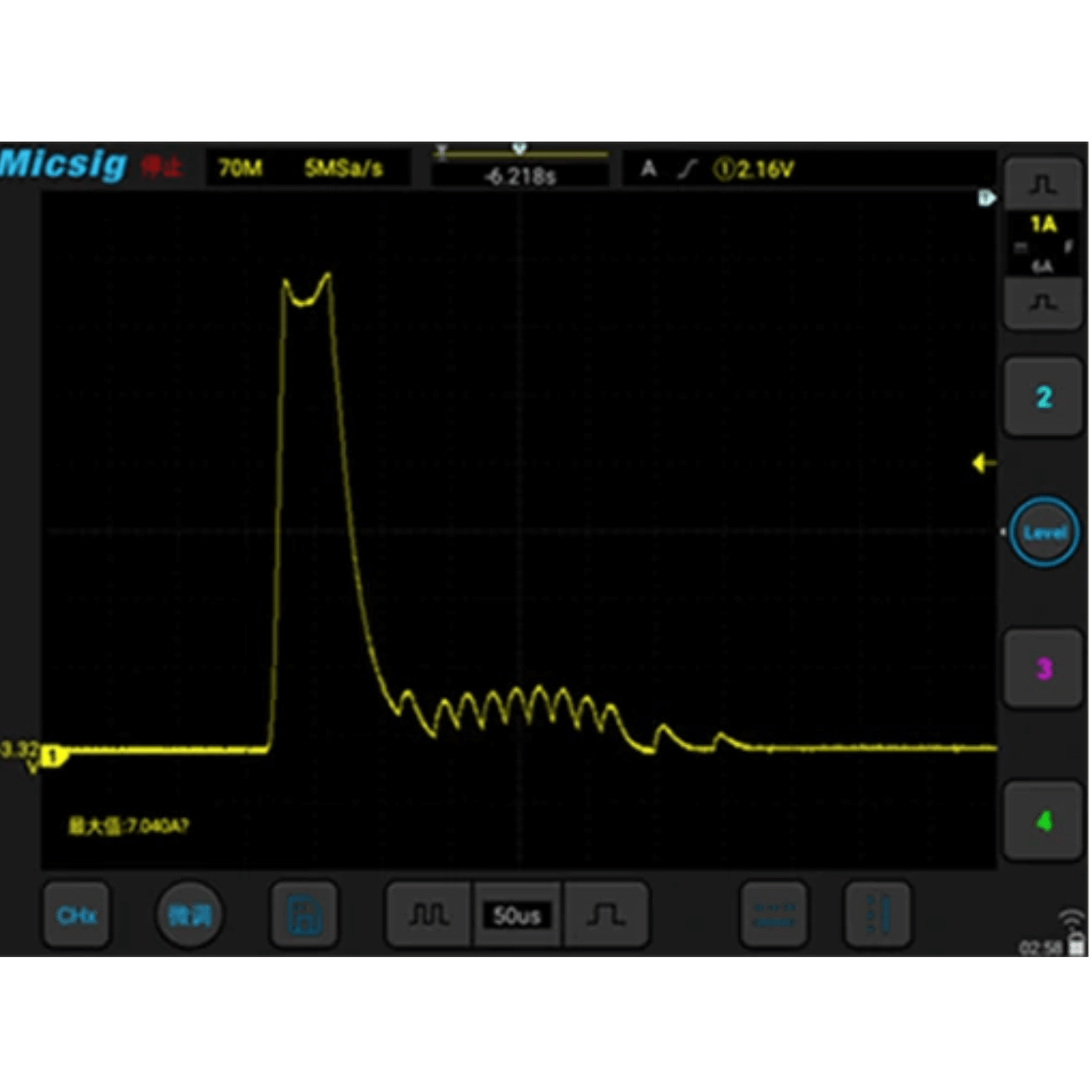

Observe Surge Current

Accurately capture the surge current waveform when the power adapter starts
Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes | SainSmart

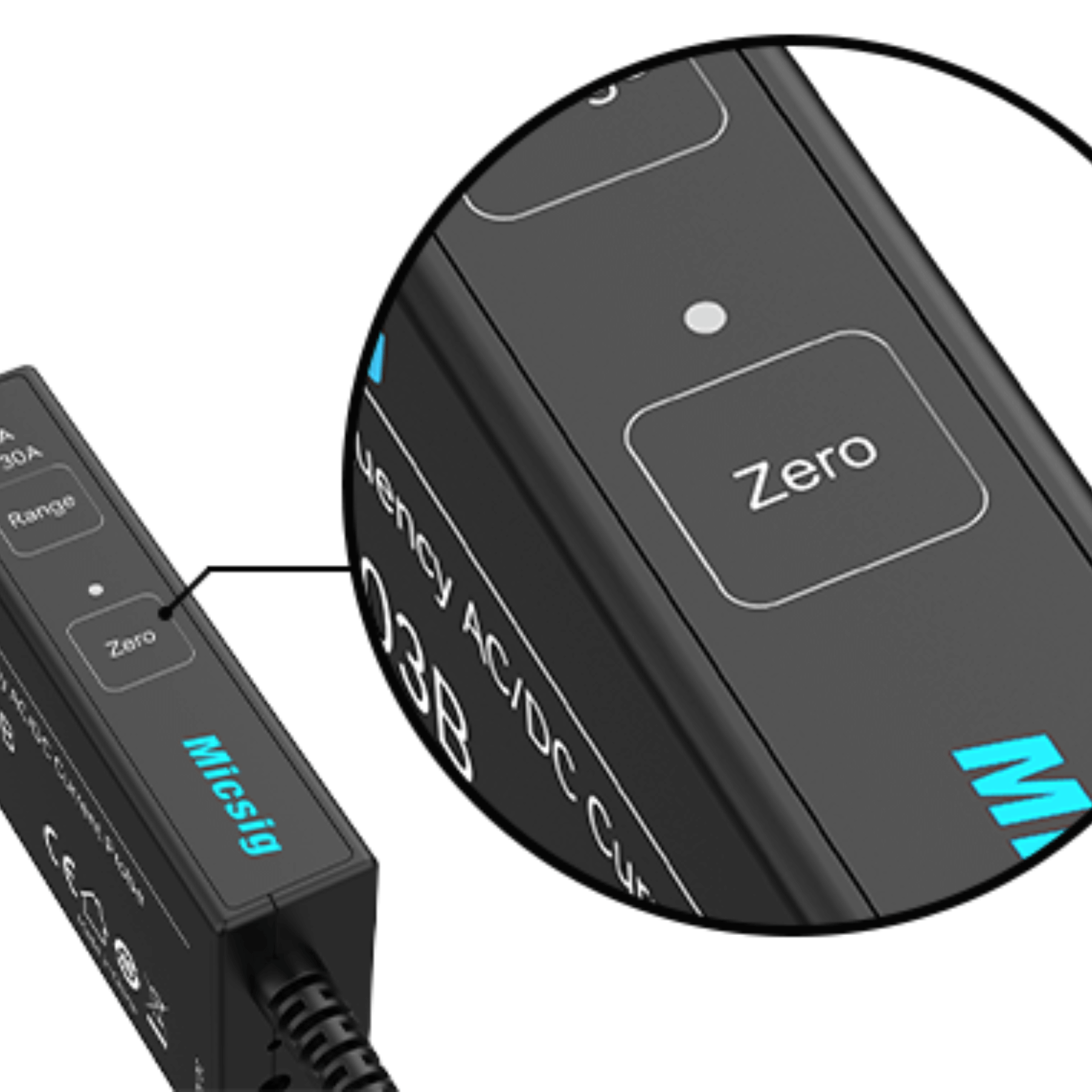

Auto Degassing and Zero

Press "Zero", the probe will be degassed and calibrated automatically at the same time.
Micsig High Precision AC/DC Current Probe CP503B, 50MHz Bandwidth, 5A/30A Current Range, ±1% Accuracy, Compatible with Oscilloscopes | SainSmart

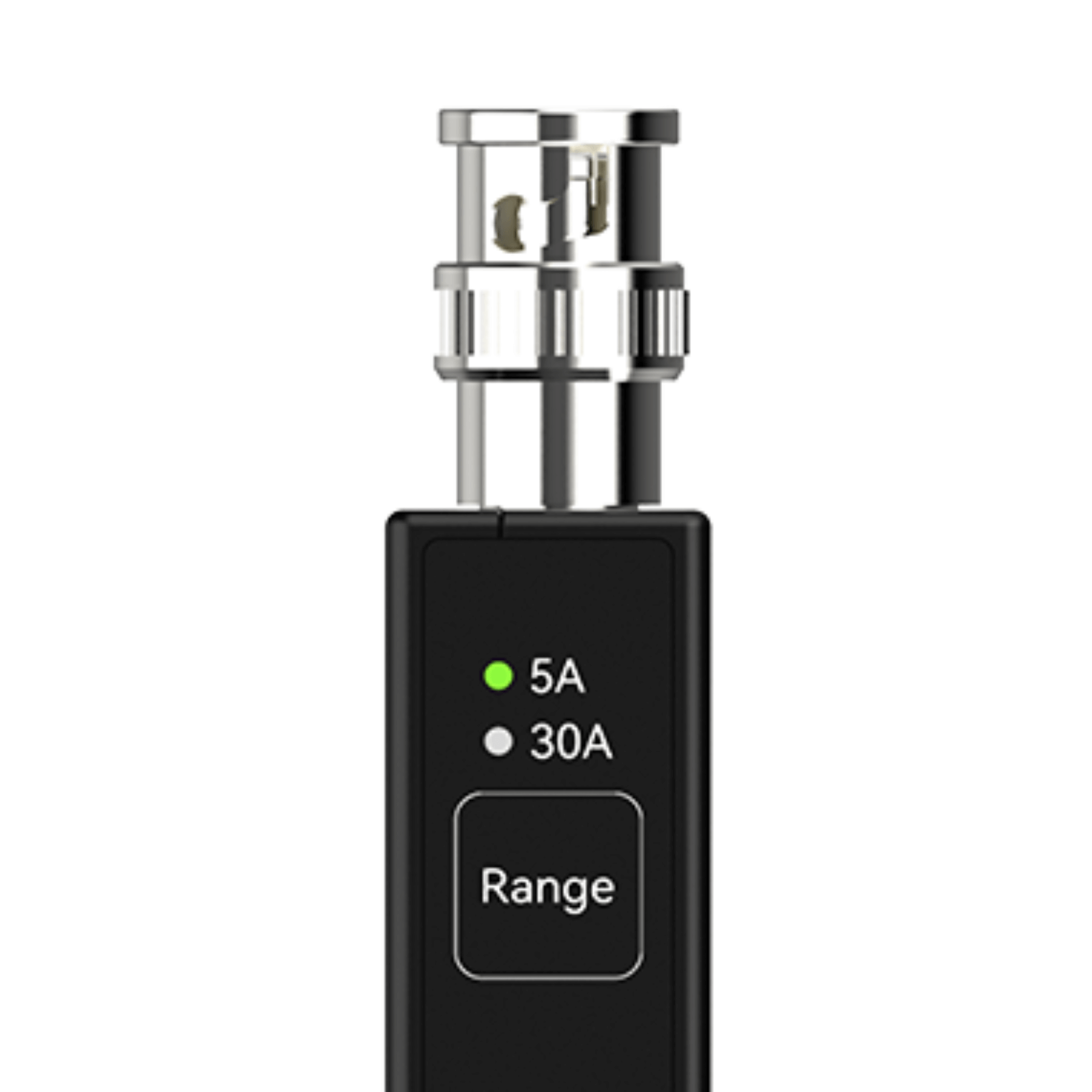

Overload Indicator

When the current is overloaded, the corresponding range button will flash.
卖点文案标题

Applications

  • Electric vehicle transportation design
  • Switching power supply design
  • Experiment of electronic engineering
  • Semiconductor devices design
  • Avionics design
  • Inverter/Transformer design
  • Electronic ballast design
  • Industrial Control / Consumer Electronics design
  • Engine driven design
  • Power electronics and electric drive experimental design

Specifications

  • Dual range selection, easy to measure low current
  • Degassing and automatic Zero setting
  • 1% DC accuracy, meet more measuring requirements
  • Standard BNC interface, suitable for all oscilloscopes (CP1003B/CP503B)
  • Degassing and Auto Zero sync completed
  • Overload flashing light indicator
  • Standard USB adapter power supply
  • Support Manual and Automatic Zero calibration

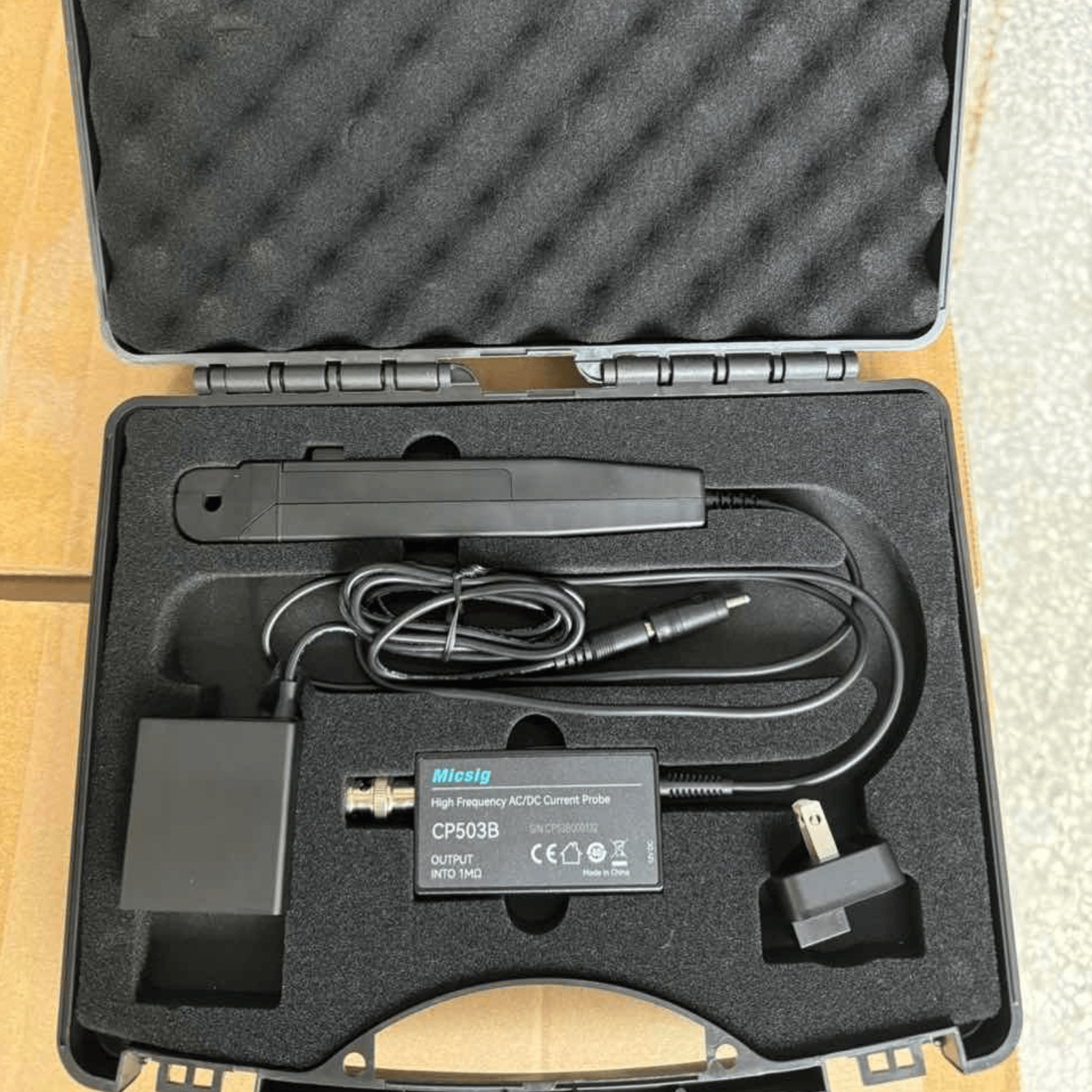

What's in the box

  • High Frequency AC / DC Current Probe*1
