Brand: SainSmart

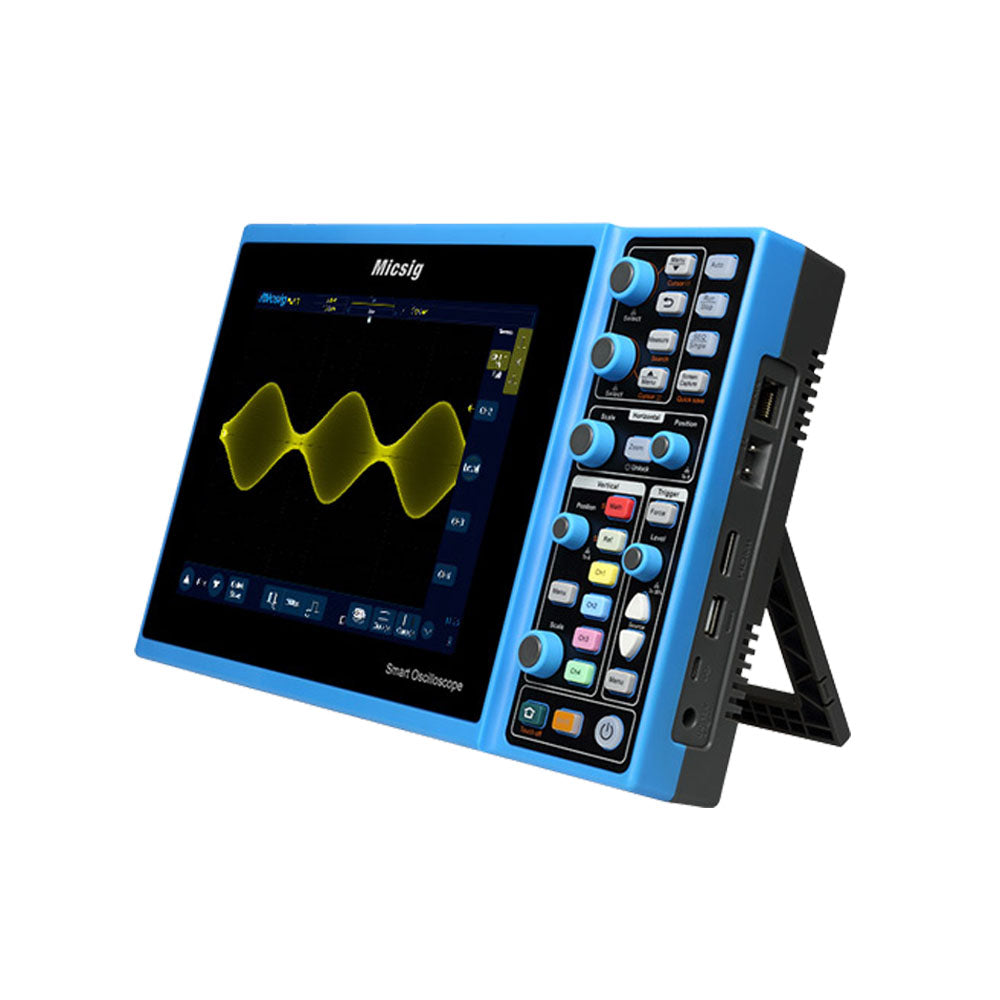

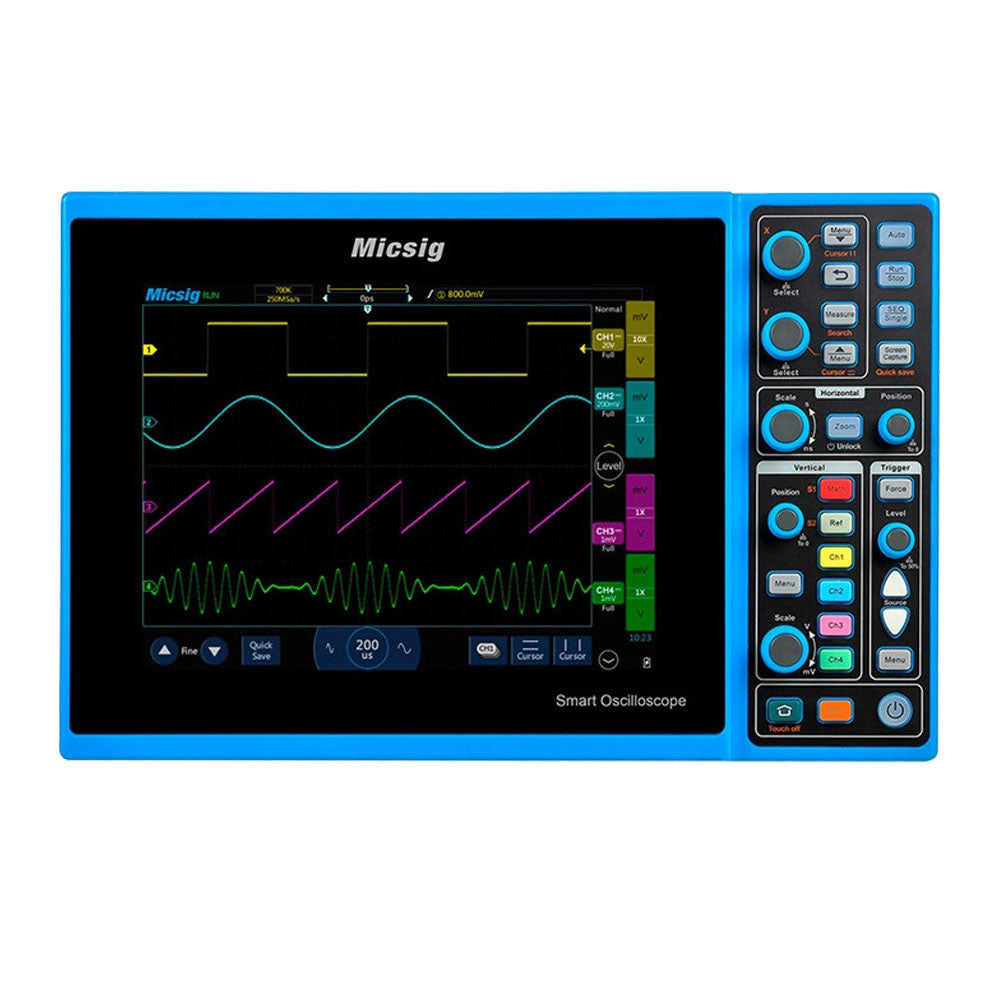

Micsig STO1152C 150Mhz Digital Oscilloscope

SKU: 101-10-ST1152C Variants ID: 39392905887823
$599.00
US Free Shipping

Powerful Performance: 150MHz Bandwidth, 2 Analog Channels, Sample Rate up to 1GSa/S, Memory Depth 28Mpts, Max Capture Rate 80,000 wfm/s, 8''TFT LCD Display, 7.4V 7500mAh rechargeable lithium battery included, battery life up to 5 hours.

User-friendly Design: Support Full Touch Operation, Physical Knob & Button Operation or Mixed Operation. When you do not want to use touch or knob operation, you could use the Mouse Control (wired mouse or wireless mouse) or Remote Control. It supports the APP (iOS and Android) and PC software remote control.

Simple to Use: The Unique file management system makes the waveform data saving and transferring more easier. It supports Video Record, Quick Save, Screenshot, One Button Fast Operation and has the built-in 8G storage capacity.

Versatile: The Micsig STO1152C is great for school projects,, electronics maintenance, electronic engineering tasks, training and education, etc.

Satisfaction Guarantee: We offer a 3-year manufacturer’s limited warranty and lifetime customer support for this product. Online firmware update and quick start guide are available.

YOU MAY ALSO LIKE: Micsig Oscilloscope Probe CP2100A

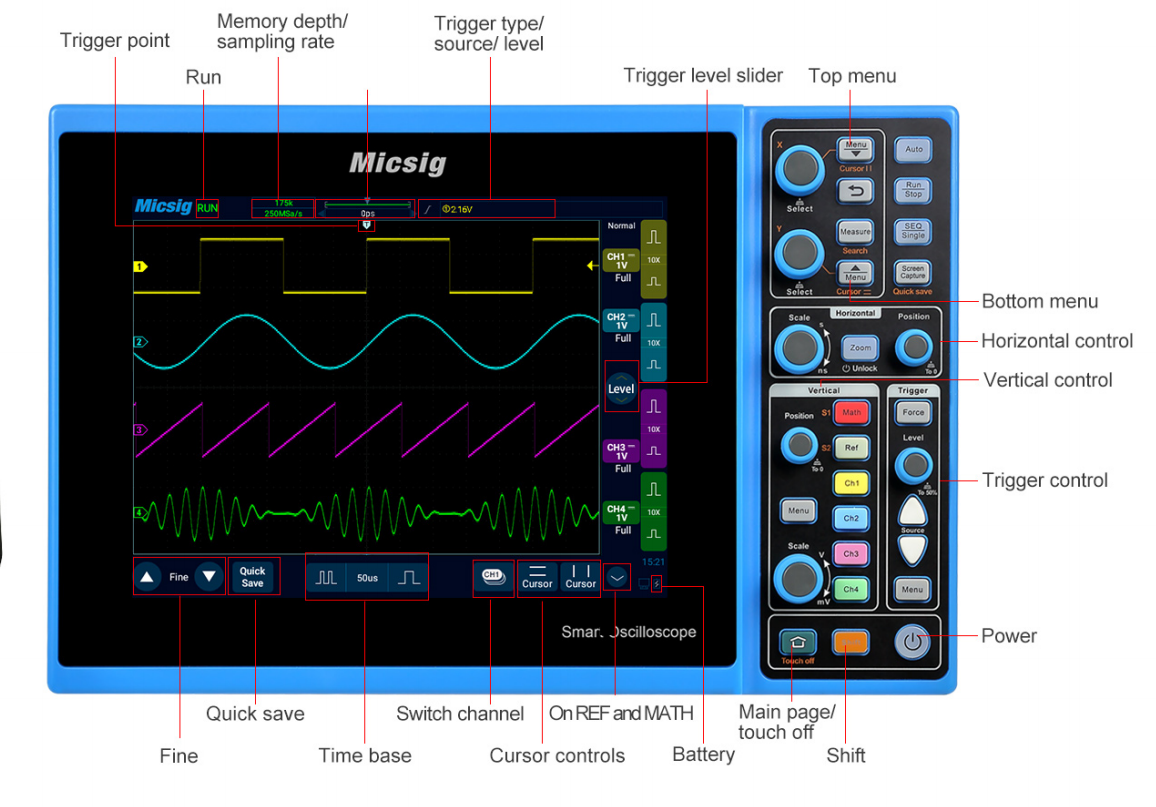

The Micsig STO1152C Plus is a new portable intelligent oscilloscope released by Micsig. It adopts a high-sensitivity digital trigger system with small trigger jitter, supports serial bus trigger and decoding. It also has rich measurement and mathematical operation functions come standard with a digital filter module and supports a 256-level waveform grayscale display and color temperature display. Equipped with an 800*600 resolution 8-inch industrial capacitive touch screen and highly integrated control panel, which makes the oscilloscope support multiple operation modes: full touch operation, physical knob & button operation or mixed operation, combined with Micsig's unique patented touch algorithm technology, which elevates the user experience to a whole new level.

FEATURES

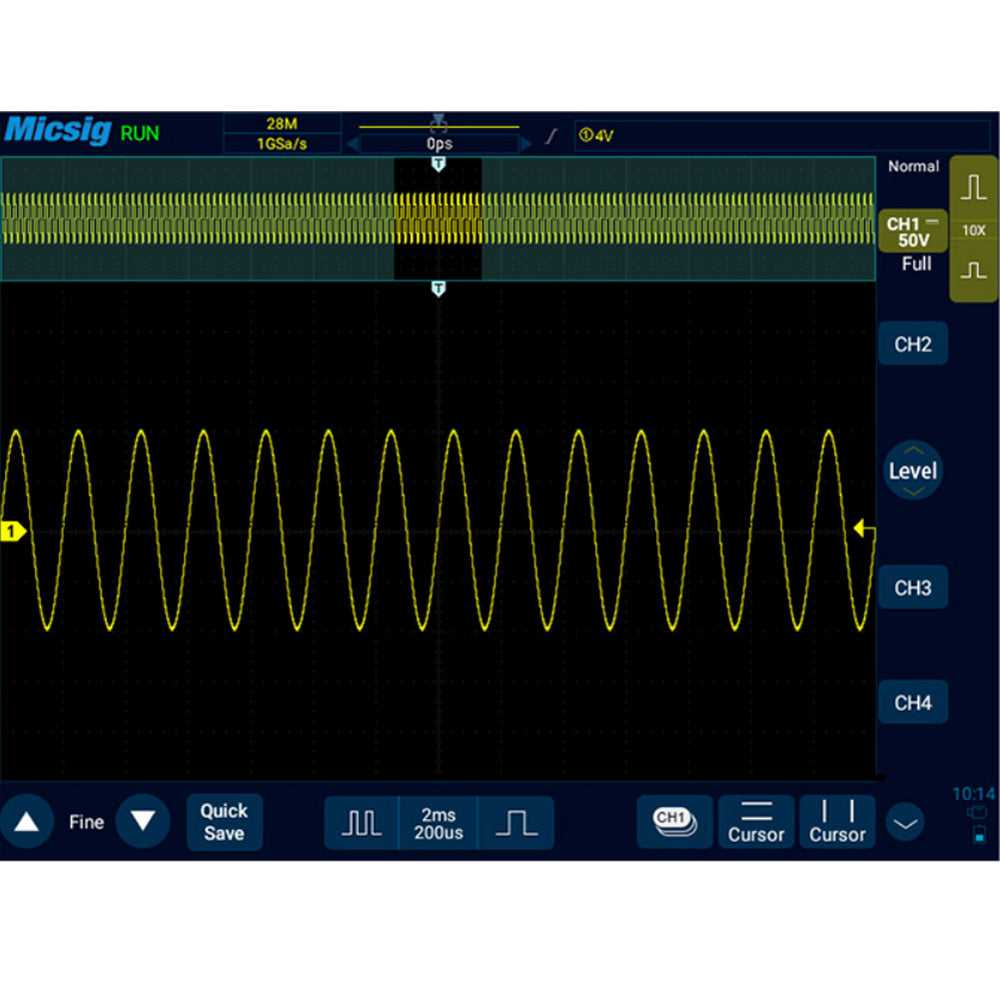

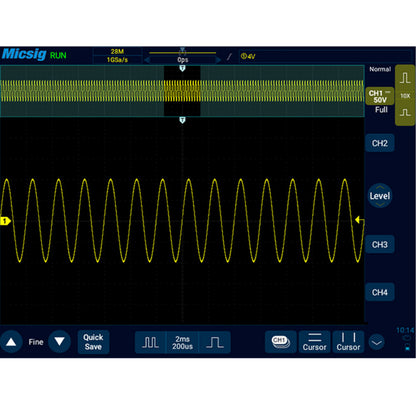

Up to 28Mpts memory depth, Zoom into a selected part of the captured waveforms to get more details.
Maximum 80,000wfm/s capture rate. By increasing the waveform capture rate, you see a more complete picture of what is going on with the signal.

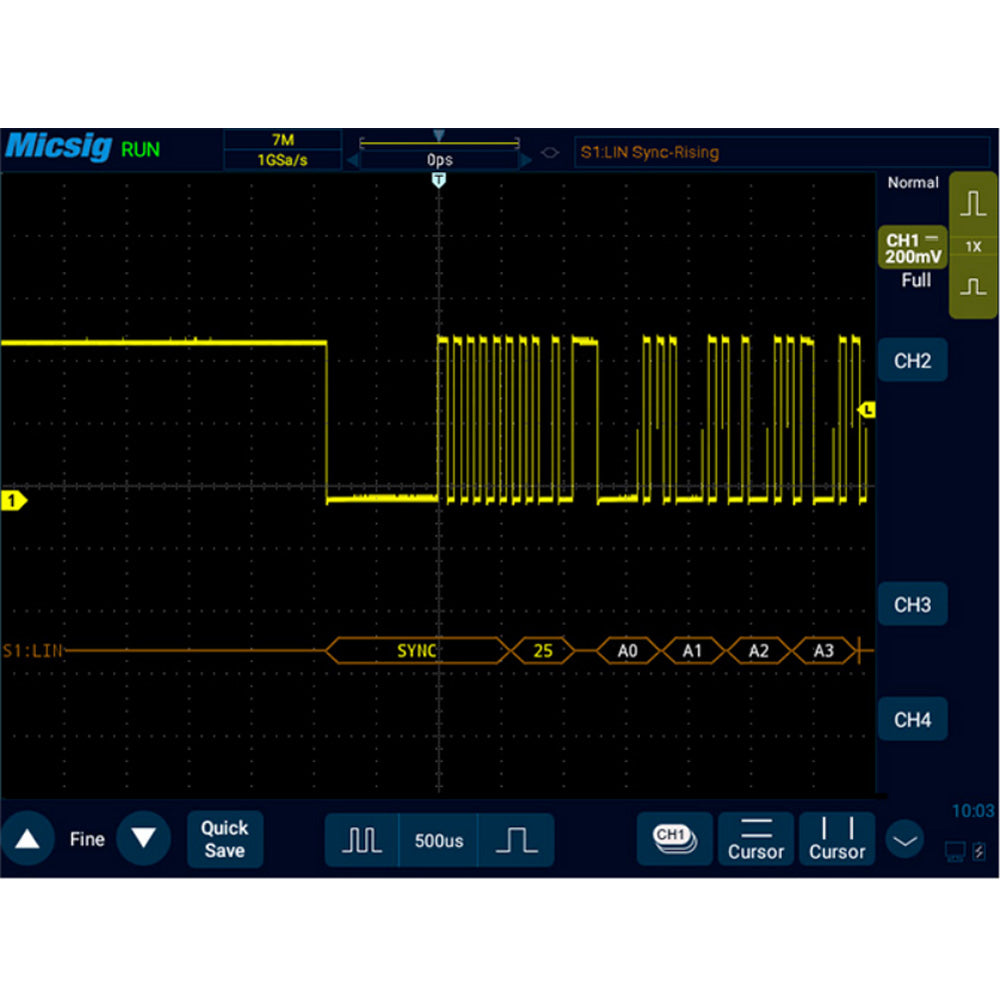

Support serial triggering and decode (12C, SPI, RS232/UART, CAN, LIN) and aerospace and defence (MIL-STD 1553, A RINC 429). Two formats to display decoding, text and graphic.

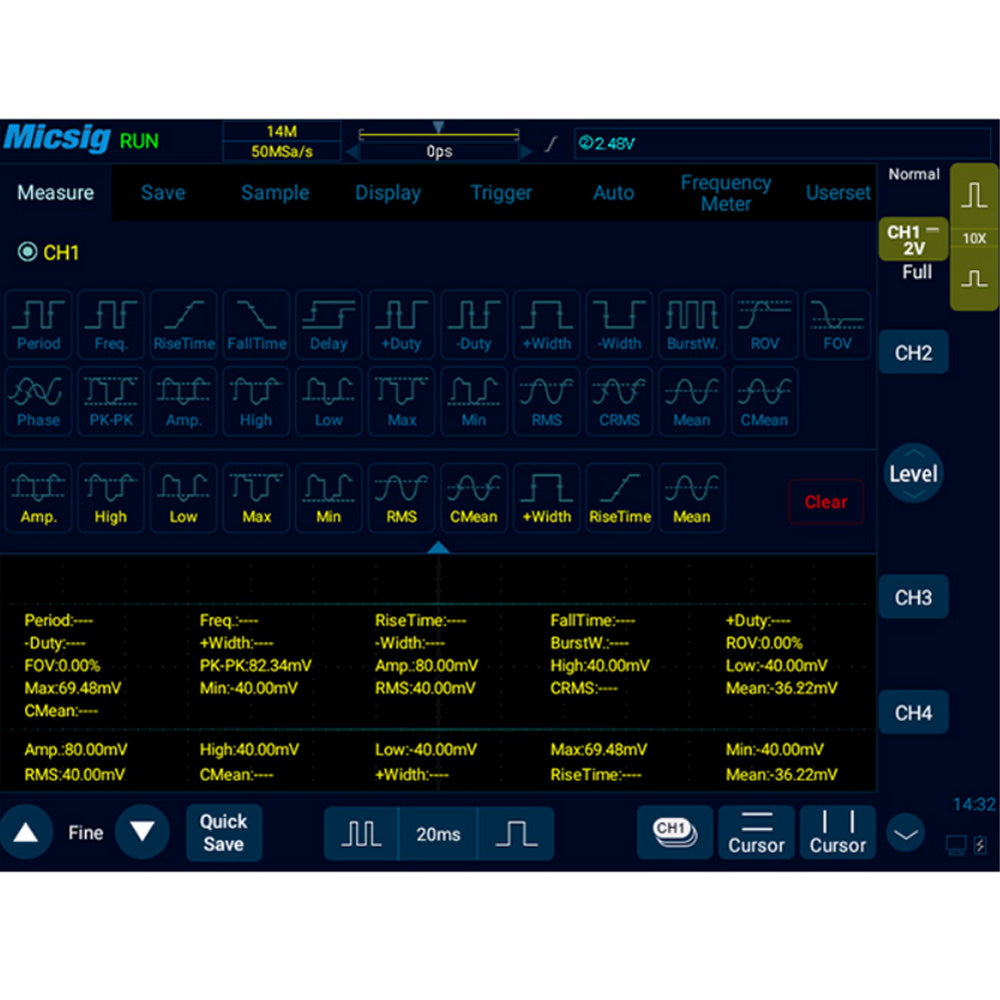

31 automatic measurements. Various automatic measurements can meet different measurement demands. It can display all in one page.

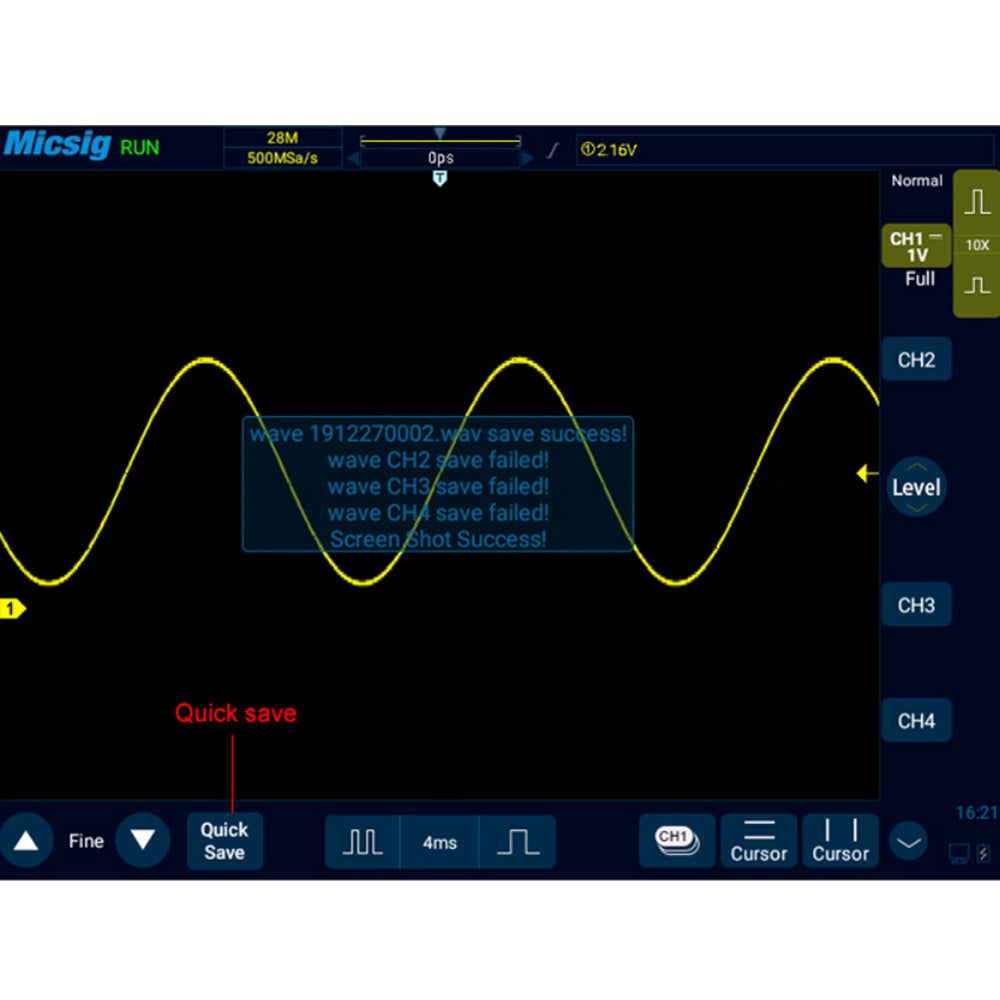

Built in 8G storage and unique file management system. Support video record, quick save, screen shot, one button fast operation.
Unique oscilloscope mobile APP and PC software via Wi-Fi, USB, Wi-Fi LAN and LAN connection. Support transfer data from scope to PC via Wi-Fi and USB. Support Micro HDMI to connect scope and display directly.

Specifications:

  • Model Name: STO1152C Plus
  • Analog Channel: 2
  • Bandwidth: 150MHz
  • Rise Time: ≤2.3ns
  • Sample Rate: 1G Sa/S
  • Max Capture Rate: 80,000 wfm/s
  • Memory Depth: 28Mpts
  • Bandwidth Limitation: 20MHz, high pass, low pass

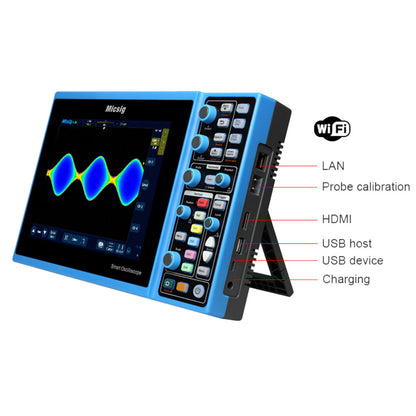

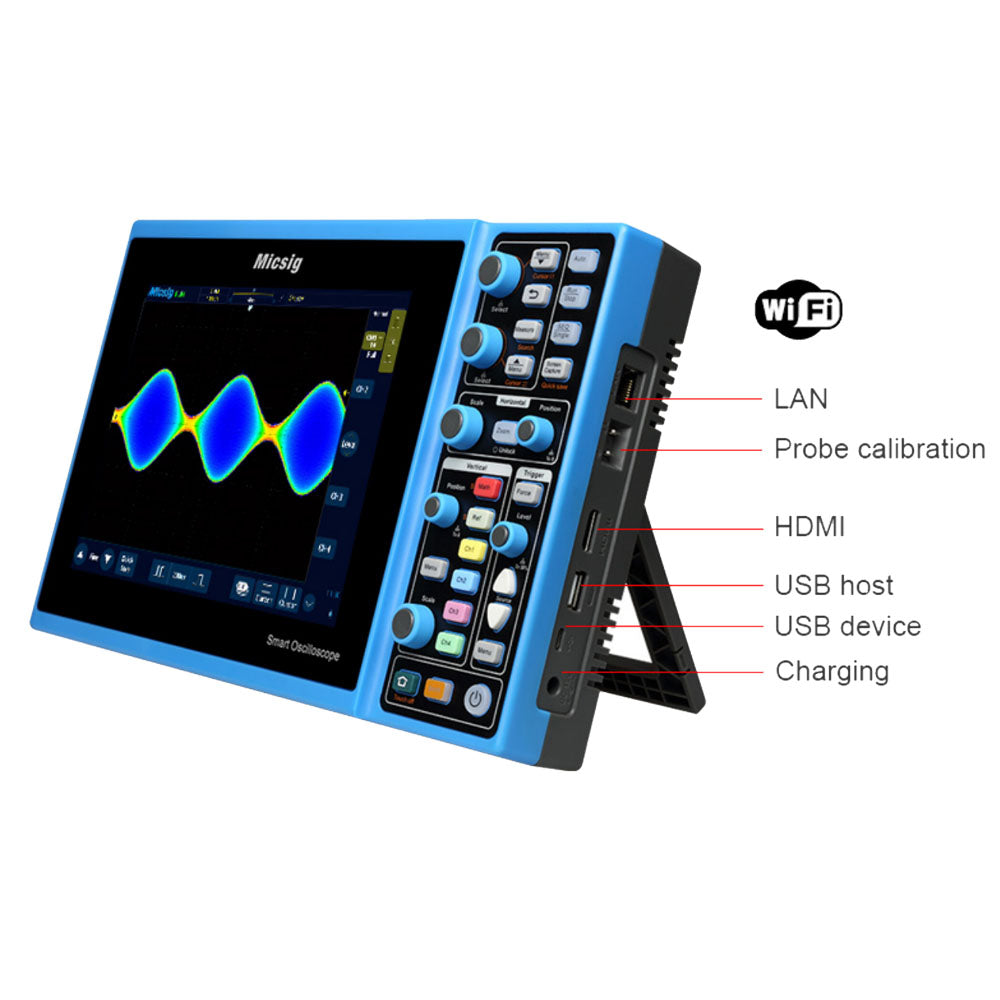

  • Interface: Wi-Fi, LAN, HDMl, USB Host, USB  Device, DCPower, Trigger out
  • APP: Support Android/ IOS
  • Built-in Storage Capacity: 8G
  • Trigger Types: Edge, Pulse Width, Logic, Video, Runt, Timeout, Nth Edge, Slope
  • Display: 8 inches TFT LCD, 800*600 pixels resolution, 14*10 grids
  • Automatic Measurements: Period, Frequency, Rise Time, Fall Time, Delay, Positive duty Cycle, Negative Duty Cycle, Positive Pulse Width . Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot , Phase, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS.
  • Math Function: +, -, *, /, FFT
  • Vertical Resolution: 8 bits
  • DC Gain Accuracy: ≤2%
  • Vertical Resolution: 1mV/div-10V/div
  • Serial Bus Trigger and Decode (Options): UATR, CAN, LIN, SPI, I2C, 1553B, 429

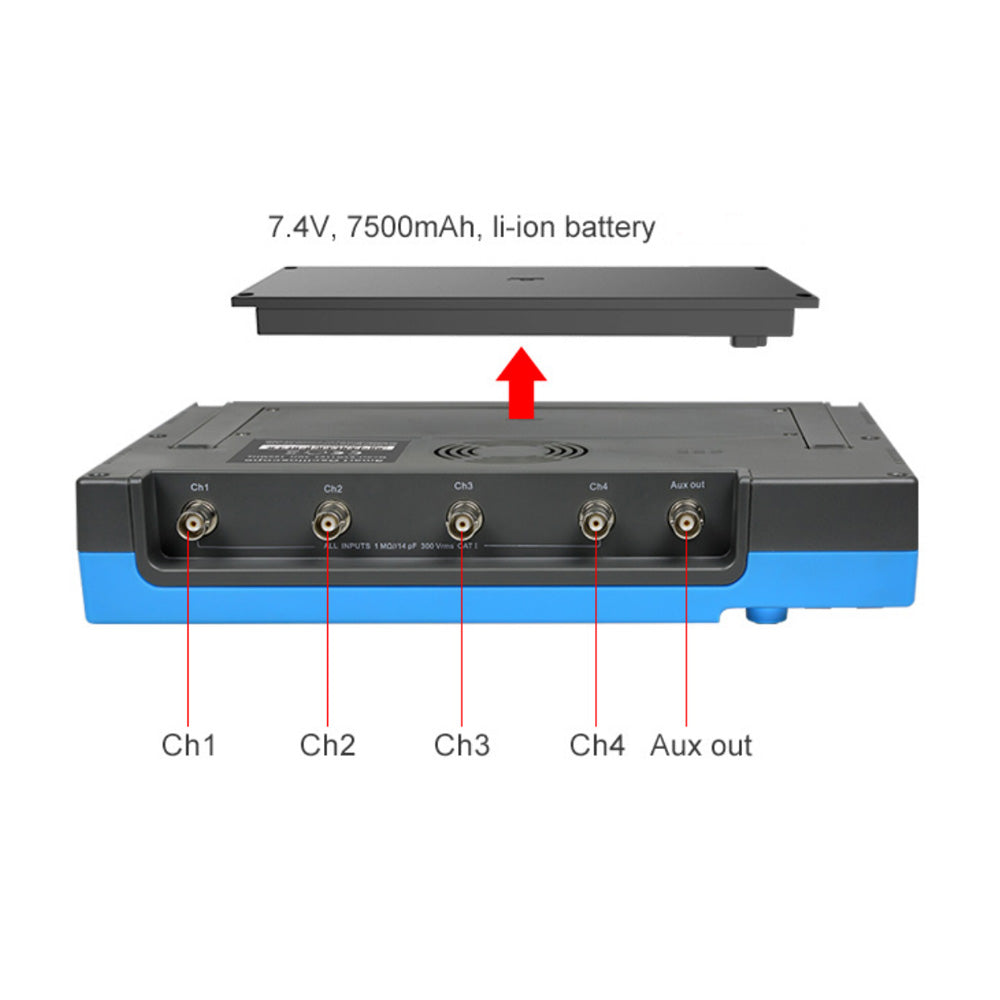

  • Battery: Built-in rechargeable lithium battery, 7.4V 7500mAh, working time is up to 5 hours continuously



Package List:

  • 1 x Micsig STO1152C Oscilloscope Main Unit
  • 1 x Power Adapter
  • 1 x Power Cable
  • 2 x Probe
  • 1 x User Guide
  • 3 x BNC Cap
  • 1 x Screen Protector Film
